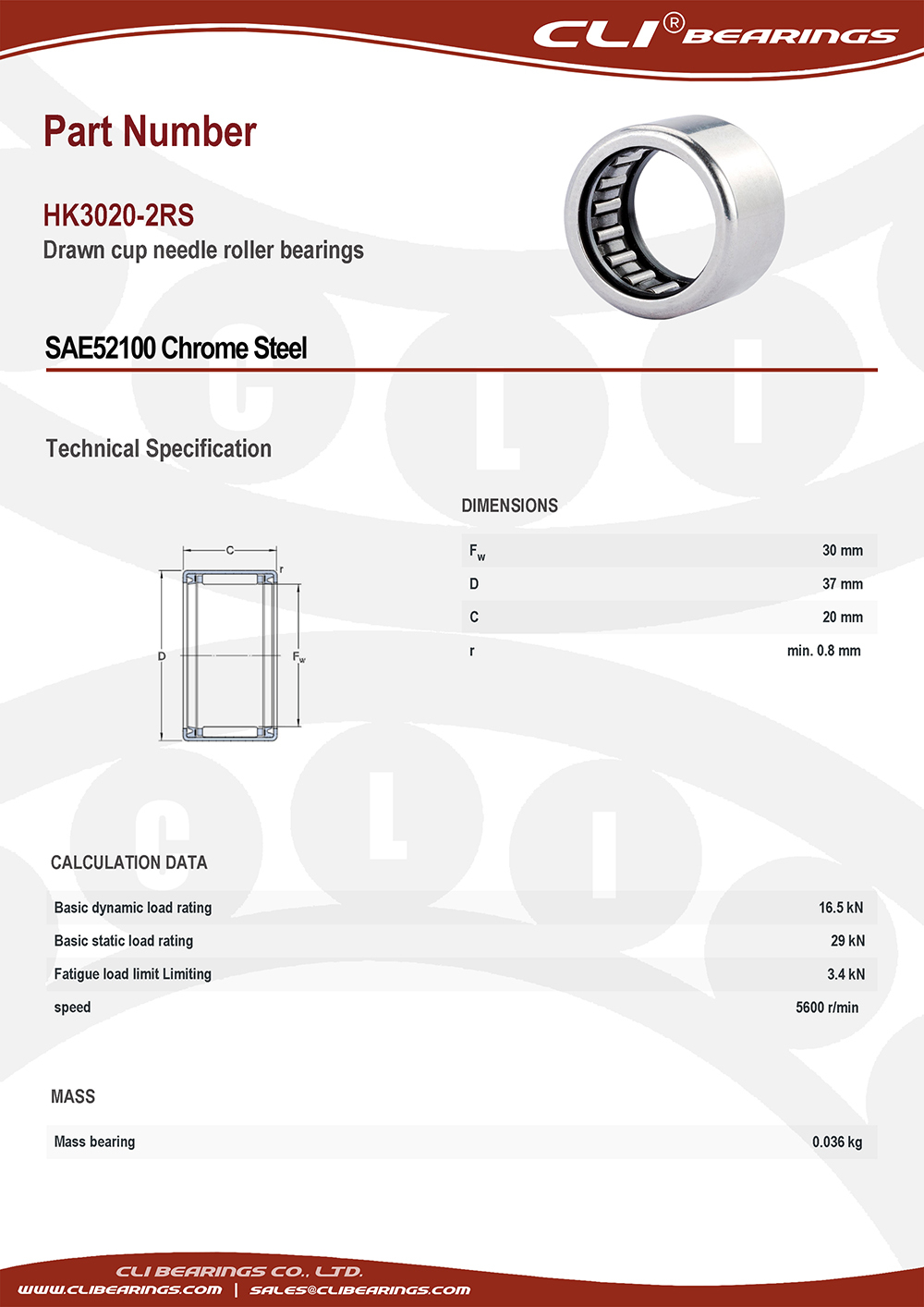

Roller Bearings-Needle Roller Bearings-HK drawn cup needle roller bearing with OPEN end, chrome steel AISI52100, METRIC SIZE- HK3020-2RS

 Part No.: HK3020-2RS
 Standards  Metric Size
 Bearing Type  Needle Roller Bearing
 Seal Type  Open
 Number of Row (s)  Single Row
 Load Direction  Radial
 For Shaft Diameter  30mm
 Bore Dia (d)  30mm
 Bore Dia Tolerance  +20 to +41 um
 For Housing ID  37 mm
 Outer Dia (D)  37 mm
 Outer Dia Tolerance  Not Rated
 Width (B)  20 mm
 Width Tolerance  -0.3 mm to 0 mm
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  17200 N
 Static Load Rating (Cor) (Newtons)  29000 N
 Fatigue limit load(Cur) (Newtons)  3750 N
 Max Speed (Grease) (RPM)  5200
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Working Temperature  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  36.0 g
 Wokring Precision  ABEC-1
 Brand  Neutral / CLI
Original hk3020 2rs drawn cup needle roller bearings 30x37x20 mm cli bearings co ltd nw
