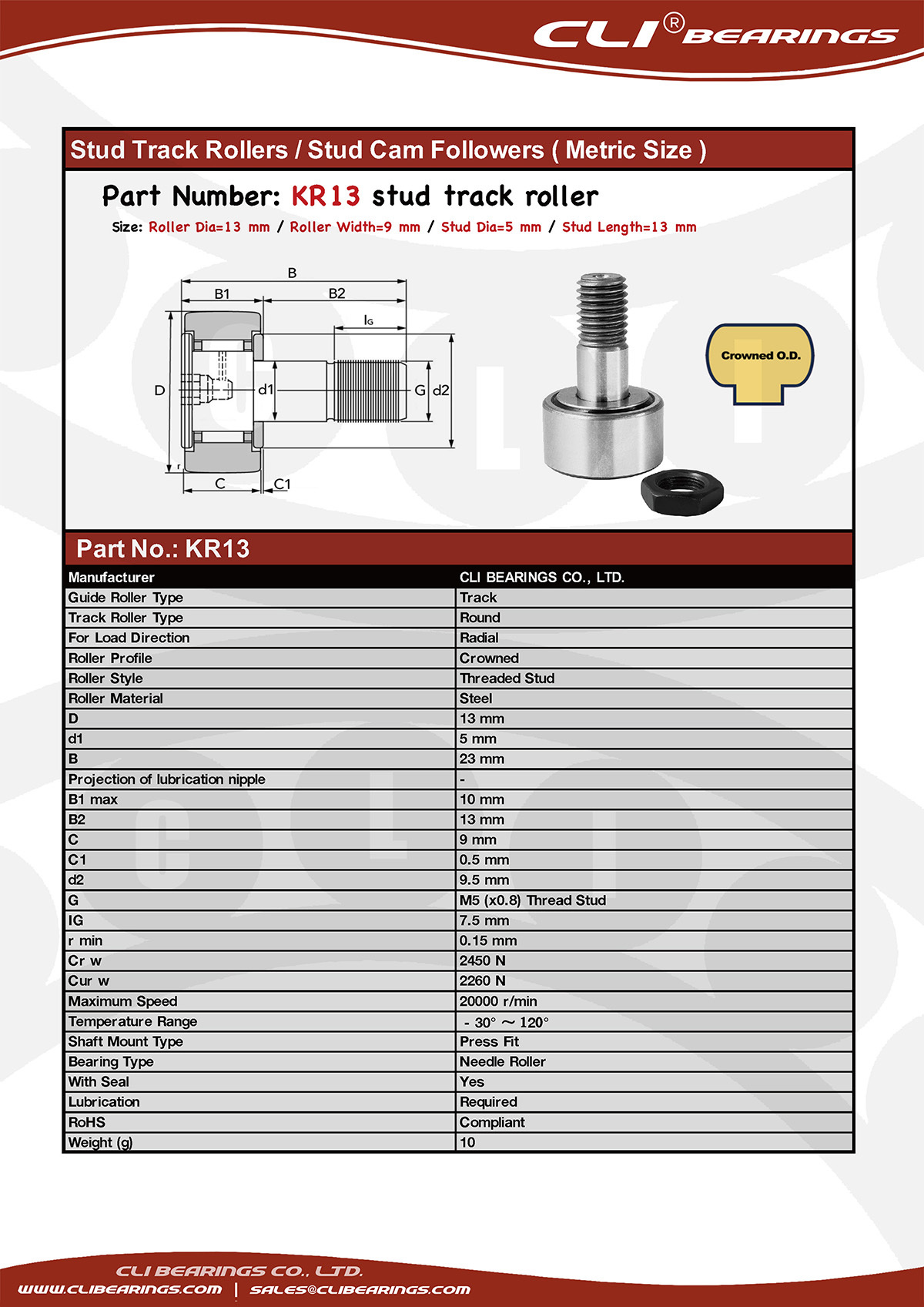

| Part No.: KR13 | |
| Manufacturer | CLI BEARINGS CO., LTD. |
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Crowned |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 13 mm |
| d1 | 5 mm |
| B | 23 mm |
| Projection of lubrication nipple | - |
| B1 max | 10 mm |
| B2 | 13 mm |
| C | 9 mm |
| C1 | 0.5 mm |
| d2 | 9.5 mm |
| G | M5 (x0.8) Thread Stud |
| IG | 7.5 mm |
| r min | 0.15 mm |
| Cr w | 2450 N |
| Cur w | 2260 N |
| Maximum Speed | 20000 r/min |
| Temperature Range | - 30° ～ 120° |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 10 |
 |
|
