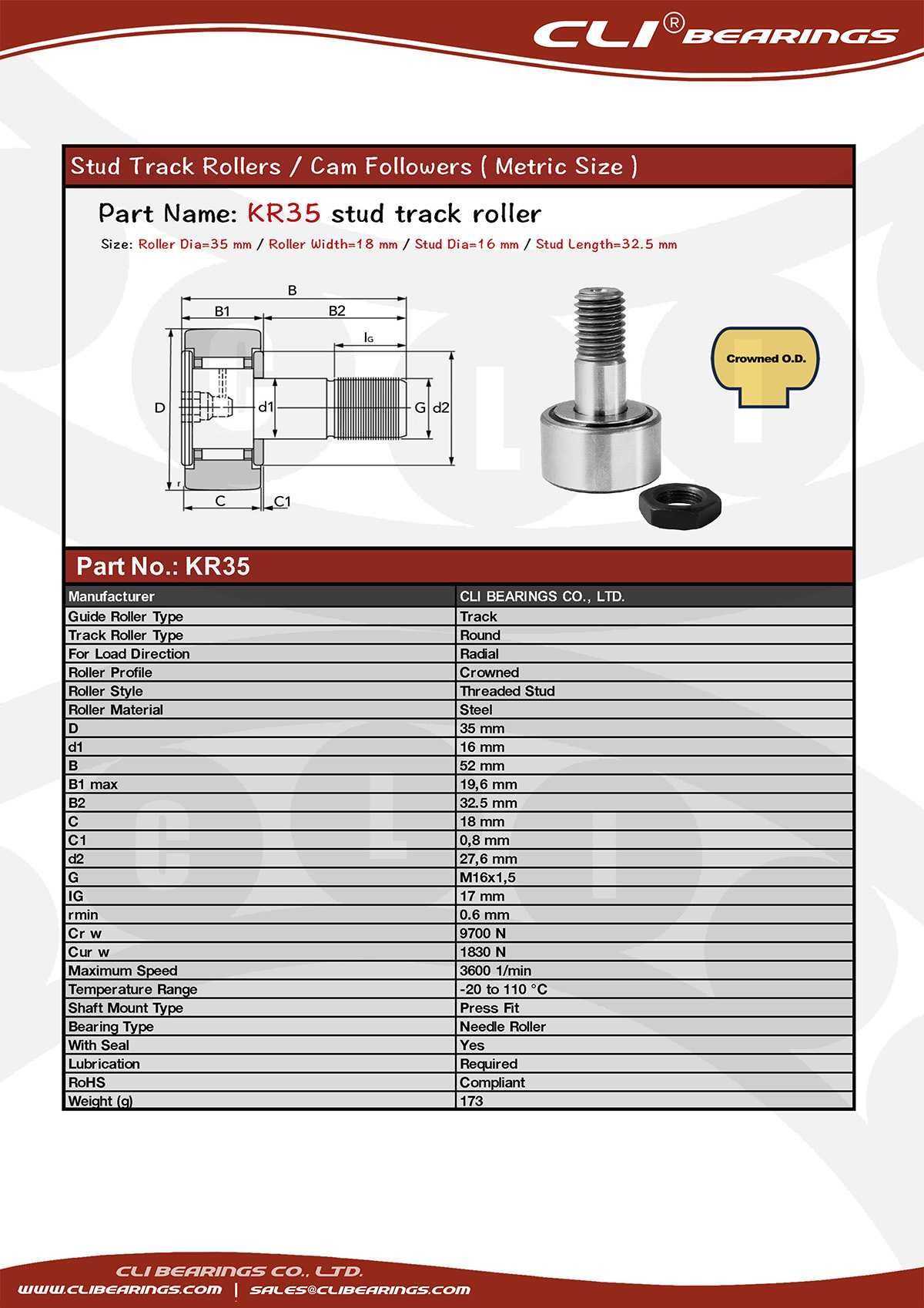

Roller Bearings / KR35 Stud Track Rollers & Stud Cam Followers - CLI BEARINGS ®
| Part No.: KR35 |
| Manufacturer |
CLI BEARINGS CO., LTD. |
| Guide Roller Type |
Track |
| Track Roller Type |
Round |
| For Load Direction |
Radial |
| Roller Profile |
Crowned |
| Roller Style |
Threaded Stud |
| Roller Material |
Steel |
| D |
35 mm |
| d1 |
16 mm |
| B |
52 mm |
| B1 max |
19,6 mm |
| B2 |
32.5 mm |
| C |
18 mm |
| C1 |
0,8 mm |
| d2 |
27,6 mm |
| G |
M16x1,5 |
| IG |
17 mm |
| rmin |
0.6 mm |
| Cr w |
9700 N |
| Cur w |
1830 N |
| Maximum Speed |
3600 1/min |
| Temperature Range |
-20 to 110 °C |
| Shaft Mount Type |
Press Fit |
| Bearing Type |
Needle Roller |
| With Seal |
Yes |
| Lubrication |
Required |
| RoHS |
Compliant |
| Weight (g) |
173 |
 |
