Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - MR117ZZ

Part Number MR117ZZ
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Bore Dia 7 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 11 mm
Outer Dia Tolerance -0.008mm to 0
Width 3 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 387 N
Static Radial Load 162 N
Max Speed (X1000 rpm) 43
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC1 (Available in ABEC3/5/7)
Radial Clearance Trade No. MC3 (Available in MC1/2/4/5/6)
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 1.2000 mm
Ball Qty 9
Weight 0.71 g

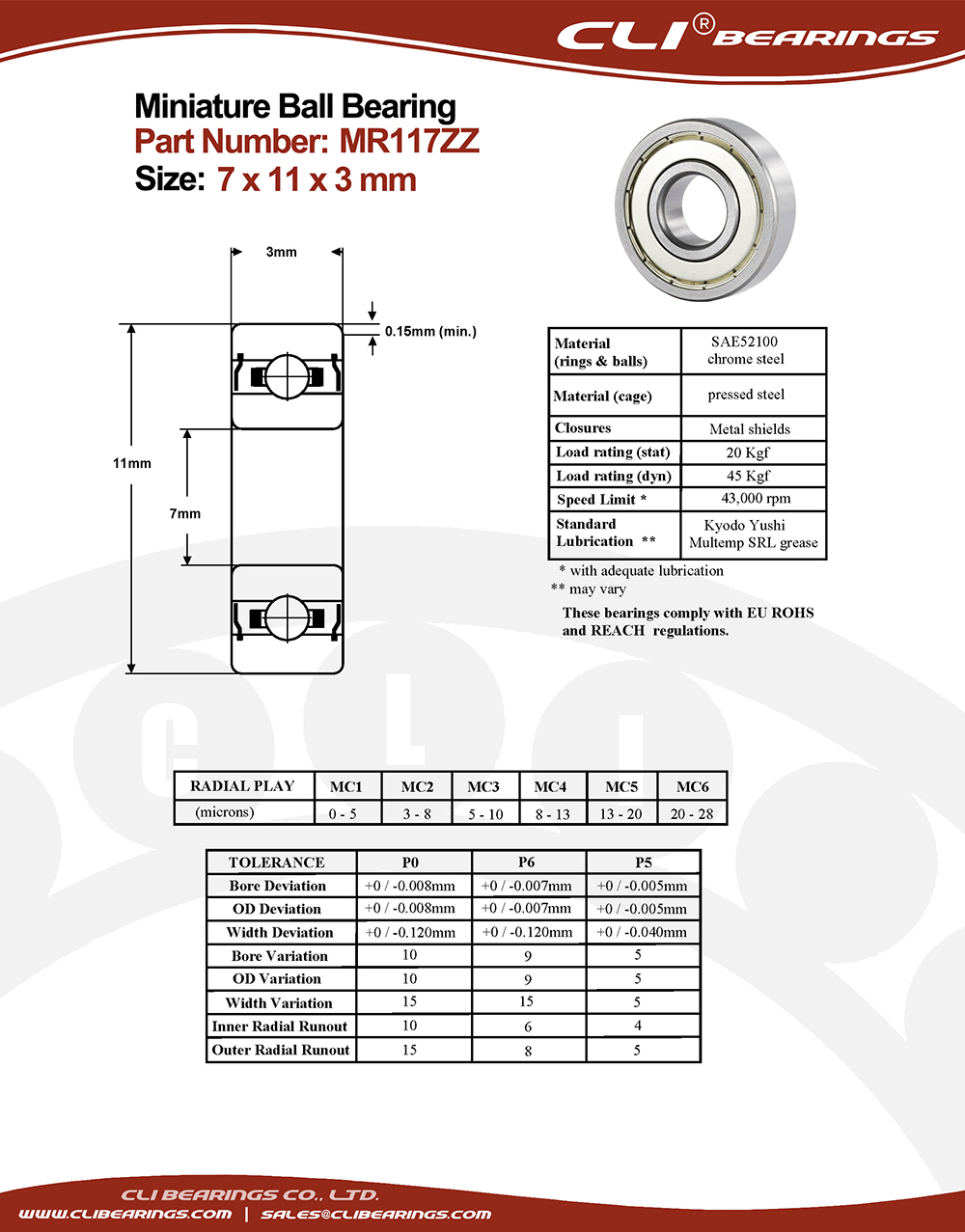

Original mr117zz miniature bearing 7x11x3mm nw
