Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - MR62

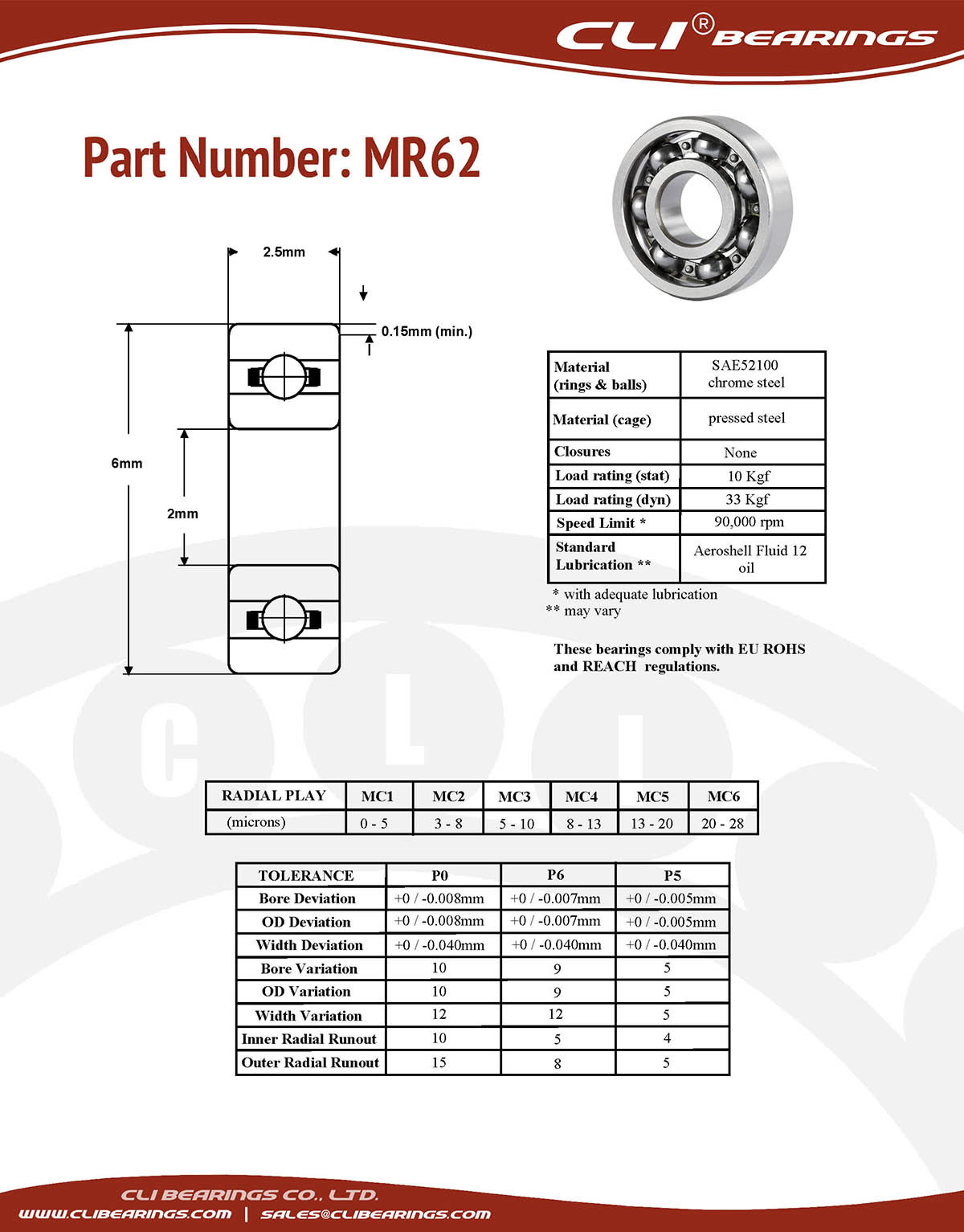

Part Number: MR62
 Standard Measurement  Metric Size
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  2 mm
 Bore Dia Tolerance  -0.008mm to 0
 Outer Dia  6 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  2.5 mm
 Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  281.000 N
 Static Radial Load  79.000 N
 Max Speed (X1000 rpm)  75
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002mm to 0.013mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  6
 Ball Dia  1.2000 mm
 Weight  0.28 g
 Brand  Neutral / CLI
