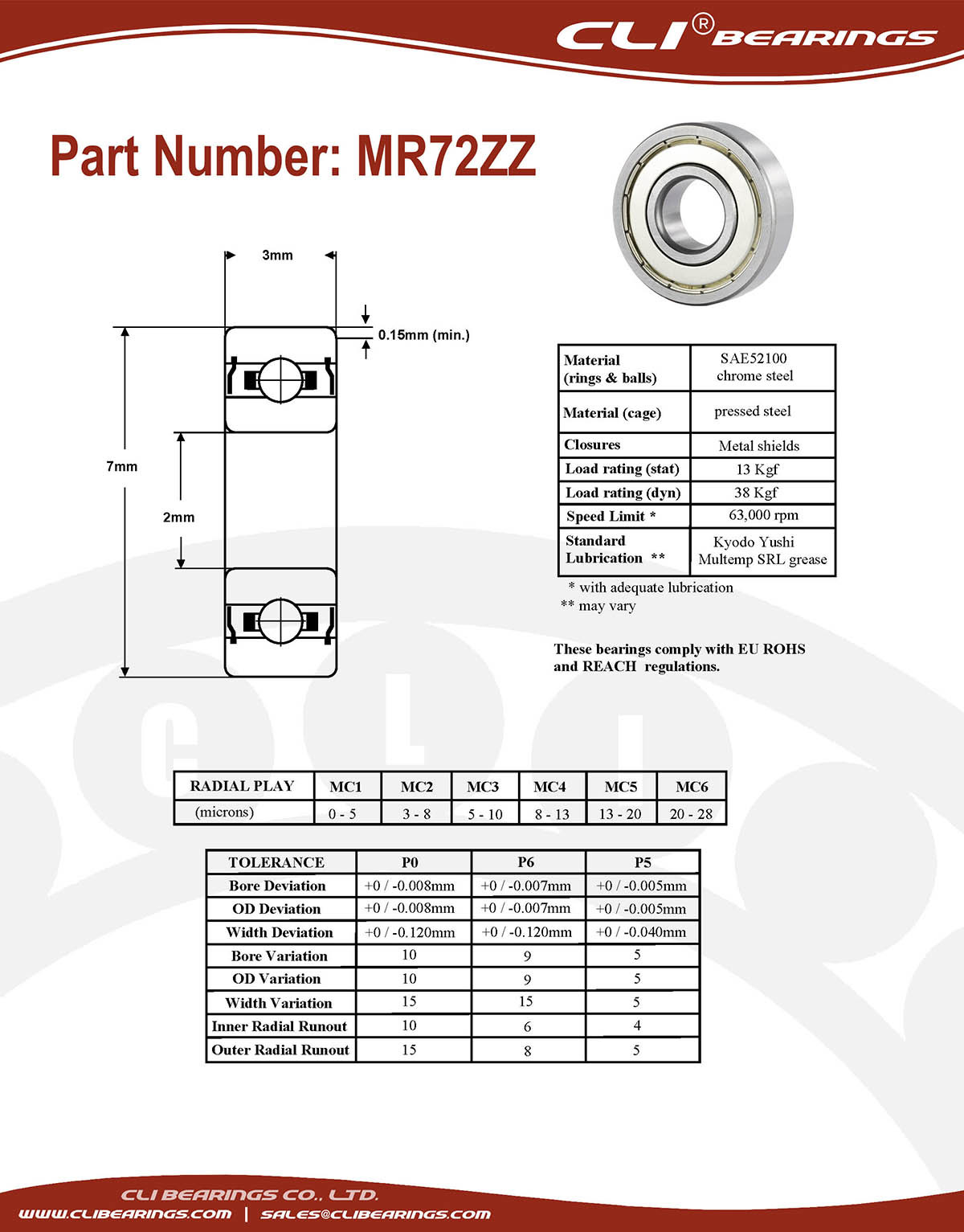

Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - MR72ZZ

Part Number MR72zz
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Bore Dia 2 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 7 mm
Outer Dia Tolerance -0.008mm to 0
Width 3 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 328 N
Static Radial Load 103 N
Max Speed (X1000 rpm) 65
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 1.2000 mm
Ball Qty 7
Weight 0.53 g
Original mr72zz miniature bearing 2x7x3mm double shielded chrome aisi52100   cli bearings co ltd nw
