Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes - MR83

 Part Number: MR83
 Standard Measurement  Metric Size
 Material  Chrome Steel
 Ring Material  52100 Chrome Steel
 Bearing Type  Ball
 For Load Direction  Radial
 Construction  Single Row
 Seal Type  Open
 Bore Dia  3 mm
 Bore Dia Tolerance  -0.008mm to 0
 Outer Dia  8 mm
 Outer Dia Tolerance  -0.008mm to 0
 Width  2.5 mm
 Width Tolerance  -0.12mm to 0
 Ball Material  52100 Chrome Steel
 Cage Material  300 Series Stainless Steel
 Dynamic Radial Load  336.000 N
 Static Radial Load  113.000 N
 Max Speed (X1000 rpm)  60
 Lubrication  Required
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 ABEC Rating  ABEC-1
 Radial Clearance Trade No.  C0
 Radial Clearance  0.002mm to 0.013mm
 RoHS  Compliant
 REACH  Compliant
 Ball Qty  7
 Ball Dia  1.2000 mm
 Weight  0.51 g
 Brand  Neutral / CLI

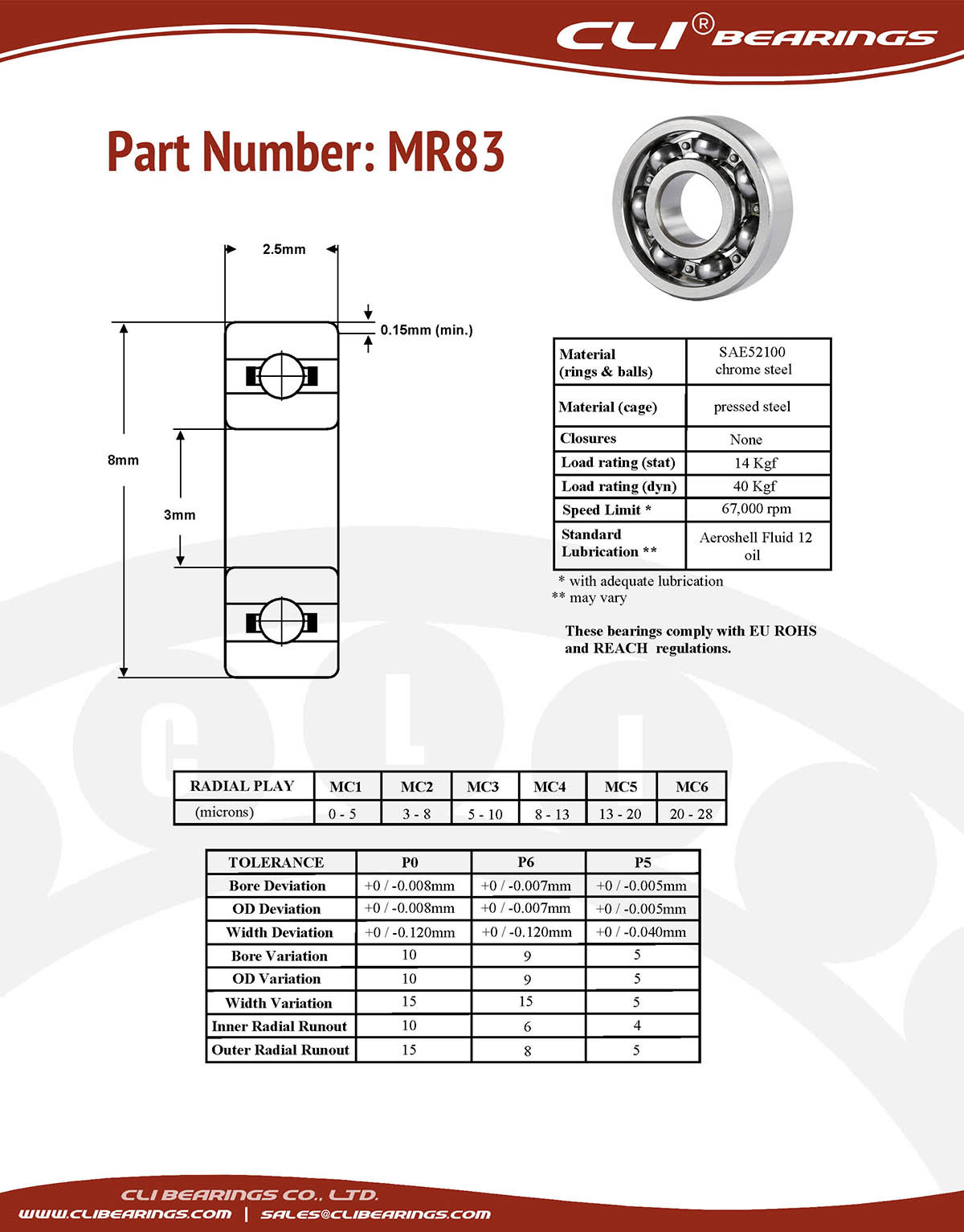

Original mr83 miniature bearing 3x8x2 5mm open chrome aisi52100   cli bearings co ltd nw
