Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - R133ZZ

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number R133zz
For Shaft Diameter 3/32"
Bore Dia (d) 0.0937" | 2.38 mm
Bore Dia Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 3/16"
Outer Dia (D) 0.1875" | 4.763 mm
Outer Dia Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.0937" | 2.38 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 124.58
Static Load Rating (Cor) (Newtons) 44.49
Max Speed (Grease) (X1000 RPM) 80
Max Speed (Oil) (X1000 RPM)  95
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 0.599 mm
Weight (grams) 0.15

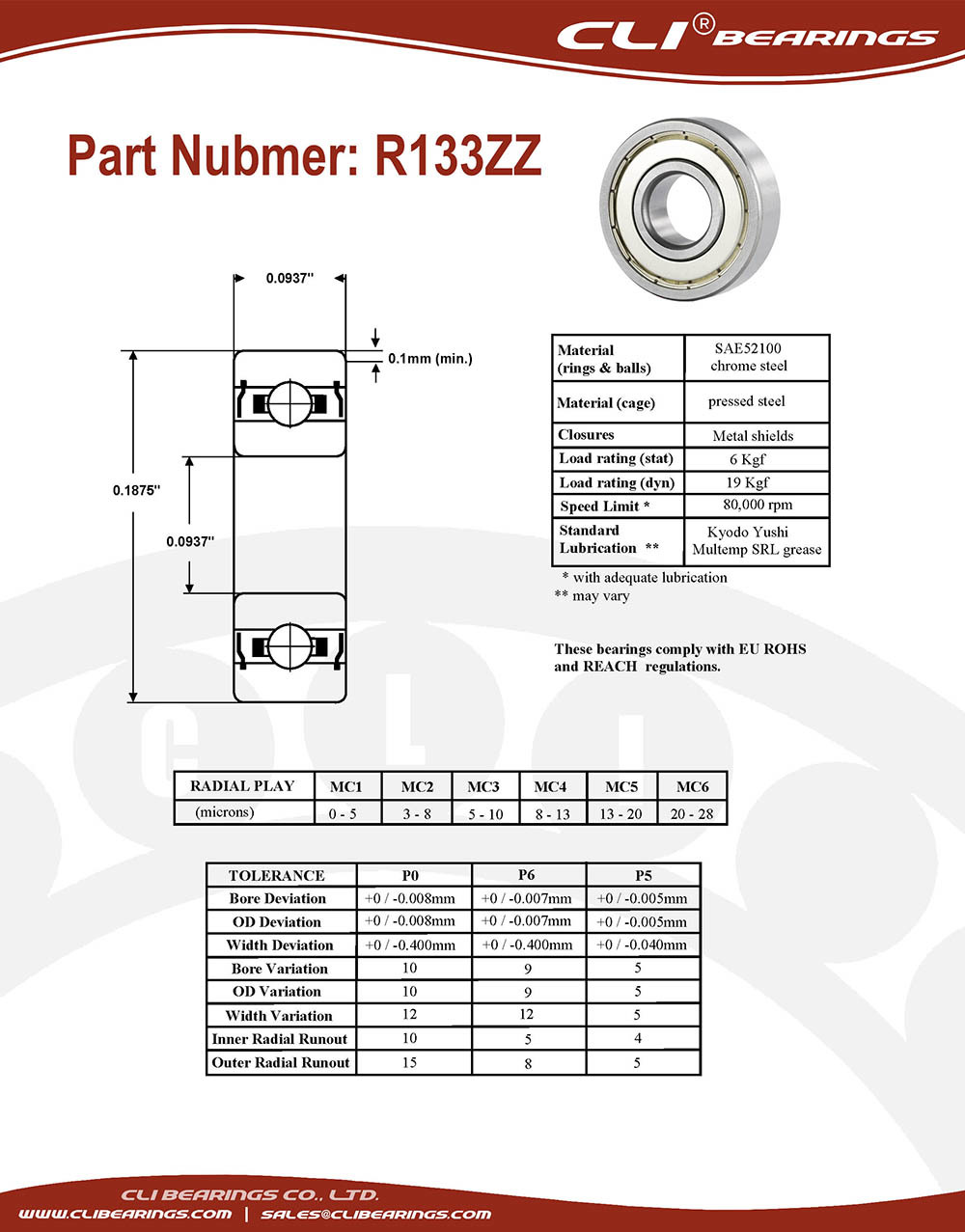

Original r133zz miniature bearing 3 32x3 16x3 32 0 0937 x 0 1875 x 0 0937 inch   cli bearings co ltd nw
