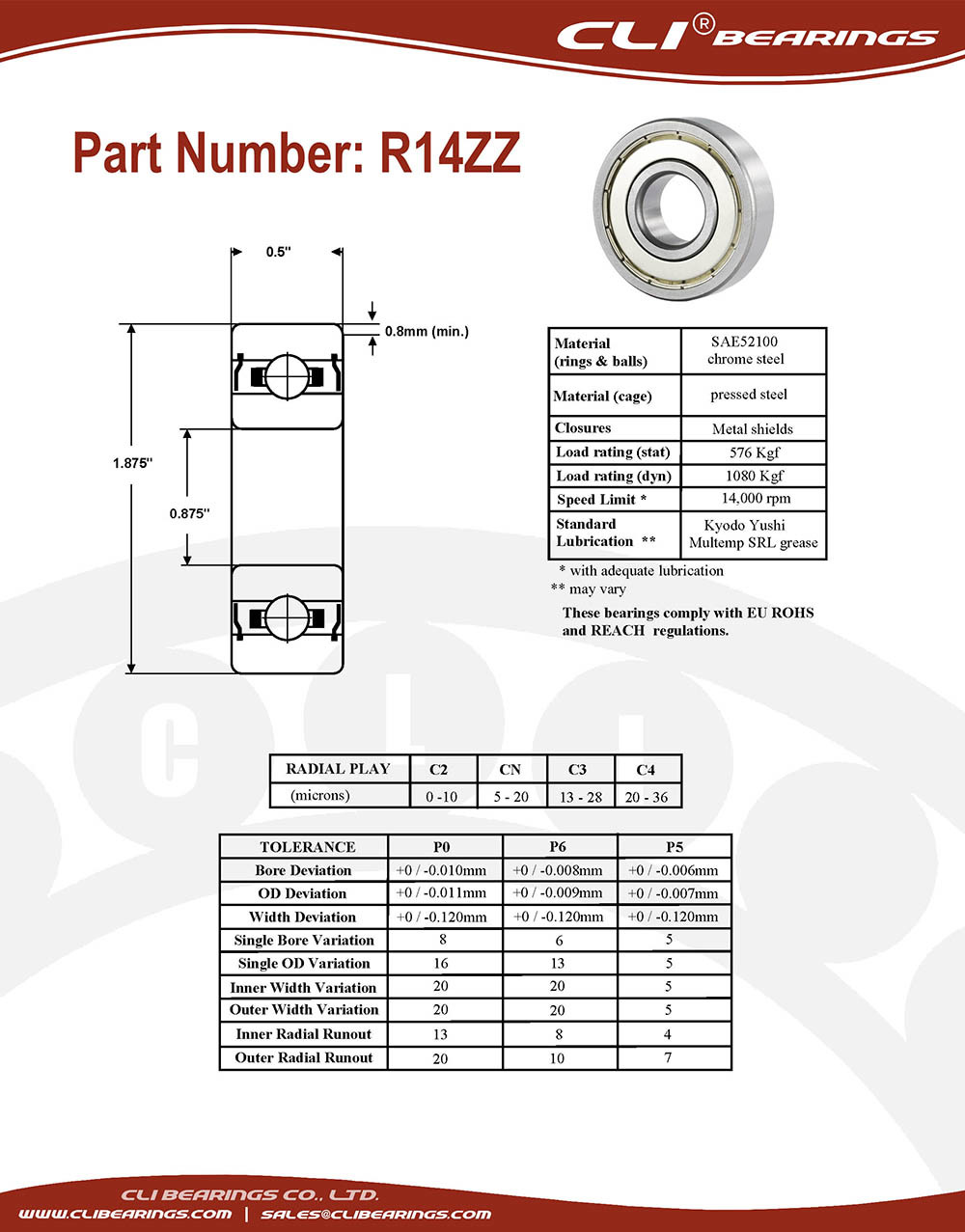

Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - R14ZZ

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number R14ZZ
For Shaft Diameter 0.875"
Bore Dia (d) 0.875" | 22.225 mm
Bore Dia Tolerance -0.01mm to 0
For Housing ID 1.875"
Outer Dia (D) 1.875" | 47.625 mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 0.5" | 12.7 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (lbs) 2658
Static Load Rating (Cor) (lbs) 1307
Max Speed (Grease) (X1000 RPM) 10
Max Speed (Oil) (X1000 RPM)  12
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 10
Ball Dia 0.25
Weight (grams) 78
