Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - R166

Part Number R166
System of Measurement Inch
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Bore Dia 0.1875"
Bore Dia Tolerance -0.0003" to 0"
Outer Dia 0.375"
Outer Dia Tolerance -0.0003" to 0"
Width 0.125"
Width Tolerance -0.005" to 0"
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 136 lbf
Static Radial Load 49 lbf
Max Speed (X1000 rpm) 50
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -86 to 230 °F
ABEC Rating ABEC1 (Available in ABEC3/5/7)
Radial Clearance Trade No. MC3 (Available in MC1/2/4/5/6)
Radial Clearance 0.00008" to 0.0005"
RoHS Compliant
REACH Compliant
Ball Dia 0.06252"
Ball Qty 8
Weight 0.81 g

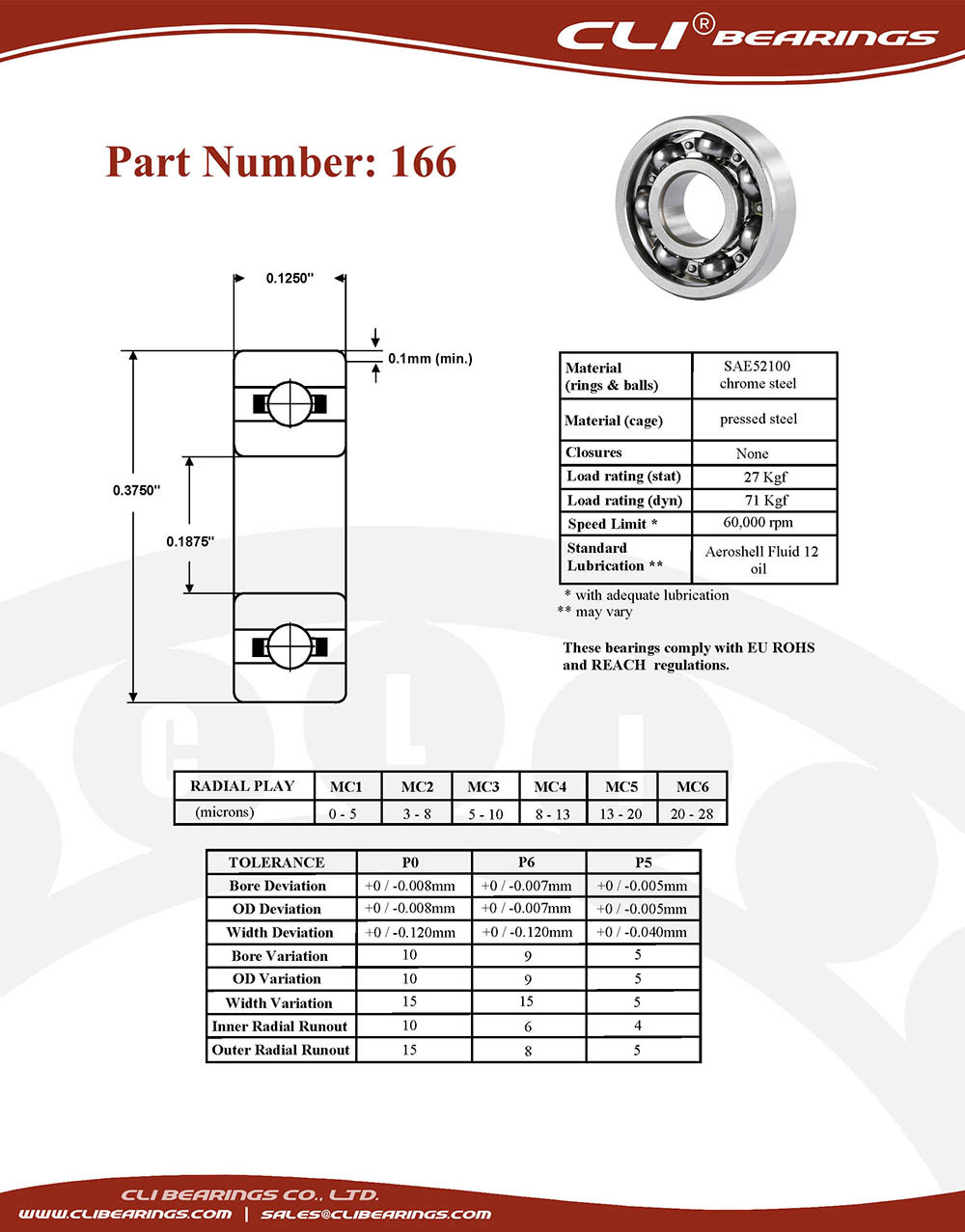

Original r166 miniature bearing 3 16x3 8x1 8 0 1875 x 0 375 x 0 125 inch   cli bearings co ltd nw
