| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |

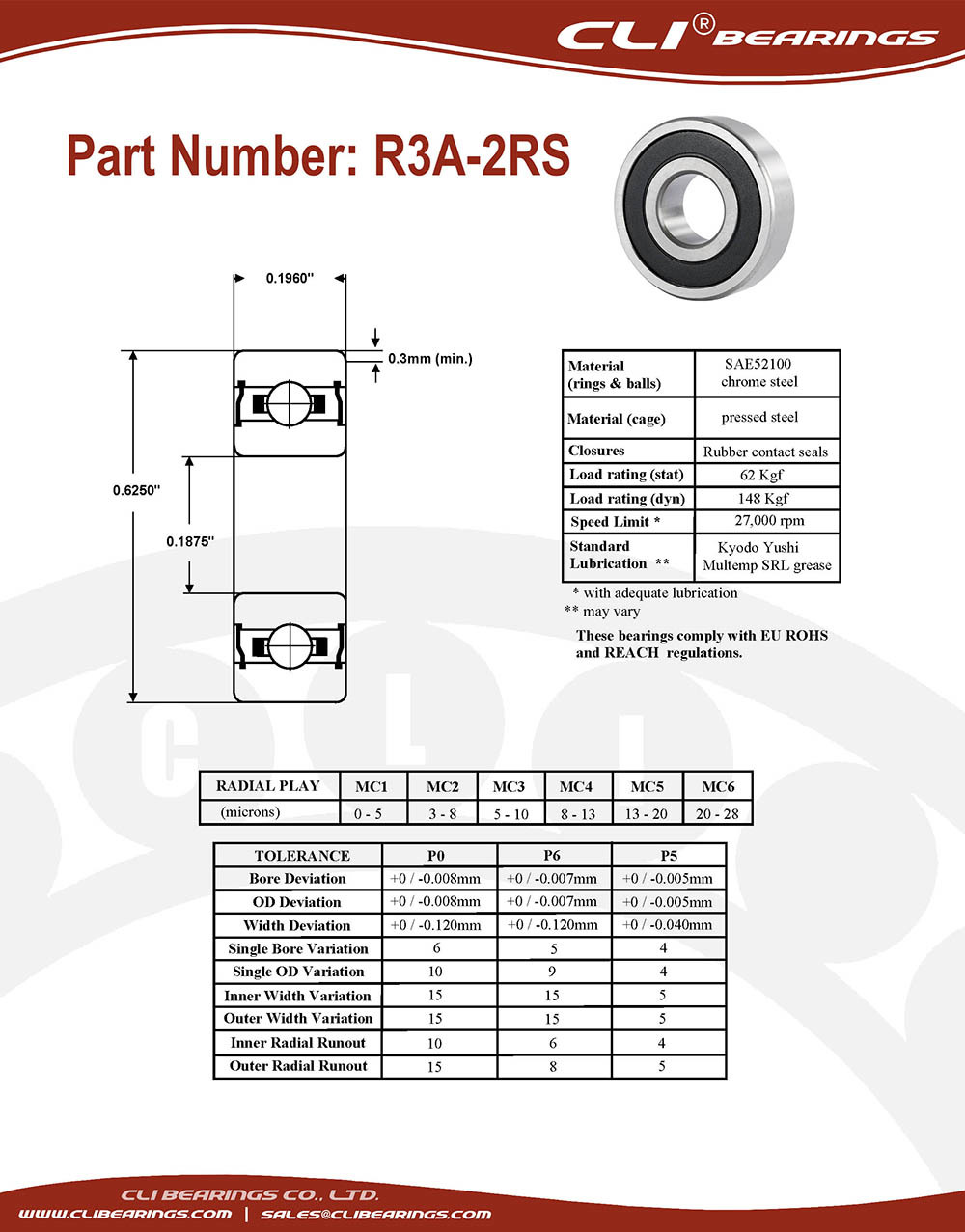

| Part Number | SR3A 2rs |
| For Shaft Diameter | 3/16" |
| Bore Dia (d) | 3/16" | 4.763 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 5/8" |
| Outer Dia (D) | 5/8" | 15.875 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.1960" | 4.978 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | GCr15 |
| Ball Material | GCr15 |
| Cage Material | 300 Series Stainless Steel |
| Seals Material | NBR |
| Dynamic radial (Newtons) | 1133.208 |
| Static radial (Newtons) | 448.479 |
| Max Speed (X1000 RPM) | 40.5 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 5.08 |
