Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, INCH sizes - R3AZZ

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number R3AZZ
For Shaft Diameter 3/16"
Bore Dia (d) 0.1875" | 4.763 mm
Bore Dia Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 5/8"
Outer Dia (D) 0.6250" | 15.875 mm
Outer Dia Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.1960" | 4.978 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1259.12
Static Load Rating (Cor) (Newtons) 498.31
Max Speed (Grease) (X1000 RPM) 38
Max Speed (Oil) (X1000 RPM)  45
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 8
Ball Dia 2.38 mm
Weight (grams) 5.08

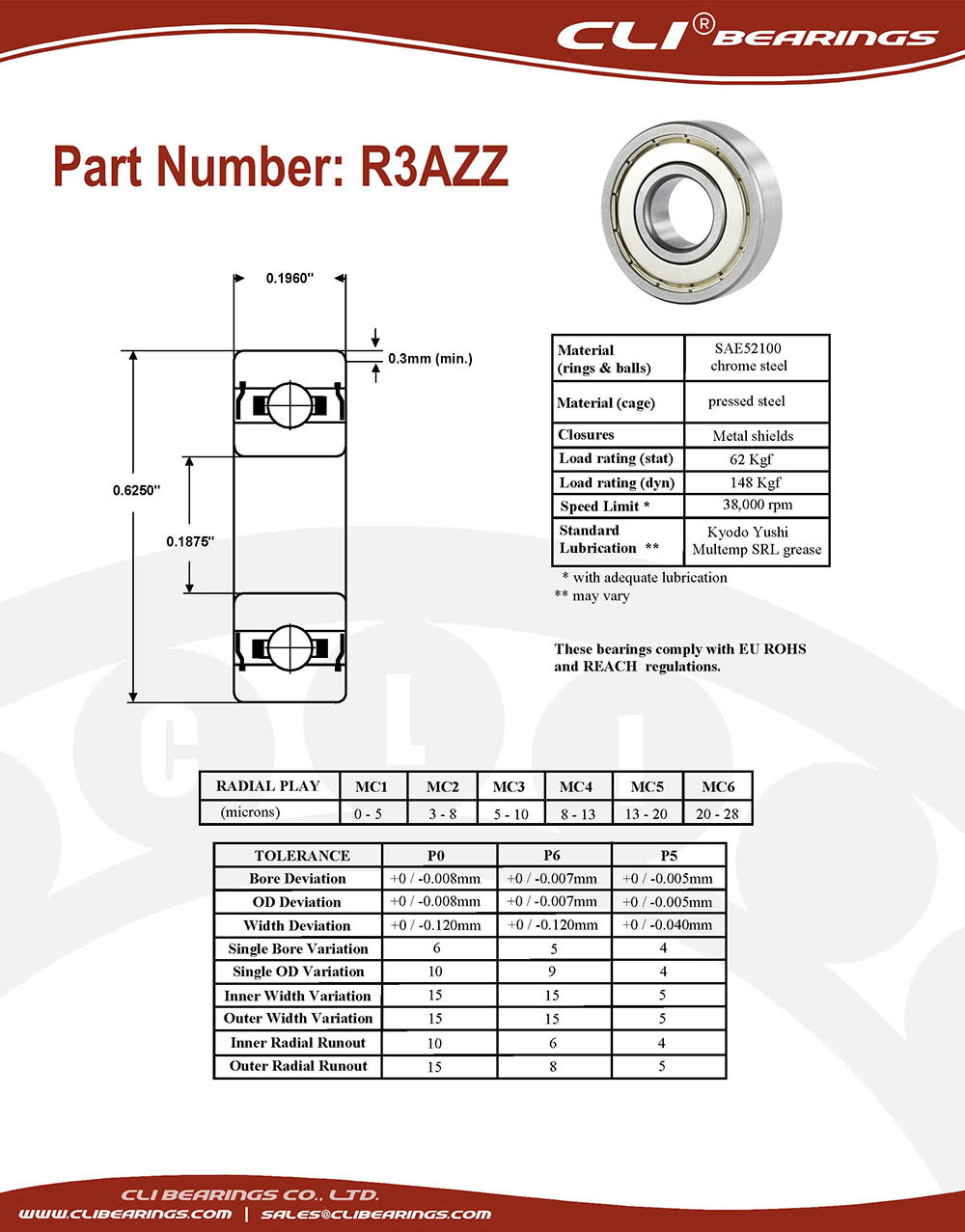

Original r3azz miniature bearing 3 16x5 8x0 196 0 1875 x 0 625 x 0 196 inch   cli bearings co ltd nw
