Roller Bearings-Needle Roller Bearings-SCE drawn cup needle roller bearings with OPEN end, chrome steel AISI52100, INCH SIZE - SCE105

 Part Number: SCE105 (0.625x0.8125x0.3125")
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Imperial
 Seal Type  Open
 For Shaft Diameter  5/8 "
 Bore Dia (Fw)  5/8 " | 15.875 mm
 Bore Dia Tolerance  +16 to +34 um
 For Housing ID  20.638 mm
 Outer Dia (D)  0.8125" | 20.638 mm
 Outer Dia Tolerance  +16 to +34 um
 Width (C)  0.3125" | 7.938 mm
 Width Tolerance  -0.01" to 0"
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  4300 N
 Static Load Rating (Cor) (Newtons)  5200 N
 Max Speed (Grease) (RPM)  16000 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Temperature Range  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  5.0 g
 Brand / Trade Mark  CLI

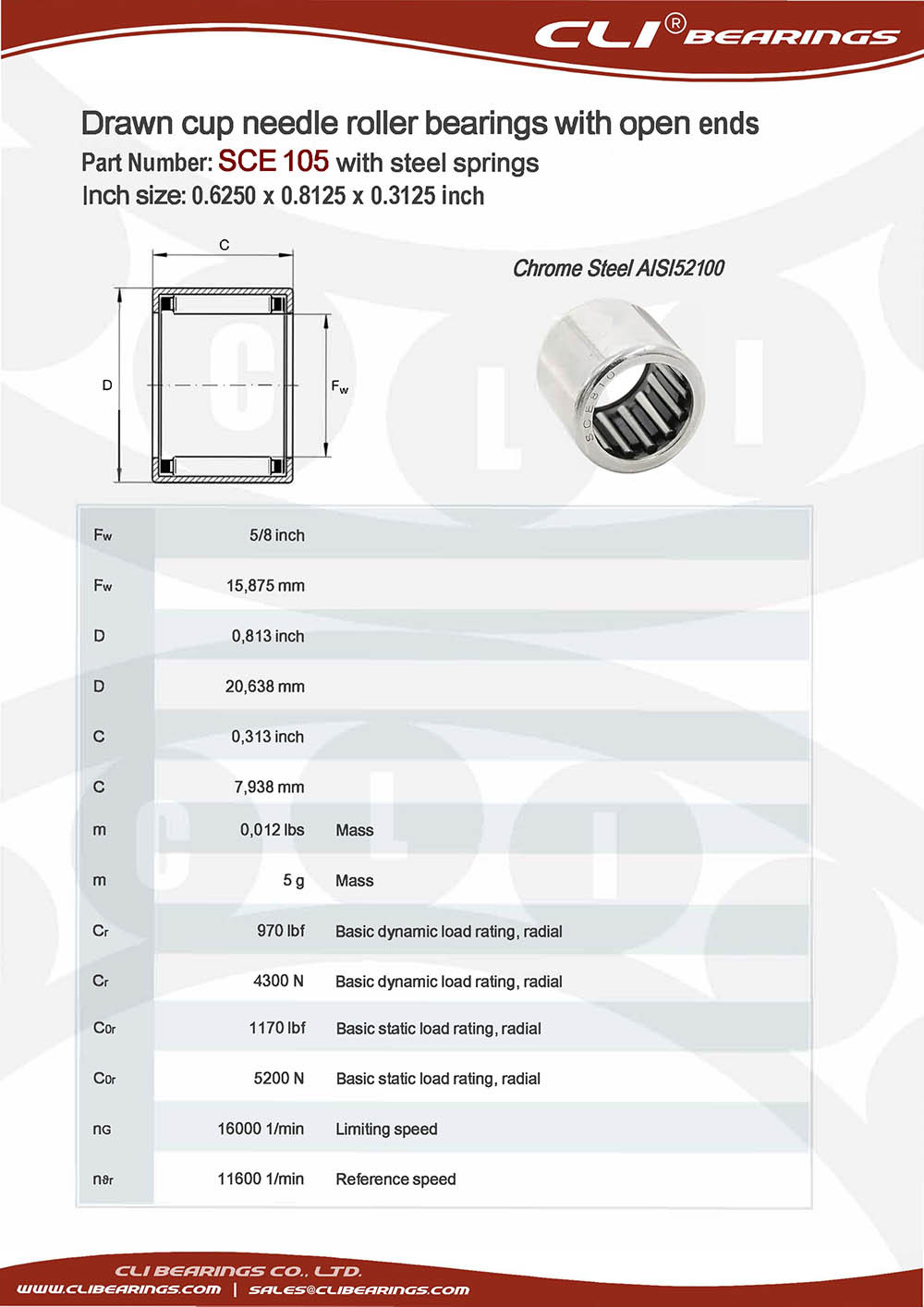

Original sce105 0 6250 x 0 8125 x 0 3125 inch drawn cup needle roller bearings with open ends with steel springs   cli bearings co ltd nw
