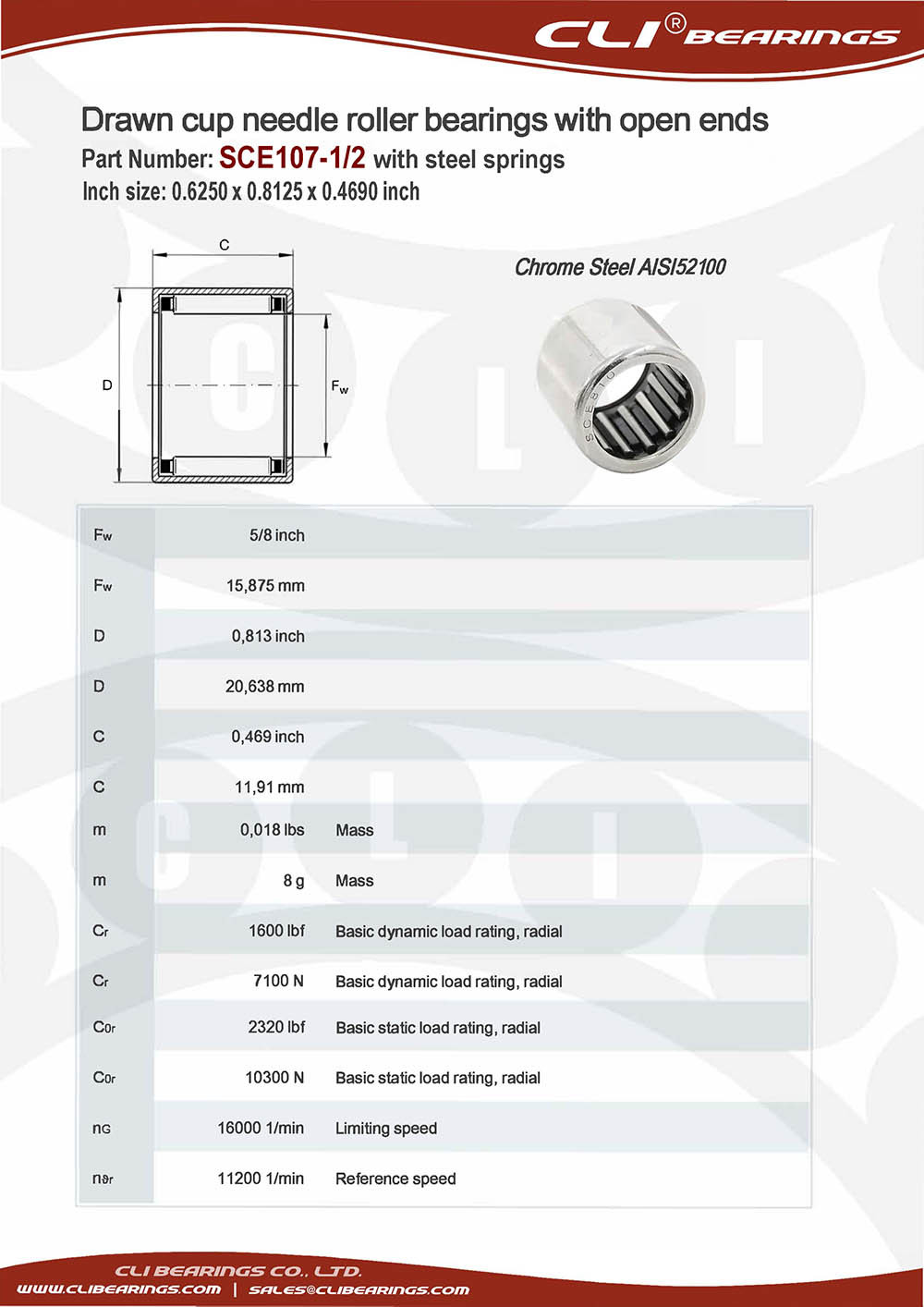

| Part No: SCE107-1/2 (0.625x0.8125x0.4689") | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Open |
| For Shaft Diameter | 5/8 " |
| Bore Dia (Fw) | 5/8 " | 15.875 mm |
| Bore Dia Tolerance | +16 to +34 um |
| For Housing ID | 20.638 mm |
| Outer Dia (D) | 0.8125" | 20.638 mm |
| Outer Dia Tolerance | +16 to +34 um |
| Width (C) | 0.4689" | 11.91 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 7100 N |
| Static Load Rating (Cor) (Newtons) | 10300 N |
| Max Speed (Grease) (RPM) | 16000 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 8.0 g |
| Brand / Trade Mark | CLI |
