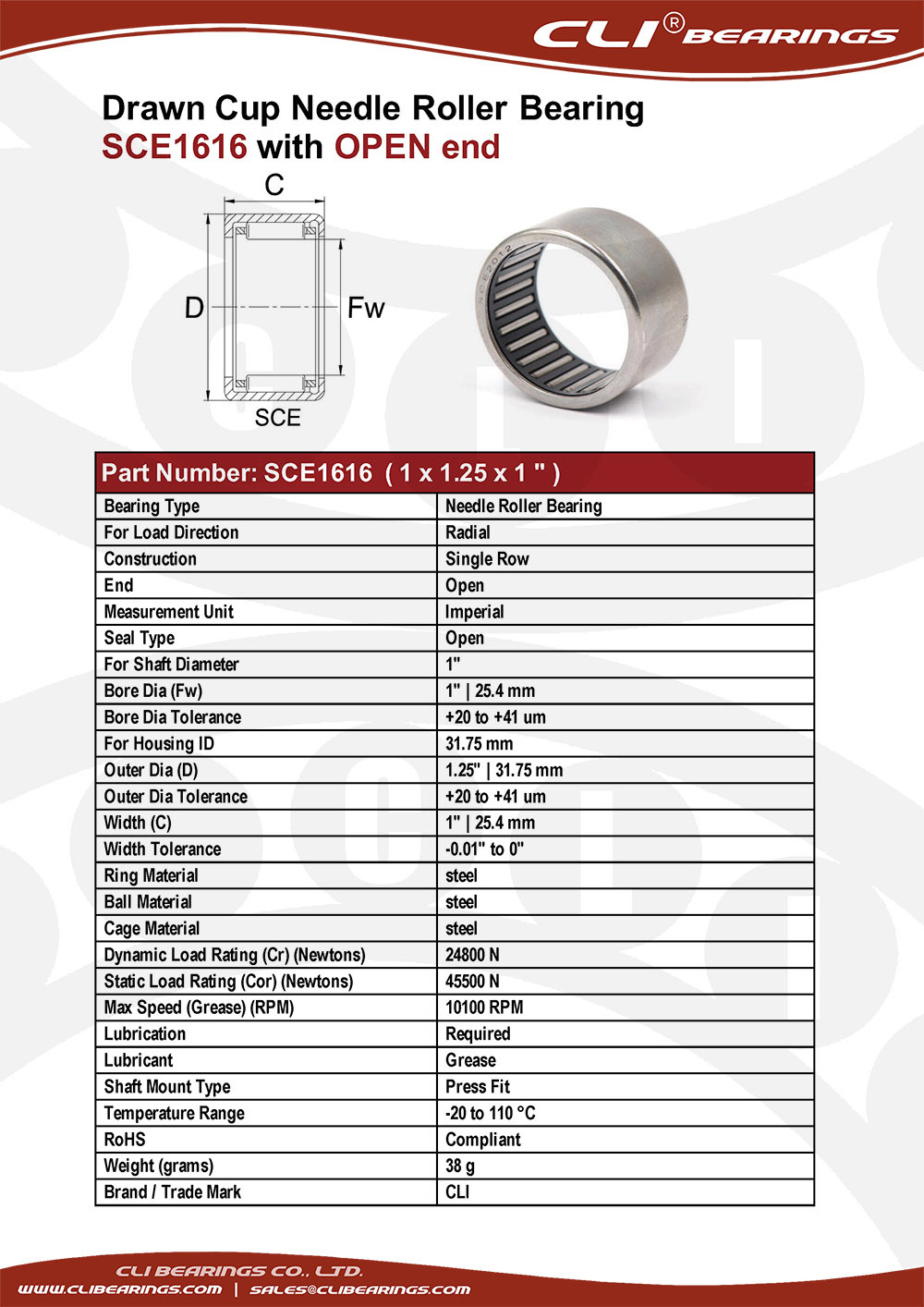

Roller Bearings-Needle Roller Bearings-SCE drawn cup needle roller bearings with OPEN end, chrome steel AISI52100, INCH SIZE - SCE1616

 Part No: SCE1616  ( 1 x 1.25 x 1 " )
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Imperial
 Seal Type  Open
 For Shaft Diameter  1"
 Bore Dia (Fw)  1" | 25.4 mm
 Bore Dia Tolerance  +20 to +41 um
 For Housing ID  31.75 mm
 Outer Dia (D)  1.25" | 31.75 mm
 Outer Dia Tolerance  +20 to +41 um
 Width (C)  1" | 25.4 mm
 Width Tolerance  -0.01" to 0"
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  24800 N
 Static Load Rating (Cor) (Newtons)  45500 N
 Max Speed (Grease) (RPM)  10100 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Temperature Range  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  38 g
 Brand / Trade Mark  CLI
