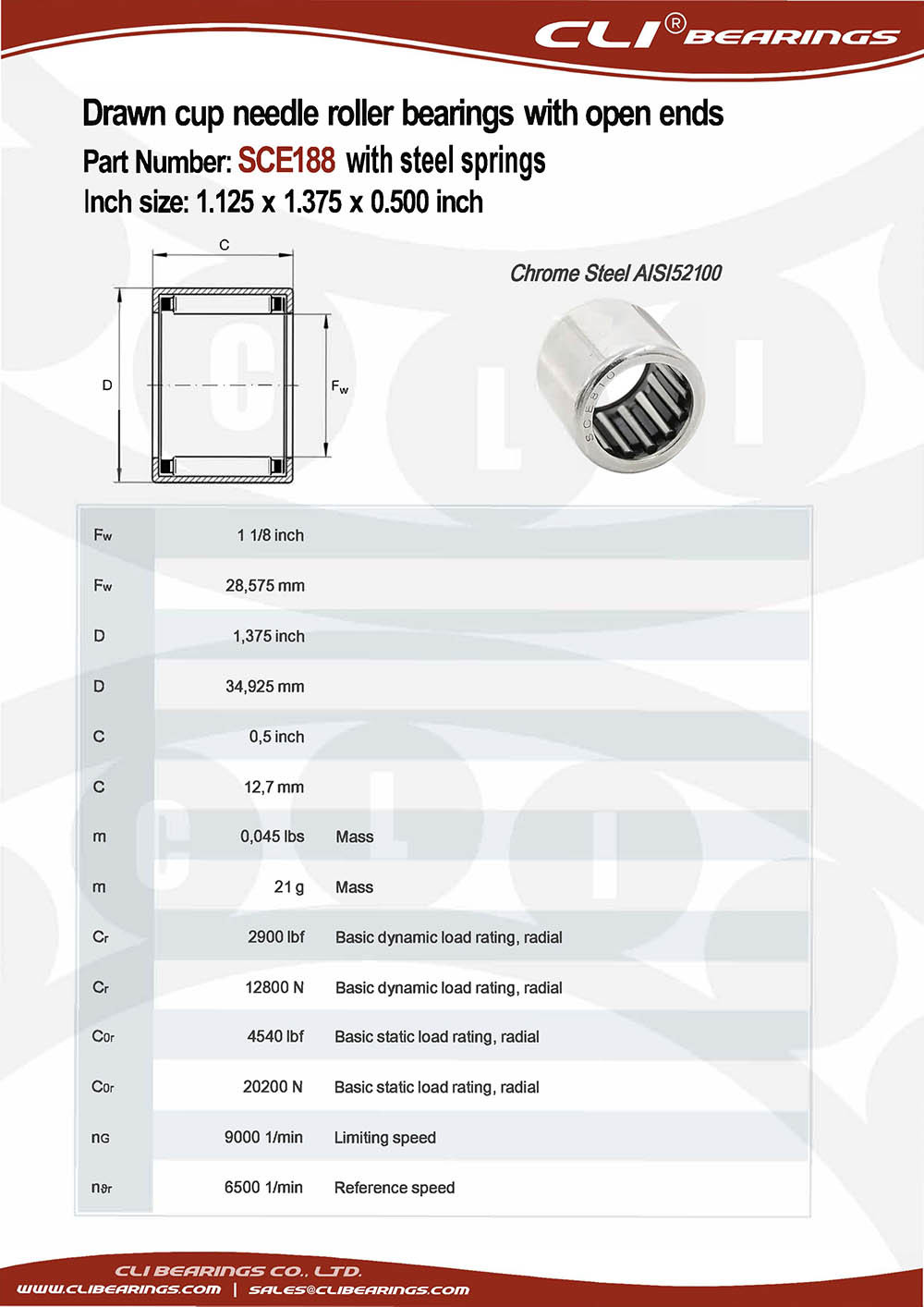

| Part No.: SCE188 ( 1.125 x 1.375 x 0.5 " ) | |
| Standards | Imperial |
| Bearing Type | Needle Roller Bearing |
| Seal Type | Open |
| Number of Row (s) | Single Row |
| Load Direction | Radial |
| For Shaft Diameter | 1.125" |
| Bore Dia (d) | 1.125" | 28.575 mm |
| Bore Dia Tolerance | +20 to +41 um |
| For Housing ID | 34.925 mm |
| Outer Dia (D) | 1.375" | 34.925 mm |
| Outer Dia Tolerance | +20 to +41 um |
| Width (B) | 0.5" | 12.7 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 12800 N |
| Static Load Rating (Cor) (Newtons) | 20200 N |
| Max Speed (Grease) (RPM) | 9000 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Working Temperature | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 21 |
| Wokring Precision | ABEC-1 |
| Brand | Neutral / CLI |
