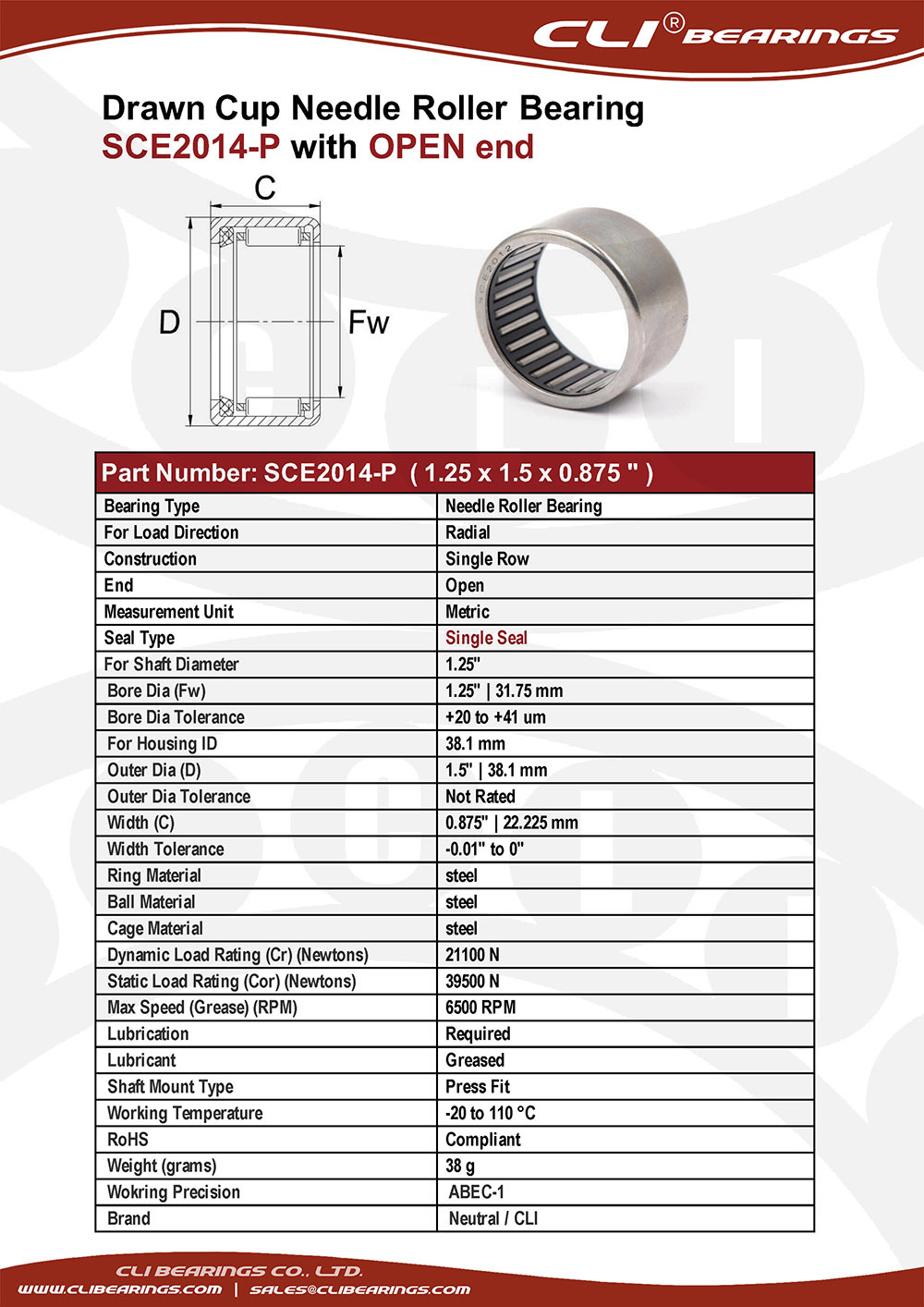

| Part No: SCE2014-P ( 1.25 x 1.5 x 0.875 " ) | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Single Seal |
| For Shaft Diameter | 1.25" |
| Bore Dia (Fw) | 1.25" | 31.75 mm |
| Bore Dia Tolerance | +20 to +41 um |
| For Housing ID | 38.1 mm |
| Outer Dia (D) | 1.5" | 38.1 mm |
| Outer Dia Tolerance | Not Rated |
| Width (C) | 0.875" | 22.225 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 21100 N |
| Static Load Rating (Cor) (Newtons) | 39500 N |
| Max Speed (Grease) (RPM) | 6500 RPM |
| Lubrication | Required |
| Lubricant | Greased |
| Shaft Mount Type | Press Fit |
| Working Temperature | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 38 g |
| Wokring Precision | ABEC-1 |
| Brand | Neutral / CLI |
