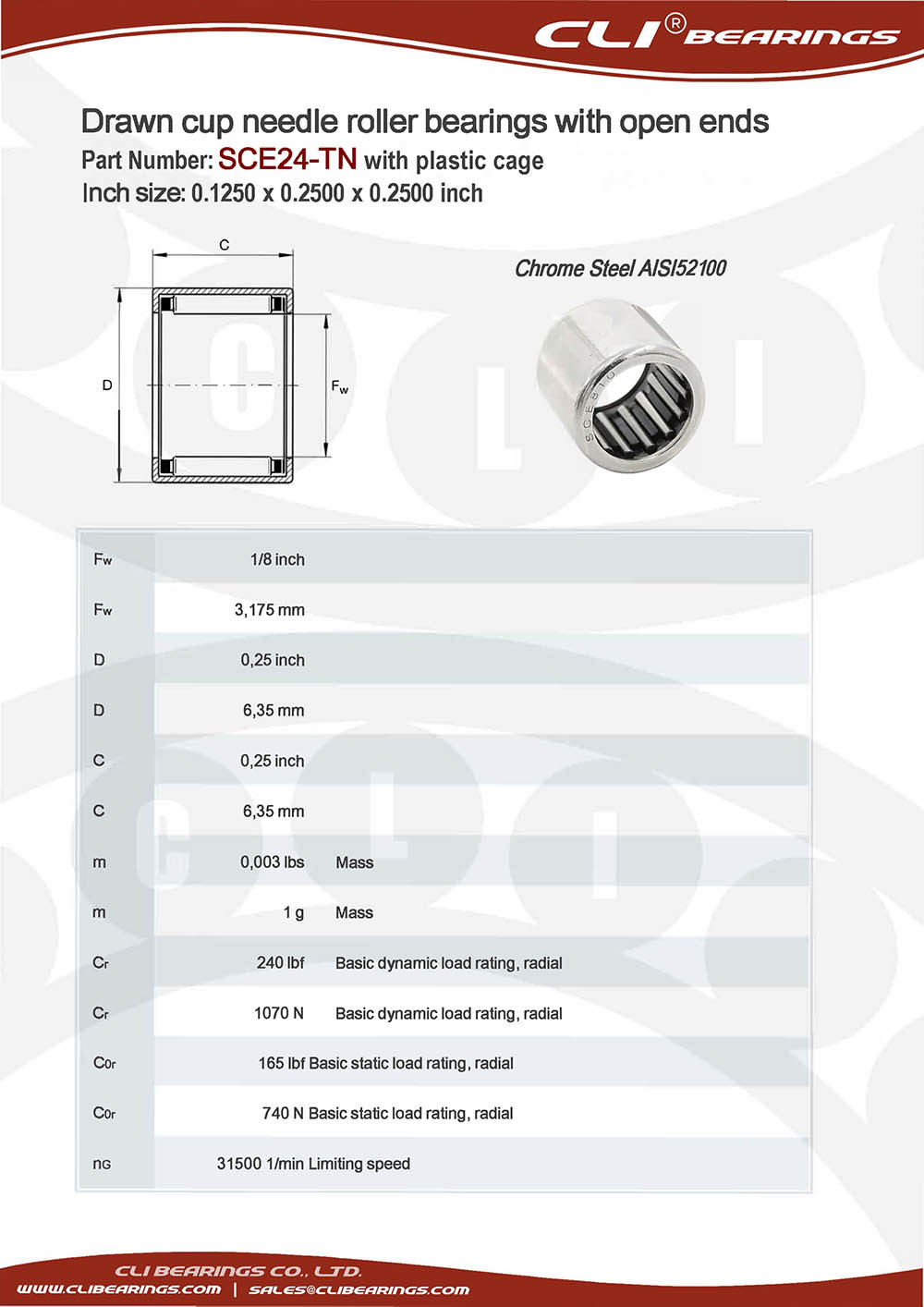

| Part No.: SCE24-TN (0.125 x 0.25 x 0.25 inch) | |
| Standards | Metric Size |
| Bearing Type | Needle Roller Bearing |
| Seal Type | Open |
| Number of Row (s) | Single Row |
| Load Direction | Radial |
| For Shaft Diameter | 1/8" |
| Bore Dia (d) | 1/8" | 3.175 mm |
| Bore Dia Tolerance | +6 to +24 um |
| For Housing ID | 6.35mm |
| Outer Dia (D) | 0.25" | 6.35mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.25" | 6.35mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | Nylon PA66 |
| Dynamic Load Rating (Cr) (Newtons) | 1070 N |
| Static Load Rating (Cor) (Newtons) | 740 N |
| Max Speed (Grease) (RPM) | 31500 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Working Temperature | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 1.0 g |
| Wokring Precision | ABEC-1 |
| Brand | Neutral / CLI |
