Roller Bearings-Needle Roller Bearings-SCE drawn cup needle roller bearings with OPEN end, chrome steel AISI52100, INCH SIZE - SCE2610

 Part No: SCE2610  ( 1.625 x 2 x 0.625 " )
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Imperial
 Seal Type  Open
 For Shaft Diameter  1.625"
 Bore Dia (Fw)  1.625" | 41.275 mm
 Bore Dia Tolerance  +25 to +50 μm
 For Housing ID  50.8 mm
 Outer Dia (D)  2" | 50.8 mm
 Outer Dia Tolerance  +25 to +50 μm
 Width (C)  0.625" | 15.875 mm
 Width Tolerance  -0.01" to 0"
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  25500 N
 Static Load Rating (Cor) (Newtons)  40000 N
 Max Speed (Grease) (RPM)  6200 RPM
 Lubrication  Required
 Lubricant  Greased
 Shaft Mount Type  Press Fit
 Temperature Range  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  55 g
 Brand / Trade Mark  CLI

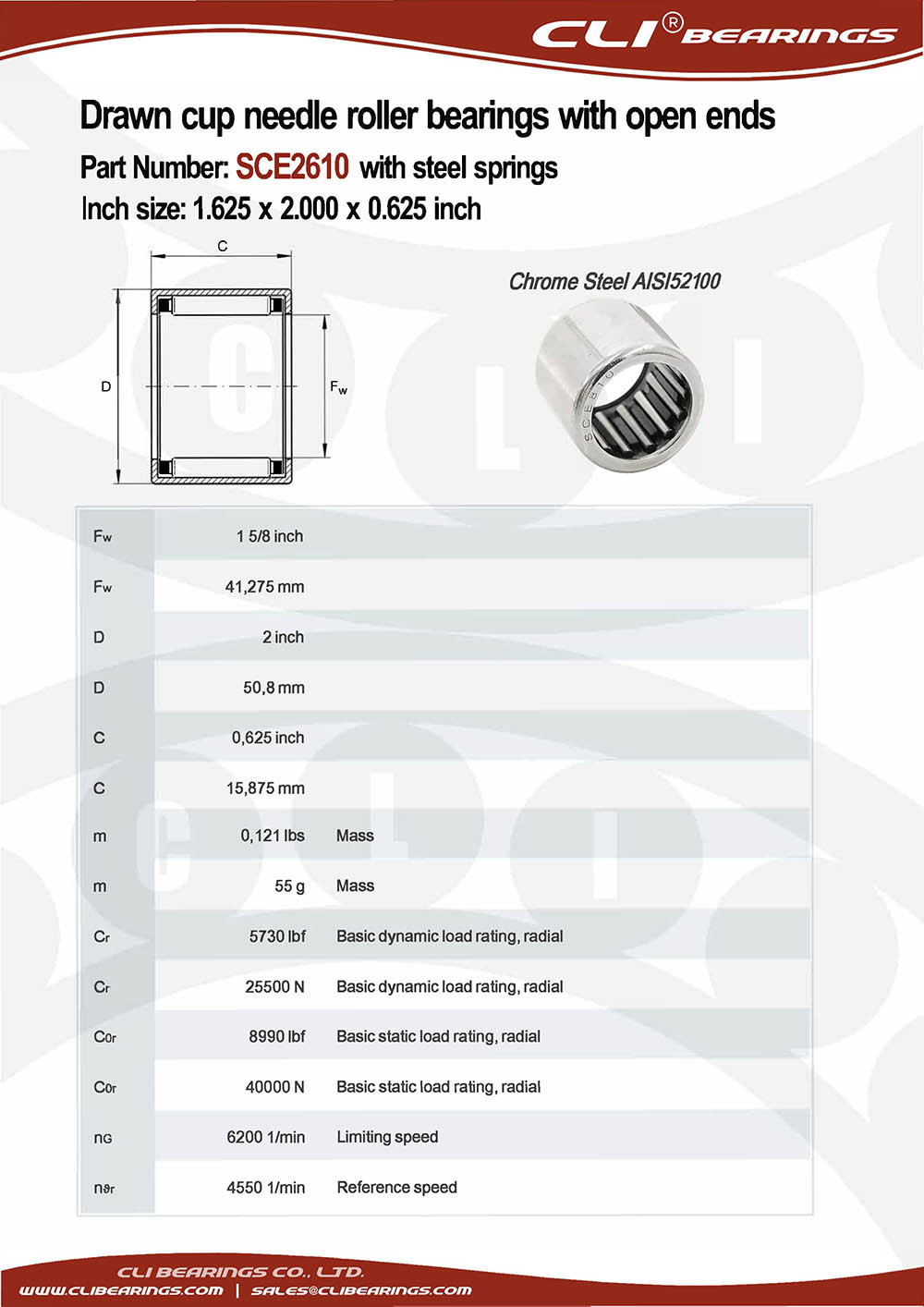

Original sce2610 1 625x2 000x0 625 inch drawn cup needle roller bearings with open ends with steel springs   cli bearings co ltd nw
