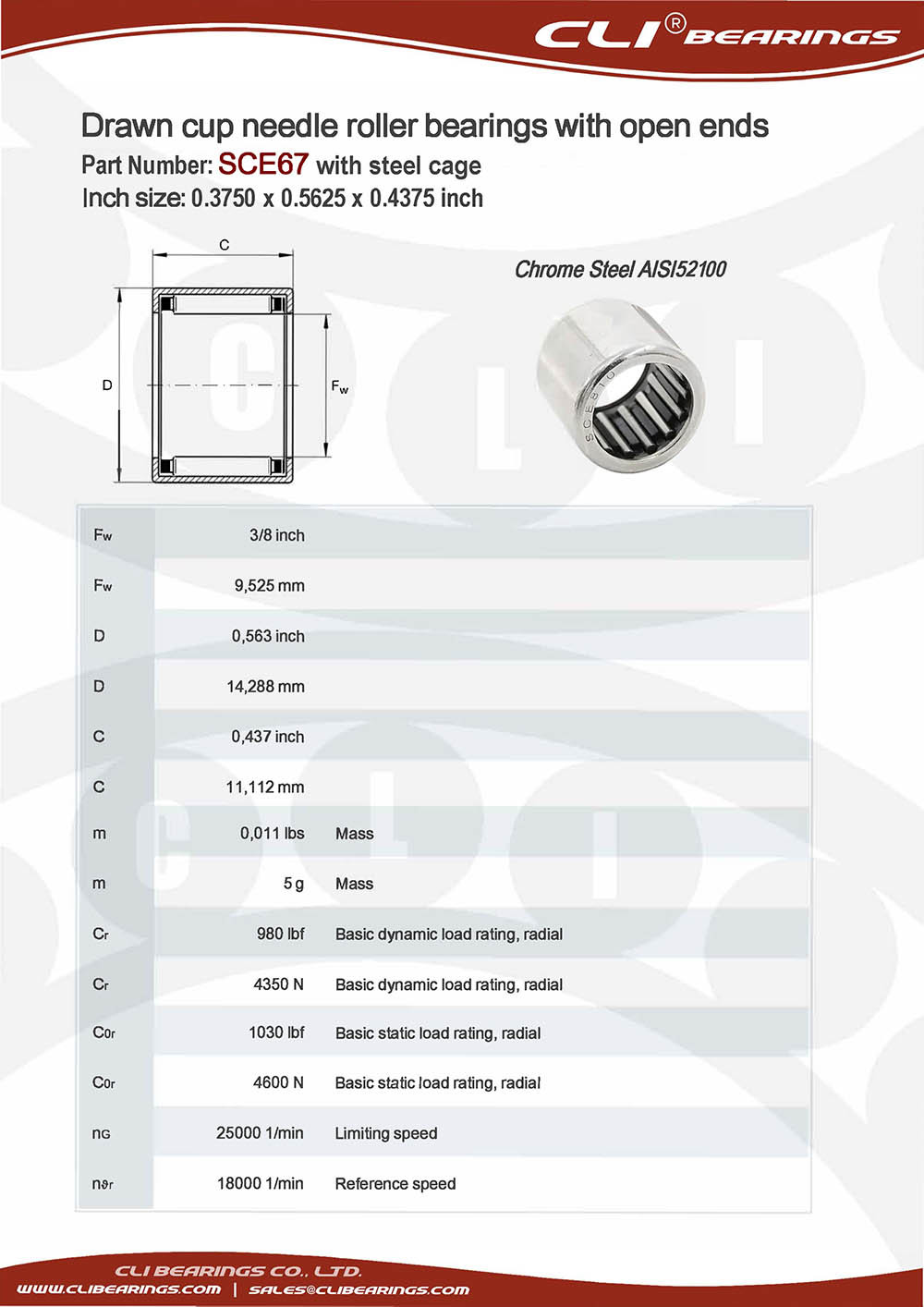

| Part Number: SCE67 (0.375x0.5625x0.4375") | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Open |
| For Shaft Diameter | 3/8 " |
| Bore Dia (Fw) | 3/8 " | 9.525 mm |
| Bore Dia Tolerance | +13 to +31 um |
| For Housing ID | 14.288 mm |
| Outer Dia (D) | 0.5625" | 14.288 mm |
| Outer Dia Tolerance | +13 to +31 um |
| Width (C) | 0.4375" | 11.112 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 4350 N |
| Static Load Rating (Cor) (Newtons) | 4600 N |
| Max Speed (Grease) (RPM) | 25000 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 5.0 g |
| Brand / Trade Mark | CLI |
