Roller Bearings-Needle Roller Bearings-SCE drawn cup needle roller bearings with OPEN end, chrome steel AISI52100, INCH SIZE - SCE96

 Part Number: SCE96  (0.5625x0.75x0.375")
 Bearing Type  Needle Roller Bearing
 For Load Direction  Radial
 Construction  Single Row
 End  Open
 Measurement Unit  Imperial
 Seal Type  Open
 For Shaft Diameter  9/16 "
 Bore Dia (Fw)  9/16 " | 14.2875 mm
 Bore Dia Tolerance  +16 to +34 um
 For Housing ID  19.05 mm
 Outer Dia (D)  0.75" | 19.05 mm
 Outer Dia Tolerance  +16 to +34 um
 Width (C)  0.375" | 9.525 mm
 Width Tolerance  -0.01" to 0"
 Ring Material  steel
 Ball Material  steel
 Cage Material  steel
 Dynamic Load Rating (Cr) (Newtons)  5200 N
 Static Load Rating (Cor) (Newtons)  6400 N
 Max Speed (Grease) (RPM)  17600 RPM
 Lubrication  Required
 Lubricant  Grease
 Shaft Mount Type  Press Fit
 Temperature Range  -20 to 110 °C
 RoHS  Compliant
 Weight (grams)  6.0 g
 Brand / Trade Mark  CLI

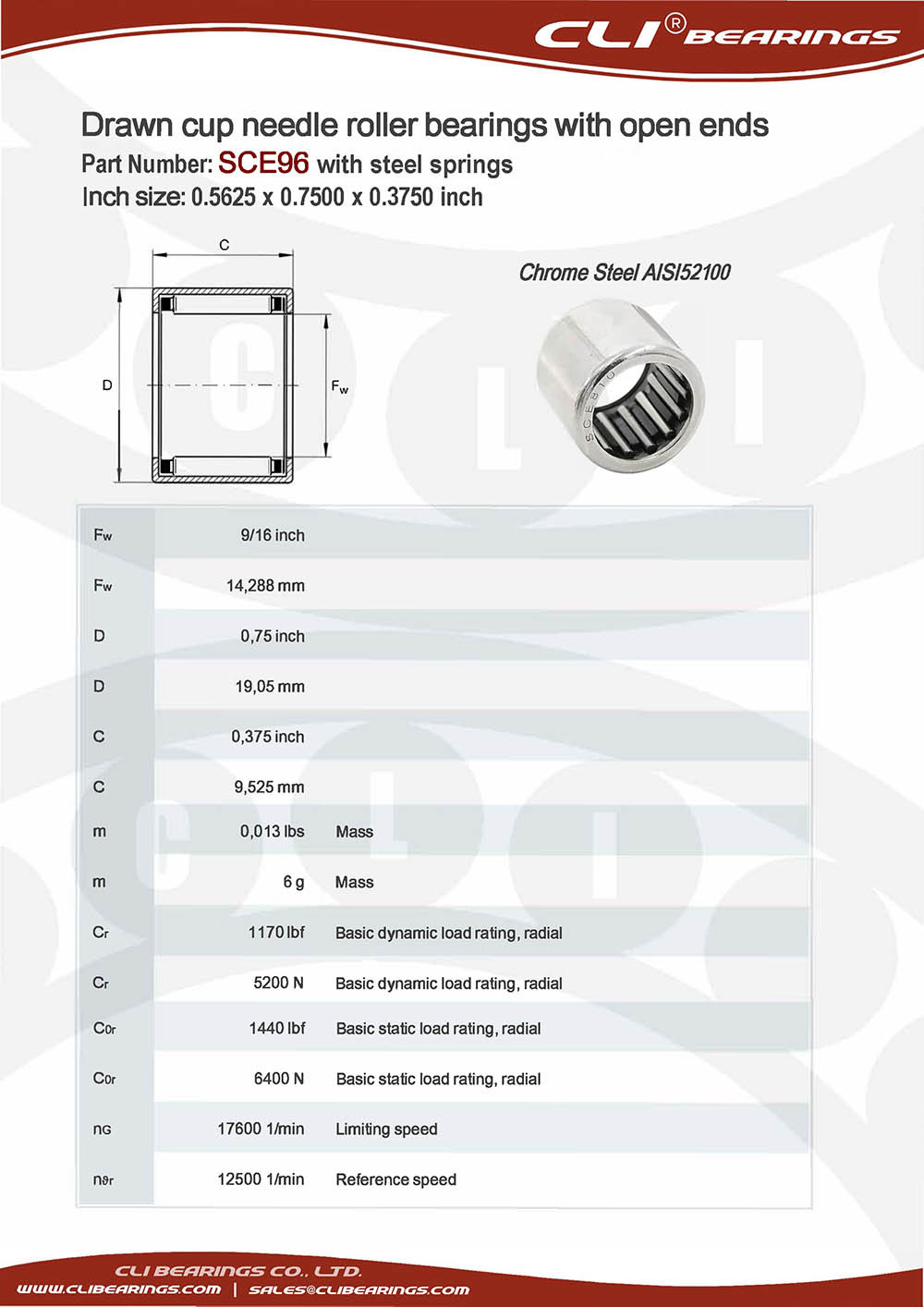

Original sce96 0 5625 x 0 7500 x 0 3750 inch drawn cup needle roller bearings with open ends with steel springs   cli bearings co ltd nw
