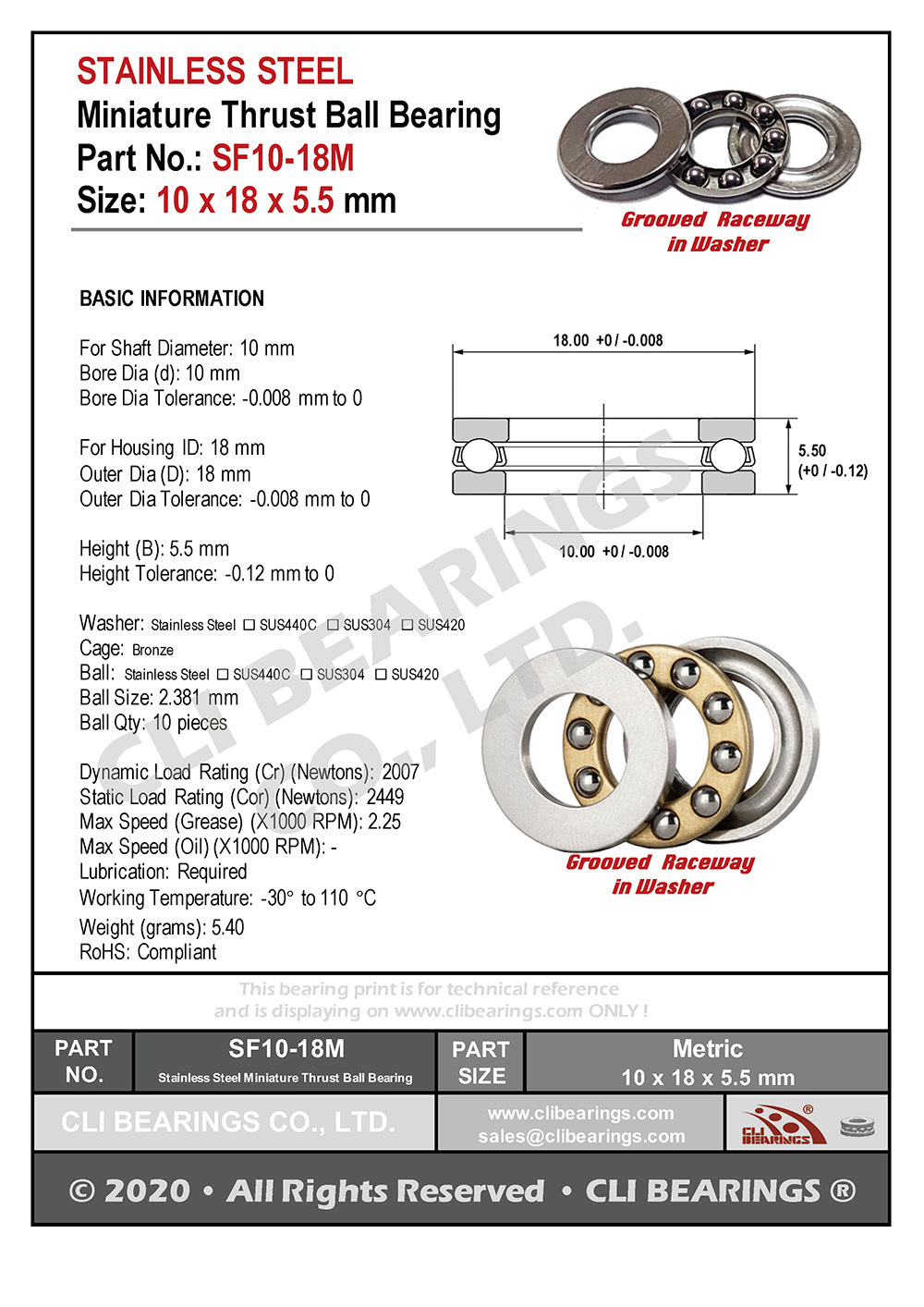

| Part No.: SF10-18M | |
| Standards | Metric Size |
| Bearing Type | Miniature Thrust Ball Bearing |
| For Load Direction | Thrust |
| Seal Type | Open |
| Washer Type | Grooved washer ( with raceway in washer) |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| Outer Dia | 18 mm |
| Outer Dia Tolerance | -0.008 mm to 0 |
| Housing Washer ID | 10.2 mm |
| Shaft Washer OD | 17.8 mm |
| Height | 5.5 mm |
| Height Tolerance | -0.12 mm to 0 |
| Washer Material | SUS440C Stainless Steel |
| Ball Material | SUS440C Stainless Steel |
| Retainer Material | Bronze |
| Dynamic Thrust Load | 2007 N |
| Static Thrust Load | 2449 N |
| Max Speed (X1000 rpm) | 2.25 |
| Lubrication | Required |
| Working Temperature | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 2.381 mm |
| Ball Qty (pieces) | 10 |
| Weight | 5.4 g |
| Brand | Neutral / CLI |
