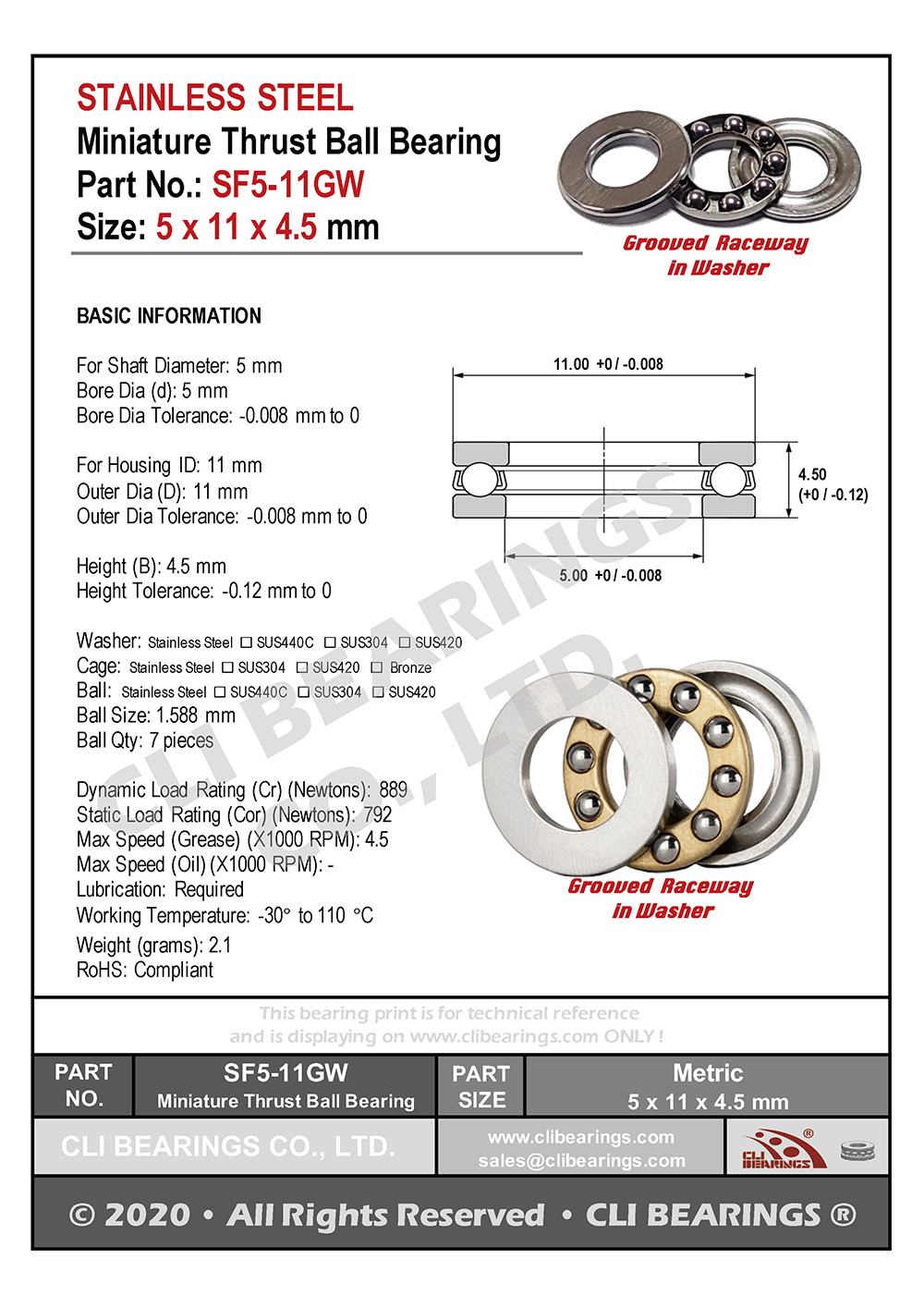

Ball Bearings-Miniature Ball Bearings-STAINLESS STEEL miniature thrust ball bearings, SUS440C/SUS304/SUS420, METRIC size- SF5-11GW (SF5-11M) miniature thrust ball bearing 5x11x4.5mm

 Part No.: SF5-11GW (SF5-11M)
 Standards  Metric Size
 Bearing Type  Miniature Thrust Ball Bearing
 For Load Direction  Thrust
 Seal Type  Open
 Washer Type  Grooved washer ( with raceway in washer)
 Bore Dia  5 mm
 Bore Dia Tolerance  -0.008 mm to 0
 Outer Dia  11 mm
 Outer Dia Tolerance  -0.008 mm to 0
 Housing Washer ID  5.2 mm
 Shaft Washer OD  10.8 mm
 Height  4.5 mm
 Height Tolerance  -0.12 mm to 0
 Washer Material  SUS440C Stainless Steel
 Ball Material  SUS440C Stainless Steel
 Retainer Material  Bronze /Stainless Steel
 Dynamic Thrust Load  889 N
 Static Thrust Load  792 N
 Max Speed (X1000 rpm)  4.5
 Lubrication  Required
 Working Temperature  -30°C to 110 °C
 RoHS  Compliant
 REACH  Compliant
 Ball Dia  1.588 mm
 Ball Qty (pieces)  7
 Weight  2.1 g
 Brand  Neutral / CLI
