Roller Bearings / Spherical roller bearings-230 / 231 / 232 / 239 Spherical Roller Bearings, available with CC / CA / MB cages, CHROME STEEL AISI52100, METRIC sizes

Original spherical roller bearings 230 231 232 239 244

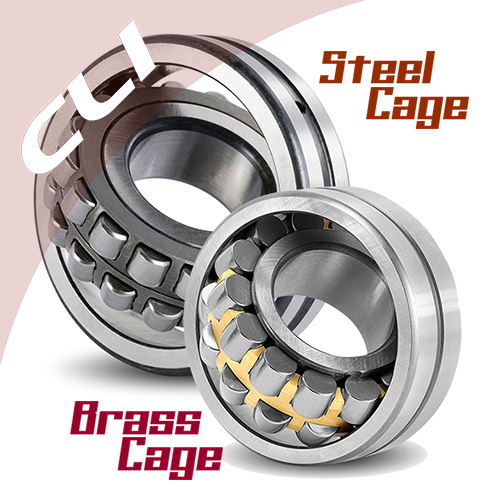

Product Picture

230 / 231 / 232 / 239
Spherical Roller Bearings, available with CC / CA / MB cages,
CHROME STEEL AISI52100, METRIC sizes



CLI spherical roller bearings' main dimensions according to DIN 635-2. Double row. Support extremely high radial and relatively high axial forces in both directions. Ideal for combined loads in both directions. Offer an excellent compensation of misalignment. Available with cylindrical and conical bore (for fixing adapter sleeve).

Our spherical roller bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

230 series
Spherical Roller Bearings, AISI52100 chrome steel for
shaft sizes from 110 mm to 300 mm


CLI
Bearing No.		 Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23022 110 170 45 2 282 455 1,800 2,800 3.71
23022K 110 170 45 2 282 455 1,800 2,800 3.58
23022KW33C3 110 170 45 2 282 455 1,800 2,800 3.58
23022W33C3 110 170 45 2 282 455 1,800 2,800 3.71
23024 120 180 46 2 296 495 1,700 2,600 4.05
23024K 120 180 46 2 296 495 1,700 2,600 3.9
23024KW33C3 120 180 46 2 296 495 1,700 2,600 3.9
23024W33C3 120 180 46 2 296 495 1,700 2,600 4.05
23026 130 200 52 2 375 620 1,500 2,300 5.9
23026K 130 200 52 2 375 620 1,500 2,300 5.69
23026KW33C3 130 200 52 2 375 620 1,500 2,300 5.69
23026W33C3 130 200 52 2 375 620 1,500 2,300 5.9
23028 140 210 53 2 405 690 1,400 2,200 6.35
23028K 140 210 53 2 405 690 1,400 2,200 6.12
23028KW33C3 140 210 53 2 405 690 1,400 2,200 6.12
23028W33C3 140 210 53 2 405 690 1,400 2,200 6.35
23030 150 225 56 2.1 445 775 1,300 2,000 7.73
23030K 150 225 56 2.1 445 775 1,300 2,000 7.45
23030KW33C3 150 225 56 2.1 445 775 1,300 2,000 7.45
23030W33C3 150 225 56 2.1 445 775 1,300 2,000 7.73
23032 160 240 60 2.1 505 885 1,200 1,900 9.42
23032K 160 240 60 2.1 505 885 1,200 1,900 9.09
23032KW33C3 160 240 60 2.1 505 885 1,200 1,900 9.09
23032W33C3 160 240 60 2.1 505 885 1,200 1,900 9.42
23034 170 260 67 2.1 630 1,080 1,100 1,800 12.7
23034K 170 260 67 2.1 630 1,080 1,100 1,800 12.3
23034KW33C3 170 260 67 2.1 630 1,080 1,100 1,800 12.3
23034W33C3 170 260 67 2.1 630 1,080 1,100 1,800 12.7
23036 180 280 74 2.1 740 1,290 1,100 1,700 16.7
23036K 180 280 74 2.1 740 1,290 1,100 1,700 16.1
23036KW33C3 180 280 74 2.1 740 1,290 1,100 1,700 16.1
23036W33C3 180 280 74 2.1 740 1,290 1,100 1,700 16.7
23038 190 290 75 2.1 755 1,350 1,000 1,600 17.7
23038K 190 290 75 2.1 755 1,350 1,000 1,600 17.1
23038KW33C3 190 290 75 2.1 755 1,350 1,000 1,600 17.1
23038W33C3 190 290 75 2.1 755 1,350 1,000 1,600 17.7
23040 200 310 82 2.1 915 1,620 960 1,500 22.7
23040K 200 310 82 2.1 915 1,620 960 1,500 21.9
23040KW33C3 200 310 82 2.1 915 1,620 960 1,500 21.9
23040W33C3 200 310 82 2.1 915 1,620 960 1,500 22.7
23044 220 340 90 3 1,060 1,920 870 1,300 29.9
23044K 220 340 90 3 1,060 1,920 870 1,300 28.8
23044KW33C3 220 340 90 3 1,060 1,920 870 1,300 28.8
23044W33C3 220 340 90 3 1,060 1,920 870 1,300 29.9
23048 240 360 92 3 1,130 2,140 790 1,200 33.4
23048K 240 360 92 3 1,130 2,140 790 1,200 32.2
23048KW33C3 240 360 92 3 1,130 2,140 790 1,200 32.2
23048W33C3 240 360 92 3 1,130 2,140 790 1,200 33.4
23052 260 400 104 4 1,420 2,620 720 1,100 48.5
23052K 260 400 104 4 1,420 2,620 720 1,100 46.8
23052KW33C3 260 400 104 4 1,420 2,620 720 1,100 46.8
23052W33C3 260 400 104 4 1,420 2,620 720 1,100 48.5
23056 280 420 106 4 1,510 2,920 660 1,000 52.4
23056K 280 420 106 4 1,510 2,920 660 1,000 50.6
23056KW33C3 280 420 106 4 1,510 2,920 660 1,000 50.6
23056W33C3 280 420 106 4 1,510 2,920 660 1,000 52.4
23060 300 460 118 4 1,890 3,550 610 940 72.4
23060K 300 460 118 4 1,890 3,550 610 940 70.2
23060KW33C3 300 460 118 4 1,890 3,550 610 940 70.2
23060W33C3 300 460 118 4 1,890 3,550 610 940 72.4


231 series
Spherical Roller Bearings, AISI52100 chrome steel for
shaft sizes from 100 mm to 300 mm


CLI
Bearing No.		 Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23120 100 165 52 2 310 470 1,700 2,600 4.3
23120K 100 165 52 2 310 470 1,700 2,600 4.16
23120KW33C3 100 165 52 2 310 470 1,700 2,600 4.16
23120W33C3 100 165 52 2 310 470 1,700 2,600 4.3
23122 110 180 56 2 370 580 1,500 2,400 5.4
23122K 110 180 56 2 370 580 1,500 2,400 5.22
23122KW33C3 110 180 56 2 370 580 1,500 2,400 5.22
23122W33C3 110 180 56 2 370 580 1,500 2,400 5.4
23124 120 200 62 2 455 705 1,400 2,100 7.7
23124K 120 200 62 2 455 705 1,400 2,100 7.46
23124KW33C3 120 200 62 2 455 705 1,400 2,100 7.46
23124W33C3 120 200 62 2 455 705 1,400 2,100 7.7
23126 130 210 64 2 495 795 1,300 2,000 8.47
23126K 130 210 64 2 495 795 1,300 2,000 8.2
23126KW33C3 130 210 64 2 495 795 1,300 2,000 8.2
23126W33C3 130 210 64 2 495 795 1,300 2,000 8.47
23128 140 225 68 2.1 540 895 1,200 1,800 10.2
23128K 140 225 68 2.1 540 895 1,200 1,800 9.86
23128KW33C3 140 225 68 2.1 540 895 1,200 1,800 9.86
23128W33C3 140 225 68 2.1 540 895 1,200 1,800 10.2
23130 150 250 80 2.1 730 1,190 1,100 1,700 15.6
23130K 150 250 80 2.1 730 1,190 1,100 1,700 15.1
23130KW33C3 150 250 80 2.1 730 1,190 1,100 1,700 15.1
23130W33C3 150 250 80 2.1 730 1,190 1,100 1,700 15.6
23132 160 270 86 2.1 840 1,370 1,000 1,600 19.8
23132K 160 270 86 2.1 840 1,370 1,000 1,600 19.2
23132KW33C3 160 270 86 2.1 840 1,370 1,000 1,600 19.2
23132W33C3 160 270 86 2.1 840 1,370 1,000 1,600 19.8
23134 170 280 88 2.1 885 1,490 960 1,500 21.5
23134K 170 280 88 2.1 885 1,490 960 1,500 20.8
23134KW33C3 170 280 88 2.1 885 1,490 960 1,500 20.8
23134W33C3 170 280 88 2.1 885 1,490 960 1,500 21.5
23136 180 300 96 3 1,030 1,730 900 1,400 25.1
23136K 180 300 96 3 1,030 1,730 900 1,400 24.2
23136KW33C3 180 300 96 3 1,030 1,730 900 1,400 24.2
23136W33C3 180 300 96 3 1,030 1,730 900 1,400 25.1
23138 190 320 104 3 1,190 2,020 850 1,300 35.3
23138K 190 320 104 3 1,190 2,020 850 1,300 34.2
23138KW33C3 190 320 104 3 1,190 2,020 850 1,300 34.2
23138W33C3 190 320 104 3 1,190 2,020 850 1,300 35.3
23140 200 340 112 3 1,350 2,270 800 1,200 43.3
23140K 200 340 112 3 1,350 2,270 800 1,200 42
23140KW33C3 200 340 112 3 1,350 2,270 800 1,200 42
23140W33C3 200 340 112 3 1,350 2,270 800 1,200 43.3
23144 220 370 120 4 1,540 2,670 720 1,100 53.3
23144K 220 370 120 4 1,540 2,670 720 1,100 51.6
23144KW33C3 220 370 120 4 1,540 2,670 720 1,100 51.6
23144W33C3 220 370 120 4 1,540 2,670 720 1,100 53.3
23148 240 400 128 4 1,730 3,050 650 1,000 65.8
23148K 240 400 128 4 1,730 3,050 650 1,000 63.8
23148KW33C3 240 400 128 4 1,730 3,050 650 1,000 63.8
23148W33C3 240 400 128 4 1,730 3,050 650 1,000 65.8
23152 260 440 144 4 2,140 3,850 600 920 91.4
23152K 260 440 144 4 2,140 3,850 600 920 88.6
23152KW33C3 260 440 144 4 2,140 3,850 600 920 88.6
23152W33C3 260 440 144 4 2,140 3,850 600 920 91.4
23156 280 460 146 5 2,300 4,250 550 850 97.7
23156K 280 460 146 5 2,300 4,250 550 850 94.6
23156KW33C3 280 460 146 5 2,300 4,250 550 850 94.6
23156W33C3 280 460 146 5 2,300 4,250 550 850 97.7
23160 300 500 160 5 2,750 5,000 510 780 131
23160K 300 500 160 5 2,750 5,000 510 780 127
23160KW33C3 300 500 160 5 2,750 5,000 510 780 127
23160W33C3 300 500 160 5 2,750 5,000 510 780 131


232 series
Spherical Roller Bearings, AISI52100 chrome steel for
shaft sizes from 90 mm to 300 mm


CLI
Bearing No.		 Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23218 90 160 52.4 2 315 455 1,800 2,800 4.45
23218K 90 160 52.4 2 315 455 1,800 2,800 4.32
23218KW33C3 90 160 52.4 2 315 455 1,800 2,800 4.32
23218W33C3 90 160 52.4 2 315 455 1,800 2,800 4.45
23220 100 180 60.3 2.1 405 580 1,600 2,500 6.47
23220K 100 180 60.3 2.1 405 580 1,600 2,500 6.28
23220KW33C3 100 180 60.3 2.1 405 580 1,600 2,500 6.28
23220W33C3 100 180 60.3 2.1 405 580 1,600 2,500 6.47
23222 110 200 69.8 2.1 515 760 1,400 2,200 9.71
23222K 110 200 69.8 2.1 515 760 1,400 2,200 9.43
23222KW33C3 110 200 69.8 2.1 515 760 1,400 2,200 9.43
23222W33C3 110 200 69.8 2.1 515 760 1,400 2,200 9.71
23224 120 215 76 2.1 585 880 1,300 2,000 12.1
23224K 120 215 76 2.1 585 880 1,300 2,000 11.7
23224KW33C3 120 215 76 2.1 585 880 1,300 2,000 11.7
23224W33C3 120 215 76 2.1 585 880 1,300 2,000 12.1
23226 130 230 80 3 685 1,060 1,200 1,900 14.3
23226K 130 230 80 3 685 1,060 1,200 1,900 13.9
23226KW33C3 130 230 80 3 685 1,060 1,200 1,900 13.9
23226W33C3 130 230 80 3 685 1,060 1,200 1,900 14.3
23228 140 250 88 3 805 1,270 1,100 1,700 18.8
23228K 140 250 88 3 805 1,270 1,100 1,700 18.2
23228KW33C3 140 250 88 3 805 1,270 1,100 1,700 18.2
23228W33C3 140 250 88 3 805 1,270 1,100 1,700 18.8
23230 150 270 96 3 935 1,460 1,000 1,600 24.1
23230K 150 270 96 3 935 1,460 1,000 1,600 23.4
23230KW33C3 150 270 96 3 935 1,460 1,000 1,600 23.4
23230W33C3 150 270 96 3 935 1,460 1,000 1,600 24.1
23232 160 290 104 3 1,050 1,660 960 1,500 30
23232K 160 290 104 3 1,050 1,660 960 1,500 29.1
23232KW33C3 160 290 104 3 1,050 1,660 960 1,500 29.1
23232W33C3 160 290 104 3 1,050 1,660 960 1,500 30
23234 170 310 110 4 1,180 1,960 910 1,400 36.8
23234K 170 310 110 4 1,180 1,960 910 1,400 35.7
23234KW33C3 170 310 110 4 1,180 1,960 910 1,400 35.7
23234W33C3 170 310 110 4 1,180 1,960 910 1,400 36.8
23236 180 320 112 4 1,230 2,000 850 1,300 39
23236K 180 320 112 4 1,230 2,000 850 1,300 37.8
23236KW33C3 180 320 112 4 1,230 2,000 850 1,300 37.8
23236W33C3 180 320 112 4 1,230 2,000 850 1,300 39
23238 190 340 120 4 1,400 2,330 790 1,200 47.6
23238K 190 340 120 4 1,400 2,330 790 1,200 46.2
23238KW33C3 190 340 120 4 1,400 2,330 790 1,200 46.2
23238W33C3 190 340 120 4 1,400 2,330 790 1,200 47.6
23240 200 360 128 4 1,610 2,640 750 1,200 57.2
23240K 200 360 128 4 1,610 2,640 750 1,200 55.5
23240KW33C3 200 360 128 4 1,610 2,640 750 1,200 55.5
23240W33C3 200 360 128 4 1,610 2,640 750 1,200 57.2
23244 220 400 144 4 2,010 3,350 670 1,000 80
23244K 220 400 144 4 2,010 3,350 670 1,000 77.6
23244KW33C3 220 400 144 4 2,010 3,350 670 1,000 77.6
23244W33C3 220 400 144 4 2,010 3,350 670 1,000 80
23248 240 440 160 4 2,430 4,100 610 940 108
23248K 240 440 160 4 2,430 4,100 610 940 105
23248KW33C3 240 440 160 4 2,430 4,100 610 940 105
23248W33C3 240 440 160 4 2,430 4,100 610 940 108
23252 260 480 174 5 2,760 4,700 560 860 141
23252K 260 480 174 5 2,760 4,700 560 860 137
23252KW33C3 260 480 174 5 2,760 4,700 560 860 137
23252W33C3 260 480 174 5 2,760 4,700 560 860 141
23256 280 500 176 5 2,930 5,150 510 790 150
23256K 280 500 176 5 2,930 5,150 510 790 145
23256KW33C3 280 500 176 5 2,930 5,150 510 790 145
23256W33C3 280 500 176 5 2,930 5,150 510 790 150
23260 300 540 192 5 3,450 6,000 470 730 193
23260K 300 540 192 5 3,450 6,000 470 730 187
23260KW33C3 300 540 192 5 3,450 6,000 470 730 187
23260W33C3 300 540 192 5 3,450 6,000 470 730 193


239 series
Spherical Roller Bearings, AISI52100 chrome steel for
shaft sizes from 180 mm to 300 mm


CLI
Bearing No.		 Boundary dimensions Basic load ratings(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
23936 180 250 52 2 440 835 1,200 1,800 8.21
23936K 180 250 52 2 440 835 1,200 1,800 7.95
23936KW33C3 180 250 52 2 440 835 1,200 1,800 7.95
23936W33C3 180 250 52 2 440 835 1,200 1,800 8.21
23938 190 260 52 2 460 890 1,100 1,700 8.6
23938K 190 260 52 2 460 890 1,100 1,700 8.34
23938KW33C3 190 260 52 2 460 890 1,100 1,700 8.34
23938W33C3 190 260 52 2 460 890 1,100 1,700 8.6
23940 200 280 60 2.1 545 1,100 1,000 1,600 12.1
23940K 200 280 60 2.1 545 1,100 1,000 1,600 11.7
23940KW33C3 200 280 60 2.1 545 1,100 1,000 1,600 11.7
23940W33C3 200 280 60 2.1 545 1,100 1,000 1,600 12.1
23944 220 300 60 2.1 565 1,170 930 1,400 13.1
23944K 220 300 60 2.1 565 1,170 930 1,400 12.7
23944KW33C3 220 300 60 2.1 565 1,170 930 1,400 12.7
23944W33C3 220 300 60 2.1 565 1,170 930 1,400 13.1
23948 240 320 60 2.1 565 1,190 840 1,300 14
23948K 240 320 60 2.1 565 1,190 840 1,300 13.6
23948KW33C3 240 320 60 2.1 565 1,190 840 1,300 13.6
23948W33C3 240 320 60 2.1 565 1,190 840 1,300 14
23952 260 360 75 2.1 760 1,580 770 1,200 24
23952K 260 360 75 2.1 760 1,580 770 1,200 23.3
23952KW33C3 260 360 75 2.1 760 1,580 770 1,200 23.3
23952W33C3 260 360 75 2.1 760 1,580 770 1,200 24
23956 280 380 75 2.1 830 1,750 710 1,100 26.4
23956K 280 380 75 2.1 830 1,750 710 1,100 25.6
23956KW33C3 280 380 75 2.1 830 1,750 710 1,100 25.6
23956W33C3 280 380 75 2.1 830 1,750 710 1,100 26.4
23960 300 420 90 3 1,110 2,320 650 1,000 40
23960K 300 420 90 3 1,110 2,320 650 1,000 38.7
23960KW33C3 300 420 90 3 1,110 2,320 650 1,000 38.7
23960W33C3 300 420 90 3 1,110 2,320 650 1,000 40


 * Suffix Descriptions:
 K - tapered bore 1:12
 K30 - tapered bore 1:30
 C3 - radial clearance as C3
 CC - pressed steel cage
 MB - machined brass cage, inner ring centred
 CA - one piece of machined brass cage
 W33 - with annular oil groove and 3 lubrication holes in the outer ring




+ About Us
+ Contact Us
+ Site Map
+ Bearing Catalogues
+ Products
- Ball Bearings
- Roll Bearings
- Sliding Bearings
- Housing&Units
- Spherical Plain Bearings
- Rod Ends
+ Technical Reference
- Ball Bearings
- Roll Bearings
- Sliding Bearings
- Housing&Units
- Spherical Plain Bearings
+ News And Exhibitions
Tel: 0086 28 8669 3910
Email: sales@clibearings.com
Web: www.clibearings.com
Home
