Roller Bearings / Spherical Roller Thrust Bearings-294 series spherical roller thrust bearings, SINGLE direction, SEPARABLE, CHROME STEEL AISI52100, METRIC sizes

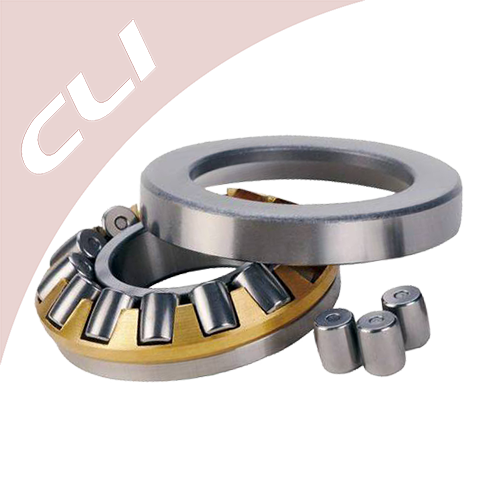

Original spherical roller thrust bearings 2
Product Picture

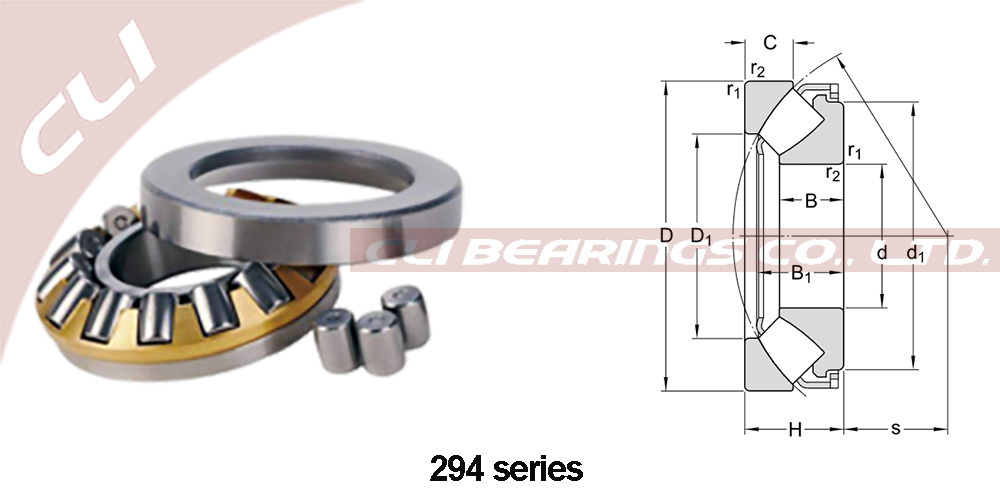

294 series
spherical roller thrust bearings, SINGLE direction, SEPARABLE,
CHROME STEEL AISI52100, METRIC sizes



CLI spherical roller thrust bearings & axial spherical roller bearings are strong axial loading capacity, self-aligning.
The concentricity and shaft deflection have small impacts to the bearing.Different structures have different allowable self-aligning angles.
Generally, the self-aligning angle is not more than 3°. If the axial load is higher, the allowable self-aligning angle is smaller.

CLI spherical roller thrust bearing can carry combined loads which is main in axial and axial loads in one direction. Their loading capacity and limiting speed are high, and they can align by themselves when the precision of shafts or housing is not high or there is instalation error.

CLI spherical roller thrust bearings usually adopt steel pressed cages or machined solid cages. They are mainly used in oil rigs, screw propeller shafts of sea-going freighter, helldrivers, gantry cranes, turnplates of large tower cranes, turnplates of sounding borers, etc.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

294 series
spherical roller thrust bearings AISI52100 chrome steel for
shaft sizes from 60 mm to 850 mm


CLI Bearing No. Principal dimensions Basic load ratings Weight
d D T dynamic static
(MM) Cr(kN) Cor(kN) (KG)
29412 spherical roller thrust bearing 60 130 42 390 915 2.6
29412E spherical roller thrust bearing 60 130 42 390 915 2.6
29412EX spherical roller thrust bearing 60 130 42 390 915 2.6
29413 spherical roller thrust bearing 65 140 45 455 1080 3.2
29413E spherical roller thrust bearing 65 140 45 455 1080 3.2
29413EX spherical roller thrust bearing 65 140 45 455 1080 3.2
29414 spherical roller thrust bearing 70 150    48 520 1250 3.9
29414E spherical roller thrust bearing 70 150    49 520 1250 3.9
29414EX spherical roller thrust bearing 70 150    50 520 1250 3.9
29415 spherical roller thrust bearing 75 160 51 600 1430 4.7
29415E spherical roller thrust bearing 75 160 51 600 1430 4.7
29415EX spherical roller thrust bearing 75 160 51 600 1430 4.7
29416 spherical roller thrust bearing 80 170 54 670 1630 5.6
29416E spherical roller thrust bearing 80 170 54 670 1630 5.6
29416EX spherical roller thrust bearing 80 170 54 670 1630 5.6
29416/YA8 spherical roller thrust bearing 80 170 54 670 1630 5.6
29417 spherical roller thrust bearing 85 180 58 735 1800 6.75
29417E spherical roller thrust bearing 85 180 58 735 1800 6.75
29417EX spherical roller thrust bearing 85 180 58 735 1800 6.75
29418 spherical roller thrust bearing  90 190 60 815 2000 7.75
29418E spherical roller thrust bearing  91 190 60 815 2000 7.75
29418EX spherical roller thrust bearing  92 190 60 815 2000 7.75
29418/YA8 spherical roller thrust bearing  93 190 60 815 2000 7.75
29420 spherical roller thrust bearing 100 210 67 980 2500 10.5
29420E spherical roller thrust bearing 100 210 67 980 2500 10.5
29420EX spherical roller thrust bearing 100 210 67 980 2500 10.5
29422 spherical roller thrust bearing 110 230 73 1180 3000 13.5
29422E spherical roller thrust bearing 110 230 73 1180 3000 13.5
29422EX spherical roller thrust bearing 110 230 73 1180 3000 13.5
29424 spherical roller thrust bearing 120 250 78 1370 3450 17.5
29424E spherical roller thrust bearing 120 250 78 1370 3450 17.5
29424EX spherical roller thrust bearing 120 250 78 1370 3450 17.5
29426 spherical roller thrust bearing 130 270 85 1560 4050 22
29426E spherical roller thrust bearing 130 270 85 1560 4050 22
29426EX spherical roller thrust bearing 130 270 85 1560 4050 22
29428 spherical roller thrust bearing 140 280 85 1630 4300 23
29428E spherical roller thrust bearing 140 280 85 1630 4300 23
29428EX spherical roller thrust bearing 140 280 85 1630 4300 23
29430 spherical roller thrust bearing 150 300 90 1860 5100 28
29430E spherical roller thrust bearing 150 300 90 1860 5100 28
29430EX spherical roller thrust bearing 150 300 90 1860 5100 28
29430/YA8 spherical roller thrust bearing 150 300 90 1860 5100 28
29430E spherical roller thrust bearing 150 300 90 1860 5100 28
29432 spherical roller thrust bearing 160 320 95 2080 5600 32
29432E spherical roller thrust bearing 160 320 95 2080 5600 32
29432EX spherical roller thrust bearing 160 320 95 2080 5600 32
29434 spherical roller thrust bearing 170 340 103 2360 6550 44.5
29434 spherical roller thrust bearing 170 340 103 2360 6550 44.5
29434E spherical roller thrust bearing 170 340 103 2360 6550 44.5
29434/YA8 spherical roller thrust bearing 170 340 103 2360 6550 44.5
29436 spherical roller thrust bearing 180 360 109 2600 7350 52.5
29436E spherical roller thrust bearing 180 360 109 2600 7350 52.5
29436/YA8 spherical roller thrust bearing 180 360 109 2600 7350 52.5
29438 spherical roller thrust bearing 190 380 115 2850 8000 60.5
29438E spherical roller thrust bearing 190 380 115 2850 8000 60.5
29440 spherical roller thrust bearing 200 400 122 3200 9000 72
29440E spherical roller thrust bearing 200 400 122 3200 9000 72
29444 spherical roller thrust bearing 220 420 122 3350 9650 75
29444E spherical roller thrust bearing 220 420 122 3350 9650 75
29448 spherical roller thrust bearing 240 440 122 3400 10200 80
29448 E spherical roller thrust bearing 240 440 122 3400 10200 80
29452 spherical roller thrust bearing 260 480 132 4050 12900 105
29452E spherical roller thrust bearing 260 480 132 4050 12900 105
29456 spherical roller thrust bearing 280 520 145 4900 15300 135
29456E spherical roller thrust bearing 280 520 145 4900 15300 135
29460 spherical roller thrust bearing 300 540 145 5000 16600 140
29460E spherical roller thrust bearing 300 540 145 5000 16600 140
29464 spherical roller thrust bearing 320 580 155 　 　 　
29464E spherical roller thrust bearing 320 580 155 　 　 　
29468 spherical roller thrust bearing 340 620 170 6700 22400 220
29468E spherical roller thrust bearing 340 620 170 6700 22400 220
29472 spherical roller thrust bearing 360 640 170 6200 21200 230
29472E spherical roller thrust bearing 360 640 170 6200 21200 230
29472EM spherical roller thrust bearing 360 640 170 6200 21200 230
29476 spherical roller thrust bearing 380 670 175 6800 24000 260
29476E spherical roller thrust bearing 380 670 175 6800 24000 260
29476EM spherical roller thrust bearing 380 670 175 6800 24000 260
29480 spherical roller thrust bearing 400 710 185 7650 26500 310
29480E spherical roller thrust bearing 400 710 185 7650 26500 310
29480EM spherical roller thrust bearing 400 710 185 7650 26500 310
29484 spherical roller thrust bearing 420 730 185 7800 27500 325
29484E spherical roller thrust bearing 420 730 185 7800 27500 325
29484EM spherical roller thrust bearing 420 730 185 7800 27500 325
29488 spherical roller thrust bearing 440 780 206 9000 32000 410
29488E spherical roller thrust bearing 440 780 206 9000 32000 410
29488EM spherical roller thrust bearing 440 780 206 9000 32000 410
29492 spherical roller thrust bearing 460 800 206 9300 33500 425
29492E spherical roller thrust bearing 460 800 206 9300 33500 425
29492EM spherical roller thrust bearing 460 800 206 9300 33500 425
29496 spherical roller thrust bearing 480 850 224 9550 39000 550
29496E spherical roller thrust bearing 480 850 224 9550 39000 550
29496EM spherical roller thrust bearing 480 850 224 9550 39000 550
　
294/500 spherical roller thrust bearing 500 870 224 9370 40000 560
294/500E spherical roller thrust bearing 500 870 224 9370 40000 560
294/500EM spherical roller thrust bearing 500 870 224 9370 40000 560
294/530 spherical roller thrust bearing 530 920 236 10500 44000 650
294/530EM spherical roller thrust bearing 530 920 236 10500 44000 650
294/560 spherical roller thrust bearing 560 980 250 12000 51000 810
294/560EM spherical roller thrust bearing 560 980 250 12000 51000 810
294/600 spherical roller thrust bearing 600 1030  308 13100 56000 845
294/600EM spherical roller thrust bearing 600 1030  309 13100 56000 845
294/630EM spherical roller thrust bearing 630 1090 280 14400 62000 1040
294/670EM spherical roller thrust bearing 670 1150 290 15400 68000 1210
294/710 spherical roller thrust bearing 710 1220  308 17600 76500 1500
294/710EF spherical roller thrust bearing 710 1220  309 17600 76500 1500
294/710/HC spherical roller thrust bearing 710 1220  310 17600 76500 1500
294/750 spherical roller thrust bearing 750 1280 315 18700 85000 1650
294/750EF spherical roller thrust bearing 750 1280 315 18700 85000 1650
294/800EF spherical roller thrust bearing 　 　 　 20200 93000 2025
294/850 spherical roller thrust bearing 850 1440 354 23900 108000 2390
294/850EF spherical roller thrust bearing 850 1440 354 23900 108000 2390
294/900EF spherical roller thrust bearing 　 　 　 26700 122000 2650
294/950EF spherical roller thrust bearing 　 　 　 　 　 　


 * Suffix Descriptions:
 E - increased capacity roller set, designed for very high load carrying capacity
 TVP2 - plastic cage PA66
 M1 - 2-piece solid brass cage
 MPAX - 1-piece, milled brass cage, guided on the outer ring rib
 MPBX - 1-piece, milled brass cage, guided on the inner ring rib
 JP3 - sheet steel cage
 C3 - radial clearance as C3
