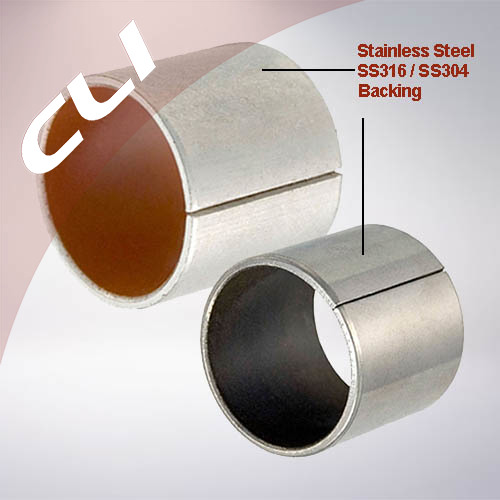

CLI-1S / CLI-1DS series
DU-S bearings & DP4-S bushings,
PTFE mixed Polymer Fibers coated Dry Bush with STAINLESS STEEL backing,
Self Lubricated, Metric Size & Inch Size, ROHS compliant
|
|
• CLI-1S is based on stainless steel backing AISI304, AISI316 or AISI316L with sintered porous bronze layer mixed with PTFE and fibers;
• It is characterized by acid-resistant, alkaline-resistant, and ocean water resistant ... etc ;
• CLI-1S parts are widely used as fluid valve of measuring acid and alkalizing flow in chemical industry, and corrosion resistant sliding position in marine industry ;
• CLI-1S parts are also known as SF-1S .
TECHNICAL DATA
| • Metallographic Micrographs |
|
|
• Technical Data |
Layer 1: PTFE mixed with Polymer Fibers, thickness 0.01 to 0.03 mm
Layer 2: Sintered bronze powder, thickness 0.20 to 0.35 mm
Layer 3: Stainless steel backing (AISI304 / AISI316 / AISI316L), thickness 0.70 to 2.30 mm
♦ The actual thickness of metallographic structure as the negotiation |
|
|
| Item |
Standards |
Unit |
| Maximum Operating Temperature Tmax |
280 |
°C |
| Minimum Operating Temperature Tmin |
-200 |
°C |
| Maximum Static Load Psta,max |
250 |
N/mm2 |
| Maximum Dynamic Load Pdyn,max |
140 |
N/mm2 |
| Maximum Sliding Speed V-dry |
2.5 |
m/s |
| Maximum PV Factor-dry, continuous operation |
1.8 |
N/mm2 * m/s |
| Maximum PV Factor-dry, intermittent operation |
3.5 |
N/mm2 * m/s |
| Coefficient of friction f-dry |
0.02-0.25 |
| Coefficient of friction f-oil lubricated |
0.02-0.12 |
| Usage Range |
| dry |
very good |
| oil lubricated |
good |
| grease lubricated |
fair |
| water lubricated |
fair |
| process fluid lubricated |
fair |
|
|
APPLICATIONS
1. PTFE with oil fibres can protect the shaft in operation ;
2. Low friction coefficient, good anti-wear ;
3. High loading capacity, working well in motions of rotation, rock or advance and return movements ;
4. Excellent anti-corrosion ;
5. Green features, used in food machines, pharmaceuticals industry ... etc ;
6. Mainly used in the condion of strong acid and alkali, soch as chemical industry, pumps, valves ... etc .
|
|
|
 |
STANDARD TYPES AVAILABLE
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

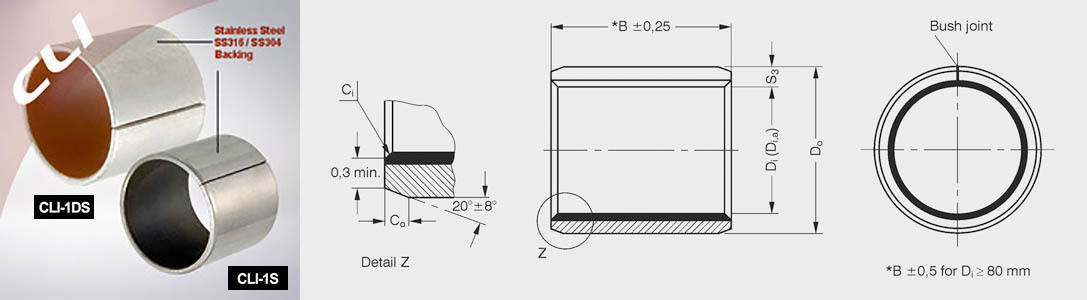

CLI-1S / CLI-1DS series
DU-S bearings & DP4-S bushings,
PTFE mixed Polymer Fibers coated Dry Bush with STAINLESS STEEL backing,
Self Lubricated, Metric Size
|
 |
| |
|
CLI Part No.
(Black Slide Layer)
|
CLI Part No.
(Red Slide Layer)
|
Di
|
Do
|
B
|
Housing
|
Shaft
|
Di,a max
|
Di,a min
|
Clearance max.
|
Clearance min.
|
|
(mm)
|
(mm)
|
(mm)
|
H7 (mm)
|
H7 (mm)
|
(mm)
|
(mm)
|
|
0203CLI-1S
|
0203CLI-1DS
|
2
|
3.5
|
3
|
H6
|
h6
|
2.048
|
2
|
0.054
|
0
|
|
0205CLI-1S
|
0205CLI-1DS
|
2
|
3.5
|
5
|
H6
|
h6
|
2.048
|
2
|
0.054
|
0
|
|
0303CLI-1S
|
0303CLI-1DS
|
3
|
4.5
|
3
|
H6
|
h6
|
3.048
|
3
|
0.054
|
0
|
|
0305CLI-1S
|
0305CLI-1DS
|
3
|
4.5
|
5
|
H6
|
h6
|
3.048
|
3
|
0.054
|
0
|
|
0306CLI-1S
|
0306CLI-1DS
|
3
|
4.5
|
6
|
H6
|
h6
|
3.048
|
3
|
0.054
|
0
|
|
0403CLI-1S
|
0403CLI-1DS
|
4
|
5.5
|
3
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
0404CLI-1S
|
0404CLI-1DS
|
4
|
5.5
|
4
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
0406CLI-1S
|
0406CLI-1DS
|
4
|
5.5
|
6
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
0410CLI-1S
|
0410CLI-1DS
|
4
|
5.5
|
10
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
0505CLI-1S
|
0505CLI-1DS
|
5
|
7
|
5
|
H7
|
f7
|
5.055
|
4.99
|
0.077
|
0
|
|
0508CLI-1S
|
0508CLI-1DS
|
5
|
7
|
8
|
H7
|
f7
|
5.055
|
4.99
|
0.077
|
0
|
|
0510CLI-1S
|
0510CLI-1DS
|
5
|
7
|
10
|
H7
|
f7
|
5.055
|
4.99
|
0.077
|
0
|
|
0604CLI-1S
|
0604CLI-1DS
|
6
|
8
|
4
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
0606CLI-1S
|
0606CLI-1DS
|
6
|
8
|
6
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
0608CLI-1S
|
0608CLI-1DS
|
6
|
8
|
8
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
0610CLI-1S
|
0610CLI-1DS
|
6
|
8
|
10
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
0705CLI-1S
|
0705CLI-1DS
|
7
|
9
|
5
|
H7
|
f7
|
7.055
|
6.99
|
0.083
|
0.003
|
|
0710CLI-1S
|
0710CLI-1DS
|
7
|
9
|
10
|
H7
|
f7
|
7.055
|
6.99
|
0.083
|
0.003
|
|
0806CLI-1S
|
0806CLI-1DS
|
8
|
10
|
6
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
0808CLI-1S
|
0808CLI-1DS
|
8
|
10
|
8
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
0810CLI-1S
|
0810CLI-1DS
|
8
|
10
|
10
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
0812CLI-1S
|
0812CLI-1DS
|
8
|
10
|
12
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
1006CLI-1S
|
1006CLI-1DS
|
10
|
12
|
6
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1008CLI-1S
|
1008CLI-1DS
|
10
|
12
|
8
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1010CLI-1S
|
1010CLI-1DS
|
10
|
12
|
10
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1012CLI-1S
|
1012CLI-1DS
|
10
|
12
|
12
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1015CLI-1S
|
1015CLI-1DS
|
10
|
12
|
15
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1020CLI-1S
|
1020CLI-1DS
|
10
|
12
|
20
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
1208CLI-1S
|
1208CLI-1DS
|
12
|
14
|
8
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1210CLI-1S
|
1210CLI-1DS
|
12
|
14
|
10
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1212CLI-1S
|
1212CLI-1DS
|
12
|
14
|
12
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1215CLI-1S
|
1215CLI-1DS
|
12
|
14
|
15
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1220CLI-1S
|
1220CLI-1DS
|
12
|
14
|
20
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1225CLI-1S
|
1225CLI-1DS
|
12
|
14
|
25
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
1310CLI-1S
|
1310CLI-1DS
|
13
|
15
|
10
|
H7
|
f7
|
13.058
|
12.99
|
0.092
|
0.006
|
|
1320CLI-1S
|
1320CLI-1DS
|
13
|
15
|
20
|
H7
|
f7
|
13.058
|
12.99
|
0.092
|
0.006
|
|
1405CLI-1S
|
1405CLI-1DS
|
14
|
16
|
5
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1410CLI-1S
|
1410CLI-1DS
|
14
|
16
|
10
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1412CLI-1S
|
1412CLI-1DS
|
14
|
16
|
12
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1415CLI-1S
|
1415CLI-1DS
|
14
|
16
|
15
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1420CLI-1S
|
1420CLI-1DS
|
14
|
16
|
20
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1425CLI-1S
|
1425CLI-1DS
|
14
|
16
|
25
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
1510CLI-1S
|
1510CLI-1DS
|
15
|
17
|
10
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
1512CLI-1S
|
1512CLI-1DS
|
15
|
17
|
12
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
1515CLI-1S
|
1515CLI-1DS
|
15
|
17
|
15
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
1520CLI-1S
|
1520CLI-1DS
|
15
|
17
|
20
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
1525CLI-1S
|
1525CLI-1DS
|
15
|
17
|
25
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
1610CLI-1S
|
1610CLI-1DS
|
16
|
18
|
10
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
1612CLI-1S
|
1612CLI-1DS
|
16
|
18
|
12
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
1615CLI-1S
|
1615CLI-1DS
|
16
|
18
|
15
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
1620CLI-1S
|
1620CLI-1DS
|
16
|
18
|
20
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
1625CLI-1S
|
1625CLI-1DS
|
16
|
18
|
25
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
1720CLI-1S
|
1720CLI-1DS
|
17
|
19
|
20
|
H7
|
f7
|
17.061
|
16.99
|
0.095
|
0.006
|
|
1810CLI-1S
|
1810CLI-1DS
|
18
|
20
|
10
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
1815CLI-1S
|
1815CLI-1DS
|
18
|
20
|
15
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
1820CLI-1S
|
1820CLI-1DS
|
18
|
20
|
20
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
1825CLI-1S
|
1825CLI-1DS
|
18
|
20
|
25
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
2010CLI-1S
|
2010CLI-1DS
|
20
|
23
|
10
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
2015CLI-1S
|
2015CLI-1DS
|
20
|
23
|
15
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
2020CLI-1S
|
2020CLI-1DS
|
20
|
23
|
20
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
2025CLI-1S
|
2025CLI-1DS
|
20
|
23
|
25
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
2030CLI-1S
|
2030CLI-1DS
|
20
|
23
|
30
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
2215CLI-1S
|
2215CLI-1DS
|
22
|
25
|
15
|
H7
|
f7
|
22.071
|
21.99
|
0.112
|
0.01
|
|
2220CLI-1S
|
2220CLI-1DS
|
22
|
25
|
20
|
H7
|
f7
|
22.071
|
21.99
|
0.112
|
0.01
|
|
2225CLI-1S
|
2225CLI-1DS
|
22
|
25
|
25
|
H7
|
f7
|
22.071
|
21.99
|
0.112
|
0.01
|
|
2230CLI-1S
|
2230CLI-1DS
|
22
|
25
|
30
|
H7
|
f7
|
22.071
|
21.99
|
0.112
|
0.01
|
|
2415CLI-1S
|
2415CLI-1DS
|
24
|
27
|
15
|
H7
|
f7
|
24.071
|
23.99
|
0.112
|
0.01
|
|
2420CLI-1S
|
2420CLI-1DS
|
24
|
27
|
20
|
H7
|
f7
|
24.071
|
23.99
|
0.112
|
0.01
|
|
2425CLI-1S
|
2425CLI-1DS
|
24
|
27
|
25
|
H7
|
f7
|
24.071
|
23.99
|
0.112
|
0.01
|
|
2430CLI-1S
|
2430CLI-1DS
|
24
|
27
|
30
|
H7
|
f7
|
24.071
|
23.99
|
0.112
|
0.01
|
|
2515CLI-1S
|
2515CLI-1DS
|
25
|
28
|
15
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
2520CLI-1S
|
2520CLI-1DS
|
25
|
28
|
20
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
2525CLI-1S
|
2525CLI-1DS
|
25
|
28
|
25
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
2530CLI-1S
|
2530CLI-1DS
|
25
|
28
|
30
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
2550CLI-1S
|
2550CLI-1DS
|
25
|
28
|
50
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
2815CLI-1S
|
2815CLI-1DS
|
28
|
32
|
15
|
H7
|
f7
|
28.085
|
27.99
|
0.126
|
0.01
|
|
2820CLI-1S
|
2820CLI-1DS
|
28
|
32
|
20
|
H7
|
f7
|
28.085
|
27.99
|
0.126
|
0.01
|
|
2825CLI-1S
|
2825CLI-1DS
|
28
|
32
|
25
|
H7
|
f7
|
28.085
|
27.99
|
0.126
|
0.01
|
|
2830CLI-1S
|
2830CLI-1DS
|
28
|
32
|
30
|
H7
|
f7
|
28.085
|
27.99
|
0.126
|
0.01
|
|
3010CLI-1S
|
3010CLI-1DS
|
30
|
34
|
10
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3015CLI-1S
|
3015CLI-1DS
|
30
|
34
|
15
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3020CLI-1S
|
3020CLI-1DS
|
30
|
34
|
20
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3025CLI-1S
|
3025CLI-1DS
|
30
|
34
|
25
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3030CLI-1S
|
3030CLI-1DS
|
30
|
34
|
30
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3040CLI-1S
|
3040CLI-1DS
|
30
|
34
|
40
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
3220CLI-1S
|
3220CLI-1DS
|
32
|
36
|
20
|
H7
|
f7
|
32.085
|
31.99
|
0.135
|
0.015
|
|
3230CLI-1S
|
3230CLI-1DS
|
32
|
36
|
30
|
H7
|
f7
|
32.085
|
31.99
|
0.135
|
0.015
|
|
3240CLI-1S
|
3240CLI-1DS
|
32
|
36
|
40
|
H7
|
f7
|
32.085
|
31.99
|
0.135
|
0.015
|
|
3520CLI-1S
|
3520CLI-1DS
|
35
|
39
|
20
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
3530CLI-1S
|
3530CLI-1DS
|
35
|
39
|
30
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
3535CLI-1S
|
3535CLI-1DS
|
35
|
39
|
35
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
3540CLI-1S
|
3540CLI-1DS
|
35
|
39
|
40
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
3550CLI-1S
|
3550CLI-1DS
|
35
|
39
|
50
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
3720CLI-1S
|
3720CLI-1DS
|
37
|
41
|
20
|
H7
|
f7
|
37.085
|
36.99
|
0.135
|
0.015
|
|
4020CLI-1S
|
4020CLI-1DS
|
40
|
44
|
20
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
4030CLI-1S
|
4030CLI-1DS
|
40
|
44
|
30
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
4040CLI-1S
|
4040CLI-1DS
|
40
|
44
|
40
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
4050CLI-1S
|
4050CLI-1DS
|
40
|
44
|
50
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
4520CLI-1S
|
4520CLI-1DS
|
45
|
50
|
20
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
4530CLI-1S
|
4530CLI-1DS
|
45
|
50
|
30
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
4540CLI-1S
|
4540CLI-1DS
|
45
|
50
|
40
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
4545CLI-1S
|
4545CLI-1DS
|
45
|
50
|
45
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
4550CLI-1S
|
4550CLI-1DS
|
45
|
50
|
50
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
5020CLI-1S
|
5020CLI-1DS
|
50
|
55
|
20
|
H7
|
f7
|
50.11
|
49.99
|
0.16
|
0.015
|
|
5030CLI-1S
|
5030CLI-1DS
|
50
|
55
|
30
|
H7
|
f7
|
50.11
|
49.99
|
0.16
|
0.015
|
|
5040CLI-1S
|
5040CLI-1DS
|
50
|
55
|
40
|
H7
|
f7
|
50.11
|
49.99
|
0.16
|
0.015
|
|
5050CLI-1S
|
5050CLI-1DS
|
50
|
55
|
50
|
H7
|
f7
|
50.11
|
49.99
|
0.16
|
0.015
|
|
5060CLI-1S
|
5060CLI-1DS
|
50
|
55
|
60
|
H7
|
f7
|
50.11
|
49.99
|
0.16
|
0.015
|
|
5520CLI-1S
|
5520CLI-1DS
|
55
|
60
|
20
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5525CLI-1S
|
5525CLI-1DS
|
55
|
60
|
25
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5530CLI-1S
|
5530CLI-1DS
|
55
|
60
|
30
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5540CLI-1S
|
5540CLI-1DS
|
55
|
60
|
40
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5550CLI-1S
|
5550CLI-1DS
|
55
|
60
|
50
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5555CLI-1S
|
5555CLI-1DS
|
55
|
60
|
55
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
5560CLI-1S
|
5560CLI-1DS
|
55
|
60
|
60
|
H7
|
f7
|
55.11
|
54.99
|
0.17
|
0.02
|
|
6020CLI-1S
|
6020CLI-1DS
|
60
|
65
|
20
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6030CLI-1S
|
6030CLI-1DS
|
60
|
65
|
30
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6040CLI-1S
|
6040CLI-1DS
|
60
|
65
|
40
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6050CLI-1S
|
6050CLI-1DS
|
60
|
65
|
50
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6060CLI-1S
|
6060CLI-1DS
|
60
|
65
|
60
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6070CLI-1S
|
6070CLI-1DS
|
60
|
65
|
70
|
H7
|
f7
|
60.11
|
59.99
|
0.17
|
0.02
|
|
6530CLI-1S
|
6530CLI-1DS
|
65
|
70
|
30
|
H7
|
f7
|
65.11
|
64.99
|
0.17
|
0.02
|
|
6550CLI-1S
|
6550CLI-1DS
|
65
|
70
|
50
|
H7
|
f7
|
65.11
|
64.99
|
0.17
|
0.02
|
|
6570CLI-1S
|
6570CLI-1DS
|
65
|
70
|
70
|
H7
|
f7
|
65.11
|
64.99
|
0.17
|
0.02
|
|
7040CLI-1S
|
7040CLI-1DS
|
70
|
75
|
40
|
H7
|
f7
|
70.11
|
69.99
|
0.17
|
0.02
|
|
7050CLI-1S
|
7050CLI-1DS
|
70
|
75
|
50
|
H7
|
f7
|
70.11
|
69.99
|
0.17
|
0.02
|
|
7070CLI-1S
|
7070CLI-1DS
|
70
|
75
|
70
|
H7
|
f7
|
70.11
|
69.99
|
0.17
|
0.02
|
|
7560CLI-1S
|
7560CLI-1DS
|
75
|
80
|
60
|
H7
|
f7
|
75.11
|
74.99
|
0.17
|
0.02
|
|
7580CLI-1S
|
7580CLI-1DS
|
75
|
80
|
80
|
H7
|
f7
|
75.11
|
74.99
|
0.17
|
0.02
|
|
8040CLI-1S
|
8040CLI-1DS
|
80
|
85
|
40
|
H7
|
h8
|
80.155
|
80.02
|
0.201
|
0.02
|
|
8060CLI-1S
|
8060CLI-1DS
|
80
|
85
|
60
|
H7
|
h8
|
80.155
|
80.02
|
0.201
|
0.02
|
|
8080CLI-1S
|
8080CLI-1DS
|
80
|
85
|
80
|
H7
|
h8
|
80.155
|
80.02
|
0.201
|
0.02
|
|
80100CLI-1S
|
80100CLI-1DS
|
80
|
85
|
100
|
H7
|
h8
|
80.155
|
80.02
|
0.201
|
0.02
|
|
8530CLI-1S
|
8530CLI-1DS
|
85
|
90
|
30
|
H7
|
h8
|
85.155
|
85.02
|
0.209
|
0.02
|
|
8560CLI-1S
|
8560CLI-1DS
|
85
|
90
|
60
|
H7
|
h8
|
85.155
|
85.02
|
0.209
|
0.02
|
|
85100CLI-1S
|
85100CLI-1DS
|
85
|
90
|
100
|
H7
|
h8
|
85.155
|
85.02
|
0.209
|
0.02
|
|
9060CLI-1S
|
9060CLI-1DS
|
90
|
95
|
60
|
H7
|
h8
|
90.155
|
90.02
|
0.209
|
0.02
|
|
90100CLI-1S
|
90100CLI-1DS
|
90
|
95
|
100
|
H7
|
h8
|
90.155
|
90.02
|
0.209
|
0.02
|
|
9560CLI-1S
|
9560CLI-1DS
|
95
|
100
|
60
|
H7
|
h8
|
95.155
|
95.02
|
0.209
|
0.02
|
|
95100CLI-1S
|
95100CLI-1DS
|
95
|
100
|
100
|
H7
|
h8
|
95.155
|
95.02
|
0.209
|
0.02
|
|
10050CLI-1S
|
10050CLI-1DS
|
100
|
105
|
50
|
H7
|
h8
|
100.155
|
100.02
|
0.209
|
0.02
|
|
10060CLI-1S
|
10060CLI-1DS
|
100
|
105
|
60
|
H7
|
h8
|
100.155
|
100.02
|
0.209
|
0.02
|
|
100115CLI-1S
|
100115CLI-1DS
|
100
|
105
|
115
|
H7
|
h8
|
100.155
|
100.02
|
0.209
|
0.02
|
|
10560CLI-1S
|
10560CLI-1DS
|
105
|
110
|
60
|
H7
|
h8
|
105.155
|
105.02
|
0.209
|
0.02
|
|
105115CLI-1S
|
105115CLI-1DS
|
105
|
110
|
115
|
H7
|
h8
|
105.155
|
105.02
|
0.209
|
0.02
|
|
11060CLI-1S
|
11060CLI-1DS
|
110
|
115
|
60
|
H7
|
h8
|
110.155
|
110.02
|
0.209
|
0.02
|
|
110115CLI-1S
|
110115CLI-1DS
|
110
|
115
|
115
|
H7
|
h8
|
110.155
|
110.02
|
0.209
|
0.02
|
|
11550CLI-1S
|
11550CLI-1DS
|
115
|
120
|
50
|
H7
|
h8
|
115.155
|
115.02
|
0.209
|
0.02
|
|
11570CLI-1S
|
11570CLI-1DS
|
115
|
120
|
70
|
H7
|
h8
|
115.155
|
115.02
|
0.209
|
0.02
|
|
12050CLI-1S
|
12050CLI-1DS
|
120
|
125
|
50
|
H7
|
h8
|
120.21
|
120.07
|
0.264
|
0.07
|
|
12060CLI-1S
|
12060CLI-1DS
|
120
|
125
|
60
|
H7
|
h8
|
120.21
|
120.07
|
0.264
|
0.07
|
|
120100CLI-1S
|
120100CLI-1DS
|
120
|
125
|
100
|
H7
|
h8
|
120.21
|
120.07
|
0.264
|
0.07
|
|
125100CLI-1S
|
125100CLI-1DS
|
125
|
130
|
100
|
H7
|
h8
|
125.21
|
125.07
|
0.273
|
0.07
|
|
13060CLI-1S
|
13060CLI-1DS
|
130
|
135
|
60
|
H7
|
h8
|
130.21
|
130.07
|
0.273
|
0.07
|
|
130100CLI-1S
|
130100CLI-1DS
|
130
|
135
|
100
|
H7
|
h8
|
130.21
|
130.07
|
0.273
|
0.07
|
|
13560CLI-1S
|
13560CLI-1DS
|
135
|
140
|
60
|
H7
|
h8
|
135.21
|
135.07
|
0.273
|
0.07
|
|
13580CLI-1S
|
13580CLI-1DS
|
135
|
140
|
80
|
H7
|
h8
|
135.21
|
135.07
|
0.273
|
0.07
|
|
14060CLI-1S
|
14060CLI-1DS
|
140
|
145
|
60
|
H7
|
h8
|
140.21
|
140.07
|
0.273
|
0.07
|
|
140100CLI-1S
|
140100CLI-1DS
|
140
|
145
|
100
|
H7
|
h8
|
140.21
|
140.07
|
0.273
|
0.07
|
|
15060CLI-1S
|
15060CLI-1DS
|
150
|
155
|
60
|
H7
|
h8
|
150.21
|
150.07
|
0.273
|
0.07
|
|
15080CLI-1S
|
15080CLI-1DS
|
150
|
155
|
80
|
H7
|
h8
|
150.21
|
150.07
|
0.273
|
0.07
|
|
150100CLI-1S
|
150100CLI-1DS
|
150
|
155
|
100
|
H7
|
h8
|
150.21
|
150.07
|
0.273
|
0.07
|
|
16080CLI-1S
|
16080CLI-1DS
|
160
|
165
|
80
|
H7
|
h8
|
160.21
|
160.07
|
0.273
|
0.07
|
|
160100CLI-1S
|
160100CLI-1DS
|
160
|
165
|
100
|
H7
|
h8
|
160.21
|
160.07
|
0.273
|
0.07
|
|
180100CLI-1S
|
180100CLI-1DS
|
180
|
185
|
100
|
H7
|
h8
|
180.216
|
180.07
|
0.279
|
0.07
|
|
200100CLI-1S
|
200100CLI-1DS
|
200
|
205
|
100
|
H7
|
h8
|
200.216
|
200.07
|
0.288
|
0.07
|
|
210100CLI-1S
|
210100CLI-1DS
|
210
|
215
|
100
|
H7
|
h8
|
210.216
|
210.07
|
0.288
|
0.07
|
|
220100CLI-1S
|
220100CLI-1DS
|
220
|
225
|
100
|
H7
|
h8
|
220.216
|
220.07
|
0.288
|
0.07
|
|
250100CLI-1S
|
250100CLI-1DS
|
250
|
255
|
100
|
H7
|
h8
|
250.222
|
250.07
|
0.294
|
0.07
|
|
300100CLI-1S
|
300100CLI-1DS
|
300
|
305
|
100
|
H7
|
h8
|
300.222
|
300.07
|
0.303
|
0.07
|
|
| |
| BEARING LIST & BEARING DETAILS |
CLI-1S / CLI-1DS series
DU-S bearings & DP4-S bushings,
PTFE mixed Polymer Fibers coated Dry Bush with STAINLESS STEEL backing,
Self Lubricated, Inch Size
|
|
| |
|
CLI Part No.
(Black Slide Layer)
|
CLI Part No.
(Red Slide Layer) |
Di
[inch]
|
Do
[inch]
|
B
(inch)
|
DJ max.
(inch)
|
DJ min.
(inch)
|
DH max
(inch)
|
DH min.
(inch)
|
Di,a max
(inch)
|
Di,a min
(inch)
|
Clearance max.
(inch)
|
Clearance min.
(inch)
|
|
02.CLI-1S.02
|
02.CLI-1DS.02
|
1/8
|
3/16
|
0.125
|
0.1243
|
0.1236
|
0.1878
|
0.1873
|
0.1268
|
0.1243
|
0.0032
|
0
|
|
02.CLI-1S.03
|
02.CLI-1DS.03
|
1/8
|
3/16
|
0.188
|
0.1243
|
0.1236
|
0.1878
|
0.1873
|
0.1268
|
0.1243
|
0.0032
|
0
|
|
025.CLI-1S.025
|
025.CLI-1DS.025
|
5/32
|
7/32
|
0.154
|
0.1554
|
0.1547
|
0.2191
|
0.2186
|
0.1581
|
0.1556
|
0.0034
|
0.0002
|
|
025.CLI-1S.04
|
025.CLI-1DS.04
|
5/32
|
7/32
|
0.25
|
0.1554
|
0.1547
|
0.2191
|
0.2186
|
0.1581
|
0.1556
|
0.0034
|
0.0002
|
|
03.CLI-1S.03
|
03.CLI-1DS.03
|
3/16
|
1/4
|
0.188
|
0.1865
|
0.1858
|
0.2503
|
0.2497
|
0.1893
|
0.1867
|
0.0035
|
0.0002
|
|
03.CLI-1S.04
|
03.CLI-1DS.04
|
3/16
|
1/4
|
0.25
|
0.1865
|
0.1858
|
0.2503
|
0.2497
|
0.1893
|
0.1867
|
0.0035
|
0.0002
|
|
03.CLI-1S.06
|
03.CLI-1DS.06
|
3/16
|
1/4
|
0.375
|
0.1865
|
0.1858
|
0.2503
|
0.2497
|
0.1893
|
0.1867
|
0.0035
|
0.0002
|
|
04.CLI-1S.04
|
04.CLI-1DS.04
|
1/4
|
5/16
|
0.25
|
0.249
|
0.2481
|
0.3128
|
0.3122
|
0.2518
|
0.2492
|
0.0037
|
0.0002
|
|
04.CLI-1S.06
|
04.CLI-1DS.06
|
1/4
|
5/16
|
0.375
|
0.249
|
0.2481
|
0.3128
|
0.3122
|
0.2518
|
0.2492
|
0.0037
|
0.0002
|
|
05.CLI-1S.06
|
05.CLI-1DS.06
|
5/16
|
3/8
|
0.375
|
0.3115
|
0.3106
|
0.3753
|
0.3747
|
0.3143
|
0.3117
|
0.0037
|
0.0002
|
|
05.CLI-1S.08
|
05.CLI-1DS.08
|
5/16
|
3/8
|
0.5
|
0.3115
|
0.3106
|
0.3753
|
0.3747
|
0.3143
|
0.3117
|
0.0037
|
0.0002
|
|
06.CLI-1S.03
|
06.CLI-1DS.03
|
3/8
|
15/32
|
0.188
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
06.CLI-1S.04
|
06.CLI-1DS.04
|
3/8
|
15/32
|
0.25
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
06.CLI-1S.06
|
06.CLI-1DS.06
|
3/8
|
15/32
|
0.375
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
06.CLI-1S.08
|
06.CLI-1DS.08
|
3/8
|
15/32
|
0.5
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
06.CLI-1S.10
|
06.CLI-1DS.10
|
3/8
|
15/32
|
0.625
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
06.CLI-1S.12
|
06.CLI-1DS.12
|
3/8
|
15/32
|
0.75
|
0.374
|
0.3731
|
0.4691
|
0.4684
|
0.3769
|
0.3742
|
0.0038
|
0.0002
|
|
07.CLI-1S.08
|
07.CLI-1DS.08
|
7/16
|
17/32
|
0.5
|
0.4365
|
0.4355
|
0.5316
|
0.5309
|
0.4394
|
0.4367
|
0.0039
|
0.0002
|
|
07.CLI-1S.12
|
07.CLI-1DS.12
|
7/16
|
17/32
|
0.75
|
0.4365
|
0.4355
|
0.5316
|
0.5309
|
0.4394
|
0.4367
|
0.0039
|
0.0002
|
|
08.CLI-1S.04
|
08.CLI-1DS.04
|
1/2
|
19/32
|
0.25
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
08.CLI-1S.06
|
08.CLI-1DS.06
|
1/2
|
19/32
|
0.375
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
08.CLI-1S.08
|
08.CLI-1DS.08
|
1/2
|
19/32
|
0.5
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
08.CLI-1S.10
|
08.CLI-1DS.10
|
1/2
|
19/32
|
0.625
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
08.CLI-1S.12
|
08.CLI-1DS.12
|
1/2
|
19/32
|
0.75
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
08.CLI-1S.14
|
08.CLI-1DS.14
|
1/2
|
19/32
|
0.875
|
0.499
|
0.498
|
0.5941
|
0.5934
|
0.5019
|
0.4992
|
0.0039
|
0.0002
|
|
09.CLI-1S.06
|
09.CLI-1DS.06
|
9/16
|
21/32
|
0.375
|
0.5615
|
0.5605
|
0.6566
|
0.6559
|
0.5644
|
0.5617
|
0.0039
|
0.0002
|
|
09.CLI-1S.08
|
09.CLI-1DS.08
|
9/16
|
21/32
|
0.5
|
0.5615
|
0.5605
|
0.6566
|
0.6559
|
0.5644
|
0.5617
|
0.0039
|
0.0002
|
|
09.CLI-1S.10
|
09.CLI-1DS.10
|
9/16
|
21/32
|
0.625
|
0.5615
|
0.5605
|
0.6566
|
0.6559
|
0.5644
|
0.5617
|
0.0039
|
0.0002
|
|
09.CLI-1S.12
|
09.CLI-1DS.12
|
9/16
|
21/32
|
0.75
|
0.5615
|
0.5605
|
0.6566
|
0.6559
|
0.5644
|
0.5617
|
0.0039
|
0.0002
|
|
10.CLI-1S.04
|
10.CLI-1DS.04
|
5/8
|
23/32
|
0.25
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
10.CLI-1S.08
|
10.CLI-1DS.08
|
5/8
|
23/32
|
0.5
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
10.CLI-1S.10
|
10.CLI-1DS.10
|
5/8
|
23/32
|
0.625
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
10.CLI-1S.12
|
10.CLI-1DS.12
|
5/8
|
23/32
|
0.75
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
10.CLI-1S.14
|
10.CLI-1DS.14
|
5/8
|
23/32
|
0.875
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
10.CLI-1S.16
|
10.CLI-1DS.16
|
5/8
|
23/32
|
1
|
0.624
|
0.623
|
0.7192
|
0.7184
|
0.627
|
0.6242
|
0.004
|
0.0002
|
|
11.CLI-1S.14
|
11.CLI-1DS.14
|
11/16
|
25/32
|
0.875
|
0.6865
|
0.6855
|
0.7817
|
0.7809
|
0.6895
|
0.6867
|
0.004
|
0.0002
|
|
12.CLI-1S.04
|
12.CLI-1DS.04
|
3/4
|
7/8
|
0.25
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
12.CLI-1S.06
|
12.CLI-1DS.06
|
3/4
|
7/8
|
0.375
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
12.CLI-1S.08
|
12.CLI-1DS.08
|
3/4
|
7/8
|
0.5
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
12.CLI-1S.10
|
12.CLI-1DS.10
|
3/4
|
7/8
|
0.625
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
12.CLI-1S.12
|
12.CLI-1DS.12
|
3/4
|
7/8
|
0.75
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
12.CLI-1S.16
|
12.CLI-1DS.16
|
3/4
|
7/8
|
1
|
0.7491
|
0.7479
|
0.8755
|
0.8747
|
0.7525
|
0.7493
|
0.0046
|
0.0002
|
|
14.CLI-1S.04
|
14.CLI-1DS.04
|
7/8
|
1
|
0.25
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
14.CLI-1S.06
|
14.CLI-1DS.06
|
7/8
|
1
|
0.375
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
14.CLI-1S.12
|
14.CLI-1DS.12
|
7/8
|
1
|
0.75
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
14.CLI-1S.14
|
14.CLI-1DS.14
|
7/8
|
1
|
0.875
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
14.CLI-1S.16
|
14.CLI-1DS.16
|
7/8
|
1
|
1
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
14.CLI-1S.20
|
14.CLI-1DS.20
|
7/8
|
1
|
1.25
|
0.8741
|
0.8729
|
1.0005
|
0.9997
|
0.8775
|
0.8743
|
0.0046
|
0.0002
|
|
16.CLI-1S.06
|
16.CLI-1DS.06
|
1
|
1 1/8
|
0.375
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
16.CLI-1S.08
|
16.CLI-1DS.08
|
1
|
1 1/8
|
0.5
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
16.CLI-1S.12
|
16.CLI-1DS.12
|
1
|
1 1/8
|
0.75
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
16.CLI-1S.16
|
16.CLI-1DS.16
|
1
|
1 1/8
|
1
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
16.CLI-1S.20
|
16.CLI-1DS.20
|
1
|
1 1/8
|
1.25
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
16.CLI-1S.24
|
16.CLI-1DS.24
|
1
|
1 1/8
|
1.5
|
0.9991
|
0.9979
|
1.1256
|
1.1246
|
1.0026
|
0.9992
|
0.0047
|
0.0001
|
|
18.CLI-1S.06
|
18.CLI-1DS.06
|
1 1/8
|
1 9/32
|
0.375
|
1.1238
|
1.1226
|
1.2818
|
1.2808
|
1.1278
|
1.124
|
0.0052
|
0.0002
|
|
18.CLI-1S.10
|
18.CLI-1DS.10
|
1 1/8
|
1 9/32
|
0.625
|
1.1238
|
1.1226
|
1.2818
|
1.2808
|
1.1278
|
1.124
|
0.0052
|
0.0002
|
|
18.CLI-1S.12
|
18.CLI-1DS.12
|
1 1/8
|
1 9/32
|
0.75
|
1.1238
|
1.1226
|
1.2818
|
1.2808
|
1.1278
|
1.124
|
0.0052
|
0.0002
|
|
18.CLI-1S.16
|
18.CLI-1DS.16
|
1 1/8
|
1 9/32
|
1
|
1.1238
|
1.1226
|
1.2818
|
1.2808
|
1.1278
|
1.124
|
0.0052
|
0.0002
|
|
20.CLI-1S.06
|
20.CLI-1DS.06
|
1 1/4
|
1 13/32
|
0.375
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
20.CLI-1S.12
|
20.CLI-1DS.12
|
1 1/4
|
1 13/32
|
0.75
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
20.CLI-1S.14
|
20.CLI-1DS.14
|
1 1/4
|
1 13/32
|
0.875
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
20.CLI-1S.16
|
20.CLI-1DS.16
|
1 1/4
|
1 13/32
|
1
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
20.CLI-1S.20
|
20.CLI-1DS.20
|
1 1/4
|
1 13/32
|
1.25
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
20.CLI-1S.28
|
20.CLI-1DS.28
|
1 1/4
|
1 13/32
|
1.75
|
1.2488
|
1.2472
|
1.4068
|
1.4058
|
1.2528
|
1.249
|
0.0056
|
0.0002
|
|
22.CLI-1S.12
|
22.CLI-1DS.12
|
1 3/8
|
1 17/32
|
0.75
|
1.3738
|
1.3722
|
1.5318
|
1.5308
|
1.3778
|
1.374
|
0.0056
|
0.0002
|
|
22.CLI-1S.16
|
22.CLI-1DS.16
|
1 3/8
|
1 17/32
|
1
|
1.3738
|
1.3722
|
1.5318
|
1.5308
|
1.3778
|
1.374
|
0.0056
|
0.0002
|
|
22.CLI-1S.24
|
22.CLI-1DS.24
|
1 3/8
|
1 17/32
|
1.5
|
1.3738
|
1.3722
|
1.5318
|
1.5308
|
1.3778
|
1.374
|
0.0056
|
0.0002
|
|
22.CLI-1S.28
|
22.CLI-1DS.28
|
1 3/8
|
1 17/32
|
1.75
|
1.3738
|
1.3722
|
1.5318
|
1.5308
|
1.3778
|
1.374
|
0.0056
|
0.0002
|
|
24.CLI-1S.08
|
24.CLI-1DS.08
|
1 1/2
|
1 21/32
|
0.5
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
24.CLI-1S.16
|
24.CLI-1DS.16
|
1 1/2
|
1 21/32
|
1
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
24.CLI-1S.18
|
24.CLI-1DS.18
|
1 1/2
|
1 21/32
|
1.125
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
24.CLI-1S.20
|
24.CLI-1DS.20
|
1 1/2
|
1 21/32
|
1.25
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
24.CLI-1S.24
|
24.CLI-1DS.24
|
1 1/2
|
1 21/32
|
1.5
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
24.CLI-1S.32
|
24.CLI-1DS.32
|
1 1/2
|
1 21/32
|
2
|
1.4988
|
1.4972
|
1.6568
|
1.6558
|
1.5028
|
1.499
|
0.0056
|
0.0002
|
|
26.CLI-1S.16
|
26.CLI-1DS.16
|
1 5/8
|
1 25/32
|
1
|
1.6238
|
1.6222
|
1.7818
|
1.7808
|
1.6278
|
1.624
|
0.0056
|
0.0002
|
|
26.CLI-1S.24
|
26.CLI-1DS.24
|
1 5/8
|
1 25/32
|
1.5
|
1.6238
|
1.6222
|
1.7818
|
1.7808
|
1.6278
|
1.624
|
0.0056
|
0.0002
|
|
28.CLI-1S.16
|
28.CLI-1DS.16
|
1 3/4
|
1 15/16
|
1
|
1.7487
|
1.7471
|
1.9381
|
1.9371
|
1.7535
|
1.7489
|
0.0064
|
0.0002
|
|
28.CLI-1S.24
|
28.CLI-1DS.24
|
1 3/4
|
1 15/16
|
1.5
|
1.7487
|
1.7471
|
1.9381
|
1.9371
|
1.7535
|
1.7489
|
0.0064
|
0.0002
|
|
28.CLI-1S.28
|
28.CLI-1DS.28
|
1 3/4
|
1 15/16
|
1.75
|
1.7487
|
1.7471
|
1.9381
|
1.9371
|
1.7535
|
1.7489
|
0.0064
|
0.0002
|
|
28.CLI-1S.32
|
28.CLI-1DS.32
|
1 3/4
|
1 15/16
|
2
|
1.7487
|
1.7471
|
1.9381
|
1.9371
|
1.7535
|
1.7489
|
0.0064
|
0.0002
|
|
30.CLI-1S.12
|
30.CLI-1DS.12
|
1 7/8
|
2 1/16
|
0.75
|
1.8737
|
1.8721
|
2.0633
|
2.0621
|
1.8787
|
1.8739
|
0.0066
|
0.0002
|
|
30.CLI-1S.16
|
30.CLI-1DS.16
|
1 7/8
|
2 1/16
|
1
|
1.8737
|
1.8721
|
2.0633
|
2.0621
|
1.8787
|
1.8739
|
0.0066
|
0.0002
|
|
30.CLI-1S.30
|
30.CLI-1DS.30
|
1 7/8
|
2 1/16
|
1.875
|
1.8737
|
1.8721
|
2.0633
|
2.0621
|
1.8787
|
1.8739
|
0.0066
|
0.0002
|
|
30.CLI-1S.36
|
30.CLI-1DS.36
|
1 7/8
|
2 1/16
|
2.25
|
1.8737
|
1.8721
|
2.0633
|
2.0621
|
1.8787
|
1.8739
|
0.0066
|
0.0002
|
|
32.CLI-1S.08
|
32.CLI-1DS.08
|
2
|
2 3/16
|
0.5
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
32.CLI-1S.16
|
32.CLI-1DS.16
|
2
|
2 3/16
|
1
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
32.CLI-1S.24
|
32.CLI-1DS.24
|
2
|
2 3/16
|
1.5
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
32.CLI-1S.28
|
32.CLI-1DS.28
|
2
|
2 3/16
|
1.75
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
32.CLI-1S.32
|
32.CLI-1DS.32
|
2
|
2 3/16
|
2
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
32.CLI-1S.40
|
32.CLI-1DS.40
|
2
|
2 3/16
|
2.5
|
1.9987
|
1.9969
|
2.1883
|
2.1871
|
2.0037
|
1.9989
|
0.0068
|
0.0002
|
|
34.CLI-1S.08
|
34.CLI-1DS.08
|
2 1/8
|
2 5/16
|
0.5
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.12
|
34.CLI-1DS.12
|
2 1/8
|
2 5/16
|
0.75
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.16
|
34.CLI-1DS.16
|
2 1/8
|
2 5/16
|
1
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.24
|
34.CLI-1DS.24
|
2 1/8
|
2 5/16
|
1.5
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.28
|
34.CLI-1DS.28
|
2 1/8
|
2 5/16
|
1.75
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.32
|
34.CLI-1DS.32
|
2 1/8
|
2 5/16
|
2
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.48
|
34.CLI-1DS.48
|
2 1/8
|
2 5/16
|
3
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
34.CLI-1S.64
|
34.CLI-1DS.64
|
2 1/8
|
2 5/16
|
4
|
2.1257
|
2.1239
|
2.313
|
2.3118
|
2.1326
|
2.1262
|
0.0087
|
0.0002
|
|
36.CLI-1S.28
|
36.CLI-1DS.28
|
2 1/4
|
2 7/16
|
1.75
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.32
|
36.CLI-1DS.32
|
2 1/4
|
2 7/16
|
1.75
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.36
|
36.CLI-1DS.36
|
2 1/4
|
2 7/16
|
2.25
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.40
|
36.CLI-1DS.40
|
2 1/4
|
2 7/16
|
2.5
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.48
|
36.CLI-1DS.48
|
2 1/4
|
2 7/16
|
3
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.56
|
36.CLI-1DS.56
|
2 1/4
|
2 7/16
|
3.5
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.60
|
36.CLI-1DS.60
|
2 1/4
|
2 7/16
|
3.75
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.64
|
36.CLI-1DS.64
|
2 1/4
|
2 7/16
|
4
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
36.CLI-1S.72
|
36.CLI-1DS.72
|
2 1/4
|
2 7/16
|
4.5
|
2.2507
|
2.2489
|
2.4377
|
2.4365
|
2.2573
|
2.2509
|
0.0084
|
0.0002
|
|
40.CLI-1S.16
|
40.CLI-1DS.16
|
2 1/2
|
2 11/16
|
1
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.26
|
40.CLI-1DS.26
|
2 1/2
|
2 11/16
|
1.625
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.32
|
40.CLI-1DS.32
|
2 1/2
|
2 11/16
|
2
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.40
|
40.CLI-1DS.40
|
2 1/2
|
2 11/16
|
2.5
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.48
|
40.CLI-1DS.48
|
2 1/2
|
2 11/16
|
3
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.56
|
40.CLI-1DS.56
|
2 1/2
|
2 11/16
|
3.5
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.60
|
40.CLI-1DS.60
|
2 1/2
|
2 11/16
|
3.75
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.64
|
40.CLI-1DS.64
|
2 1/2
|
2 11/16
|
4
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.72
|
40.CLI-1DS.72
|
2 1/2
|
2 11/16
|
4.5
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
40.CLI-1S.76
|
40.CLI-1DS.76
|
2 1/2
|
2 11/16
|
4.75
|
2.5011
|
2.4993
|
2.6881
|
2.6869
|
2.5077
|
2.5013
|
0.0084
|
0.0002
|
|
44.CLI-1S.32
|
44.CLI-1DS.32
|
2 3/4
|
2 15/16
|
2
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.36
|
44.CLI-1DS.36
|
2 3/4
|
2 15/16
|
2.25
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.40
|
44.CLI-1DS.40
|
2 3/4
|
2 15/16
|
2.5
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.48
|
44.CLI-1DS.48
|
2 3/4
|
2 15/16
|
3
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.56
|
44.CLI-1DS.56
|
2 3/4
|
2 15/16
|
3.5
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.60
|
44.CLI-1DS.60
|
2 3/4
|
2 15/16
|
3.75
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.64
|
44.CLI-1DS.64
|
2 3/4
|
2 15/16
|
4
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.72
|
44.CLI-1DS.72
|
2 3/4
|
2 15/16
|
4.5
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.76
|
44.CLI-1DS.76
|
2 3/4
|
2 15/16
|
4.75
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
44.CLI-1S.80
|
44.CLI-1DS.80
|
2 3/4
|
2 15/16
|
5
|
2.75
|
2.7482
|
2.937
|
2.9358
|
2.7566
|
2.7502
|
0.0084
|
0.0002
|
|
48.CLI-1S.32
|
48.CLI-1DS.32
|
3
|
3 3/16
|
2
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.36
|
48.CLI-1DS.36
|
3
|
3 3/16
|
2.25
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.40
|
48.CLI-1DS.40
|
3
|
3 3/16
|
2.5
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.48
|
48.CLI-1DS.48
|
3
|
3 3/16
|
3
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.56
|
48.CLI-1DS.56
|
3
|
3 3/16
|
3.5
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.60
|
48.CLI-1DS.60
|
3
|
3 3/16
|
3.75
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.64
|
48.CLI-1DS.64
|
3
|
3 3/16
|
4
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.72
|
48.CLI-1DS.72
|
3
|
3 3/16
|
4.5
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.76
|
48.CLI-1DS.76
|
3
|
3 3/16
|
4.75
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
48.CLI-1S.80
|
48.CLI-1DS.80
|
3
|
3 3/16
|
5
|
3
|
2.9982
|
3.1872
|
3.1858
|
3.0068
|
3.0002
|
0.0086
|
0.0002
|
|
52.CLI-1S.32
|
52.CLI-1DS.32
|
3 1/4
|
3 7/16
|
2
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.38
|
52.CLI-1DS.38
|
3 1/4
|
3 7/16
|
2.375
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.40
|
52.CLI-1DS.40
|
3 1/4
|
3 7/16
|
2.5
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.48
|
52.CLI-1DS.48
|
3 1/4
|
3 7/16
|
3
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.56
|
52.CLI-1DS.56
|
3 1/4
|
3 7/16
|
3.5
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.60
|
52.CLI-1DS.60
|
3 1/4
|
3 7/16
|
3.75
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.64
|
52.CLI-1DS.64
|
3 1/4
|
3 7/16
|
4
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.72
|
52.CLI-1DS.72
|
3 1/4
|
3 7/16
|
4.5
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.76
|
52.CLI-1DS.76
|
3 1/4
|
3 7/16
|
4.75
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
52.CLI-1S.80
|
52.CLI-1DS.80
|
3 1/4
|
3 7/16
|
5
|
3.25
|
3.248
|
3.4372
|
3.4358
|
3.2568
|
3.2502
|
0.0088
|
0.0002
|
|
56.CLI-1S.32
|
56.CLI-1DS.32
|
3 1/2
|
3 11/16
|
2
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.38
|
56.CLI-1DS.38
|
3 1/2
|
3 11/16
|
2.375
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.40
|
56.CLI-1DS.40
|
3 1/2
|
3 11/16
|
2.5
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.48
|
56.CLI-1DS.48
|
3 1/2
|
3 11/16
|
3
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.56
|
56.CLI-1DS.56
|
3 1/2
|
3 11/16
|
3.5
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.60
|
56.CLI-1DS.60
|
3 1/2
|
3 11/16
|
3.75
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.64
|
56.CLI-1DS.64
|
3 1/2
|
3 11/16
|
4
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.72
|
56.CLI-1DS.72
|
3 1/2
|
3 11/16
|
4.5
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.76
|
56.CLI-1DS.76
|
3 1/2
|
3 11/16
|
4.75
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
56.CLI-1S.80
|
56.CLI-1DS.80
|
3 1/2
|
3 11/16
|
5
|
3.5
|
3.4978
|
3.6872
|
3.6858
|
3.5068
|
3.5002
|
0.009
|
0.0002
|
|
58.CLI-1S.32
|
58.CLI-1DS.32
|
3 5/8
|
3 13/16
|
2
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.36
|
58.CLI-1DS.36
|
3 5/8
|
3 13/16
|
2.25
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.40
|
58.CLI-1DS.40
|
3 5/8
|
3 13/16
|
2.5
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.48
|
58.CLI-1DS.48
|
3 5/8
|
3 13/16
|
3
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.56
|
58.CLI-1DS.56
|
3 5/8
|
3 13/16
|
3.5
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.60
|
58.CLI-1DS.60
|
3 5/8
|
3 13/16
|
3.75
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.64
|
58.CLI-1DS.64
|
3 5/8
|
3 13/16
|
4
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.72
|
58.CLI-1DS.72
|
3 5/8
|
3 13/16
|
4.5
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.76
|
58.CLI-1DS.76
|
3 5/8
|
3 13/16
|
4.75
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
58.CLI-1S.80
|
58.CLI-1DS.80
|
3 5/8
|
3 13/16
|
5
|
3.625
|
3.6228
|
3.8122
|
3.8108
|
3.6318
|
3.6252
|
0.009
|
0.0002
|
|
60.CLI-1S.32
|
60.CLI-1DS.32
|
3 3/4
|
3 15/16
|
2
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.36
|
60.CLI-1DS.36
|
3 3/4
|
3 15/16
|
2.25
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.40
|
60.CLI-1DS.40
|
3 3/4
|
3 15/16
|
2.5
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.48
|
60.CLI-1DS.48
|
3 3/4
|
3 15/16
|
3
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.56
|
60.CLI-1DS.56
|
3 3/4
|
3 15/16
|
3.5
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.60
|
60.CLI-1DS.60
|
3 3/4
|
3 15/16
|
3.75
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.64
|
60.CLI-1DS.64
|
3 3/4
|
3 15/16
|
4
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.72
|
60.CLI-1DS.72
|
3 3/4
|
3 15/16
|
4.5
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.76
|
60.CLI-1DS.76
|
3 3/4
|
3 15/16
|
4.75
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
60.CLI-1S.80
|
60.CLI-1DS.80
|
3 3/4
|
3 15/16
|
5
|
3.75
|
3.7478
|
3.9372
|
3.9358
|
3.7568
|
3.7502
|
0.009
|
0.0002
|
|
64.CLI-1S.32
|
64.CLI-1DS.32
|
4
|
4 3/16
|
2
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.36
|
64.CLI-1DS.36
|
4
|
4 3/16
|
2.25
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.40
|
64.CLI-1DS.40
|
4
|
4 3/16
|
2.5
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.48
|
64.CLI-1DS.48
|
4
|
4 3/16
|
3
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.56
|
64.CLI-1DS.56
|
4
|
4 3/16
|
3.5
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.60
|
64.CLI-1DS.60
|
4
|
4 3/16
|
3.75
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.64
|
64.CLI-1DS.64
|
4
|
4 3/16
|
4
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.72
|
64.CLI-1DS.72
|
4
|
4 3/16
|
4.5
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.76
|
64.CLI-1DS.76
|
4
|
4 3/16
|
4.75
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
64.CLI-1S.80
|
64.CLI-1DS.80
|
4
|
4 3/16
|
5
|
4
|
3.9978
|
4.1872
|
4.1858
|
4.0068
|
4.0002
|
0.009
|
0.0002
|
|
68.CLI-1S.32
|
68.CLI-1DS.32
|
4 1/4
|
4 7/16
|
2
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.36
|
68.CLI-1DS.36
|
4 1/4
|
4 7/16
|
2.25
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.40
|
68.CLI-1DS.40
|
4 1/4
|
4 7/16
|
2.5
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.48
|
68.CLI-1DS.48
|
4 1/4
|
4 7/16
|
3
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.56
|
68.CLI-1DS.56
|
4 1/4
|
4 7/16
|
3.5
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.60
|
68.CLI-1DS.60
|
4 1/4
|
4 7/16
|
3.75
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.64
|
68.CLI-1DS.64
|
4 1/4
|
4 7/16
|
4
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.72
|
68.CLI-1DS.72
|
4 1/4
|
4 7/16
|
4.5
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.76
|
68.CLI-1DS.76
|
4 1/4
|
4 7/16
|
4.75
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
68.CLI-1S.80
|
68.CLI-1DS.80
|
4 1/4
|
4 7/16
|
5
|
4.25
|
4.2478
|
4.4372
|
4.4358
|
4.2568
|
4.2502
|
0.009
|
0.0002
|
|
70.CLI-1S.32
|
70.CLI-1DS.32
|
4 3/8
|
4 9/16
|
2
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.36
|
70.CLI-1DS.36
|
4 3/8
|
4 9/16
|
2.25
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.40
|
70.CLI-1DS.40
|
4 3/8
|
4 9/16
|
2.5
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.48
|
70.CLI-1DS.48
|
4 3/8
|
4 9/16
|
3
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.56
|
70.CLI-1DS.56
|
4 3/8
|
4 9/16
|
3.5
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.60
|
70.CLI-1DS.60
|
4 3/8
|
4 9/16
|
3.75
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.64
|
70.CLI-1DS.64
|
4 3/8
|
4 9/16
|
4
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.72
|
70.CLI-1DS.72
|
4 3/8
|
4 9/16
|
4.5
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.76
|
70.CLI-1DS.76
|
4 3/8
|
4 9/16
|
4.75
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
70.CLI-1S.80
|
70.CLI-1DS.80
|
4 3/8
|
4 9/16
|
5
|
4.375
|
4.3728
|
4.5622
|
4.5608
|
4.3818
|
4.3752
|
0.009
|
0.0002
|
|
72.CLI-1S.32
|
72.CLI-1DS.32
|
4 1/2
|
4 11/16
|
2
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.36
|
72.CLI-1DS.36
|
4 1/2
|
4 11/16
|
2.25
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.40
|
72.CLI-1DS.40
|
4 1/2
|
4 11/16
|
2.5
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.48
|
72.CLI-1DS.48
|
4 1/2
|
4 11/16
|
3
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.56
|
72.CLI-1DS.56
|
4 1/2
|
4 11/16
|
3.5
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.60
|
72.CLI-1DS.60
|
4 1/2
|
4 11/16
|
3.75
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.64
|
72.CLI-1DS.64
|
4 1/2
|
4 11/16
|
4
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.72
|
72.CLI-1DS.72
|
4 1/2
|
4 11/16
|
4.5
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.76
|
72.CLI-1DS.76
|
4 1/2
|
4 11/16
|
4.75
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
72.CLI-1S.80
|
72.CLI-1DS.80
|
4 1/2
|
4 11/16
|
5
|
4.5
|
4.4978
|
4.6872
|
4.6858
|
4.5068
|
4.5002
|
0.009
|
0.0002
|
|
76.CLI-1S.32
|
76.CLI-1DS.32
|
4 3/4
|
4 15/16
|
2
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.36
|
76.CLI-1DS.36
|
4 3/4
|
4 15/16
|
2.25
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.40
|
76.CLI-1DS.40
|
4 3/4
|
4 15/16
|
2.5
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.48
|
76.CLI-1DS.48
|
4 3/4
|
4 15/16
|
3
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.56
|
76.CLI-1DS.56
|
4 3/4
|
4 15/16
|
3.5
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.60
|
76.CLI-1DS.60
|
4 3/4
|
4 15/16
|
3.75
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.64
|
76.CLI-1DS.64
|
4 3/4
|
4 15/16
|
4
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.72
|
76.CLI-1DS.72
|
4 3/4
|
4 15/16
|
4.5
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.76
|
76.CLI-1DS.76
|
4 3/4
|
4 15/16
|
4.75
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
76.CLI-1S.80
|
76.CLI-1DS.80
|
4 3/4
|
4 15/16
|
5
|
4.75
|
4.7475
|
4.9374
|
4.9358
|
4.7572
|
4.7502
|
0.0097
|
0.0002
|
|
80.CLI-1S.32
|
80.CLI-1DS.32
|
5
|
5 3/16
|
2
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.36
|
80.CLI-1DS.36
|
5
|
5 3/16
|
2.25
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.40
|
80.CLI-1DS.40
|
5
|
5 3/16
|
2.5
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.48
|
80.CLI-1DS.48
|
5
|
5 3/16
|
3
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.56
|
80.CLI-1DS.56
|
5
|
5 3/16
|
3.5
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.60
|
80.CLI-1DS.60
|
5
|
5 3/16
|
3.75
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.64
|
80.CLI-1DS.64
|
5
|
5 3/16
|
4
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.72
|
80.CLI-1DS.72
|
5
|
5 3/16
|
4.5
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.76
|
80.CLI-1DS.76
|
5
|
5 3/16
|
4.75
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
80.CLI-1S.80
|
80.CLI-1DS.80
|
5
|
5 3/16
|
5
|
4.9986
|
4.9961
|
5.186
|
5.1844
|
5.0056
|
4.9988
|
0.0095
|
0.0002
|
|
84.CLI-1S.32
|
84.CLI-1DS.32
|
5 1/4
|
5 7/16
|
2
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.36
|
84.CLI-1DS.36
|
5 1/4
|
5 7/16
|
2.25
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.40
|
84.CLI-1DS.40
|
5 1/4
|
5 7/16
|
2.5
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.48
|
84.CLI-1DS.48
|
5 1/4
|
5 7/16
|
3
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.56
|
84.CLI-1DS.56
|
5 1/4
|
5 7/16
|
3.5
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.60
|
84.CLI-1DS.60
|
5 1/4
|
5 7/16
|
3.75
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.64
|
84.CLI-1DS.64
|
5 1/4
|
5 7/16
|
4
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.72
|
84.CLI-1DS.72
|
5 1/4
|
5 7/16
|
4.5
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.76
|
84.CLI-1DS.76
|
5 1/4
|
5 7/16
|
4.75
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
84.CLI-1S.80
|
84.CLI-1DS.80
|
5 1/4
|
5 7/16
|
5
|
5.25
|
5.2475
|
5.4374
|
5.4358
|
5.257
|
5.2502
|
0.0095
|
0.0002
|
|
88.CLI-1S.32
|
88.CLI-1DS.32
|
5 1/2
|
5 11/16
|
2
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.36
|
88.CLI-1DS.36
|
5 1/2
|
5 11/16
|
2.25
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.40
|
88.CLI-1DS.40
|
5 1/2
|
5 11/16
|
2.5
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.48
|
88.CLI-1DS.48
|
5 1/2
|
5 11/16
|
3
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.56
|
88.CLI-1DS.56
|
5 1/2
|
5 11/16
|
3.5
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.60
|
88.CLI-1DS.60
|
5 1/2
|
5 11/16
|
3.75
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.64
|
88.CLI-1DS.64
|
5 1/2
|
5 11/16
|
4
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.72
|
88.CLI-1DS.72
|
5 1/2
|
5 11/16
|
4.5
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.76
|
88.CLI-1DS.76
|
5 1/2
|
5 11/16
|
4.75
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
88.CLI-1S.80
|
88.CLI-1DS.80
|
5 1/2
|
5 11/16
|
5
|
5.5
|
5.4975
|
5.6874
|
5.6858
|
5.507
|
5.5002
|
0.0095
|
0.0002
|
|
92.CLI-1S.32
|
92.CLI-1DS.32
|
5 3/4
|
5 15/16
|
2
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.36
|
92.CLI-1DS.36
|
5 3/4
|
5 15/16
|
2.25
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.40
|
92.CLI-1DS.40
|
5 3/4
|
5 15/16
|
2.5
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.48
|
92.CLI-1DS.48
|
5 3/4
|
5 15/16
|
3
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.56
|
92.CLI-1DS.56
|
5 3/4
|
5 15/16
|
3.5
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.60
|
92.CLI-1DS.60
|
5 3/4
|
5 15/16
|
3.75
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.64
|
92.CLI-1DS.64
|
5 3/4
|
5 15/16
|
4
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.72
|
92.CLI-1DS.72
|
5 3/4
|
5 15/16
|
4.5
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.76
|
92.CLI-1DS.76
|
5 3/4
|
5 15/16
|
4.75
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
92.CLI-1S.80
|
92.CLI-1DS.80
|
5 3/4
|
5 15/16
|
5
|
5.75
|
5.7475
|
5.9374
|
5.9358
|
5.757
|
5.7502
|
0.0095
|
0.0002
|
|
96.CLI-1S.32
|
96.CLI-1DS.32
|
6
|
6 3/16
|
2
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.36
|
96.CLI-1DS.36
|
6
|
6 3/16
|
2.25
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.40
|
96.CLI-1DS.40
|
6
|
6 3/16
|
2.5
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.48
|
96.CLI-1DS.48
|
6
|
6 3/16
|
3
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.56
|
96.CLI-1DS.56
|
6
|
6 3/16
|
3.5
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.60
|
96.CLI-1DS.60
|
6
|
6 3/16
|
3.75
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.64
|
96.CLI-1DS.64
|
6
|
6 3/16
|
4
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.72
|
96.CLI-1DS.72
|
6
|
6 3/16
|
4.5
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.76
|
96.CLI-1DS.76
|
6
|
6 3/16
|
4.75
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
96.CLI-1S.80
|
96.CLI-1DS.80
|
6
|
6 3/16
|
5
|
6
|
5.9975
|
6.1874
|
6.1858
|
6.007
|
6.0002
|
0.0095
|
0.0002
|
|
100.CLI-1S.32
|
100.CLI-1DS.32
|
6 1/4
|
6 7/16
|
2
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.36
|
100.CLI-1DS.36
|
6 1/4
|
6 7/16
|
2.25
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.40
|
100.CLI-1DS.40
|
6 1/4
|
6 7/16
|
2.5
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.48
|
100.CLI-1DS.48
|
6 1/4
|
6 7/16
|
3
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.56
|
100.CLI-1DS.56
|
6 1/4
|
6 7/16
|
3.5
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.60
|
100.CLI-1DS.60
|
6 1/4
|
6 7/16
|
3.75
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.64
|
100.CLI-1DS.64
|
6 1/4
|
6 7/16
|
4
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.72
|
100.CLI-1DS.72
|
6 1/4
|
6 7/16
|
4.5
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.76
|
100.CLI-1DS.76
|
6 1/4
|
6 7/16
|
4.75
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
100.CLI-1S.80
|
100.CLI-1DS.80
|
6 1/4
|
6 7/16
|
5
|
6.25
|
6.2475
|
6.4374
|
6.4358
|
6.257
|
6.2502
|
0.0095
|
0.0002
|
|
104.CLI-1S.32
|
104.CLI-1DS.32
|
6 1/2
|
6 11/16
|
2
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.36
|
104.CLI-1DS.36
|
6 1/2
|
6 11/16
|
2.25
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.40
|
104.CLI-1DS.40
|
6 1/2
|
6 11/16
|
2.5
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.48
|
104.CLI-1DS.48
|
6 1/2
|
6 11/16
|
3
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.56
|
104.CLI-1DS.56
|
6 1/2
|
6 11/16
|
3.5
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.60
|
104.CLI-1DS.60
|
6 1/2
|
6 11/16
|
3.75
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.64
|
104.CLI-1DS.64
|
6 1/2
|
6 11/16
|
4
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.72
|
104.CLI-1DS.72
|
6 1/2
|
6 11/16
|
4.5
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.76
|
104.CLI-1DS.76
|
6 1/2
|
6 11/16
|
4.75
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
104.CLI-1S.80
|
104.CLI-1DS.80
|
6 1/2
|
6 11/16
|
5
|
6.5
|
6.4975
|
6.6874
|
6.6858
|
6.507
|
6.5002
|
0.0095
|
0.0002
|
|
108.CLI-1S.32
|
108.CLI-1DS.32
|
6 3/4
|
6 15/16
|
2
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.36
|
108.CLI-1DS.36
|
6 3/4
|
6 15/16
|
2.25
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.40
|
108.CLI-1DS.40
|
6 3/4
|
6 15/16
|
2.5
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.48
|
108.CLI-1DS.48
|
6 3/4
|
6 15/16
|
3
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.56
|
108.CLI-1DS.56
|
6 3/4
|
6 15/16
|
3.5
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.60
|
108.CLI-1DS.60
|
6 3/4
|
6 15/16
|
3.75
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.64
|
108.CLI-1DS.64
|
6 3/4
|
6 15/16
|
4
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.72
|
108.CLI-1DS.72
|
6 3/4
|
6 15/16
|
4.5
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.76
|
108.CLI-1DS.76
|
6 3/4
|
6 15/16
|
4.75
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
108.CLI-1S.80
|
108.CLI-1DS.80
|
6 3/4
|
6 15/16
|
5
|
6.75
|
6.7475
|
6.9374
|
6.9358
|
6.757
|
6.7502
|
0.0095
|
0.0002
|
|
112.CLI-1S.32
|
112.CLI-1DS.32
|
7
|
7 3/16
|
2
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.36
|
112.CLI-1DS.36
|
7
|
7 3/16
|
2.25
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.40
|
112.CLI-1DS.40
|
7
|
7 3/16
|
2.5
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.48
|
112.CLI-1DS.48
|
7
|
7 3/16
|
3
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.56
|
112.CLI-1DS.56
|
7
|
7 3/16
|
3.5
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.60
|
112.CLI-1DS.60
|
7
|
7 3/16
|
3.75
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.64
|
112.CLI-1DS.64
|
7
|
7 3/16
|
4
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.72
|
112.CLI-1DS.72
|
7
|
7 3/16
|
4.5
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.76
|
112.CLI-1DS.76
|
7
|
7 3/16
|
4.75
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
112.CLI-1S.80
|
112.CLI-1DS.80
|
7
|
7 3/16
|
5
|
6.9954
|
6.9929
|
7.183
|
7.1812
|
7.0026
|
6.9956
|
0.0097
|
0.0002
|
|
| |
| |
