209 | 211 | Disk Harrow Units with ROUND Bored Bearing Insert, Triply Seals, Re-greaseable & NON Re-greaseable, Metric Sizes

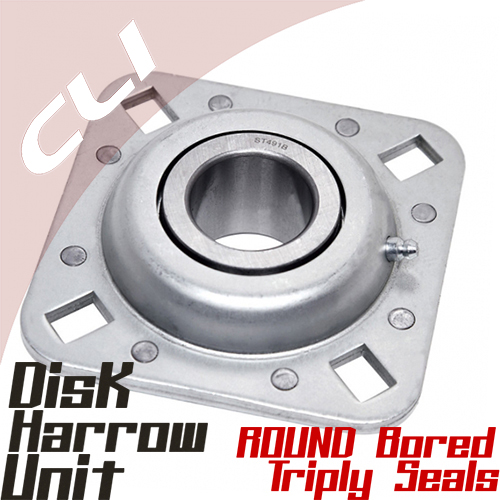

Original disk harrow units with round bore bearing web

Product Picture

209 Series / 211 Series
Disk Harrow Units with ROUND Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,
Metric Sizes

CLI disc harrow unit is avaiable in two size groups. One incorporating a 209 and one a 211 bearing, both size groups offer these outstanding features:

· Dynamic aligmment capability ;
· Shroud effect from close clearance of stampigm to inner ring ;
· Available for elubrication ;
· One unit piece for easy handling and assembly ;
· Fitting flange mates with outer ring milled recess, preventing possibility of outer ring circumfernial movement.

► Application:

1. Agriculture-combine harvesters, tillage equipment, hay balers, lawn mower regulators, cotton pickers, drills, planters / seeders, wheel bearings, disc bearings ...

2. Lawn & Garden-Mower wheels and spindle.

3. Conveyor, grain, aggregate.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

209 Series
Disk Harrow Units with ROUND Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,
for shaft metric sizes from 12 mm to 90 mm

CLI Bearing No.	Type	Bearing Bore Size (mm)		Dimensions (mm)									Basic load ratings (N)
CLI Bearing No.	Type	H (SQ)	d (RD)	L	P	B	A	F	do	E	c	N(N1XN2)	Dynarmic Cr	Static Cor
ST491A	1	-	45	127	98	42.8	42	60	57.547	7	127	Ø13.5	31850	17500
ST491A-I	2	-	45	127	98	42.8	37	60	57.547	7	127	Ø13.5	31850	17500
ST491A-II	3	-	45	127	98	42.8	37	60	57.547	7	127	Ø13.5	31850	17500
DHU45R-209	1	-	45	127	98	42.8	42	60	57.547	7	127	13.5X16.7	31850	17500
ST491B	1	-	38.86	127	98	42.8	42	60	57.547	7	127	Ø13.5	31850	17500
ST491B-I	2	-	38.86	127	98	42.8	37	60	57.547	7	127	13.5X16.7	31850	17500
ST491B-II	3	-	38.86	127	98	42.8	37	60	57.547	7	127	13.5X16.7	31850	17500
ST209-1 1/8	1	29.927	--	127	98	42.8	42	60	57.547	7	127	13.5X16.7	31850	17500
ST209-1 1/8-1	2	29.927	-	127	98	42.8	37	60	57.547	7	127	13.5X16.7	31850	17500
ST209-1 1/8-11	3	29.927	-	127	98	42.8	37	60	57.547	7	127	13.5X16.7	31850	17500

211 Series
Disk Harrow Units with ROUND Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,
for shaft metric sizes from 12 mm to 90 mm

CLI Bearing No.	Type	Bearing Bore Size (mm)		Dimensions (mm)									Basic load ratings (N)
CLI Bearing No.	Type	H (SQ)	d (RD)	L	P	B	A	F	do	E	C	N(N1XN2)	Dynarmic Cr	Static Cor
DHU55R-211	1	-	55	139.7	113.5	51	46.4	73	69	9	139.7	13.5X15.1	43550	25000
DHU55R-211-I	2	-	55	139.7	113.5	51	42	71	69	8	139.7	13.5X15.1	43550	25000
ST211-1 3/4	1	-	45.212	139.7	113.5	55.5	46.4	73	69	9	139.7	Ø13.5	43550	25000
ST211-2 3/16	1	-	45.212	139.7	113.5	55.5	46.4	73	69	9	139.7	Ø13.5	43550	25000
ST211-2 3/16-1	2	-	45.212	139.7	113.5	55.5	42	71	69	8	139.7	Ø13.5	43550	25000
ST211-1 3/4	1	-	55.575	139.7	113.5	55.5	46.4	73	69	9	139.7	Ø13.5	43550	25000
ST211-2 3/16	1	-	55.575	139.7	113.5	55.5	46.4	73	69	9	139.7	Ø13.5	43550	25000
ST211-2 3/16-1	2	-	55.575	139.7	113.5	55.5	42	71	69	8	139.7	Ø13.5	43550	25000
DHU40S-211	1	40.878	-	139.7	113.5	51	46.4	73	69	9	139.7	13.5X15.1	43550	25000
FD211-1 1/2	2	38.89	-	139.7	113.5	51	42	71	69	8	139.7	13.5X15.1	43550	25000
