Double Rows Angular Contact Ball Bearings with Different Contact Angles 15°/25°/30°/40°, CHROME AISI52100, METRIC sizes

Original angular contact ball bearing double rows 244

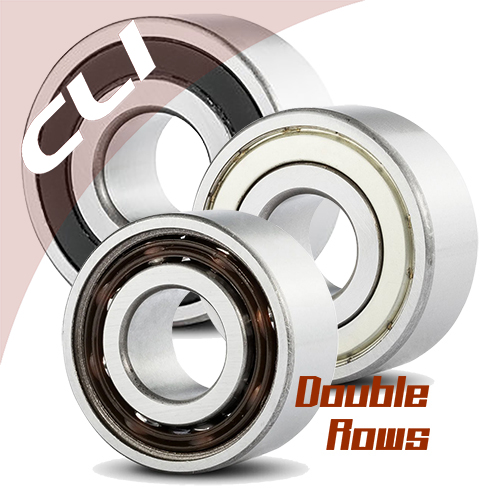

Product Picture

Double Rows Angular Contact Ball Bearings
with Different Contact Angles 15°/25°/30°/40°, CHROME AISI52100, METRIC sizes

Angular ball bearings made of rolling bearing steel are economical, withstand extremely high load-ratings and are suitable by their rubber seals and metal cage for the use with temperatures from circa -10°C up to +100°C in the long run, in case of polyamide cages up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant,
conductive and magnetic.

Double-row bearings' main dimensions according to DIN 628-3. Usable in case of high loads in the radial or the axial and double direction. Corresponds to the O-arrangement of two single row angular ball bearings, but it is nevertheless narrower. Suitable for high speeds.

Rubber seals (RS/2RS/DDU) have the optimum sealing action with increased friction.
Metal seals (Z/ZZ) are suitable for higher speeds, but they have a limited sealing action as they seal contactless.
Open, seal-less bearings are suitable for extremely high speeds and - furthermore - they can be regreased more easily.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Double Rows Angular Contact Ball Bearings
with Different Contact Angles 15°/25°/30°/40°, CHROME AISI52100, METRIC sizes
for shaft sizes from 10 mm to 85 mm

CLI BEAEING NO.	Seal Type	Contact Angel	Basic Dimensions				Static Load	Max Speed
		(Degree)	(mm)			Rating	Rating	(Grease)
			Bore Dia (d)	Outer Dia (D)	Width (B)	(Cr) (KN)	(Cor) (KN)	(RPM)
5200	Open	30 º	10 mm	30 mm	14.3 mm	7.15	3.9	17000
5200 ZZ	Shielded	30 º	10 mm	30 mm	14.3 mm	7.15	3.9	15300
5200 DDU	Sealed	30 º	10 mm	30 mm	14.3 mm	7.15	3.9	13600
5201	Open	30 º	12 mm	32 mm	15.9 mm	10.5	5.8	15000
5201 ZZ	Shielded	30 º	12 mm	32 mm	15.9 mm	10.5	5.8	13500
5201 DDU	Sealed	30 º	12 mm	32 mm	15.9 mm	10.5	5.8	12000
5202	Open	30 º	15 mm	35 mm	15.9 mm	11.7	7.05	13000
5202 ZZ	Shielded	30 º	15 mm	35 mm	15.9 mm	11.7	7.05	11700
5202 DDU	Sealed	30 º	15 mm	35 mm	15.9 mm	11.7	7.05	10400
5302	Open	30 º	15 mm	42 mm	19 mm	17.6	10.2	11000
5302 ZZ	Shielded	30 º	15 mm	42 mm	19 mm	17.6	10.2	9900
5302 DDU	Sealed	30 º	15 mm	42 mm	19 mm	17.6	10.2	8800
5203	Open	30 º	17 mm	40 mm	17.5 mm	14.6	9.05	11000
5203 ZZ	Shielded	30 º	17 mm	40 mm	17.5 mm	14.6	9.05	9900
5203 DDU	Sealed	30 º	17 mm	40 mm	17.5 mm	14.6	9.05	8800
5303	Open	30 º	17 mm	47 mm	22.2 mm	21	12.6	10000
5303 ZZ	Shielded	30 º	17 mm	47 mm	22.2 mm	21	12.6	9000
5303 DDU	Sealed	30 º	17 mm	47 mm	22.2 mm	21	12.6	8000
5204	Open	30 º	20 mm	47 mm	20.6 mm	19.6	12.4	10000
5204 ZZ	Shielded	30 º	20 mm	47 mm	20.6 mm	19.6	12.4	9000
5204 DDU	Sealed	30 º	20 mm	47 mm	20.6 mm	19.6	12.4	8000
5304	Open	30 º	20 mm	52 mm	22.2 mm	24.6	15	9000
5304 DDU	Sealed	30 º	20 mm	52 mm	22.2 mm	24.6	15	7200
5304 ZZ	Shielded	30 º	20 mm	52 mm	22.2 mm	24.6	15	8100
5205	Open	30 º	25 mm	52 mm	20.6 mm	21.3	14.7	8500
5205 ZZ	Shielded	30 º	25 mm	52 mm	20.6 mm	21.3	14.7	7650
5205 DDU	Sealed	30 º	25 mm	52 mm	20.6 mm	21.3	14.7	6800
5305	Open	30 º	25 mm	62 mm	25.4 mm	32.5	20.7	7500
5305 ZZ	Shielded	30 º	25 mm	62 mm	25.4 mm	32.5	20.7	6750
5305 DDU	Sealed	30 º	25 mm	62 mm	25.4 mm	32.5	20.7	6000
5206 DDU	Sealed	30 º	30 mm	62 mm	23.8 mm	29.6	21.1	5680
5206 ZZ	Shielded	30 º	30 mm	62 mm	23.8 mm	29.6	21.1	6390
5206	Open	30 º	30 mm	62 mm	23.8 mm	29.6	21.1	7100
5306	Open	30 º	30 mm	72 mm	30.2 mm	40.5	28.1	6300
5306 ZZ	Shielded	30 º	30 mm	72 mm	30.2 mm	40.5	28.1	5670
5306 DDU	Sealed	30 º	30 mm	72 mm	30.2 mm	40.5	28.1	5040
5207 ZZ	Shielded	30 º	35 mm	72 mm	27 mm	39	28.7	5670
5207	Open	30 º	35 mm	72 mm	27 mm	39	28.7	6300
5207 DDU	Sealed	30 º	35 mm	72 mm	27 mm	39	28.7	5040
5307 ZZ	Shielded	30 º	35 mm	80 mm	34.9 mm	51	36	5040
5307	Open	30 º	35 mm	80 mm	34.9 mm	51	36	5600
5307 DDU	Sealed	30 º	35 mm	80 mm	34.9 mm	51	36	4480
5208 DDU	Sealed	30 º	40 mm	80 mm	30.2 mm	44	33.5	4480
5208	Open	30 º	40 mm	80 mm	30.2 mm	44	33.5	5600
5208 ZZ	Shielded	30 º	40 mm	80 mm	30.2 mm	44	33.5	5040
5308	Open	30 º	40 mm	90 mm	36.5 mm	56.5	41	5300
5308 ZZ	Shielded	30 º	40 mm	90 mm	36.5 mm	56.5	41	4770
5308 DDU	Sealed	30 º	40 mm	90 mm	36.5 mm	56.5	41	4240
5209	Open	30 º	45 mm	85 mm	30.2 mm	49.5	38	5000
5209 ZZ	Shielded	30 º	45 mm	85 mm	30.2 mm	49.5	38	4500
5209 DDU	Sealed	30 º	45 mm	85 mm	30.2 mm	49.5	38	4000
5309 ZZ	Shielded	30 º	45 mm	100 mm	39.7 mm	68.5	51	4050
5309	Open	30 º	45 mm	100 mm	39.7 mm	68.5	51	4500
5309 DDU	Sealed	30 º	45 mm	100 mm	39.7 mm	68.5	51	3600
5210 DDU	Sealed	30 º	50 mm	90 mm	30.2 mm	53	43.5	3840
5210	Open	30 º	50 mm	90 mm	30.2 mm	53	43.5	4800
5210 ZZ	Shielded	30 º	50 mm	90 mm	30.2 mm	53	43.5	4320
5310	Open	30 º	50 mm	110 mm	44.4 mm	81.5	61.5	4300
5310 ZZ	Shielded	30 º	50 mm	110 mm	44.4 mm	81.5	61.5	3870
5310 DDU	Sealed	30 º	50 mm	110 mm	44.4 mm	81.5	61.5	3440
5211 ZZ	Shielded	30 º	55 mm	100 mm	33.3 mm	56	49	3870
5211	Open	30 º	55 mm	100 mm	33.3 mm	56	49	4300
5211 DDU	Sealed	30 º	55 mm	100 mm	33.3 mm	56	49	3440
5311	Open	30 º	55 mm	120 mm	49.2 mm	95	73	3800
5311 ZZ	Shielded	30 º	55 mm	120 mm	49.2 mm	95	73	3420
5311 DDU	Sealed	30 º	55 mm	120 mm	49.2 mm	95	73	3040
5212 ZZ	Shielded	30 º	60 mm	110 mm	36.5 mm	69	62	3420
5212	Open	30 º	60 mm	110 mm	36.5 mm	69	62	3800
5212 DDU	Sealed	30 º	60 mm	110 mm	36.5 mm	69	62	3040
5312	Open	30 º	60 mm	130 mm	54 mm	125	98.5	3400
5312 ZZ	Shielded	30 º	60 mm	130 mm	54 mm	125	98.5	3060
5312 DDU	Sealed	30 º	60 mm	130 mm	54 mm	125	98.5	2720
5213	Open	30 º	65 mm	120 mm	38.1 mm	76.5	69	3600
5213 ZZ	Shielded	30 º	65 mm	120 mm	38.1 mm	76.5	69	3240
5213 DDU	Sealed	30 º	65 mm	120 mm	38.1 mm	76.5	69	2880
5313 ZZ	Shielded	30 º	65 mm	140 mm	58.7 mm	142	113	2880
5313	Open	30 º	65 mm	140 mm	58.7 mm	142	113	3200
5313 DDU	Sealed	30 º	65 mm	140 mm	58.7 mm	142	113	2560
5214	Open	30 º	70 mm	125 mm	39.7 mm	94	82	3400
5214 ZZ	Shielded	30 º	70 mm	125 mm	39.7 mm	94	82	3060
5214 DDU	Sealed	30 º	70 mm	125 mm	39.7 mm	94	82	2720
5314	Open	30 º	70 mm	150 mm	63.5 mm	159	128	3000
5314 ZZ	Shielded	30 º	70 mm	150 mm	63.5 mm	159	128	2700
5314 DDU	Sealed	30 º	70 mm	150 mm	63.5 mm	159	128	2400
5215 DDU	Sealed	30 º	75 mm	130 mm	41.3 mm	93.5	83	2560
5215 ZZ	Shielded	30 º	75 mm	130 mm	41.3 mm	93.5	83	2880
5215	Open	30 º	75 mm	130 mm	41.3 mm	93.5	83	3200
5216	Open	30 º	80 mm	140 mm	44.4 mm	99	93	3000
5216 DDU	Sealed	30 º	80 mm	140 mm	44.4 mm	99	93	2400
5216 ZZ	Shielded	30 º	80 mm	140 mm	44.4 mm	99	93	2700
5217	Open	30 º	85 mm	150 mm	49.2 mm	116	110	2800
5217 ZZ	Shielded	30 º	85 mm	150 mm	49.2 mm	116	110	2520
5217 DDU	Sealed	30 º	85 mm	150 mm	49.2 mm	116	110	2240

* Suffix Descriptions:

Symbal		Meaning
A	→	Contact Angel 30°
B	→	Contact Angel 40°
C	→	Contact Angel 15°
A5	→	Contact Angel 25°

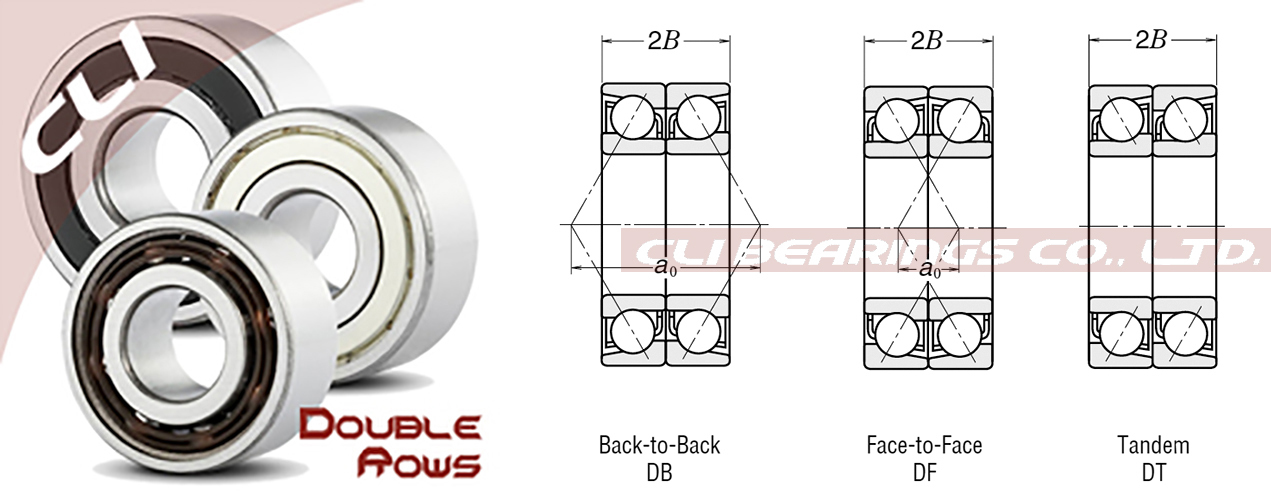

DB	→	Back to Back Type
DF	→	Face to Face Type
DT	→	Tandem Type
HPS	→	Polymide Cage
