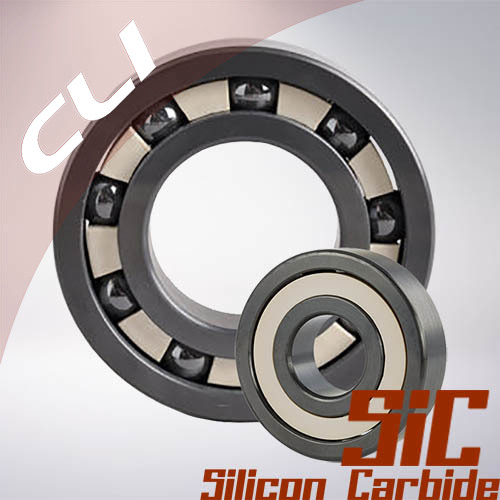

Original sic ceramic bearings pk pks cli

Product Picture

Download PDF Catalogue

Original technical reference of rolling bearings nw

Technical References

Silicon Carbide SiC Ceramic Ball Bearings,
PEEK cage, OPEN type or closured with PTFE / PEEK covers, ROHS compliant

•  Less frequently used than other ceramic materials due to its raw materials cost and difficulty to machine, silicon carbide SiC offers the best heat and corrosion resistance of all the ceramic materials.
•  Silicon carbide SiC is best used under low loads and in highly corrosive environments.
•  The full complement types can be used up to 1200°C.
•  Sealed type silicon carbide SiC ceramic ball bearings can be closured by PEFE or PEEK covers to protect the inside rolling races and rolling elements.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

PEEK Cage, OPEN type
Silicon Carbide SiC Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm

Ceramic Bearing	Details	Cage	Cage	Bearing Dimension			Dynamic	Static	Max
SiC		Cage	Cage	Bore Dia	Outer Dia	Width	radial	radial	Speed
CLI Bearing No.		Type	Type	(d)	(D)	(B)	(Newtons)	(Newtons)	(X1000 RPM)
CE-SC-R133-PK	Details	PEEK	OPEN	0.0938" \| 2.381 mm	0.1875" \| 4.763 mm	0.0625" \| 1.588 mm	40.0425	12.235	66.5
CE-SC-R1-5-PK	Details	PEEK	OPEN	0.0938" \| 2.381 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm	117.905	35.5925	49.7
CE-SC-R144-PK	Details	PEEK	OPEN	0.125" \| 3.175 mm	0.25" \| 6.35 mm	0.0937" \| 2.38 mm	60.065	18.91	56
CE-SC-R2-5-PK	Details	PEEK	OPEN	0.125" \| 3.175 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm	119.015	35.5925	46.9
CE-SC-R2-6-PK	Details	PEEK	OPEN	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1094" \| 2.779 mm	135.7	45.605	44.1
CE-SC-R2-PK	Details	PEEK	OPEN	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1562" \| 3.967 mm	134.5875	43.38	46.9
CE-SC-R2A-PK	Details	PEEK	OPEN	0.125" \| 3.175 mm	0.5" \| 12.7 mm	0.1719" \| 4.366 mm	135.7	45.605	44.1
CE-SC-R155-PK	Details	PEEK	OPEN	0.1563" \| 3.969 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm	76.7475	30.0325	44.1
CE-SC-R156-PK	Details	PEEK	OPEN	0.1875" \| 4.763 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm	76.7475	30.0325	44.1
CE-SC-R166-PK	Details	PEEK	OPEN	0.1875" \| 4.763 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	151.2725	54.5025	42
CE-SC-R3-PK	Details	PEEK	OPEN	0.1875" \| 4.763 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm	276.9625	97.8825	35
CE-SC-R3A-PK	Details	PEEK	OPEN	0.1875" \| 4.763 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1601-PK	Details	PEEK	OPEN	0.1875" \| 4.763 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm	150	55	4.2
CE-SC-R168-PK	Details	PEEK	OPEN	0.25" \| 6.35 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	78.9725	34.4825	39.2
CE-SC-R188-PK	Details	PEEK	OPEN	0.25" \| 6.35 mm	0.5" \| 12.7 mm	0.125" \| 3.175 mm	230.245	88.985	35
CE-SC-R4-PK	Details	PEEK	OPEN	0.25" \| 6.35 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1602-PK	Details	PEEK	OPEN	0.25" \| 6.35 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm	158.75	60	4.2
CE-SC-R4A-PK	Details	PEEK	OPEN	0.25" \| 6.35 mm	0.75" \| 19.05 mm	0.2188" \| 5.558 mm	496.085	179.08	30.1
CE-SC-R1810-PK	Details	PEEK	OPEN	0.3125" \| 7.938 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm	115.68	55.615	33.6
CE-SC-1603-PK	Details	PEEK	OPEN	0.3125" \| 7.938 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm	186.25	77.5	4.2
CE-SC-1605-PK	Details	PEEK	OPEN	0.3125" \| 7.938 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	186.25	78.75	4.2
CE-SC-1604-PK	Details	PEEK	OPEN	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm	187.5	80	4.2
CE-SC-R6-PK	Details	PEEK	OPEN	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2188" \| 5.558 mm	708.535	284.75	26.6
CE-SC-1606-PK	Details	PEEK	OPEN	0.375" \| 9.525 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	187.5	80	4.2
CE-SC-1614-PK	Details	PEEK	OPEN	0.375" \| 9.525 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	285	130	4.2
CE-SC-1607-PK	Details	PEEK	OPEN	0.4375" \| 11.113 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	253.75	107.5	4.2
CE-SC-1615-PK	Details	PEEK	OPEN	0.4375" \| 11.113 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	286.25	132.5	4.2
CE-SC-1620-PK	Details	PEEK	OPEN	0.4375" \| 11.113 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	422.5	200	4.2
CE-SC-1616-PK	Details	PEEK	OPEN	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	287.5	112.5	4.2
CE-SC-R8-PK	Details	PEEK	OPEN	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.25" \| 6.35 mm	287.25	127.75	22.4
CE-SC-1621-PK	Details	PEEK	OPEN	0.5" \| 12.7 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	425	203.75	4.2
CE-SC-1622-PK	Details	PEEK	OPEN	0.5625" \| 14.288 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	427.5	206.25	4.2
CE-SC-1623-PK	Details	PEEK	OPEN	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	430	208.75	4.2
CE-SC-R10-PK	Details	PEEK	OPEN	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.2812" \| 7.142 mm	396.25	183.75	17.5
CE-SC-1628-PK	Details	PEEK	OPEN	0.625" \| 15.875 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	525	273.75	4.2
CE-SC-1633-PK	Details	PEEK	OPEN	0.625" \| 15.875 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	525	280	4.2
CE-SC-1630-PK	Details	PEEK	OPEN	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	527.5	278.75	4.2
CE-SC-R12-PK	Details	PEEK	OPEN	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.3125" \| 7.938 mm	619.25	294.25	14.7
CE-SC-1635-PK	Details	PEEK	OPEN	0.75" \| 19.05 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	528.75	285	4.2
CE-SC-1638-PK	Details	PEEK	OPEN	0.75" \| 19.05 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	567.5	322.5	4.2
CE-SC-R14-PK	Details	PEEK	OPEN	0.875" \| 22.225 mm	1.875" \| 47.625 mm	0.375" \| 9.525 mm	664.5	326.75	8.4
CE-SC-1640-PK	Details	PEEK	OPEN	0.875" \| 22.225 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	566.25	328.75	4.2
CE-SC-1641-PK	Details	PEEK	OPEN	1" \| 25.4 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	565	336.25	4.2
CE-SC-R16-PK	Details	PEEK	OPEN	1" \| 25.4 mm	2" \| 50.8 mm	0.375" \| 9.525 mm	663	326.75	7.7
CE-SC-R18-PK	Details	PEEK	OPEN	1.125" \| 28.575 mm	2.125" \| 53.975 mm	0.375" \| 9.525 mm	873	454.25	7
CE-SC-1652-PK	Details	PEEK	OPEN	1.125" \| 28.575 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900.75	570	4.2
CE-SC-R20-PK	Details	PEEK	OPEN	1.25" \| 31.75 mm	2.25" \| 57.15 mm	0.375" \| 9.525 mm	923.75	496.5	6.3
CE-SC-1654-PK	Details	PEEK	OPEN	1.25" \| 31.75 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900	575	4.2
CE-SC-1657-PK	Details	PEEK	OPEN	1.25" \| 31.75 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1100	625	4.2
CE-SC-1658-PK	Details	PEEK	OPEN	1.3125" \| 33.338 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1092.5	650	4.2
CE-SC-R22-PK	Details	PEEK	OPEN	1.375" \| 34.925 mm	2.5" \| 63.5 mm	0.4375" \| 11.113 mm	1016.75	561.75	5.6
CE-SC-R24-PK	Details	PEEK	OPEN	1.5" \| 38.1 mm	2.625" \| 66.675 mm	0.4375" \| 11.113 mm	1106.5	611.5	4.2
CE-SC-682-PK	Details	PEEK	OPEN	2 mm	5mm	1.5mm	36	10	70
CE-SC-MR52-PK	Details	PEEK	OPEN	2 mm	5mm	2mm	36	10	70
CE-SC-692-PK	Details	PEEK	OPEN	2 mm	6mm	2.3mm	70.25	19.75	63
CE-SC-MR62-PK	Details	PEEK	OPEN	2mm	6mm	2.5mm	70.25	19.75	63
CE-SC-602-PK	Details	PEEK	OPEN	2 mm	7mm	2.8mm	82	25.75	49.7
CE-SC-MR72-PK	Details	PEEK	OPEN	2 mm	7mm	2.5mm	82	25.75	52.5
CE-SC-682x-PK	Details	PEEK	OPEN	2.5 mm	6mm	1.8mm	44.5	14.75	56
CE-SC-692x-PK	Details	PEEK	OPEN	2.5mm	7mm	2.5mm	82	25.75	52.5
CE-SC-602x-PK	Details	PEEK	OPEN	2.5 mm	8mm	2.8mm	117.25	35.5	49.7
CE-SC-MR82x-PK	Details	PEEK	OPEN	2.5mm	8mm	2.5mm	118.5	36	46.9
CE-SC-MR63-PK	Details	PEEK	OPEN	3mm	6mm	2mm	44.5	14.75	56
CE-SC-683-PK	Details	PEEK	OPEN	3mm	7mm	2mm	66	22.5	52.5
CE-SC-693-PK	Details	PEEK	OPEN	3mm	8mm	3mm	118.5	36	46.9
CE-SC-MR83-PK	Details	PEEK	OPEN	3mm	8mm	2.5mm	84	28.25	46.9
CE-SC-603-PK	Details	PEEK	OPEN	3 mm	9mm	3mm	57.5	37.75	46.9
CE-SC-MR93-PK	Details	PEEK	OPEN	3mm	9mm	2.5mm	121.25	37.75	46.9
CE-SC-623-PK	Details	PEEK	OPEN	3mm	10mm	4mm	134	43.75	42
CE-SC-633-PK	Details	PEEK	OPEN	3 mm	13mm	5mm	276.5	97.5	33.6
CE-SC-MR74-PK	Details	PEEK	OPEN	4mm	7mm	2mm	66	23	46.9
CE-SC-MR84-PK	Details	PEEK	OPEN	4mm	8mm	2mm	84	28.25	46.9
CE-SC-684-PK	Details	PEEK	OPEN	4mm	9mm	2.5mm	136.25	45.5	44.1
CE-SC-MR104-PK	Details	PEEK	OPEN	4mm	10mm	3mm	151	54.5	39.2
CE-SC-694-PK	Details	PEEK	OPEN	4 mm	11mm	4mm	203.5	70	39.2
CE-SC-604-PK	Details	PEEK	OPEN	4 mm	12mm	4mm	203.5	70	39.2
CE-SC-624-PK	Details	PEEK	OPEN	4mm	13mm	5mm	276.5	97.5	33.6
CE-SC-634-PK	Details	PEEK	OPEN	4mm	16mm	5mm	284.75	104.5	30.1
CE-SC-MR85-PK	Details	PEEK	OPEN	5mm	8mm	2mm	65.5	24	44.1
CE-SC-MR95-PK	Details	PEEK	OPEN	5 mm	9mm	2.5mm	91.5	33.75	42
CE-SC-MR105-PK	Details	PEEK	OPEN	5 mm	10mm	3mm	91.5	33.75	42
CE-SC-685-PK	Details	PEEK	OPEN	5mm	11mm	3mm	152.25	56.5	37.1
CE-SC-MR115-PK	Details	PEEK	OPEN	5mm	11mm	4mm	152.25	56.5	44.1
CE-SC-695-PK	Details	PEEK	OPEN	5mm	13mm	4mm	229	86.5	35
CE-SC-605-PK	Details	PEEK	OPEN	5mm	14mm	5mm	282.5	101.5	35
CE-SC-625-PK	Details	PEEK	OPEN	5mm	16mm	5mm	367.5	135	30.1
CE-SC-635-PK	Details	PEEK	OPEN	5mm	19mm	6mm	496.5	179.25	28
CE-SC-MR106-PK	Details	PEEK	OPEN	6mm	10mm	2.5mm	105.5	43.5	37.1
CE-SC-MR126-PK	Details	PEEK	OPEN	6mm	12mm	3mm	152.25	59	35
CE-SC-686-PK	Details	PEEK	OPEN	6mm	13mm	3.5mm	230	88.5	35
CE-SC-696-PK	Details	PEEK	OPEN	6mm	15mm	5mm	284.75	104.5	31.5
CE-SC-606-PK	Details	PEEK	OPEN	6mm	17mm	6mm	481	169.25	31.5
CE-SC-626-PK	Details	PEEK	OPEN	6 mm	19mm	6mm	496.5	179.25	28
CE-SC-636-PK	Details	PEEK	OPEN	6mm	22mm	7mm	708.25	284.5	25.2
CE-SC-MR117-PK	Details	PEEK	OPEN	7 mm	11mm	2.5mm	96.75	40.5	35
CE-SC-MR137-PK	Details	PEEK	OPEN	7mm	13mm	3mm	115	55.25	33.6
CE-SC-687-PK	Details	PEEK	OPEN	7mm	14mm	3.5mm	249.25	102.5	35
CE-SC-697-PK	Details	PEEK	OPEN	7mm	17mm	5mm	341	143.75	30.1
CE-SC-607-PK	Details	PEEK	OPEN	7mm	19mm	6mm	496.5	179.25	30.1
CE-SC-627-PK	Details	PEEK	OPEN	7mm	22mm	7mm	698.5	275.75	25.2
CE-SC-637-PK	Details	PEEK	OPEN	7 mm	26mm	9mm	969.75	396.5	23.8
CE-SC-MR128-PK	Details	PEEK	OPEN	8mm	12mm	2.5mm	115.5	54.75	33.6
CE-SC-MR148-PK	Details	PEEK	OPEN	8 mm	14mm	3.5mm	173.75	77.25	31.5
CE-SC-688-PK	Details	PEEK	OPEN	8 mm	16mm	4mm	266	118.5	30.1
CE-SC-698-PK	Details	PEEK	OPEN	8mm	19mm	6mm	475.5	183.5	30.1
CE-SC-608-PK	Details	PEEK	OPEN	8mm	22mm	7mm	699.75	275.75	772.1
CE-SC-628-PK	Details	PEEK	OPEN	8mm	24mm	8mm	708.25	284.5	23.8
CE-SC-638-PK	Details	PEEK	OPEN	8mm	28mm	9mm	969.75	396.5	23.8
CE-SC-679-PK	Details	PEEK	OPEN	9mm	14mm	3mm	195.25	93.5	29.4
CE-SC-689-PK	Details	PEEK	OPEN	9mm	17mm	4mm	282	133.5	30.1
CE-SC-699-PK	Details	PEEK	OPEN	9mm	20mm	6mm	524.25	216.25	28
CE-SC-609-PK	Details	PEEK	OPEN	9mm	24mm	7mm	713.25	288.75	26.6
CE-SC-629-PK	Details	PEEK	OPEN	9mm	26mm	8mm	969.75	396.5	23.8
CE-SC-639-PK	Details	PEEK	OPEN	9mm	30mm	10mm	990	416	21
CE-SC-6700-PK	Details	PEEK	OPEN	10mm	15mm	3mm	214.25	108.75	11.9
CE-SC-63800-PK	Details	PEEK	OPEN	10mm	19mm	7mm	430	210	28
CE-SC-6800-PK	Details	PEEK	OPEN	10mm	19mm	5mm	430	210	28
CE-SC-6900-PK	Details	PEEK	OPEN	10mm	22mm	6mm	675	317.5	25.9
CE-SC-6000-PK	Details	PEEK	OPEN	10 mm	26mm	8mm	1137.5	487.5	25.2
CE-SC-6200-PK	Details	PEEK	OPEN	10 mm	30mm	9mm	1275	600	20.3
CE-SC-6300-PK	Details	PEEK	OPEN	10 mm	35mm	11mm	2025	862.5	18.9
CE-SC-6701-PK	Details	PEEK	OPEN	12mm	18mm	4mm	232	133	10.5
CE-SC-63801-PK	Details	PEEK	OPEN	12mm	21mm	7mm	480	260	25.2
CE-SC-6801-PK	Details	PEEK	OPEN	12mm	21mm	5mm	480	260	25.2
CE-SC-6901-PK	Details	PEEK	OPEN	12mm	24mm	6mm	722.5	365	23.1
CE-SC-6001-PK	Details	PEEK	OPEN	12 mm	28mm	8mm	1275	600	22.4
CE-SC-6201-PK	Details	PEEK	OPEN	12 mm	32mm	10mm	1700	762.5	18.9
CE-SC-6301-PK	Details	PEEK	OPEN	12 mm	37mm	12mm	2425	1050	17.5
CE-SC-6702-PK	Details	PEEK	OPEN	15mm	21mm	4mm	234.25	145.25	9.1
CE-SC-63802-PK	Details	PEEK	OPEN	15mm	24mm	7mm	517.5	315	21.7
CE-SC-6802-PK	Details	PEEK	OPEN	15mm	24mm	5mm	517.5	315	21.7
CE-SC-6902-PK	Details	PEEK	OPEN	15mm	28mm	7mm	1082.5	562.5	20.3
CE-SC-6002-PK	Details	PEEK	OPEN	15 mm	32mm	9mm	1400	712.5	18.9
CE-SC-6202-PK	Details	PEEK	OPEN	15 mm	35mm	11mm	1912.5	937.5	16.8
CE-SC-6302-PK	Details	PEEK	OPEN	15 mm	42mm	13mm	2850	1362.5	14
CE-SC-6703-PK	Details	PEEK	OPEN	17mm	23mm	4mm	249.75	164.25	7.7
CE-SC-63803-PK	Details	PEEK	OPEN	17mm	26mm	7mm	557.5	365	20.3
CE-SC-6803-PK	Details	PEEK	OPEN	17mm	26mm	5mm	557.5	365	20.3
CE-SC-6903-PK	Details	PEEK	OPEN	17mm	30mm	7mm	1147.5	640	18.2
CE-SC-6003-PK	Details	PEEK	OPEN	17 mm	35mm	10mm	1500	812.5	17.5
CE-SC-6203-PK	Details	PEEK	OPEN	17 mm	40mm	12mm	2387.5	1200	14.7
CE-SC-6303-PK	Details	PEEK	OPEN	17 mm	47mm	14mm	3400	1662.5	12.6
CE-SC-6704-PK	Details	PEEK	OPEN	20mm	27mm	4mm	252.5	180.5	7
CE-SC-63804-PK	Details	PEEK	OPEN	20mm	32mm	10mm	1005	615	17.5
CE-SC-6804-PK	Details	PEEK	OPEN	20mm	32mm	7mm	1005	615	17.5
CE-SC-6904-PK	Details	PEEK	OPEN	20mm	37mm	9mm	1595	920	15.4
CE-SC-6004-PK	Details	PEEK	OPEN	20 mm	42mm	12mm	2350	1262.5	14.7
CE-SC-6204-PK	Details	PEEK	OPEN	20 mm	47mm	14mm	3200	1662.5	11.9
CE-SC-6304-PK	Details	PEEK	OPEN	20 mm	52mm	15mm	3975	1962.5	11.9
CE-SC-6705-PK	Details	PEEK	OPEN	25mm	32mm	4mm	275	209.5	5.6
CE-SC-63805-PK	Details	PEEK	OPEN	25mm	37mm	10mm	1075	735	14.7
CE-SC-6805-PK	Details	PEEK	OPEN	25mm	37mm	7mm	1075	735	14.7
CE-SC-6905-PK	Details	PEEK	OPEN	25mm	42mm	9mm	1752.5	1137.5	13.3
CE-SC-6005-PK	Details	PEEK	OPEN	25 mm	47mm	12mm	2525	1462.5	12.6
CE-SC-6205-PK	Details	PEEK	OPEN	25 mm	52mm	15mm	3500	1962.5	10.5
CE-SC-6305-PK	Details	PEEK	OPEN	25 mm	62mm	17mm	5150	2825	9.1
CE-SC-6706-PK	Details	PEEK	OPEN	30mm	37mm	4mm	285	236.75	4.9
CE-SC-63806-PK	Details	PEEK	OPEN	30mm	42mm	10mm	1134.5	850.5	12.6
CE-SC-6806-PK	Details	PEEK	OPEN	30mm	42mm	7mm	1112.5	860	12.6
CE-SC-6906-PK	Details	PEEK	OPEN	30mm	47mm	9mm	1810	1252.5	11.9
CE-SC-6006-PK	Details	PEEK	OPEN	30 mm	55mm	13mm	3300	2062.5	10.5
CE-SC-6206-PK	Details	PEEK	OPEN	30 mm	62mm	16mm	4875	2825	9.1
CE-SC-6306-PK	Details	PEEK	OPEN	30 mm	72mm	19mm	6675	3750	8.4
CE-SC-6707-PK	Details	PEEK	OPEN	35mm	44mm	5mm	465	407.5	4.2
CE-SC-6807-PK	Details	PEEK	OPEN	35mm	47mm	7mm	1185	955	11.2
CE-SC-6907-PK	Details	PEEK	OPEN	35mm	55mm	10mm	2725	1937.5	9.8
CE-SC-6007-PK	Details	PEEK	OPEN	35 mm	62mm	14mm	3975	2575	9.1
CE-SC-6207-PK	Details	PEEK	OPEN	35 mm	72mm	17mm	6425	3850	7.7
CE-SC-6307-PK	Details	PEEK	OPEN	35 mm	80mm	21mm	8350	4825	7
CE-SC-6708-PK	Details	PEEK	OPEN	40mm	50mm	6mm	627.5	557.5	3.5
CE-SC-6808-PK	Details	PEEK	OPEN	40mm	52mm	7mm	1232.5	1045	9.8
CE-SC-6908-PK	Details	PEEK	OPEN	40mm	62mm	12mm	3425	2480	9.1
CE-SC-6008-PK	Details	PEEK	OPEN	40 mm	68mm	15mm	4175	2875	8.4
CE-SC-6208-PK	Details	PEEK	OPEN	40 mm	80mm	18mm	7275	4450	7
CE-SC-6308-PK	Details	PEEK	OPEN	40 mm	90mm	23mm	10175	6000	6.3
CE-SC-6709-PK	Details	PEEK	OPEN	45mm	55mm	6mm	642.5	600	3.22
CE-SC-6809-PK	Details	PEEK	OPEN	45mm	58mm	7mm	1552.5	1345	9.1
CE-SC-6909-PK	Details	PEEK	OPEN	45mm	68mm	12mm	3525	2725	7.7
CE-SC-6009-PK	Details	PEEK	OPEN	45 mm	75mm	16mm	5250	3775	7.7
CE-SC-6209-PK	Details	PEEK	OPEN	45 mm	85mm	19mm	8175	5075	6.44
CE-SC-6309-PK	Details	PEEK	OPEN	45 mm	100mm	25mm	13250	8000	5.6
CE-SC-6710-PK	Details	PEEK	OPEN	50mm	62mm	6mm	667.5	662.5	2.87
CE-SC-6810-PK	Details	PEEK	OPEN	50mm	65mm	7mm	1542.5	1440	7.7
CE-SC-6910-PK	Details	PEEK	OPEN	50mm	72mm	12mm	3625	2925	7.7
CE-SC-6010-PK	Details	PEEK	OPEN	50 mm	80mm	16mm	5450	4150	6.93
CE-SC-6210-PK	Details	PEEK	OPEN	50 mm	90mm	20mm	8775	5825	5.95
CE-SC-6310-PK	Details	PEEK	OPEN	50 mm	110mm	27mm	15500	9575	5.25
CE-SC-6811-PK	Details	PEEK	OPEN	55mm	72mm	9mm	2200	2020	7
CE-SC-6911-PK	Details	PEEK	OPEN	55mm	80mm	13mm	4150	3525	6.72
CE-SC-6011-PK	Details	PEEK	OPEN	55 mm	90mm	18mm	7075	5300	6.3
CE-SC-6211-PK	Details	PEEK	OPEN	55 mm	100mm	21mm	10850	7350	5.25
CE-SC-6311-PK	Details	PEEK	OPEN	55 mm	120mm	29mm	17900	11250	4.69
CE-SC-6812-PK	Details	PEEK	OPEN	60mm	78mm	10mm	2875	2650	6.58
CE-SC-6912-PK	Details	PEEK	OPEN	60mm	85mm	13mm	5050	4325	6.23
CE-SC-6012-PK	Details	PEEK	OPEN	60 mm	95mm	18mm	7350	5800	5.95
CE-SC-6212-PK	Details	PEEK	OPEN	60 mm	110mm	22mm	13100	9050	4.97
CE-SC-6312-PK	Details	PEEK	OPEN	60 mm	130mm	31mm	20475	13050	4.41
CE-SC-6813-PK	Details	PEEK	OPEN	65mm	85mm	10mm	2975	2875	6.02
CE-SC-6913-PK	Details	PEEK	OPEN	65mm	90mm	13mm	4325	4000	5.81
CE-SC-6013-PK	Details	PEEK	OPEN	65 mm	100mm	18mm	7625	6300	5.6
CE-SC-6213-PK	Details	PEEK	OPEN	65 mm	120mm	23mm	14300	10025	4.41
CE-SC-6313-PK	Details	PEEK	OPEN	65 mm	140mm	33mm	23175	14975	4.2
CE-SC-6814-PK	Details	PEEK	OPEN	70mm	90mm	10mm	2900	2950	5.67
CE-SC-6914-PK	Details	PEEK	OPEN	70mm	100mm	16mm	5925	5275	5.32
CE-SC-6014-PK	Details	PEEK	OPEN	70 mm	110mm	20mm	9525	7725	4.97
CE-SC-6214-PK	Details	PEEK	OPEN	70 mm	125mm	24mm	15550	11025	4.41
CE-SC-6314-PK	Details	PEEK	OPEN	70 mm	150mm	35mm	26000	17050	3.71
CE-SC-6815-PK	Details	PEEK	OPEN	75mm	95mm	10mm	3075	3200	5.32
CE-SC-6915-PK	Details	PEEK	OPEN	75mm	105mm	16mm	6000	5650	4.97
CE-SC-6015-PK	Details	PEEK	OPEN	75 mm	115mm	20mm	9900	8375	4.69
CE-SC-6215-PK	Details	PEEK	OPEN	75 mm	130mm	25mm	16850	12075	3.92
CE-SC-6315-PK	Details	PEEK	OPEN	75 mm	160mm	37mm	28250	19300	3.5
CE-SC-6816-PK	Details	PEEK	OPEN	80mm	100mm	10mm	3150	3325	4.97
CE-SC-6916-PK	Details	PEEK	OPEN	80mm	110mm	16mm	6200	5975	4.69
CE-SC-6016-PK	Details	PEEK	OPEN	80 mm	125mm	22mm	11900	9950	4.41
CE-SC-6216-PK	Details	PEEK	OPEN	80 mm	140mm	26mm	18175	13250	3.71
CE-SC-6316-PK	Details	PEEK	OPEN	80 mm	170mm	39mm	30750	21675	3.36
CE-SC-6817-PK	Details	PEEK	OPEN	85mm	110mm	13mm	4675	4750	4.62
CE-SC-6917-PK	Details	PEEK	OPEN	85mm	120mm	18mm	7975	7400	4.34
CE-SC-6017-PK	Details	PEEK	OPEN	85 mm	130mm	22mm	12375	10775	4.2
CE-SC-6217-PK	Details	PEEK	OPEN	85 mm	150mm	28mm	21000	15475	3.5
CE-SC-6317-PK	Details	PEEK	OPEN	85 mm	180mm	41mm	33250	24200	3.15
CE-SC-6818-PK	Details	PEEK	OPEN	90mm	115mm	13mm	4575	4875	4.34
CE-SC-6918-PK	Details	PEEK	OPEN	90mm	125mm	18mm	8100	7900	4.13
CE-SC-6018-PK	Details	PEEK	OPEN	90 mm	140mm	24mm	14550	12425	3.92
CE-SC-6218-PK	Details	PEEK	OPEN	90 mm	160mm	30mm	24025	17875	3.36
CE-SC-6318-PK	Details	PEEK	OPEN	90 mm	190mm	43mm	35750	26750	3.01
CE-SC-6819-PK	Details	PEEK	OPEN	95mm	120mm	13mm	4700	5075	4.13
CE-SC-6019-PK	Details	PEEK	OPEN	95 mm	145mm	24mm	15100	13475	3.71
CE-SC-6219-PK	Details	PEEK	OPEN	95 mm	170mm	32mm	27250	20475	3.15
CE-SC-6319-PK	Details	PEEK	OPEN	95 mm	200mm	45mm	38250	29750	3.71
CE-SC-6020-PK	Details	PEEK	OPEN	100 mm	150mm	24mm	15050	13550	3.71
CE-SC-6220-PK	Details	PEEK	OPEN	100 mm	150mm	24mm	18060	16260	3.18
CE-SC-6320-PK	Details	PEEK	OPEN	100 mm	215mm	47mm	43250	35250	2.38
CE-SC-6021-PK	Details	PEEK	OPEN	105 mm	160mm	26mm	18075	16450	3.36
CE-SC-6221-PK	Details	PEEK	OPEN	105 mm	190mm	36mm	33250	26250	2.8
CE-SC-6321-PK	Details	PEEK	OPEN	105 mm	225mm	49mm	46000	38250	2.24

BEARING LIST & BEARING DETAILS

PEEK Cage, PTFE SEALED type
Silicon Carbide SiC Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm

Ceramic Bearing	Details	Cage	Cage	Bearing Dimension			Dynamic	Static	Max
SiC		Cage	Cage	Bore Dia	Outer Dia	Width	radial	radial	Speed
CLI Bearing No.		Type	Type	(d)	(D)	(B)	(Newtons)	(Newtons)	(X1000 RPM)
CE-SC-R133-PK-2PTS	Details	PEEK	PTFE	0.0938" \| 2.381 mm	0.1875" \| 4.763 mm	0.0937" \| 2.38 mm	31.145	11.1225	66.5
CE-SC-R1-5-PK-2PTS	Details	PEEK	PTFE	0.0938" \| 2.381 mm	0.3125" \| 7.938 mm	0.1406" \| 3.571 mm	117.905	35.5925	49.7
CE-SC-R144-PK-2PTS	Details	PEEK	PTFE	0.125" \| 3.175 mm	0.25" \| 6.35 mm	0.1094" \| 2.779 mm	60.065	18.91	56
CE-SC-R2-5-PK-2PTS	Details	PEEK	PTFE	0.125" \| 3.175 mm	0.3125" \| 7.938 mm	0.1406" \| 3.571 mm	119.015	35.5925	46.9
CE-SC-R2-6-PK-2PTS	Details	PEEK	PTFE	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1406" \| 3.571 mm	135.7	45.605	44.1
CE-SC-R2-PK-2PTS	Details	PEEK	PTFE	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1562" \| 3.967 mm	134.5875	43.38	46.9
CE-SC-R2A-PK-2PTS	Details	PEEK	PTFE	0.125" \| 3.175 mm	0.5" \| 12.7 mm	0.1719" \| 4.366 mm	135.7	45.605	44.1
CE-SC-R155-PK-2PTS	Details	PEEK	PTFE	0.1563" \| 3.969 mm	0.3125" \| 7.938 mm	0.125" \| 3.175 mm	76.7475	30.0325	44.1
CE-SC-R156-PK-2PTS	Details	PEEK	PTFE	0.1875" \| 4.763 mm	0.3125" \| 7.938 mm	0.125" \| 3.175 mm	76.7475	30.0325	44.1
CE-SC-R166-PK-2PTS	Details	PEEK	PTFE	0.1875" \| 4.763 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	151.2725	54.5025	42
CE-SC-R3-PK-2PTS	Details	PEEK	PTFE	0.1875" \| 4.763 mm	0.5" \| 12.7 mm	0.196" \| 4.978 mm	276.9625	97.8825	37.1
CE-SC-R3A-PK-2PTS	Details	PEEK	PTFE	0.1875" \| 4.763 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1601-PK-2PTS	Details	PEEK	PTFE	0.1875" \| 4.763 mm	0.6875" \| 17.463 mm	0.3125" \| 7.938 mm	150	55	4.2
CE-SC-R168-PK-2PTS	Details	PEEK	PTFE	0.25" \| 6.35 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	78.9725	34.4825	39.2
CE-SC-R188-PK-2PTS	Details	PEEK	PTFE	0.25" \| 6.35 mm	0.5" \| 12.7 mm	0.1875" \| 4.763 mm	230.245	88.985	35
CE-SC-R4-PK-2PTS	Details	PEEK	PTFE	0.25" \| 6.35 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1602-PK-2PTS	Details	PEEK	PTFE	0.25" \| 6.35 mm	0.6875" \| 17.463 mm	0.3125" \| 7.938 mm	158.75	60	4.2
CE-SC-R4A-PK-2PTS	Details	PEEK	PTFE	0.25" \| 6.35 mm	0.75" \| 19.05 mm	0.2812" \| 7.142 mm	496.085	179.08	30.1
CE-SC-R1810-PK-2PTS	Details	PEEK	PTFE	0.3125" \| 7.938 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm	115.68	55.615	33.6
CE-SC-1603-PK-2PTS	Details	PEEK	PTFE	0.3125" \| 7.938 mm	0.875" \| 22.225 mm	0.3438" \| 8.733 mm	186.25	77.5	4.2
CE-SC-1605-PK-2PTS	Details	PEEK	PTFE	0.3125" \| 7.938 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	186.25	78.75	4.2
CE-SC-1604-PK-2PTS	Details	PEEK	PTFE	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.3438" \| 8.733 mm	187.5	80	4.2
CE-SC-R6-PK-2PTS	Details	PEEK	PTFE	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm	708.535	284.75	26.6
CE-SC-1606-PK-2PTS	Details	PEEK	PTFE	0.375" \| 9.525 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	187.5	80	4.2
CE-SC-1614-PK-2PTS	Details	PEEK	PTFE	0.375" \| 9.525 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	285	130	4.2
CE-SC-1607-PK-2PTS	Details	PEEK	PTFE	0.4375" \| 11.113 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	253.75	107.5	4.2
CE-SC-1615-PK-2PTS	Details	PEEK	PTFE	0.4375" \| 11.113 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	286.25	132.5	4.2
CE-SC-1620-PK-2PTS	Details	PEEK	PTFE	0.4375" \| 11.113 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	422.5	200	4.2
CE-SC-1616-PK-2PTS	Details	PEEK	PTFE	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	287.5	112.5	4.2
CE-SC-R8-PK-2PTS	Details	PEEK	PTFE	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.3125" \| 7.938 mm	287.25	127.75	22.4
CE-SC-1621-PK-2PTS	Details	PEEK	PTFE	0.5" \| 12.7 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	425	203.75	4.2
CE-SC-1622-PK-2PTS	Details	PEEK	PTFE	0.5625" \| 14.288 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	427.5	206.25	4.2
CE-SC-1623-PK-2PTS	Details	PEEK	PTFE	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	430	208.75	4.2
CE-SC-R10-PK-2PTS	Details	PEEK	PTFE	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.3438" \| 8.733 mm	396.25	183.75	17.5
CE-SC-1628-PK-2PTS	Details	PEEK	PTFE	0.625" \| 15.875 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	525	273.75	4.2
CE-SC-1633-PK-2PTS	Details	PEEK	PTFE	0.625" \| 15.875 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	525	280	4.2
CE-SC-1630-PK-2PTS	Details	PEEK	PTFE	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	527.5	278.75	4.2
CE-SC-R12-PK-2PTS	Details	PEEK	PTFE	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.4375" \| 11.113 mm	619.25	294.25	14.7
CE-SC-1635-PK-2PTS	Details	PEEK	PTFE	0.75" \| 19.05 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	528.75	285	4.2
CE-SC-1638-PK-2PTS	Details	PEEK	PTFE	0.75" \| 19.05 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	567.5	322.5	4.2
CE-SC-R14-PK-2PTS	Details	PEEK	PTFE	0.875" \| 22.225 mm	1.875" \| 47.625 mm	0.5" \| 12.7 mm	664.5	326.75	8.4
CE-SC-1640-PK-2PTS	Details	PEEK	PTFE	0.875" \| 22.225 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	566.25	328.75	4.2
CE-SC-1641-PK-2PTS	Details	PEEK	PTFE	1" \| 25.4 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	565	336.25	4.2
CE-SC-R16-PK-2PTS	Details	PEEK	PTFE	1" \| 25.4 mm	2" \| 50.8 mm	0.5" \| 12.7 mm	663	326.75	7.7
CE-SC-R18-PK-2PTS	Details	PEEK	PTFE	1.125" \| 28.575 mm	2.125" \| 53.975 mm	0.5" \| 12.7 mm	873	454.25	7
CE-SC-1652-PK-2PTS	Details	PEEK	PTFE	1.125" \| 28.575 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900.75	570	4.2
CE-SC-R20-PK-2PTS	Details	PEEK	PTFE	1.25" \| 31.75 mm	2.25" \| 57.15 mm	0.5" \| 12.7 mm	923.75	496.5	6.3
CE-SC-1654-PK-2PTS	Details	PEEK	PTFE	1.25" \| 31.75 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900	575	4.2
CE-SC-1657-PK-2PTS	Details	PEEK	PTFE	1.25" \| 31.75 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1100	625	4.2
CE-SC-1658-PK-2PTS	Details	PEEK	PTFE	1.3125" \| 33.338 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1092.5	650	4.2
CE-SC-R22-PK-2PTS	Details	PEEK	PTFE	1.375" \| 34.925 mm	2.5" \| 63.5 mm	0.5625" \| 14.288 mm	1016.75	561.75	5.6
CE-SC-R24-PK-2PTS	Details	PEEK	PTFE	1.5" \| 38.1 mm	2.625" \| 66.675 mm	0.5625" \| 14.288 mm	1106.5	611.5	4.2
CE-SC-682-PK-2PTS	Details	PEEK	PTFE	2mm	5mm	2.3mm	36	10	70
CE-SC-MR52-PK-2PTS	Details	PEEK	PTFE	2 mm	5mm	2.5mm	36	10	70
CE-SC-692-PK-2PTS	Details	PEEK	PTFE	2mm	6mm	3mm	70.25	19.75	63
CE-SC-MR62-PK-2PTS	Details	PEEK	PTFE	2mm	6mm	2.5mm	70.25	19.75	63
CE-SC-602-PK-2PTS	Details	PEEK	PTFE	2 mm	7mm	3.5mm	82	25.75	49.7
CE-SC-MR72-PK-2PTS	Details	PEEK	PTFE	2 mm	7mm	3mm	82	25.75	52.5
CE-SC-682x-PK-2PTS	Details	PEEK	PTFE	2.5mm	6mm	2.6mm	44.5	14.75	56
CE-SC-692x-PK-2PTS	Details	PEEK	PTFE	2.5mm	7mm	3.5mm	82	25.75	52.5
CE-SC-602x-PK-2PTS	Details	PEEK	PTFE	2.5mm	8mm	4mm	117.25	35.5	49.7
CE-SC-MR82x-PK-2PTS	Details	PEEK	PTFE	2.5mm	8mm	2.5mm	118.5	36	46.9
CE-SC-MR63-PK-2PTS	Details	PEEK	PTFE	3mm	6mm	2.5mm	44.5	14.75	56
CE-SC-683-PK-2PTS	Details	PEEK	PTFE	3mm	7mm	3mm	66	22.5	52.5
CE-SC-693-PK-2PTS	Details	PEEK	PTFE	3mm	8mm	4mm	118.5	36	46.9
CE-SC-MR83-PK-2PTS	Details	PEEK	PTFE	3 mm	8mm	3mm	84	28.25	46.9
CE-SC-603-PK-2PTS	Details	PEEK	PTFE	3mm	9mm	5mm	57.5	37.75	46.9
CE-SC-MR93-PK-2PTS	Details	PEEK	PTFE	3mm	9mm	4mm	121.25	37.75	46.9
CE-SC-623-PK-2PTS	Details	PEEK	PTFE	3 mm	10mm	4mm	134	43.75	42
CE-SC-633-PK-2PTS	Details	PEEK	PTFE	3 mm	13mm	5mm	276.5	97.5	33.6
CE-SC-MR74-PK-2PTS	Details	PEEK	PTFE	4mm	7mm	2.5mm	54.25	21.5	46.9
CE-SC-MR84-PK-2PTS	Details	PEEK	PTFE	4 mm	8mm	3mm	84	28.25	46.9
CE-SC-684-PK-2PTS	Details	PEEK	PTFE	4mm	9mm	4mm	136.25	45.5	44.1
CE-SC-MR104-PK-2PTS	Details	PEEK	PTFE	4 mm	10mm	4mm	151	54.5	39.2
CE-SC-694-PK-2PTS	Details	PEEK	PTFE	4mm	11mm	4mm	203.5	70	39.2
CE-SC-604-PK-2PTS	Details	PEEK	PTFE	4mm	12mm	4mm	203.5	70	39.2
CE-SC-624-PK-2PTS	Details	PEEK	PTFE	4 mm	13mm	5mm	276.5	97.5	33.6
CE-SC-634-PK-2PTS	Details	PEEK	PTFE	4 mm	16mm	5mm	284.75	104.5	30.1
CE-SC-MR85-PK-2PTS	Details	PEEK	PTFE	5mm	8mm	2.5mm	46.25	18	44.1
CE-SC-MR95-PK-2PTS	Details	PEEK	PTFE	5mm	9mm	3mm	91.5	33.75	42
CE-SC-MR105-PK-2PTS	Details	PEEK	PTFE	5mm	10mm	4mm	91.5	33.75	42
CE-SC-685-PK-2PTS	Details	PEEK	PTFE	5mm	11mm	5mm	152.25	56.5	37.1
CE-SC-MR115-PK-2PTS	Details	PEEK	PTFE	5mm	11mm	4mm	152.25	56.5	44.1
CE-SC-695-PK-2PTS	Details	PEEK	PTFE	5mm	13mm	4mm	229	86.5	35
CE-SC-605-PK-2PTS	Details	PEEK	PTFE	5mm	14mm	5mm	282.5	101.5	35
CE-SC-625-PK-2PTS	Details	PEEK	PTFE	5 mm	16mm	5mm	367.5	135	30.1
CE-SC-635-PK-2PTS	Details	PEEK	PTFE	5 mm	19mm	6mm	496.5	179.25	28
CE-SC-MR106-PK-2PTS	Details	PEEK	PTFE	6mm	10mm	3mm	105.5	43.5	37.1
CE-SC-MR126-PK-2PTS	Details	PEEK	PTFE	6mm	12mm	4mm	152.25	59	35
CE-SC-686-PK-2PTS	Details	PEEK	PTFE	6mm	13mm	5mm	230	88.5	35
CE-SC-696-PK-2PTS	Details	PEEK	PTFE	6mm	15mm	5mm	284.75	104.5	31.5
CE-SC-606-PK-2PTS	Details	PEEK	PTFE	6 mm	17mm	6mm	481	169.25	31.5
CE-SC-626-PK-2PTS	Details	PEEK	PTFE	6mm	19mm	6mm	496.5	179.25	28
CE-SC-636-PK-2PTS	Details	PEEK	PTFE	6mm	22mm	7mm	708.25	284.5	25.2
CE-SC-MR117-PK-2PTS	Details	PEEK	PTFE	7 mm	11mm	3mm	96.75	40.5	35
CE-SC-MR137-PK-2PTS	Details	PEEK	PTFE	7mm	13mm	4mm	115	55.25	33.6
CE-SC-687-PK-2PTS	Details	PEEK	PTFE	7 mm	14mm	5mm	249.25	102.5	35
CE-SC-697-PK-2PTS	Details	PEEK	PTFE	7mm	17mm	5mm	341	143.75	30.1
CE-SC-607-PK-2PTS	Details	PEEK	PTFE	7 mm	19mm	6mm	496.5	179.25	30.1
CE-SC-627-PK-2PTS	Details	PEEK	PTFE	7 mm	22mm	7mm	698.5	275.75	25.2
CE-SC-637-PK-2PTS	Details	PEEK	PTFE	7 mm	26mm	9mm	969.75	396.5	23.8
CE-SC-MR128-PK-2PTS	Details	PEEK	PTFE	8mm	12mm	3.5mm	115.5	54.75	33.6
CE-SC-MR148-PK-2PTS	Details	PEEK	PTFE	8mm	14mm	4mm	173.75	77.25	31.5
CE-SC-688-PK-2PTS	Details	PEEK	PTFE	8 mm	16mm	5mm	266	118.5	30.1
CE-SC-698-PK-2PTS	Details	PEEK	PTFE	8mm	19mm	6mm	475.5	183.5	30.1
CE-SC-608-PK-2PTS	Details	PEEK	PTFE	8 mm	22mm	7mm	699.75	275.75	28
CE-SC-628-PK-2PTS	Details	PEEK	PTFE	8mm	24mm	8mm	708.25	284.5	23.8
CE-SC-638-PK-2PTS	Details	PEEK	PTFE	8mm	28mm	9mm	969.75	396.5	23.8
CE-SC-679-PK-2PTS	Details	PEEK	PTFE	9mm	14mm	4.5mm	195.25	93.5	29.4
CE-SC-689-PK-2PTS	Details	PEEK	PTFE	9mm	17mm	5mm	282	133.5	30.1
CE-SC-699-PK-2PTS	Details	PEEK	PTFE	9mm	20mm	6mm	524.25	216.25	28
CE-SC-609-PK-2PTS	Details	PEEK	PTFE	9mm	24mm	7mm	713.25	288.75	26.6
CE-SC-629-PK-2PTS	Details	PEEK	PTFE	9 mm	26mm	8mm	969.75	396.5	23.8
CE-SC-639-PK-2PTS	Details	PEEK	PTFE	9mm	30mm	10mm	990	416	21
CE-SC-6700-PK-2PTS	Details	PEEK	PTFE	10mm	15mm	4mm	214.25	108.75	11.9
CE-SC-63800-PK-2PTS	Details	PEEK	PTFE	10mm	19mm	7mm	430	210	28
CE-SC-6800-PK-2PTS	Details	PEEK	PTFE	10mm	19mm	5mm	430	210	28
CE-SC-6900-PK-2PTS	Details	PEEK	PTFE	10mm	22mm	6mm	675	317.5	25.9
CE-SC-6000-PK-2PTS	Details	PEEK	PTFE	10 mm	26mm	8mm	1137.5	487.5	25.2
CE-SC-6200-PK-2PTS	Details	PEEK	PTFE	10 mm	30mm	9mm	1275	600	20.3
CE-SC-6300-PK-2PTS	Details	PEEK	PTFE	10 mm	35mm	11mm	2025	862.5	18.9
CE-SC-6701-PK-2PTS	Details	PEEK	PTFE	12mm	18mm	4mm	232	133	10.5
CE-SC-63801-PK-2PTS	Details	PEEK	PTFE	12mm	21mm	7mm	480	260	25.2
CE-SC-6801-PK-2PTS	Details	PEEK	PTFE	12mm	21mm	5mm	480	260	25.2
CE-SC-6901-PK-2PTS	Details	PEEK	PTFE	12mm	24mm	6mm	722.5	365	23.1
CE-SC-6001-PK-2PTS	Details	PEEK	PTFE	12 mm	28mm	8mm	1275	600	22.4
CE-SC-6201-PK-2PTS	Details	PEEK	PTFE	12 mm	32mm	10mm	1700	762.5	18.9
CE-SC-6301-PK-2PTS	Details	PEEK	PTFE	12 mm	37mm	12mm	2425	1050	17.5
CE-SC-6702-PK-2PTS	Details	PEEK	PTFE	15mm	21mm	4mm	234.25	145.25	9.1
CE-SC-63802-PK-2PTS	Details	PEEK	PTFE	15mm	24mm	7mm	517.5	315	21.7
CE-SC-6802-PK-2PTS	Details	PEEK	PTFE	15mm	24mm	5mm	517.5	315	21.7
CE-SC-6902-PK-2PTS	Details	PEEK	PTFE	15mm	28mm	7mm	1082.5	562.5	20.3
CE-SC-6002-PK-2PTS	Details	PEEK	PTFE	15 mm	32mm	9mm	1400	712.5	18.9
CE-SC-6202-PK-2PTS	Details	PEEK	PTFE	15 mm	35mm	11mm	1912.5	937.5	16.8
CE-SC-6302-PK-2PTS	Details	PEEK	PTFE	15 mm	42mm	13mm	2850	1362.5	14
CE-SC-6703-PK-2PTS	Details	PEEK	PTFE	17mm	23mm	4mm	249.75	164.25	7.7
CE-SC-63803-PK-2PTS	Details	PEEK	PTFE	17mm	26mm	7mm	557.5	365	20.3
CE-SC-6803-PK-2PTS	Details	PEEK	PTFE	17mm	26mm	5mm	557.5	365	20.3
CE-SC-6903-PK-2PTS	Details	PEEK	PTFE	17mm	30mm	7mm	1147.5	640	18.2
CE-SC-6003-PK-2PTS	Details	PEEK	PTFE	17 mm	35mm	10mm	1500	812.5	17.5
CE-SC-6203-PK-2PTS	Details	PEEK	PTFE	17 mm	40mm	12mm	2387.5	1200	14.7
CE-SC-6303-PK-2PTS	Details	PEEK	PTFE	17 mm	47mm	14mm	3400	1662.5	12.6
CE-SC-6704-PK-2PTS	Details	PEEK	PTFE	20mm	27mm	4mm	252.5	180.5	7
CE-SC-63804-PK-2PTS	Details	PEEK	PTFE	20mm	32mm	10mm	1005	615	17.5
CE-SC-6804-PK-2PTS	Details	PEEK	PTFE	20mm	32mm	7mm	1005	615	17.5
CE-SC-6904-PK-2PTS	Details	PEEK	PTFE	20mm	37mm	9mm	1595	920	15.4
CE-SC-6004-PK-2PTS	Details	PEEK	PTFE	20 mm	42mm	12mm	2350	1262.5	14.7
CE-SC-6204-PK-2PTS	Details	PEEK	PTFE	20 mm	47mm	14mm	3200	1662.5	11.9
CE-SC-6304-PK-2PTS	Details	PEEK	PTFE	20 mm	52mm	15mm	3975	1962.5	11.9
CE-SC-6705-PK-2PTS	Details	PEEK	PTFE	25mm	32mm	4mm	275	209.5	5.6
CE-SC-63805-PK-2PTS	Details	PEEK	PTFE	25mm	37mm	10mm	1075	735	14.7
CE-SC-6805-PK-2PTS	Details	PEEK	PTFE	25mm	37mm	7mm	1075	735	14.7
CE-SC-6905-PK-2PTS	Details	PEEK	PTFE	25mm	42mm	9mm	1752.5	1137.5	13.3
CE-SC-6005-PK-2PTS	Details	PEEK	PTFE	25 mm	47mm	12mm	2525	1462.5	12.6
CE-SC-6205-PK-2PTS	Details	PEEK	PTFE	25 mm	52mm	15mm	3500	1962.5	10.5
CE-SC-6305-PK-2PTS	Details	PEEK	PTFE	25 mm	62mm	17mm	5150	2825	9.1
CE-SC-6706-PK-2PTS	Details	PEEK	PTFE	30mm	37mm	4mm	285	236.75	4.9
CE-SC-63806-PK-2PTS	Details	PEEK	PTFE	30mm	42mm	10mm	1134.5	850.5	12.6
CE-SC-6806-PK-2PTS	Details	PEEK	PTFE	30mm	42mm	7mm	1112.5	860	12.6
CE-SC-6906-PK-2PTS	Details	PEEK	PTFE	30mm	47mm	9mm	1810	1252.5	11.9
CE-SC-6006-PK-2PTS	Details	PEEK	PTFE	30 mm	55mm	13mm	3300	2062.5	10.5
CE-SC-6206-PK-2PTS	Details	PEEK	PTFE	30 mm	62mm	16mm	4875	2825	9.1
CE-SC-6306-PK-2PTS	Details	PEEK	PTFE	30 mm	72mm	19mm	6675	3750	8.4
CE-SC-6707-PK-2PTS	Details	PEEK	PTFE	35mm	44mm	5mm	465	407.5	4.2
CE-SC-6807-PK-2PTS	Details	PEEK	PTFE	35mm	47mm	7mm	1185	955	11.2
CE-SC-6907-PK-2PTS	Details	PEEK	PTFE	35mm	55mm	10mm	2725	1937.5	9.8
CE-SC-6007-PK-2PTS	Details	PEEK	PTFE	35 mm	62mm	14mm	3975	2575	9.1
CE-SC-6207-PK-2PTS	Details	PEEK	PTFE	35 mm	72mm	17mm	6425	3850	7.7
CE-SC-6307-PK-2PTS	Details	PEEK	PTFE	35 mm	80mm	21mm	8350	4825	7
CE-SC-6708-PK-2PTS	Details	PEEK	PTFE	40mm	50mm	6mm	627.5	557.5	3.5
CE-SC-6808-PK-2PTS	Details	PEEK	PTFE	40mm	52mm	7mm	1232.5	1045	9.8
CE-SC-6908-PK-2PTS	Details	PEEK	PTFE	40mm	62mm	12mm	3425	2480	9.1
CE-SC-6008-PK-2PTS	Details	PEEK	PTFE	40 mm	68mm	15mm	4175	2875	8.4
CE-SC-6208-PK-2PTS	Details	PEEK	PTFE	40 mm	80mm	18mm	7275	4450	7
CE-SC-6308-PK-2PTS	Details	PEEK	PTFE	40 mm	90mm	23mm	10175	6000	6.3
CE-SC-6709-PK-2PTS	Details	PEEK	PTFE	45mm	55mm	6mm	642.5	600	3.22
CE-SC-6809-PK-2PTS	Details	PEEK	PTFE	45mm	58mm	7mm	1552.5	1345	9.1
CE-SC-6909-PK-2PTS	Details	PEEK	PTFE	45mm	68mm	12mm	3525	2725	7.7
CE-SC-6009-PK-2PTS	Details	PEEK	PTFE	45 mm	75mm	16mm	5250	3775	5.6
CE-SC-6209-PK-2PTS	Details	PEEK	PTFE	45 mm	85mm	19mm	8175	5075	6.44
CE-SC-6309-PK-2PTS	Details	PEEK	PTFE	45 mm	100mm	25mm	13250	8000	5.6
CE-SC-6710-PK-2PTS	Details	PEEK	PTFE	50mm	62mm	6mm	667.5	662.5	2.87
CE-SC-6810-PK-2PTS	Details	PEEK	PTFE	50mm	65mm	7mm	1542.5	1440	7.7
CE-SC-6910-PK-2PTS	Details	PEEK	PTFE	50mm	72mm	12mm	3625	2925	7.7
CE-SC-6010-PK-2PTS	Details	PEEK	PTFE	50 mm	80mm	16mm	5450	4150	6.93
CE-SC-6210-PK-2PTS	Details	PEEK	PTFE	50 mm	90mm	20mm	8775	5825	5.25
CE-SC-6310-PK-2PTS	Details	PEEK	PTFE	50 mm	110mm	27mm	15500	9575	5.25
CE-SC-6811-PK-2PTS	Details	PEEK	PTFE	55mm	72mm	9mm	2200	2020	7
CE-SC-6911-PK-2PTS	Details	PEEK	PTFE	55mm	80mm	13mm	4150	3525	6.72
CE-SC-6011-PK-2PTS	Details	PEEK	PTFE	55 mm	90mm	18mm	7075	5300	6.3
CE-SC-6211-PK-2PTS	Details	PEEK	PTFE	55 mm	100mm	21mm	10850	7350	5.25
CE-SC-6311-PK-2PTS	Details	PEEK	PTFE	55 mm	120mm	29mm	17900	11250	4.69
CE-SC-6812-PK-2PTS	Details	PEEK	PTFE	60mm	78mm	10mm	2875	2650	6.58
CE-SC-6912-PK-2PTS	Details	PEEK	PTFE	60mm	85mm	13mm	5050	4325	6.23
CE-SC-6012-PK-2PTS	Details	PEEK	PTFE	60 mm	95mm	18mm	7350	5800	5.95
CE-SC-6212-PK-2PTS	Details	PEEK	PTFE	60 mm	110mm	22mm	13100	9050	4.97
CE-SC-6312-PK-2PTS	Details	PEEK	PTFE	60 mm	130mm	31mm	20475	13050	4.41
CE-SC-6813-PK-2PTS	Details	PEEK	PTFE	65mm	85mm	10mm	2975	2875	6.02
CE-SC-6913-PK-2PTS	Details	PEEK	PTFE	65mm	90mm	13mm	4325	4000	5.81
CE-SC-6013-PK-2PTS	Details	PEEK	PTFE	65 mm	100mm	18mm	7625	6300	5.6
CE-SC-6213-PK-2PTS	Details	PEEK	PTFE	65 mm	120mm	23mm	14300	10025	4.41
CE-SC-6313-PK-2PTS	Details	PEEK	PTFE	65 mm	140mm	33mm	23175	14975	4.2
CE-SC-6814-PK-2PTS	Details	PEEK	PTFE	70mm	90mm	10mm	2900	2950	5.67
CE-SC-6914-PK-2PTS	Details	PEEK	PTFE	70mm	100mm	16mm	5925	5275	5.32
CE-SC-6014-PK-2PTS	Details	PEEK	PTFE	70 mm	110mm	20mm	9525	7725	4.97
CE-SC-6214-PK-2PTS	Details	PEEK	PTFE	70 mm	125mm	24mm	15550	11025	4.41
CE-SC-6314-PK-2PTS	Details	PEEK	PTFE	70 mm	150mm	35mm	26000	17050	3.71
CE-SC-6815-PK-2PTS	Details	PEEK	PTFE	75mm	95mm	10mm	3075	3200	5.32
CE-SC-6915-PK-2PTS	Details	PEEK	PTFE	75mm	105mm	16mm	6000	5650	4.97
CE-SC-6015-PK-2PTS	Details	PEEK	PTFE	75 mm	115mm	20mm	9900	8375	4.69
CE-SC-6215-PK-2PTS	Details	PEEK	PTFE	75 mm	130mm	25mm	16850	12075	3.92
CE-SC-6315-PK-2PTS	Details	PEEK	PTFE	75 mm	160mm	37mm	28250	19300	3.5
CE-SC-6816-PK-2PTS	Details	PEEK	PTFE	80mm	100mm	10mm	3150	3325	4.97
CE-SC-6916-PK-2PTS	Details	PEEK	PTFE	80mm	110mm	16mm	6200	5975	4.69
CE-SC-6016-PK-2PTS	Details	PEEK	PTFE	80 mm	125mm	22mm	11900	9950	4.41
CE-SC-6216-PK-2PTS	Details	PEEK	PTFE	80 mm	140mm	26mm	18175	13250	3.71
CE-SC-6316-PK-2PTS	Details	PEEK	PTFE	80 mm	170mm	39mm	30750	21675	3.36
CE-SC-6817-PK-2PTS	Details	PEEK	PTFE	85mm	110mm	13mm	4675	4750	4.62
CE-SC-6917-PK-2PTS	Details	PEEK	PTFE	85mm	120mm	18mm	7975	7400	4.34
CE-SC-6017-PK-2PTS	Details	PEEK	PTFE	85 mm	130mm	22mm	12375	10775	4.2
CE-SC-6217-PK-2PTS	Details	PEEK	PTFE	85 mm	150mm	28mm	21000	15475	3.5
CE-SC-6317-PK-2PTS	Details	PEEK	PTFE	85 mm	180mm	41mm	33250	24200	3.15
CE-SC-6818-PK-2PTS	Details	PEEK	PTFE	90mm	115mm	13mm	4575	4875	4.34
CE-SC-6918-PK-2PTS	Details	PEEK	PTFE	90mm	125mm	18mm	8200	7900	4.2
CE-SC-6018-PK-2PTS	Details	PEEK	PTFE	90 mm	140mm	24mm	14550	12425	3.92
CE-SC-6218-PK-2PTS	Details	PEEK	PTFE	90 mm	160mm	30mm	24025	17875	3.36
CE-SC-6318-PK-2PTS	Details	PEEK	PTFE	90 mm	190mm	43mm	35750	26750	3.01
CE-SC-6819-PK-2PTS	Details	PEEK	PTFE	95mm	120mm	13mm	4700	5075	4.13
CE-SC-6019-PK-2PTS	Details	PEEK	PTFE	95 mm	145mm	24mm	15100	13475	3.71
CE-SC-6219-PK-2PTS	Details	PEEK	PTFE	95 mm	170mm	32mm	27250	20475	3.15
CE-SC-6319-PK-2PTS	Details	PEEK	PTFE	95 mm	200mm	45mm	38250	29750	3.71
CE-SC-6020-PK-2PTS	Details	PEEK	PTFE	100 mm	150mm	24mm	15050	13550	3.71
CE-SC-6220-PK-2PTS	Details	PEEK	PTFE	100 mm	180mm	34mm	30500	23275	3.01
CE-SC-6320-PK-2PTS	Details	PEEK	PTFE	100 mm	215mm	47mm	43250	35250	2.38
CE-SC-6021-PK-2PTS	Details	PEEK	PTFE	105 mm	160mm	26mm	18075	16450	3.36
CE-SC-6221-PK-2PTS	Details	PEEK	PTFE	105 mm	190mm	36mm	33250	26250	2.8
CE-SC-6321-PK-2PTS	Details	PEEK	PTFE	105 mm	225mm	49mm	46000	38250	2.24

BEARING LIST & BEARING DETAILS

PEEK Cage, PEEK SEALED type
Silicon Carbide SiC Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm

Ceramic Bearing	Details	Cage	Cage	Bearing Dimension			Dynamic	Static	Max
SiC		Cage	Cage	Bore Dia	Outer Dia	Width	radial	radial	Speed
CLI Bearing No.		Type	Type	(d)	(D)	(B)	(Newtons)	(Newtons)	(X1000 RPM)
CE-SC-R133-PK-2PKS	Details	PEEK	PEEK	0.0938" \| 2.381 mm	0.1875" \| 4.763 mm	0.0937" \| 2.38 mm	31.145	11.1225	66.5
CE-SC-R1-5-PK-2PKS	Details	PEEK	PEEK	0.0938" \| 2.381 mm	0.3125" \| 7.938 mm	0.1406" \| 3.571 mm	117.905	35.5925	49.7
CE-SC-R144-PK-2PKS	Details	PEEK	PEEK	0.125" \| 3.175 mm	0.25" \| 6.35 mm	0.1094" \| 2.779 mm	60.065	18.91	56
CE-SC-R2-5-PK-2PKS	Details	PEEK	PEEK	0.125" \| 3.175 mm	0.3125" \| 7.938 mm	0.1406" \| 3.571 mm	119.015	35.5925	46.9
CE-SC-R2-6-PK-2PKS	Details	PEEK	PEEK	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1406" \| 3.571 mm	135.7	45.605	44.1
CE-SC-R2-PK-2PKS	Details	PEEK	PEEK	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1562" \| 3.967 mm	134.5875	43.38	46.9
CE-SC-R2A-PK-2PKS	Details	PEEK	PEEK	0.125" \| 3.175 mm	0.5" \| 12.7 mm	0.1719" \| 4.366 mm	135.7	45.605	44.1
CE-SC-R155-PK-2PKS	Details	PEEK	PEEK	0.1563" \| 3.969 mm	0.3125" \| 7.938 mm	0.125" \| 3.175 mm	76.7475	30.0325	44.1
CE-SC-R156-PK-2PKS	Details	PEEK	PEEK	0.1875" \| 4.763 mm	0.3125" \| 7.938 mm	0.125" \| 3.175 mm	76.7475	30.0325	44.1
CE-SC-R166-PK-2PKS	Details	PEEK	PEEK	0.1875" \| 4.763 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	151.2725	54.5025	42
CE-SC-R3-PK-2PKS	Details	PEEK	PEEK	0.1875" \| 4.763 mm	0.5" \| 12.7 mm	0.196" \| 4.978 mm	276.9625	97.8825	37.1
CE-SC-R3A-PK-2PKS	Details	PEEK	PEEK	0.1875" \| 4.763 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1601-PK-2PKS	Details	PEEK	PEEK	0.1875" \| 4.763 mm	0.6875" \| 17.463 mm	0.3125" \| 7.938 mm	150	55	4.2
CE-SC-R168-PK-2PKS	Details	PEEK	PEEK	0.25" \| 6.35 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm	78.9725	34.4825	39.2
CE-SC-R188-PK-2PKS	Details	PEEK	PEEK	0.25" \| 6.35 mm	0.5" \| 12.7 mm	0.1875" \| 4.763 mm	230.245	88.985	35
CE-SC-R4-PK-2PKS	Details	PEEK	PEEK	0.25" \| 6.35 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm	314.78	124.5775	31.5
CE-SC-1602-PK-2PKS	Details	PEEK	PEEK	0.25" \| 6.35 mm	0.6875" \| 17.463 mm	0.3125" \| 7.938 mm	158.75	60	4.2
CE-SC-R4A-PK-2PKS	Details	PEEK	PEEK	0.25" \| 6.35 mm	0.75" \| 19.05 mm	0.2812" \| 7.142 mm	496.085	179.08	30.1
CE-SC-R1810-PK-2PKS	Details	PEEK	PEEK	0.3125" \| 7.938 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm	115.68	55.615	33.6
CE-SC-1603-PK-2PKS	Details	PEEK	PEEK	0.3125" \| 7.938 mm	0.875" \| 22.225 mm	0.3438" \| 8.733 mm	186.25	77.5	4.2
CE-SC-1605-PK-2PKS	Details	PEEK	PEEK	0.3125" \| 7.938 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	186.25	78.75	4.2
CE-SC-1604-PK-2PKS	Details	PEEK	PEEK	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.3438" \| 8.733 mm	187.5	80	4.2
CE-SC-R6-PK-2PKS	Details	PEEK	PEEK	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm	708.535	284.75	26.6
CE-SC-1606-PK-2PKS	Details	PEEK	PEEK	0.375" \| 9.525 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	187.5	80	4.2
CE-SC-1614-PK-2PKS	Details	PEEK	PEEK	0.375" \| 9.525 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	285	130	4.2
CE-SC-1607-PK-2PKS	Details	PEEK	PEEK	0.4375" \| 11.113 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm	253.75	107.5	4.2
CE-SC-1615-PK-2PKS	Details	PEEK	PEEK	0.4375" \| 11.113 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	286.25	132.5	4.2
CE-SC-1620-PK-2PKS	Details	PEEK	PEEK	0.4375" \| 11.113 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	422.5	200	4.2
CE-SC-1616-PK-2PKS	Details	PEEK	PEEK	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm	287.5	112.5	4.2
CE-SC-R8-PK-2PKS	Details	PEEK	PEEK	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.3125" \| 7.938 mm	287.25	127.75	22.4
CE-SC-1621-PK-2PKS	Details	PEEK	PEEK	0.5" \| 12.7 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	425	203.75	4.2
CE-SC-1622-PK-2PKS	Details	PEEK	PEEK	0.5625" \| 14.288 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	427.5	206.25	4.2
CE-SC-1623-PK-2PKS	Details	PEEK	PEEK	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm	430	208.75	4.2
CE-SC-R10-PK-2PKS	Details	PEEK	PEEK	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.3438" \| 8.733 mm	396.25	183.75	17.5
CE-SC-1628-PK-2PKS	Details	PEEK	PEEK	0.625" \| 15.875 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	525	273.75	4.2
CE-SC-1633-PK-2PKS	Details	PEEK	PEEK	0.625" \| 15.875 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	525	280	4.2
CE-SC-1630-PK-2PKS	Details	PEEK	PEEK	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm	527.5	278.75	4.2
CE-SC-R12-PK-2PKS	Details	PEEK	PEEK	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.4375" \| 11.113 mm	619.25	294.25	14.7
CE-SC-1635-PK-2PKS	Details	PEEK	PEEK	0.75" \| 19.05 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm	528.75	285	4.2
CE-SC-1638-PK-2PKS	Details	PEEK	PEEK	0.75" \| 19.05 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	567.5	322.5	4.2
CE-SC-R14-PK-2PKS	Details	PEEK	PEEK	0.875" \| 22.225 mm	1.875" \| 47.625 mm	0.5" \| 12.7 mm	664.5	326.75	8.4
CE-SC-1640-PK-2PKS	Details	PEEK	PEEK	0.875" \| 22.225 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	566.25	328.75	4.2
CE-SC-1641-PK-2PKS	Details	PEEK	PEEK	1" \| 25.4 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm	565	336.25	4.2
CE-SC-R16-PK-2PKS	Details	PEEK	PEEK	1" \| 25.4 mm	2" \| 50.8 mm	0.5" \| 12.7 mm	663	326.75	7.7
CE-SC-R18-PK-2PKS	Details	PEEK	PEEK	1.125" \| 28.575 mm	2.125" \| 53.975 mm	0.5" \| 12.7 mm	873	454.25	7
CE-SC-1652-PK-2PKS	Details	PEEK	PEEK	1.125" \| 28.575 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900.75	570	4.2
CE-SC-R20-PK-2PKS	Details	PEEK	PEEK	1.25" \| 31.75 mm	2.25" \| 57.15 mm	0.5" \| 12.7 mm	923.75	496.5	6.3
CE-SC-1654-PK-2PKS	Details	PEEK	PEEK	1.25" \| 31.75 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm	900	575	4.2
CE-SC-1657-PK-2PKS	Details	PEEK	PEEK	1.25" \| 31.75 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1100	625	4.2
CE-SC-1658-PK-2PKS	Details	PEEK	PEEK	1.3125" \| 33.338 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm	1092.5	650	4.2
CE-SC-R22-PK-2PKS	Details	PEEK	PEEK	1.375" \| 34.925 mm	2.5" \| 63.5 mm	0.5625" \| 14.288 mm	1016.75	561.75	5.6
CE-SC-R24-PK-2PKS	Details	PEEK	PEEK	1.5" \| 38.1 mm	2.625" \| 66.675 mm	0.5625" \| 14.288 mm	1106.5	611.5	4.2
CE-SC-682-PK-2PKS	Details	PEEK	PEEK	2mm	5mm	2.3mm	36	10	70
CE-SC-MR52-PK-2PKS	Details	PEEK	PEEK	2 mm	5mm	2.5mm	36	10	70
CE-SC-692-PK-2PKS	Details	PEEK	PEEK	2mm	6mm	3mm	70.25	19.75	63
CE-SC-MR62-PK-2PKS	Details	PEEK	PEEK	2mm	6mm	2.5mm	70.25	19.75	63
CE-SC-602-PK-2PKS	Details	PEEK	PEEK	2 mm	7mm	3.5mm	82	25.75	49.7
CE-SC-MR72-PK-2PKS	Details	PEEK	PEEK	2 mm	7mm	3mm	82	25.75	52.5
CE-SC-682x-PK-2PKS	Details	PEEK	PEEK	2.5mm	6mm	2.6mm	44.5	14.75	56
CE-SC-692x-PK-2PKS	Details	PEEK	PEEK	2.5mm	7mm	3.5mm	82	25.75	52.5
CE-SC-602x-PK-2PKS	Details	PEEK	PEEK	2.5mm	8mm	4mm	117.25	35.5	49.7
CE-SC-MR82x-PK-2PKS	Details	PEEK	PEEK	2.5mm	8mm	2.5mm	118.5	36	46.9
CE-SC-MR63-PK-2PKS	Details	PEEK	PEEK	3mm	6mm	2.5mm	44.5	14.75	56
CE-SC-683-PK-2PKS	Details	PEEK	PEEK	3mm	7mm	3mm	66	22.5	52.5
CE-SC-693-PK-2PKS	Details	PEEK	PEEK	3mm	8mm	4mm	118.5	36	46.9
CE-SC-MR83-PK-2PKS	Details	PEEK	PEEK	3 mm	8mm	3mm	84	28.25	46.9
CE-SC-603-PK-2PKS	Details	PEEK	PEEK	3mm	9mm	5mm	57.5	37.75	46.9
CE-SC-MR93-PK-2PKS	Details	PEEK	PEEK	3mm	9mm	4mm	121.25	37.75	46.9
CE-SC-623-PK-2PKS	Details	PEEK	PEEK	3 mm	10mm	4mm	134	43.75	42
CE-SC-633-PK-2PKS	Details	PEEK	PEEK	3 mm	13mm	5mm	276.5	97.5	33.6
CE-SC-MR74-PK-2PKS	Details	PEEK	PEEK	4mm	7mm	2.5mm	54.25	21.5	46.9
CE-SC-MR84-PK-2PKS	Details	PEEK	PEEK	4 mm	8mm	3mm	84	28.25	46.9
CE-SC-684-PK-2PKS	Details	PEEK	PEEK	4mm	9mm	4mm	136.25	45.5	44.1
CE-SC-MR104-PK-2PKS	Details	PEEK	PEEK	4 mm	10mm	4mm	151	54.5	39.2
CE-SC-694-PK-2PKS	Details	PEEK	PEEK	4mm	11mm	4mm	203.5	70	39.2
CE-SC-604-PK-2PKS	Details	PEEK	PEEK	4mm	12mm	4mm	203.5	70	39.2
CE-SC-624-PK-2PKS	Details	PEEK	PEEK	4 mm	13mm	5mm	276.5	97.5	33.6
CE-SC-634-PK-2PKS	Details	PEEK	PEEK	4 mm	16mm	5mm	284.75	104.5	30.1
CE-SC-MR85-PK-2PKS	Details	PEEK	PEEK	5mm	8mm	2.5mm	46.25	18	44.1
CE-SC-MR95-PK-2PKS	Details	PEEK	PEEK	5mm	9mm	3mm	91.5	33.75	42
CE-SC-MR105-PK-2PKS	Details	PEEK	PEEK	5mm	10mm	4mm	91.5	33.75	42
CE-SC-685-PK-2PKS	Details	PEEK	PEEK	5mm	11mm	5mm	152.25	56.5	37.1
CE-SC-MR115-PK-2PKS	Details	PEEK	PEEK	5mm	11mm	4mm	152.25	56.5	44.1
CE-SC-695-PK-2PKS	Details	PEEK	PEEK	5mm	13mm	4mm	229	86.5	35
CE-SC-605-PK-2PKS	Details	PEEK	PEEK	5mm	14mm	5mm	282.5	101.5	35
CE-SC-625-PK-2PKS	Details	PEEK	PEEK	5 mm	16mm	5mm	367.5	135	30.1
CE-SC-635-PK-2PKS	Details	PEEK	PEEK	5 mm	19mm	6mm	496.5	179.25	28
CE-SC-MR106-PK-2PKS	Details	PEEK	PEEK	6mm	10mm	3mm	105.5	43.5	37.1
CE-SC-MR126-PK-2PKS	Details	PEEK	PEEK	6mm	12mm	4mm	152.25	59	35
CE-SC-686-PK-2PKS	Details	PEEK	PEEK	6mm	13mm	5mm	230	88.5	35
CE-SC-696-PK-2PKS	Details	PEEK	PEEK	6mm	15mm	5mm	284.75	104.5	31.5
CE-SC-606-PK-2PKS	Details	PEEK	PEEK	6 mm	17mm	6mm	481	169.25	31.5
CE-SC-626-PK-2PKS	Details	PEEK	PEEK	6mm	19mm	6mm	496.5	179.25	28
CE-SC-636-PK-2PKS	Details	PEEK	PEEK	6mm	22mm	7mm	708.25	284.5	25.2
CE-SC-MR117-PK-2PKS	Details	PEEK	PEEK	7 mm	11mm	3mm	96.75	40.5	35
CE-SC-MR137-PK-2PKS	Details	PEEK	PEEK	7mm	13mm	4mm	115	55.25	33.6
CE-SC-687-PK-2PKS	Details	PEEK	PEEK	7 mm	14mm	5mm	249.25	102.5	35
CE-SC-697-PK-2PKS	Details	PEEK	PEEK	7mm	17mm	5mm	341	143.75	30.1
CE-SC-607-PK-2PKS	Details	PEEK	PEEK	7 mm	19mm	6mm	496.5	179.25	30.1
CE-SC-627-PK-2PKS	Details	PEEK	PEEK	7 mm	22mm	7mm	698.5	275.75	25.2
CE-SC-637-PK-2PKS	Details	PEEK	PEEK	7 mm	26mm	9mm	969.75	396.5	23.8
CE-SC-MR128-PK-2PKS	Details	PEEK	PEEK	8mm	12mm	3.5mm	115.5	54.75	33.6
CE-SC-MR148-PK-2PKS	Details	PEEK	PEEK	8mm	14mm	4mm	173.75	77.25	31.5
CE-SC-688-PK-2PKS	Details	PEEK	PEEK	8 mm	16mm	5mm	266	118.5	30.1
CE-SC-698-PK-2PKS	Details	PEEK	PEEK	8mm	19mm	6mm	475.5	183.5	30.1
CE-SC-608-PK-2PKS	Details	PEEK	PEEK	8 mm	22mm	7mm	699.75	275.75	28
CE-SC-628-PK-2PKS	Details	PEEK	PEEK	8mm	24mm	8mm	708.25	284.5	23.8
CE-SC-638-PK-2PKS	Details	PEEK	PEEK	8mm	28mm	9mm	969.75	396.5	23.8
CE-SC-679-PK-2PKS	Details	PEEK	PEEK	9mm	14mm	4.5mm	195.25	93.5	29.4
CE-SC-689-PK-2PKS	Details	PEEK	PEEK	9mm	17mm	5mm	282	133.5	30.1
CE-SC-699-PK-2PKS	Details	PEEK	PEEK	9mm	20mm	6mm	524.25	216.25	28
CE-SC-609-PK-2PKS	Details	PEEK	PEEK	9mm	24mm	7mm	713.25	288.75	26.6
CE-SC-629-PK-2PKS	Details	PEEK	PEEK	9 mm	26mm	8mm	969.75	396.5	23.8
CE-SC-639-PK-2PKS	Details	PEEK	PEEK	9mm	30mm	10mm	990	416	21
CE-SC-6700-PK-2PKS	Details	PEEK	PEEK	10mm	15mm	4mm	214.25	108.75	11.9
CE-SC-63800-PK-2PKS	Details	PEEK	PEEK	10mm	19mm	7mm	430	210	28
CE-SC-6800-PK-2PKS	Details	PEEK	PEEK	10mm	19mm	5mm	430	210	28
CE-SC-6900-PK-2PKS	Details	PEEK	PEEK	10mm	22mm	6mm	675	317.5	25.9
CE-SC-6000-PK-2PKS	Details	PEEK	PEEK	10 mm	26mm	8mm	1137.5	487.5	25.2
CE-SC-6200-PK-2PKS	Details	PEEK	PEEK	10 mm	30mm	9mm	1275	600	20.3
CE-SC-6300-PK-2PKS	Details	PEEK	PEEK	10 mm	35mm	11mm	2025	862.5	18.9
CE-SC-6701-PK-2PKS	Details	PEEK	PEEK	12mm	18mm	4mm	232	133	10.5
CE-SC-63801-PK-2PKS	Details	PEEK	PEEK	12mm	21mm	7mm	480	260	25.2
CE-SC-6801-PK-2PKS	Details	PEEK	PEEK	12mm	21mm	5mm	480	260	25.2
CE-SC-6901-PK-2PKS	Details	PEEK	PEEK	12mm	24mm	6mm	722.5	365	23.1
CE-SC-6001-PK-2PKS	Details	PEEK	PEEK	12 mm	28mm	8mm	1275	600	22.4
CE-SC-6201-PK-2PKS	Details	PEEK	PEEK	12 mm	32mm	10mm	1700	762.5	18.9
CE-SC-6301-PK-2PKS	Details	PEEK	PEEK	12 mm	37mm	12mm	2425	1050	17.5
CE-SC-6702-PK-2PKS	Details	PEEK	PEEK	15mm	21mm	4mm	234.25	145.25	9.1
CE-SC-63802-PK-2PKS	Details	PEEK	PEEK	15mm	24mm	7mm	517.5	315	21.7
CE-SC-6802-PK-2PKS	Details	PEEK	PEEK	15mm	24mm	5mm	517.5	315	21.7
CE-SC-6902-PK-2PKS	Details	PEEK	PEEK	15mm	28mm	7mm	1082.5	562.5	20.3
CE-SC-6002-PK-2PKS	Details	PEEK	PEEK	15 mm	32mm	9mm	1400	712.5	18.9
CE-SC-6202-PK-2PKS	Details	PEEK	PEEK	15 mm	35mm	11mm	1912.5	937.5	16.8
CE-SC-6302-PK-2PKS	Details	PEEK	PEEK	15 mm	42mm	13mm	2850	1362.5	14
CE-SC-6703-PK-2PKS	Details	PEEK	PEEK	17mm	23mm	4mm	249.75	164.25	7.7
CE-SC-63803-PK-2PKS	Details	PEEK	PEEK	17mm	26mm	7mm	557.5	365	20.3
CE-SC-6803-PK-2PKS	Details	PEEK	PEEK	17mm	26mm	5mm	557.5	365	20.3
CE-SC-6903-PK-2PKS	Details	PEEK	PEEK	17mm	30mm	7mm	1147.5	640	18.2
CE-SC-6003-PK-2PKS	Details	PEEK	PEEK	17 mm	35mm	10mm	1500	812.5	17.5
CE-SC-6203-PK-2PKS	Details	PEEK	PEEK	17 mm	40mm	12mm	2387.5	1200	14.7
CE-SC-6303-PK-2PKS	Details	PEEK	PEEK	17 mm	47mm	14mm	3400	1662.5	12.6
CE-SC-6704-PK-2PKS	Details	PEEK	PEEK	20mm	27mm	4mm	252.5	180.5	7
CE-SC-63804-PK-2PKS	Details	PEEK	PEEK	20mm	32mm	10mm	1005	615	17.5
CE-SC-6804-PK-2PKS	Details	PEEK	PEEK	20mm	32mm	7mm	1005	615	17.5
CE-SC-6904-PK-2PKS	Details	PEEK	PEEK	20mm	37mm	9mm	1595	920	15.4
CE-SC-6004-PK-2PKS	Details	PEEK	PEEK	20 mm	42mm	12mm	2350	1262.5	14.7
CE-SC-6204-PK-2PKS	Details	PEEK	PEEK	20 mm	47mm	14mm	3200	1662.5	11.9
CE-SC-6304-PK-2PKS	Details	PEEK	PEEK	20 mm	52mm	15mm	3975	1962.5	11.9
CE-SC-6705-PK-2PKS	Details	PEEK	PEEK	25mm	32mm	4mm	275	209.5	5.6
CE-SC-63805-PK-2PKS	Details	PEEK	PEEK	25mm	37mm	10mm	1075	735	14.7
CE-SC-6805-PK-2PKS	Details	PEEK	PEEK	25mm	37mm	7mm	1075	735	14.7
CE-SC-6905-PK-2PKS	Details	PEEK	PEEK	25mm	42mm	9mm	1752.5	1137.5	13.3
CE-SC-6005-PK-2PKS	Details	PEEK	PEEK	25 mm	47mm	12mm	2525	1462.5	12.6
CE-SC-6205-PK-2PKS	Details	PEEK	PEEK	25 mm	52mm	15mm	3500	1962.5	10.5
CE-SC-6305-PK-2PKS	Details	PEEK	PEEK	25 mm	62mm	17mm	5150	2825	9.1
CE-SC-6706-PK-2PKS	Details	PEEK	PEEK	30mm	37mm	4mm	285	236.75	4.9
CE-SC-63806-PK-2PKS	Details	PEEK	PEEK	30mm	42mm	10mm	1134.5	850.5	12.6
CE-SC-6806-PK-2PKS	Details	PEEK	PEEK	30mm	42mm	7mm	1112.5	860	12.6
CE-SC-6906-PK-2PKS	Details	PEEK	PEEK	30mm	47mm	9mm	1810	1252.5	11.9
CE-SC-6006-PK-2PKS	Details	PEEK	PEEK	30 mm	55mm	13mm	3300	2062.5	10.5
CE-SC-6206-PK-2PKS	Details	PEEK	PEEK	30 mm	62mm	16mm	4875	2825	9.1
CE-SC-6306-PK-2PKS	Details	PEEK	PEEK	30 mm	72mm	19mm	6675	3750	8.4
CE-SC-6707-PK-2PKS	Details	PEEK	PEEK	35mm	44mm	5mm	465	407.5	4.2
CE-SC-6807-PK-2PKS	Details	PEEK	PEEK	35mm	47mm	7mm	1185	955	11.2
CE-SC-6907-PK-2PKS	Details	PEEK	PEEK	35mm	55mm	10mm	2725	1937.5	9.8
CE-SC-6007-PK-2PKS	Details	PEEK	PEEK	35 mm	62mm	14mm	3975	2575	9.1
CE-SC-6207-PK-2PKS	Details	PEEK	PEEK	35 mm	72mm	17mm	6425	3850	7.7
CE-SC-6307-PK-2PKS	Details	PEEK	PEEK	35 mm	80mm	21mm	8350	4825	7
CE-SC-6708-PK-2PKS	Details	PEEK	PEEK	40mm	50mm	6mm	627.5	557.5	3.5
CE-SC-6808-PK-2PKS	Details	PEEK	PEEK	40mm	52mm	7mm	1232.5	1045	9.8
CE-SC-6908-PK-2PKS	Details	PEEK	PEEK	40mm	62mm	12mm	3425	2480	9.1
CE-SC-6008-PK-2PKS	Details	PEEK	PEEK	40 mm	68mm	15mm	4175	2875	8.4
CE-SC-6208-PK-2PKS	Details	PEEK	PEEK	40 mm	80mm	18mm	7275	4450	7
CE-SC-6308-PK-2PKS	Details	PEEK	PEEK	40 mm	90mm	23mm	10175	6000	6.3
CE-SC-6709-PK-2PKS	Details	PEEK	PEEK	45mm	55mm	6mm	642.5	600	3.22
CE-SC-6809-PK-2PKS	Details	PEEK	PEEK	45mm	58mm	7mm	1552.5	1345	9.1
CE-SC-6909-PK-2PKS	Details	PEEK	PEEK	45mm	68mm	12mm	3525	2725	7.7
CE-SC-6009-PK-2PKS	Details	PEEK	PEEK	45 mm	75mm	16mm	5250	3775	5.6
CE-SC-6209-PK-2PKS	Details	PEEK	PEEK	45 mm	85mm	19mm	8175	5075	6.44
CE-SC-6309-PK-2PKS	Details	PEEK	PEEK	45 mm	100mm	25mm	13250	8000	5.6
CE-SC-6710-PK-2PKS	Details	PEEK	PEEK	50mm	62mm	6mm	667.5	662.5	2.87
CE-SC-6810-PK-2PKS	Details	PEEK	PEEK	50mm	65mm	7mm	1542.5	1440	7.7
CE-SC-6910-PK-2PKS	Details	PEEK	PEEK	50mm	72mm	12mm	3625	2925	7.7
CE-SC-6010-PK-2PKS	Details	PEEK	PEEK	50 mm	80mm	16mm	5450	4150	6.93
CE-SC-6210-PK-2PKS	Details	PEEK	PEEK	50 mm	90mm	20mm	8775	5825	5.25
CE-SC-6310-PK-2PKS	Details	PEEK	PEEK	50 mm	110mm	27mm	15500	9575	5.25
CE-SC-6811-PK-2PKS	Details	PEEK	PEEK	55mm	72mm	9mm	2200	2020	7
CE-SC-6911-PK-2PKS	Details	PEEK	PEEK	55mm	80mm	13mm	4150	3525	6.72
CE-SC-6011-PK-2PKS	Details	PEEK	PEEK	55 mm	90mm	18mm	7075	5300	6.3
CE-SC-6211-PK-2PKS	Details	PEEK	PEEK	55 mm	100mm	21mm	10850	7350	5.25
CE-SC-6311-PK-2PKS	Details	PEEK	PEEK	55 mm	120mm	29mm	17900	11250	4.69
CE-SC-6812-PK-2PKS	Details	PEEK	PEEK	60mm	78mm	10mm	2875	2650	6.58
CE-SC-6912-PK-2PKS	Details	PEEK	PEEK	60mm	85mm	13mm	5050	4325	6.23
CE-SC-6012-PK-2PKS	Details	PEEK	PEEK	60 mm	95mm	18mm	7350	5800	5.95
CE-SC-6212-PK-2PKS	Details	PEEK	PEEK	60 mm	110mm	22mm	13100	9050	4.97
CE-SC-6312-PK-2PKS	Details	PEEK	PEEK	60 mm	130mm	31mm	20475	13050	4.41
CE-SC-6813-PK-2PKS	Details	PEEK	PEEK	65mm	85mm	10mm	2975	2875	6.02
CE-SC-6913-PK-2PKS	Details	PEEK	PEEK	65mm	90mm	13mm	4325	4000	5.81
CE-SC-6013-PK-2PKS	Details	PEEK	PEEK	65 mm	100mm	18mm	7625	6300	5.6
CE-SC-6213-PK-2PKS	Details	PEEK	PEEK	65 mm	120mm	23mm	14300	10025	4.41
CE-SC-6313-PK-2PKS	Details	PEEK	PEEK	65 mm	140mm	33mm	23175	14975	4.2
CE-SC-6814-PK-2PKS	Details	PEEK	PEEK	70mm	90mm	10mm	2900	2950	5.67
CE-SC-6914-PK-2PKS	Details	PEEK	PEEK	70mm	100mm	16mm	5925	5275	5.32
CE-SC-6014-PK-2PKS	Details	PEEK	PEEK	70 mm	110mm	20mm	9525	7725	4.97
CE-SC-6214-PK-2PKS	Details	PEEK	PEEK	70 mm	125mm	24mm	15550	11025	4.41
CE-SC-6314-PK-2PKS	Details	PEEK	PEEK	70 mm	150mm	35mm	26000	17050	3.71
CE-SC-6815-PK-2PKS	Details	PEEK	PEEK	75mm	95mm	10mm	3075	3200	5.32
CE-SC-6915-PK-2PKS	Details	PEEK	PEEK	75mm	105mm	16mm	6000	5650	4.97
CE-SC-6015-PK-2PKS	Details	PEEK	PEEK	75 mm	115mm	20mm	9900	8375	4.69
CE-SC-6215-PK-2PKS	Details	PEEK	PEEK	75 mm	130mm	25mm	16850	12075	3.92
CE-SC-6315-PK-2PKS	Details	PEEK	PEEK	75 mm	160mm	37mm	28250	19300	3.5
CE-SC-6816-PK-2PKS	Details	PEEK	PEEK	80mm	100mm	10mm	3150	3325	4.97
CE-SC-6916-PK-2PKS	Details	PEEK	PEEK	80mm	110mm	16mm	6200	5975	4.69
CE-SC-6016-PK-2PKS	Details	PEEK	PEEK	80 mm	125mm	22mm	11900	9950	4.41
CE-SC-6216-PK-2PKS	Details	PEEK	PEEK	80 mm	140mm	26mm	18175	13250	3.71
CE-SC-6316-PK-2PKS	Details	PEEK	PEEK	80 mm	170mm	39mm	30750	21675	3.36
CE-SC-6817-PK-2PKS	Details	PEEK	PEEK	85mm	110mm	13mm	4675	4750	4.62
CE-SC-6917-PK-2PKS	Details	PEEK	PEEK	85mm	120mm	18mm	7975	7400	4.34
CE-SC-6017-PK-2PKS	Details	PEEK	PEEK	85 mm	130mm	22mm	12375	10775	4.2
CE-SC-6217-PK-2PKS	Details	PEEK	PEEK	85 mm	150mm	28mm	21000	15475	3.5
CE-SC-6317-PK-2PKS	Details	PEEK	PEEK	85 mm	180mm	41mm	33250	24200	3.15
CE-SC-6818-PK-2PKS	Details	PEEK	PEEK	90mm	115mm	13mm	4575	4875	4.34
CE-SC-6918-PK-2PKS	Details	PEEK	PEEK	90mm	125mm	18mm	8200	7900	4.2
CE-SC-6018-PK-2PKS	Details	PEEK	PEEK	90 mm	140mm	24mm	14550	12425	3.92
CE-SC-6218-PK-2PKS	Details	PEEK	PEEK	90 mm	160mm	30mm	24025	17875	3.36
CE-SC-6318-PK-2PKS	Details	PEEK	PEEK	90 mm	190mm	43mm	35750	26750	3.01
CE-SC-6819-PK-2PKS	Details	PEEK	PEEK	95mm	120mm	13mm	4700	5075	4.13
CE-SC-6019-PK-2PKS	Details	PEEK	PEEK	95 mm	145mm	24mm	15100	13475	3.71
CE-SC-6219-PK-2PKS	Details	PEEK	PEEK	95 mm	170mm	32mm	27250	20475	3.15
CE-SC-6319-PK-2PKS	Details	PEEK	PEEK	95 mm	200mm	45mm	38250	29750	3.71
CE-SC-6020-PK-2PKS	Details	PEEK	PEEK	100 mm	150mm	24mm	15050	13550	3.71
CE-SC-6220-PK-2PKS	Details	PEEK	PEEK	100 mm	180mm	34mm	30500	23275	3.01
CE-SC-6320-PK-2PKS	Details	PEEK	PEEK	100 mm	215mm	47mm	43250	35250	2.38
CE-SC-6021-PK-2PKS	Details	PEEK	PEEK	105 mm	160mm	26mm	18075	16450	3.36
CE-SC-6221-PK-2PKS	Details	PEEK	PEEK	105 mm	190mm	36mm	33250	26250	2.8
CE-SC-6321-PK-2PKS	Details	PEEK	PEEK	105 mm	225mm	49mm	46000	38250	2.24

Ceramic Bearings & Plastic Bearings-SiC Silicon Carbide Ceramic Bearings-Silicon Carbide SiC Ceramic Ball Bearings, PEEK cage, OPEN type or closured with PTFE / PEEK covers, ROHS compliant
