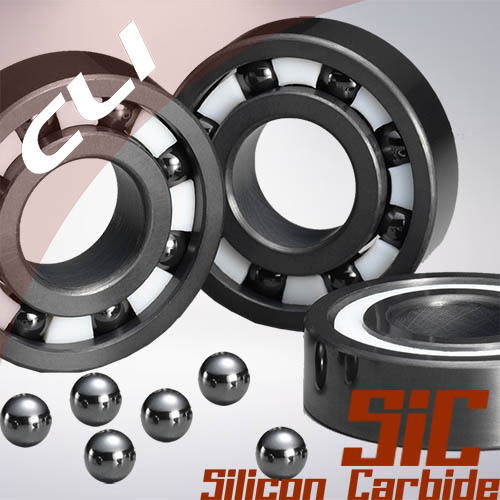

Original silicon carbide sic ptfe ceramic bearings cli
Product Picture

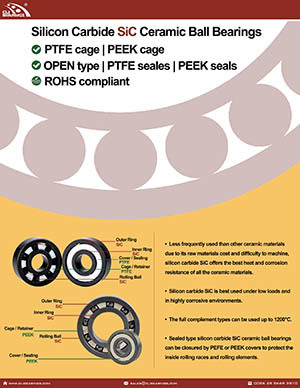

Original ceramic bearings sic nw
Download PDF Catalogue
Original technical reference of rolling bearings nw
Technical References


Silicon Carbide SiC Ceramic Ball Bearings,
PTFE cage, OPEN type or closured with PTFE / PEEK covers, ROHS compliant





•  Less frequently used than other ceramic materials due to its raw materials cost and difficulty to machine, silicon carbide SiC offers the best heat and corrosion resistance of all the ceramic materials.
•  Silicon carbide SiC is best used under low loads and in highly corrosive environments.
•  The full complement types can be used up to 1200°C.
•  Sealed type silicon carbide SiC ceramic ball bearings can be closured by PEFE or PEEK covers to protect the inside rolling races and rolling elements.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

PTFE Cage, OPEN type
Silicon Carbide
SiC Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm


Ceramic Bearing Details Cage Type Seal Type Bearing Dimension Dynamic Static Max
SiC Bore Dia Outer Dia Width radial radial Speed
CLI Bearing No. (d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-SC-R133-PT Details PTFE OPEN 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0625" | 1.588 mm 40.0425 12.235 66.5
CE-SC-R1-5-PT Details PTFE OPEN 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1094" | 2.779 mm 117.905 35.5925 49.7
CE-SC-R144-PT Details PTFE OPEN 0.125" | 3.175 mm 0.25" | 6.35 mm 0.0937" | 2.38 mm 60.065 18.91 56
CE-SC-R2-5-PT Details PTFE OPEN 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1094" | 2.779 mm 119.015 35.5925 46.9
CE-SC-R2-6-PT Details PTFE OPEN 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1094" | 2.779 mm 135.7 45.605 44.1
CE-SC-R2-PT Details PTFE OPEN 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 134.5875 43.38 46.9
CE-SC-R2A-PT Details PTFE OPEN 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 135.7 45.605 44.1
CE-SC-R155-PT Details PTFE OPEN 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.1094" | 2.779 mm 76.7475 30.0325 44.1
CE-SC-R156-PT Details PTFE OPEN 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.1094" | 2.779 mm 76.7475 30.0325 44.1
CE-SC-R166-PT Details PTFE OPEN 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 151.2725 54.5025 42
CE-SC-R3-PT Details PTFE OPEN 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 276.9625 97.8825 35
CE-SC-R3A-PT Details PTFE OPEN 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1601-PT Details PTFE OPEN 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.25" | 6.35 mm 150 55 4.2
CE-SC-R168-PT Details PTFE OPEN 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 78.9725 34.4825 39.2
CE-SC-R188-PT Details PTFE OPEN 0.25" | 6.35 mm 0.5" | 12.7 mm 0.125" | 3.175 mm 230.245 88.985 35
CE-SC-R4-PT Details PTFE OPEN 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1602-PT Details PTFE OPEN 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.25" | 6.35 mm 158.75 60 4.2
CE-SC-R4A-PT Details PTFE OPEN 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2188" | 5.558 mm 496.085 179.08 30.1
CE-SC-R1810-PT Details PTFE OPEN 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 115.68 55.615 33.6
CE-SC-1603-PT Details PTFE OPEN 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 186.25 77.5 4.2
CE-SC-1605-PT Details PTFE OPEN 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 186.25 78.75 4.2
CE-SC-1604-PT Details PTFE OPEN 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 187.5 80 4.2
CE-SC-R6-PT Details PTFE OPEN 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2188" | 5.558 mm 708.535 284.75 26.6
CE-SC-1606-PT Details PTFE OPEN 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 187.5 80 4.2
CE-SC-1614-PT Details PTFE OPEN 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 285 130 4.2
CE-SC-1607-PT Details PTFE OPEN 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 253.75 107.5 4.2
CE-SC-1615-PT Details PTFE OPEN 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 286.25 132.5 4.2
CE-SC-1620-PT Details PTFE OPEN 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 422.5 200 4.2
CE-SC-1616-PT Details PTFE OPEN 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 287.5 112.5 4.2
CE-SC-R8-PT Details PTFE OPEN 0.5" | 12.7 mm 1.125" | 28.575 mm 0.25" | 6.35 mm 287.25 127.75 22.4
CE-SC-1621-PT Details PTFE OPEN 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 425 203.75 4.2
CE-SC-1622-PT Details PTFE OPEN 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 427.5 206.25 4.2
CE-SC-1623-PT Details PTFE OPEN 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 430 208.75 4.2
CE-SC-R10-PT Details PTFE OPEN 0.625" | 15.875 mm 1.375" | 34.925 mm 0.2812" | 7.142 mm 396.25 183.75 17.5
CE-SC-1628-PT Details PTFE OPEN 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 525 273.75 4.2
CE-SC-1633-PT Details PTFE OPEN 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 525 280 4.2
CE-SC-1630-PT Details PTFE OPEN 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 527.5 278.75 4.2
CE-SC-R12-PT Details PTFE OPEN 0.75" | 19.05 mm 1.625" | 41.275 mm 0.3125" | 7.938 mm 619.25 294.25 14.7
CE-SC-1635-PT Details PTFE OPEN 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 528.75 285 4.2
CE-SC-1638-PT Details PTFE OPEN 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 567.5 322.5 4.2
CE-SC-R14-PT Details PTFE OPEN 0.875" | 22.225 mm 1.875" | 47.625 mm 0.375" | 9.525 mm 664.5 326.75 8.4
CE-SC-1640-PT Details PTFE OPEN 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 566.25 328.75 4.2
CE-SC-1641-PT Details PTFE OPEN 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 565 336.25 4.2
CE-SC-R16-PT Details PTFE OPEN 1" | 25.4 mm 2" | 50.8 mm 0.375" | 9.525 mm 663 326.75 7.7
CE-SC-R18-PT Details PTFE OPEN 1.125" | 28.575 mm 2.125" | 53.975 mm 0.375" | 9.525 mm 873 454.25 7
CE-SC-1652-PT Details PTFE OPEN 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900.75 570 4.2
CE-SC-R20-PT Details PTFE OPEN 1.25" | 31.75 mm 2.25" | 57.15 mm 0.375" | 9.525 mm 923.75 496.5 6.3
CE-SC-1654-PT Details PTFE OPEN 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900 575 4.2
CE-SC-1657-PT Details PTFE OPEN 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1100 625 4.2
CE-SC-1658-PT Details PTFE OPEN 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1092.5 650 4.2
CE-SC-R22-PT Details PTFE OPEN 1.375" | 34.925 mm 2.5" | 63.5 mm 0.4375" | 11.113 mm 1016.75 561.75 5.6
CE-SC-R24-PT Details PTFE OPEN 1.5" | 38.1 mm 2.625" | 66.675 mm 0.4375" | 11.113 mm 1106.5 611.5 4.2
CE-SC-682-PT Details PTFE OPEN 2 mm 5mm 1.5mm 36 10 70
CE-SC-MR52-PT Details PTFE OPEN 2 mm 5mm 2mm 36 10 70
CE-SC-692-PT Details PTFE OPEN 2 mm 6mm 2.3mm 70.25 19.75 63
CE-SC-MR62-PT Details PTFE OPEN 2mm 6mm 2.5mm 70.25 19.75 63
CE-SC-602-PT Details PTFE OPEN 2 mm 7mm 2.8mm 82 25.75 49.7
CE-SC-MR72-PT Details PTFE OPEN 2 mm 7mm 2.5mm 82 25.75 52.5
CE-SC-682x-PT Details PTFE OPEN 2.5 mm 6mm 1.8mm 44.5 14.75 56
CE-SC-692x-PT Details PTFE OPEN 2.5mm 7mm 2.5mm 82 25.75 52.5
CE-SC-602x-PT Details PTFE OPEN 2.5 mm 8mm 2.8mm 117.25 35.5 49.7
CE-SC-MR82x-PT Details PTFE OPEN 2.5mm 8mm 2.5mm 118.5 36 46.9
CE-SC-MR63-PT Details PTFE OPEN 3mm 6mm 2mm 44.5 14.75 56
CE-SC-683-PT Details PTFE OPEN 3mm 7mm 2mm 66 22.5 52.5
CE-SC-693-PT Details PTFE OPEN 3mm 8mm 3mm 118.5 36 46.9
CE-SC-MR83-PT Details PTFE OPEN 3mm 8mm 2.5mm 84 28.25 46.9
CE-SC-603-PT Details PTFE OPEN 3 mm 9mm 3mm 57.5 37.75 46.9
CE-SC-MR93-PT Details PTFE OPEN 3mm 9mm 2.5mm 121.25 37.75 46.9
CE-SC-623-PT Details PTFE OPEN 3mm 10mm 4mm 134 43.75 42
CE-SC-633-PT Details PTFE OPEN 3 mm 13mm 5mm 276.5 97.5 33.6
CE-SC-MR74-PT Details PTFE OPEN 4mm 7mm 2mm 66 23 46.9
CE-SC-MR84-PT Details PTFE OPEN 4mm 8mm 2mm 84 28.25 46.9
CE-SC-684-PT Details PTFE OPEN 4mm 9mm 2.5mm 136.25 45.5 44.1
CE-SC-MR104-PT Details PTFE OPEN 4mm 10mm 3mm 151 54.5 39.2
CE-SC-694-PT Details PTFE OPEN 4 mm 11mm 4mm 203.5 70 39.2
CE-SC-604-PT Details PTFE OPEN 4 mm 12mm 4mm 203.5 70 39.2
CE-SC-624-PT Details PTFE OPEN 4mm 13mm 5mm 276.5 97.5 33.6
CE-SC-634-PT Details PTFE OPEN 4mm 16mm 5mm 284.75 104.5 30.1
CE-SC-MR85-PT Details PTFE OPEN 5mm 8mm 2mm 65.5 24 44.1
CE-SC-MR95-PT Details PTFE OPEN 5 mm 9mm 2.5mm 91.5 33.75 42
CE-SC-MR105-PT Details PTFE OPEN 5 mm 10mm 3mm 91.5 33.75 42
CE-SC-685-PT Details PTFE OPEN 5mm 11mm 3mm 152.25 56.5 37.1
CE-SC-MR115-PT Details PTFE OPEN 5mm 11mm 4mm 152.25 56.5 44.1
CE-SC-695-PT Details PTFE OPEN 5mm 13mm 4mm 229 86.5 35
CE-SC-605-PT Details PTFE OPEN 5mm 14mm 5mm 282.5 101.5 35
CE-SC-625-PT Details PTFE OPEN 5mm 16mm 5mm 367.5 135 30.1
CE-SC-635-PT Details PTFE OPEN 5mm 19mm 6mm 496.5 179.25 28
CE-SC-MR106-PT Details PTFE OPEN 6mm 10mm 2.5mm 105.5 43.5 37.1
CE-SC-MR126-PT Details PTFE OPEN 6mm 12mm 3mm 152.25 59 35
CE-SC-686-PT Details PTFE OPEN 6mm 13mm 3.5mm 230 88.5 35
CE-SC-696-PT Details PTFE OPEN 6mm 15mm 5mm 284.75 104.5 31.5
CE-SC-606-PT Details PTFE OPEN 6mm 17mm 6mm 481 169.25 31.5
CE-SC-626-PT Details PTFE OPEN 6 mm 19mm 6mm 496.5 179.25 28
CE-SC-636-PT Details PTFE OPEN 6mm 22mm 7mm 708.25 284.5 25.2
CE-SC-MR117-PT Details PTFE OPEN 7 mm 11mm 2.5mm 96.75 40.5 35
CE-SC-MR137-PT Details PTFE OPEN 7mm 13mm 3mm 115 55.25 33.6
CE-SC-687-PT Details PTFE OPEN 7mm 14mm 3.5mm 249.25 102.5 35
CE-SC-697-PT Details PTFE OPEN 7mm 17mm 5mm 341 143.75 30.1
CE-SC-607-PT Details PTFE OPEN 7mm 19mm 6mm 496.5 179.25 30.1
CE-SC-627-PT Details PTFE OPEN 7mm 22mm 7mm 698.5 275.75 25.2
CE-SC-637-PT Details PTFE OPEN 7 mm 26mm 9mm 969.75 396.5 23.8
CE-SC-MR128-PT Details PTFE OPEN 8mm 12mm 2.5mm 115.5 54.75 33.6
CE-SC-MR148-PT Details PTFE OPEN 8 mm 14mm 3.5mm 173.75 77.25 31.5
CE-SC-688-PT Details PTFE OPEN 8 mm 16mm 4mm 266 118.5 30.1
CE-SC-698-PT Details PTFE OPEN 8mm 19mm 6mm 475.5 183.5 30.1
CE-SC-608-PT Details PTFE OPEN 8mm 22mm 7mm 699.75 275.75 772.1
CE-SC-628-PT Details PTFE OPEN 8mm 24mm 8mm 708.25 284.5 23.8
CE-SC-638-PT Details PTFE OPEN 8mm 28mm 9mm 969.75 396.5 23.8
CE-SC-679-PT Details PTFE OPEN 9mm 14mm 3mm 195.25 93.5 29.4
CE-SC-689-PT Details PTFE OPEN 9mm 17mm 4mm 282 133.5 30.1
CE-SC-699-PT Details PTFE OPEN 9mm 20mm 6mm 524.25 216.25 28
CE-SC-609-PT Details PTFE OPEN 9mm 24mm 7mm 713.25 288.75 26.6
CE-SC-629-PT Details PTFE OPEN 9mm 26mm 8mm 969.75 396.5 23.8
CE-SC-639-PT Details PTFE OPEN 9mm 30mm 10mm 990 416 21
CE-SC-6700-PT Details PTFE OPEN 10mm 15mm 3mm 214.25 108.75 11.9
CE-SC-63800-PT Details PTFE OPEN 10mm 19mm 7mm 430 210 28
CE-SC-6800-PT Details PTFE OPEN 10mm 19mm 5mm 430 210 28
CE-SC-6900-PT Details PTFE OPEN 10mm 22mm 6mm 675 317.5 25.9
CE-SC-6000-PT Details PTFE OPEN 10 mm 26mm 8mm 1137.5 487.5 25.2
CE-SC-6200-PT Details PTFE OPEN 10 mm 30mm 9mm 1275 600 20.3
CE-SC-6300-PT Details PTFE OPEN 10 mm 35mm 11mm 2025 862.5 18.9
CE-SC-6701-PT Details PTFE OPEN 12mm 18mm 4mm 232 133 10.5
CE-SC-63801-PT Details PTFE OPEN 12mm 21mm 7mm 480 260 25.2
CE-SC-6801-PT Details PTFE OPEN 12mm 21mm 5mm 480 260 25.2
CE-SC-6901-PT Details PTFE OPEN 12mm 24mm 6mm 722.5 365 23.1
CE-SC-6001-PT Details PTFE OPEN 12 mm 28mm 8mm 1275 600 22.4
CE-SC-6201-PT Details PTFE OPEN 12 mm 32mm 10mm 1700 762.5 18.9
CE-SC-6301-PT Details PTFE OPEN 12 mm 37mm 12mm 2425 1050 17.5
CE-SC-6702-PT Details PTFE OPEN 15mm 21mm 4mm 234.25 145.25 9.1
CE-SC-63802-PT Details PTFE OPEN 15mm 24mm 7mm 517.5 315 21.7
CE-SC-6802-PT Details PTFE OPEN 15mm 24mm 5mm 517.5 315 21.7
CE-SC-6902-PT Details PTFE OPEN 15mm 28mm 7mm 1082.5 562.5 20.3
CE-SC-6002-PT Details PTFE OPEN 15 mm 32mm 9mm 1400 712.5 18.9
CE-SC-6202-PT Details PTFE OPEN 15 mm 35mm 11mm 1912.5 937.5 16.8
CE-SC-6302-PT Details PTFE OPEN 15 mm 42mm 13mm 2850 1362.5 14
CE-SC-6703-PT Details PTFE OPEN 17mm 23mm 4mm 249.75 164.25 7.7
CE-SC-63803-PT Details PTFE OPEN 17mm 26mm 7mm 557.5 365 20.3
CE-SC-6803-PT Details PTFE OPEN 17mm 26mm 5mm 557.5 365 20.3
CE-SC-6903-PT Details PTFE OPEN 17mm 30mm 7mm 1147.5 640 18.2
CE-SC-6003-PT Details PTFE OPEN 17 mm 35mm 10mm 1500 812.5 17.5
CE-SC-6203-PT Details PTFE OPEN 17 mm 40mm 12mm 2387.5 1200 14.7
CE-SC-6303-PT Details PTFE OPEN 17 mm 47mm 14mm 3400 1662.5 12.6
CE-SC-6704-PT Details PTFE OPEN 20mm 27mm 4mm 252.5 180.5 7
CE-SC-63804-PT Details PTFE OPEN 20mm 32mm 10mm 1005 615 17.5
CE-SC-6804-PT Details PTFE OPEN 20mm 32mm 7mm 1005 615 17.5
CE-SC-6904-PT Details PTFE OPEN 20mm 37mm 9mm 1595 920 15.4
CE-SC-6004-PT Details PTFE OPEN 20 mm 42mm 12mm 2350 1262.5 14.7
CE-SC-6204-PT Details PTFE OPEN 20 mm 47mm 14mm 3200 1662.5 11.9
CE-SC-6304-PT Details PTFE OPEN 20 mm 52mm 15mm 3975 1962.5 11.9
CE-SC-6705-PT Details PTFE OPEN 25mm 32mm 4mm 275 209.5 5.6
CE-SC-63805-PT Details PTFE OPEN 25mm 37mm 10mm 1075 735 14.7
CE-SC-6805-PT Details PTFE OPEN 25mm 37mm 7mm 1075 735 14.7
CE-SC-6905-PT Details PTFE OPEN 25mm 42mm 9mm 1752.5 1137.5 13.3
CE-SC-6005-PT Details PTFE OPEN 25 mm 47mm 12mm 2525 1462.5 12.6
CE-SC-6205-PT Details PTFE OPEN 25 mm 52mm 15mm 3500 1962.5 10.5
CE-SC-6305-PT Details PTFE OPEN 25 mm 62mm 17mm 5150 2825 9.1
CE-SC-6706-PT Details PTFE OPEN 30mm 37mm 4mm 285 236.75 4.9
CE-SC-63806-PT Details PTFE OPEN 30mm 42mm 10mm 1134.5 850.5 12.6
CE-SC-6806-PT Details PTFE OPEN 30mm 42mm 7mm 1112.5 860 12.6
CE-SC-6906-PT Details PTFE OPEN 30mm 47mm 9mm 1810 1252.5 11.9
CE-SC-6006-PT Details PTFE OPEN 30 mm 55mm 13mm 3300 2062.5 10.5
CE-SC-6206-PT Details PTFE OPEN 30 mm 62mm 16mm 4875 2825 9.1
CE-SC-6306-PT Details PTFE OPEN 30 mm 72mm 19mm 6675 3750 8.4
CE-SC-6707-PT Details PTFE OPEN 35mm 44mm 5mm 465 407.5 4.2
CE-SC-6807-PT Details PTFE OPEN 35mm 47mm 7mm 1185 955 11.2
CE-SC-6907-PT Details PTFE OPEN 35mm 55mm 10mm 2725 1937.5 9.8
CE-SC-6007-PT Details PTFE OPEN 35 mm 62mm 14mm 3975 2575 9.1
CE-SC-6207-PT Details PTFE OPEN 35 mm 72mm 17mm 6425 3850 7.7
CE-SC-6307-PT Details PTFE OPEN 35 mm 80mm 21mm 8350 4825 7
CE-SC-6708-PT Details PTFE OPEN 40mm 50mm 6mm 627.5 557.5 3.5
CE-SC-6808-PT Details PTFE OPEN 40mm 52mm 7mm 1232.5 1045 9.8
CE-SC-6908-PT Details PTFE OPEN 40mm 62mm 12mm 3425 2480 9.1
CE-SC-6008-PT Details PTFE OPEN 40 mm 68mm 15mm 4175 2875 8.4
CE-SC-6208-PT Details PTFE OPEN 40 mm 80mm 18mm 7275 4450 7
CE-SC-6308-PT Details PTFE OPEN 40 mm 90mm 23mm 10175 6000 6.3
CE-SC-6709-PT Details PTFE OPEN 45mm 55mm 6mm 642.5 600 3.22
CE-SC-6809-PT Details PTFE OPEN 45mm 58mm 7mm 1552.5 1345 9.1
CE-SC-6909-PT Details PTFE OPEN 45mm 68mm 12mm 3525 2725 7.7
CE-SC-6009-PT Details PTFE OPEN 45 mm 75mm 16mm 5250 3775 7.7
CE-SC-6209-PT Details PTFE OPEN 45 mm 85mm 19mm 8175 5075 6.44
CE-SC-6309-PT Details PTFE OPEN 45 mm 100mm 25mm 13250 8000 5.6
CE-SC-6710-PT Details PTFE OPEN 50mm 62mm 6mm 667.5 662.5 2.87
CE-SC-6810-PT Details PTFE OPEN 50mm 65mm 7mm 1542.5 1440 7.7
CE-SC-6910-PT Details PTFE OPEN 50mm 72mm 12mm 3625 2925 7.7
CE-SC-6010-PT Details PTFE OPEN 50 mm 80mm 16mm 5450 4150 6.93
CE-SC-6210-PT Details PTFE OPEN 50 mm 90mm 20mm 8775 5825 5.95
CE-SC-6310-PT Details PTFE OPEN 50 mm 110mm 27mm 15500 9575 5.25
CE-SC-6811-PT Details PTFE OPEN 55mm 72mm 9mm 2200 2020 7
CE-SC-6911-PT Details PTFE OPEN 55mm 80mm 13mm 4150 3525 6.72
CE-SC-6011-PT Details PTFE OPEN 55 mm 90mm 18mm 7075 5300 6.3
CE-SC-6211-PT Details PTFE OPEN 55 mm 100mm 21mm 10850 7350 5.25
CE-SC-6311-PT Details PTFE OPEN 55 mm 120mm 29mm 17900 11250 4.69
CE-SC-6812-PT Details PTFE OPEN 60mm 78mm 10mm 2875 2650 6.58
CE-SC-6912-PT Details PTFE OPEN 60mm 85mm 13mm 5050 4325 6.23
CE-SC-6012-PT Details PTFE OPEN 60 mm 95mm 18mm 7350 5800 5.95
CE-SC-6212-PT Details PTFE OPEN 60 mm 110mm 22mm 13100 9050 4.97
CE-SC-6312-PT Details PTFE OPEN 60 mm 130mm 31mm 20475 13050 4.41
CE-SC-6813-PT Details PTFE OPEN 65mm 85mm 10mm 2975 2875 6.02
CE-SC-6913-PT Details PTFE OPEN 65mm 90mm 13mm 4325 4000 5.81
CE-SC-6013-PT Details PTFE OPEN 65 mm 100mm 18mm 7625 6300 5.6
CE-SC-6213-PT Details PTFE OPEN 65 mm 120mm 23mm 14300 10025 4.41
CE-SC-6313-PT Details PTFE OPEN 65 mm 140mm 33mm 23175 14975 4.2
CE-SC-6814-PT Details PTFE OPEN 70mm 90mm 10mm 2900 2950 5.67
CE-SC-6914-PT Details PTFE OPEN 70mm 100mm 16mm 5925 5275 5.32
CE-SC-6014-PT Details PTFE OPEN 70 mm 110mm 20mm 9525 7725 4.97
CE-SC-6214-PT Details PTFE OPEN 70 mm 125mm 24mm 15550 11025 4.41
CE-SC-6314-PT Details PTFE OPEN 70 mm 150mm 35mm 26000 17050 3.71
CE-SC-6815-PT Details PTFE OPEN 75mm 95mm 10mm 3075 3200 5.32
CE-SC-6915-PT Details PTFE OPEN 75mm 105mm 16mm 6000 5650 4.97
CE-SC-6015-PT Details PTFE OPEN 75 mm 115mm 20mm 9900 8375 4.69
CE-SC-6215-PT Details PTFE OPEN 75 mm 130mm 25mm 16850 12075 3.92
CE-SC-6315-PT Details PTFE OPEN 75 mm 160mm 37mm 28250 19300 3.5
CE-SC-6816-PT Details PTFE OPEN 80mm 100mm 10mm 3150 3325 4.97
CE-SC-6916-PT Details PTFE OPEN 80mm 110mm 16mm 6200 5975 4.69
CE-SC-6016-PT Details PTFE OPEN 80 mm 125mm 22mm 11900 9950 4.41
CE-SC-6216-PT Details PTFE OPEN 80 mm 140mm 26mm 18175 13250 3.71
CE-SC-6316-PT Details PTFE OPEN 80 mm 170mm 39mm 30750 21675 3.36
CE-SC-6817-PT Details PTFE OPEN 85mm 110mm 13mm 4675 4750 4.62
CE-SC-6917-PT Details PTFE OPEN 85mm 120mm 18mm 7975 7400 4.34
CE-SC-6017-PT Details PTFE OPEN 85 mm 130mm 22mm 12375 10775 4.2
CE-SC-6217-PT Details PTFE OPEN 85 mm 150mm 28mm 21000 15475 3.5
CE-SC-6317-PT Details PTFE OPEN 85 mm 180mm 41mm 33250 24200 3.15
CE-SC-6818-PT Details PTFE OPEN 90mm 115mm 13mm 4575 4875 4.34
CE-SC-6918-PT Details PTFE OPEN 90mm 125mm 18mm 8100 7900 4.13
CE-SC-6018-PT Details PTFE OPEN 90 mm 140mm 24mm 14550 12425 3.92
CE-SC-6218-PT Details PTFE OPEN 90 mm 160mm 30mm 24025 17875 3.36
CE-SC-6318-PT Details PTFE OPEN 90 mm 190mm 43mm 35750 26750 3.01
CE-SC-6819-PT Details PTFE OPEN 95mm 120mm 13mm 4700 5075 4.13
CE-SC-6019-PT Details PTFE OPEN 95 mm 145mm 24mm 15100 13475 3.71
CE-SC-6219-PT Details PTFE OPEN 95 mm 170mm 32mm 27250 20475 3.15
CE-SC-6319-PT Details PTFE OPEN 95 mm 200mm 45mm 38250 29750 3.71
CE-SC-6020-PT Details PTFE OPEN 100 mm 150mm 24mm 15050 13550 3.71
CE-SC-6220-PT Details PEEK OPEN 100 mm 150mm 24mm 18060 16260 3.18
CE-SC-6320-PT Details PTFE OPEN 100 mm 215mm 47mm 43250 35250 2.38
CE-SC-6021-PT Details PTFE OPEN 105 mm 160mm 26mm 18075 16450 3.36
CE-SC-6221-PT Details PTFE OPEN 105 mm 190mm 36mm 33250 26250 2.8
CE-SC-6321-PT Details PTFE OPEN 105 mm 225mm 49mm 46000 38250 2.24

BEARING LIST & BEARING DETAILS

PTFE Cage, PTFE SEALED type
Silicon Carbide

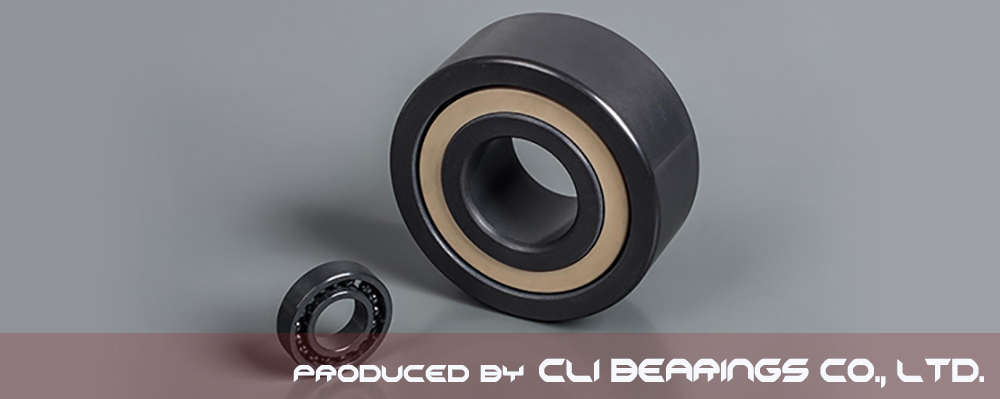

SiC Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm


Ceramic Bearing Details Cage Cage Bearing Dimension Dynamic Static Max
SiC Bore Dia Outer Dia Width radial radial Speed
CLI Bearing No. Type Type (d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-SC-R133-PT-2PTS Details PTFE PTFE 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0937" | 2.38 mm 31.145 11.1225 66.5
CE-SC-R1-5-PT-2PTS Details PTFE PTFE 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 117.905 35.5925 49.7
CE-SC-R144-PT-2PTS Details PTFE PTFE 0.125" | 3.175 mm 0.25" | 6.35 mm 0.1094" | 2.779 mm 60.065 18.91 56
CE-SC-R2-5-PT-2PTS Details PTFE PTFE 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 119.015 35.5925 46.9
CE-SC-R2-6-PT-2PTS Details PTFE PTFE 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1406" | 3.571 mm 135.7 45.605 44.1
CE-SC-R2-PT-2PTS Details PTFE PTFE 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 134.5875 43.38 46.9
CE-SC-R2A-PT-2PTS Details PTFE PTFE 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 135.7 45.605 44.1
CE-SC-R155-PT-2PTS Details PTFE PTFE 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 76.7475 30.0325 44.1
CE-SC-R156-PT-2PTS Details PTFE PTFE 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 76.7475 30.0325 44.1
CE-SC-R166-PT-2PTS Details PTFE PTFE 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 151.2725 54.5025 42
CE-SC-R3-PT-2PTS Details PTFE PTFE 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.196" | 4.978 mm 276.9625 97.8825 37.1
CE-SC-R3A-PT-2PTS Details PTFE PTFE 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1601-PT-2PTS Details PTFE PTFE 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 150 55 4.2
CE-SC-R168-PT-2PTS Details PTFE PTFE 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 78.9725 34.4825 39.2
CE-SC-R188-PT-2PTS Details PTFE PTFE 0.25" | 6.35 mm 0.5" | 12.7 mm 0.1875" | 4.763 mm 230.245 88.985 35
CE-SC-R4-PT-2PTS Details PTFE PTFE 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1602-PT-2PTS Details PTFE PTFE 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 158.75 60 4.2
CE-SC-R4A-PT-2PTS Details PTFE PTFE 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2812" | 7.142 mm 496.085 179.08 30.1
CE-SC-R1810-PT-2PTS Details PTFE PTFE 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 115.68 55.615 33.6
CE-SC-1603-PT-2PTS Details PTFE PTFE 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 186.25 77.5 4.2
CE-SC-1605-PT-2PTS Details PTFE PTFE 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 186.25 78.75 4.2
CE-SC-1604-PT-2PTS Details PTFE PTFE 0.375" | 9.525 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 187.5 80 4.2
CE-SC-R6-PT-2PTS Details PTFE PTFE 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 708.535 284.75 26.6
CE-SC-1606-PT-2PTS Details PTFE PTFE 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 187.5 80 4.2
CE-SC-1614-PT-2PTS Details PTFE PTFE 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 285 130 4.2
CE-SC-1607-PT-2PTS Details PTFE PTFE 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 253.75 107.5 4.2
CE-SC-1615-PT-2PTS Details PTFE PTFE 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 286.25 132.5 4.2
CE-SC-1620-PT-2PTS Details PTFE PTFE 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 422.5 200 4.2
CE-SC-1616-PT-2PTS Details PTFE PTFE 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 287.5 112.5 4.2
CE-SC-R8-PT-2PTS Details PTFE PTFE 0.5" | 12.7 mm 1.125" | 28.575 mm 0.3125" | 7.938 mm 287.25 127.75 22.4
CE-SC-1621-PT-2PTS Details PTFE PTFE 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 425 203.75 4.2
CE-SC-1622-PT-2PTS Details PTFE PTFE 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 427.5 206.25 4.2
CE-SC-1623-PT-2PTS Details PTFE PTFE 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 430 208.75 4.2
CE-SC-R10-PT-2PTS Details PTFE PTFE 0.625" | 15.875 mm 1.375" | 34.925 mm 0.3438" | 8.733 mm 396.25 183.75 17.5
CE-SC-1628-PT-2PTS Details PTFE PTFE 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 525 273.75 4.2
CE-SC-1633-PT-2PTS Details PTFE PTFE 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 525 280 4.2
CE-SC-1630-PT-2PTS Details PTFE PTFE 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 527.5 278.75 4.2
CE-SC-R12-PT-2PTS Details PTFE PTFE 0.75" | 19.05 mm 1.625" | 41.275 mm 0.4375" | 11.113 mm 619.25 294.25 14.7
CE-SC-1635-PT-2PTS Details PTFE PTFE 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 528.75 285 4.2
CE-SC-1638-PT-2PTS Details PTFE PTFE 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 567.5 322.5 4.2
CE-SC-R14-PT-2PTS Details PTFE PTFE 0.875" | 22.225 mm 1.875" | 47.625 mm 0.5" | 12.7 mm 664.5 326.75 8.4
CE-SC-1640-PT-2PTS Details PTFE PTFE 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 566.25 328.75 4.2
CE-SC-1641-PT-2PTS Details PTFE PTFE 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 565 336.25 4.2
CE-SC-R16-PT-2PTS Details PTFE PTFE 1" | 25.4 mm 2" | 50.8 mm 0.5" | 12.7 mm 663 326.75 7.7
CE-SC-R18-PT-2PTS Details PTFE PTFE 1.125" | 28.575 mm 2.125" | 53.975 mm 0.5" | 12.7 mm 873 454.25 7
CE-SC-1652-PT-2PTS Details PTFE PTFE 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900.75 570 4.2
CE-SC-R20-PT-2PTS Details PTFE PTFE 1.25" | 31.75 mm 2.25" | 57.15 mm 0.5" | 12.7 mm 923.75 496.5 6.3
CE-SC-1654-PT-2PTS Details PTFE PTFE 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900 575 4.2
CE-SC-1657-PT-2PTS Details PTFE PTFE 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1100 625 4.2
CE-SC-1658-PT-2PTS Details PTFE PTFE 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1092.5 650 4.2
CE-SC-R22-PT-2PTS Details PTFE PTFE 1.375" | 34.925 mm 2.5" | 63.5 mm 0.5625" | 14.288 mm 1016.75 561.75 5.6
CE-SC-R24-PT-2PTS Details PTFE PTFE 1.5" | 38.1 mm 2.625" | 66.675 mm 0.5625" | 14.288 mm 1106.5 611.5 4.2
CE-SC-682-PT-2PTS Details PTFE PTFE 2mm 5mm 2.3mm 36 10 70
CE-SC-MR52-PT-2PTS Details PTFE PTFE 2 mm 5mm 2.5mm 36 10 70
CE-SC-692-PT-2PTS Details PTFE PTFE 2mm 6mm 3mm 70.25 19.75 63
CE-SC-MR62-PT-2PTS Details PTFE PTFE 2mm 6mm 2.5mm 70.25 19.75 63
CE-SC-602-PT-2PTS Details PTFE PTFE 2 mm 7mm 3.5mm 82 25.75 49.7
CE-SC-MR72-PT-2PTS Details PTFE PTFE 2 mm 7mm 3mm 82 25.75 52.5
CE-SC-682x-PT-2PTS Details PTFE PTFE 2.5mm 6mm 2.6mm 44.5 14.75 56
CE-SC-692x-PT-2PTS Details PTFE PTFE 2.5mm 7mm 3.5mm 82 25.75 52.5
CE-SC-602x-PT-2PTS Details PTFE PTFE 2.5mm 8mm 4mm 117.25 35.5 49.7
CE-SC-MR82x-PT-2PTS Details PTFE PTFE 2.5mm 8mm 2.5mm 118.5 36 46.9
CE-SC-MR63-PT-2PTS Details PTFE PTFE 3mm 6mm 2.5mm 44.5 14.75 56
CE-SC-683-PT-2PTS Details PTFE PTFE 3mm 7mm 3mm 66 22.5 52.5
CE-SC-693-PT-2PTS Details PTFE PTFE 3mm 8mm 4mm 118.5 36 46.9
CE-SC-MR83-PT-2PTS Details PTFE PTFE 3 mm 8mm 3mm 84 28.25 46.9
CE-SC-603-PT-2PTS Details PTFE PTFE 3mm 9mm 5mm 57.5 37.75 46.9
CE-SC-MR93-PT-2PTS Details PTFE PTFE 3mm 9mm 4mm 121.25 37.75 46.9
CE-SC-623-PT-2PTS Details PTFE PTFE 3 mm 10mm 4mm 134 43.75 42
CE-SC-633-PT-2PTS Details PTFE PTFE 3 mm 13mm 5mm 276.5 97.5 33.6
CE-SC-MR74-PT-2PTS Details PTFE PTFE 4mm 7mm 2.5mm 54.25 21.5 46.9
CE-SC-MR84-PT-2PTS Details PTFE PTFE 4 mm 8mm 3mm 84 28.25 46.9
CE-SC-684-PT-2PTS Details PTFE PTFE 4mm 9mm 4mm 136.25 45.5 44.1
CE-SC-MR104-PT-2PTS Details PTFE PTFE 4 mm 10mm 4mm 151 54.5 39.2
CE-SC-694-PT-2PTS Details PTFE PTFE 4mm 11mm 4mm 203.5 70 39.2
CE-SC-604-PT-2PTS Details PTFE PTFE 4mm 12mm 4mm 203.5 70 39.2
CE-SC-624-PT-2PTS Details PTFE PTFE 4 mm 13mm 5mm 276.5 97.5 33.6
CE-SC-634-PT-2PTS Details PTFE PTFE 4 mm 16mm 5mm 284.75 104.5 30.1
CE-SC-MR85-PT-2PTS Details PTFE PTFE 5mm 8mm 2.5mm 46.25 18 44.1
CE-SC-MR95-PT-2PTS Details PTFE PTFE 5mm 9mm 3mm 91.5 33.75 42
CE-SC-MR105-PT-2PTS Details PTFE PTFE 5mm 10mm 4mm 91.5 33.75 42
CE-SC-685-PT-2PTS Details PTFE PTFE 5mm 11mm 5mm 152.25 56.5 37.1
CE-SC-MR115-PT-2PTS Details PTFE PTFE 5mm 11mm 4mm 152.25 56.5 44.1
CE-SC-695-PT-2PTS Details PTFE PTFE 5mm 13mm 4mm 229 86.5 35
CE-SC-605-PT-2PTS Details PTFE PTFE 5mm 14mm 5mm 282.5 101.5 35
CE-SC-625-PT-2PTS Details PTFE PTFE 5 mm 16mm 5mm 367.5 135 30.1
CE-SC-635-PT-2PTS Details PTFE PTFE 5 mm 19mm 6mm 496.5 179.25 28
CE-SC-MR106-PT-2PTS Details PTFE PTFE 6mm 10mm 3mm 105.5 43.5 37.1
CE-SC-MR126-PT-2PTS Details PTFE PTFE 6mm 12mm 4mm 152.25 59 35
CE-SC-686-PT-2PTS Details PTFE PTFE 6mm 13mm 5mm 230 88.5 35
CE-SC-696-PT-2PTS Details PTFE PTFE 6mm 15mm 5mm 284.75 104.5 31.5
CE-SC-606-PT-2PTS Details PTFE PTFE 6 mm 17mm 6mm 481 169.25 31.5
CE-SC-626-PT-2PTS Details PTFE PTFE 6mm 19mm 6mm 496.5 179.25 28
CE-SC-636-PT-2PTS Details PTFE PTFE 6mm 22mm 7mm 708.25 284.5 25.2
CE-SC-MR117-PT-2PTS Details PTFE PTFE 7 mm 11mm 3mm 96.75 40.5 35
CE-SC-MR137-PT-2PTS Details PTFE PTFE 7mm 13mm 4mm 115 55.25 33.6
CE-SC-687-PT-2PTS Details PTFE PTFE 7 mm 14mm 5mm 249.25 102.5 35
CE-SC-697-PT-2PTS Details PTFE PTFE 7mm 17mm 5mm 341 143.75 30.1
CE-SC-607-PT-2PTS Details PTFE PTFE 7 mm 19mm 6mm 496.5 179.25 30.1
CE-SC-627-PT-2PTS Details PTFE PTFE 7 mm 22mm 7mm 698.5 275.75 25.2
CE-SC-637-PT-2PTS Details PTFE PTFE 7 mm 26mm 9mm 969.75 396.5 23.8
CE-SC-MR128-PT-2PTS Details PTFE PTFE 8mm 12mm 3.5mm 115.5 54.75 33.6
CE-SC-MR148-PT-2PTS Details PTFE PTFE 8mm 14mm 4mm 173.75 77.25 31.5
CE-SC-688-PT-2PTS Details PTFE PTFE 8 mm 16mm 5mm 266 118.5 30.1
CE-SC-698-PT-2PTS Details PTFE PTFE 8mm 19mm 6mm 475.5 183.5 30.1
CE-SC-608-PT-2PTS Details PTFE PTFE 8 mm 22mm 7mm 699.75 275.75 28
CE-SC-628-PT-2PTS Details PTFE PTFE 8mm 24mm 8mm 708.25 284.5 23.8
CE-SC-638-PT-2PTS Details PTFE PTFE 8mm 28mm 9mm 969.75 396.5 23.8
CE-SC-679-PT-2PTS Details PTFE PTFE 9mm 14mm 4.5mm 195.25 93.5 29.4
CE-SC-689-PT-2PTS Details PTFE PTFE 9mm 17mm 5mm 282 133.5 30.1
CE-SC-699-PT-2PTS Details PTFE PTFE 9mm 20mm 6mm 524.25 216.25 28
CE-SC-609-PT-2PTS Details PTFE PTFE 9mm 24mm 7mm 713.25 288.75 26.6
CE-SC-629-PT-2PTS Details PTFE PTFE 9 mm 26mm 8mm 969.75 396.5 23.8
CE-SC-639-PT-2PTS Details PTFE PTFE 9mm 30mm 10mm 990 416 21
CE-SC-6700-PT-2PTS Details PTFE PTFE 10mm 15mm 4mm 214.25 108.75 11.9
CE-SC-63800-PT-2PTS Details PTFE PTFE 10mm 19mm 7mm 430 210 28
CE-SC-6800-PT-2PTS Details PTFE PTFE 10mm 19mm 5mm 430 210 28
CE-SC-6900-PT-2PTS Details PTFE PTFE 10mm 22mm 6mm 675 317.5 25.9
CE-SC-6000-PT-2PTS Details PTFE PTFE 10 mm 26mm 8mm 1137.5 487.5 25.2
CE-SC-6200-PT-2PTS Details PTFE PTFE 10 mm 30mm 9mm 1275 600 20.3
CE-SC-6300-PT-2PTS Details PTFE PTFE 10 mm 35mm 11mm 2025 862.5 18.9
CE-SC-6701-PT-2PTS Details PTFE PTFE 12mm 18mm 4mm 232 133 10.5
CE-SC-63801-PT-2PTS Details PTFE PTFE 12mm 21mm 7mm 480 260 25.2
CE-SC-6801-PT-2PTS Details PTFE PTFE 12mm 21mm 5mm 480 260 25.2
CE-SC-6901-PT-2PTS Details PTFE PTFE 12mm 24mm 6mm 722.5 365 23.1
CE-SC-6001-PT-2PTS Details PTFE PTFE 12 mm 28mm 8mm 1275 600 22.4
CE-SC-6201-PT-2PTS Details PTFE PTFE 12 mm 32mm 10mm 1700 762.5 18.9
CE-SC-6301-PT-2PTS Details PTFE PTFE 12 mm 37mm 12mm 2425 1050 17.5
CE-SC-6702-PT-2PTS Details PTFE PTFE 15mm 21mm 4mm 234.25 145.25 9.1
CE-SC-63802-PT-2PTS Details PTFE PTFE 15mm 24mm 7mm 517.5 315 21.7
CE-SC-6802-PT-2PTS Details PTFE PTFE 15mm 24mm 5mm 517.5 315 21.7
CE-SC-6902-PT-2PTS Details PTFE PTFE 15mm 28mm 7mm 1082.5 562.5 20.3
CE-SC-6002-PT-2PTS Details PTFE PTFE 15 mm 32mm 9mm 1400 712.5 18.9
CE-SC-6202-PT-2PTS Details PTFE PTFE 15 mm 35mm 11mm 1912.5 937.5 16.8
CE-SC-6302-PT-2PTS Details PTFE PTFE 15 mm 42mm 13mm 2850 1362.5 14
CE-SC-6703-PT-2PTS Details PTFE PTFE 17mm 23mm 4mm 249.75 164.25 7.7
CE-SC-63803-PT-2PTS Details PTFE PTFE 17mm 26mm 7mm 557.5 365 20.3
CE-SC-6803-PT-2PTS Details PTFE PTFE 17mm 26mm 5mm 557.5 365 20.3
CE-SC-6903-PT-2PTS Details PTFE PTFE 17mm 30mm 7mm 1147.5 640 18.2
CE-SC-6003-PT-2PTS Details PTFE PTFE 17 mm 35mm 10mm 1500 812.5 17.5
CE-SC-6203-PT-2PTS Details PTFE PTFE 17 mm 40mm 12mm 2387.5 1200 14.7
CE-SC-6303-PT-2PTS Details PTFE PTFE 17 mm 47mm 14mm 3400 1662.5 12.6
CE-SC-6704-PT-2PTS Details PTFE PTFE 20mm 27mm 4mm 252.5 180.5 7
CE-SC-63804-PT-2PTS Details PTFE PTFE 20mm 32mm 10mm 1005 615 17.5
CE-SC-6804-PT-2PTS Details PTFE PTFE 20mm 32mm 7mm 1005 615 17.5
CE-SC-6904-PT-2PTS Details PTFE PTFE 20mm 37mm 9mm 1595 920 15.4
CE-SC-6004-PT-2PTS Details PTFE PTFE 20 mm 42mm 12mm 2350 1262.5 14.7
CE-SC-6204-PT-2PTS Details PTFE PTFE 20 mm 47mm 14mm 3200 1662.5 11.9
CE-SC-6304-PT-2PTS Details PTFE PTFE 20 mm 52mm 15mm 3975 1962.5 11.9
CE-SC-6705-PT-2PTS Details PTFE PTFE 25mm 32mm 4mm 275 209.5 5.6
CE-SC-63805-PT-2PTS Details PTFE PTFE 25mm 37mm 10mm 1075 735 14.7
CE-SC-6805-PT-2PTS Details PTFE PTFE 25mm 37mm 7mm 1075 735 14.7
CE-SC-6905-PT-2PTS Details PTFE PTFE 25mm 42mm 9mm 1752.5 1137.5 13.3
CE-SC-6005-PT-2PTS Details PTFE PTFE 25 mm 47mm 12mm 2525 1462.5 12.6
CE-SC-6205-PT-2PTS Details PTFE PTFE 25 mm 52mm 15mm 3500 1962.5 10.5
CE-SC-6305-PT-2PTS Details PTFE PTFE 25 mm 62mm 17mm 5150 2825 9.1
CE-SC-6706-PT-2PTS Details PTFE PTFE 30mm 37mm 4mm 285 236.75 4.9
CE-SC-63806-PT-2PTS Details PTFE PTFE 30mm 42mm 10mm 1134.5 850.5 12.6
CE-SC-6806-PT-2PTS Details PTFE PTFE 30mm 42mm 7mm 1112.5 860 12.6
CE-SC-6906-PT-2PTS Details PTFE PTFE 30mm 47mm 9mm 1810 1252.5 11.9
CE-SC-6006-PT-2PTS Details PTFE PTFE 30 mm 55mm 13mm 3300 2062.5 10.5
CE-SC-6206-PT-2PTS Details PTFE PTFE 30 mm 62mm 16mm 4875 2825 9.1
CE-SC-6306-PT-2PTS Details PTFE PTFE 30 mm 72mm 19mm 6675 3750 8.4
CE-SC-6707-PT-2PTS Details PTFE PTFE 35mm 44mm 5mm 465 407.5 4.2
CE-SC-6807-PT-2PTS Details PTFE PTFE 35mm 47mm 7mm 1185 955 11.2
CE-SC-6907-PT-2PTS Details PTFE PTFE 35mm 55mm 10mm 2725 1937.5 9.8
CE-SC-6007-PT-2PTS Details PTFE PTFE 35 mm 62mm 14mm 3975 2575 9.1
CE-SC-6207-PT-2PTS Details PTFE PTFE 35 mm 72mm 17mm 6425 3850 7.7
CE-SC-6307-PT-2PTS Details PTFE PTFE 35 mm 80mm 21mm 8350 4825 7
CE-SC-6708-PT-2PTS Details PTFE PTFE 40mm 50mm 6mm 627.5 557.5 3.5
CE-SC-6808-PT-2PTS Details PTFE PTFE 40mm 52mm 7mm 1232.5 1045 9.8
CE-SC-6908-PT-2PTS Details PTFE PTFE 40mm 62mm 12mm 3425 2480 9.1
CE-SC-6008-PT-2PTS Details PTFE PTFE 40 mm 68mm 15mm 4175 2875 8.4
CE-SC-6208-PT-2PTS Details PTFE PTFE 40 mm 80mm 18mm 7275 4450 7
CE-SC-6308-PT-2PTS Details PTFE PTFE 40 mm 90mm 23mm 10175 6000 6.3
CE-SC-6709-PT-2PTS Details PTFE PTFE 45mm 55mm 6mm 642.5 600 3.22
CE-SC-6809-PT-2PTS Details PTFE PTFE 45mm 58mm 7mm 1552.5 1345 9.1
CE-SC-6909-PT-2PTS Details PTFE PTFE 45mm 68mm 12mm 3525 2725 7.7
CE-SC-6009-PT-2PTS Details PTFE PTFE 45 mm 75mm 16mm 5250 3775 5.6
CE-SC-6209-PT-2PTS Details PTFE PTFE 45 mm 85mm 19mm 8175 5075 6.44
CE-SC-6309-PT-2PTS Details PTFE PTFE 45 mm 100mm 25mm 13250 8000 5.6
CE-SC-6710-PT-2PTS Details PTFE PTFE 50mm 62mm 6mm 667.5 662.5 2.87
CE-SC-6810-PT-2PTS Details PTFE PTFE 50mm 65mm 7mm 1542.5 1440 7.7
CE-SC-6910-PT-2PTS Details PTFE PTFE 50mm 72mm 12mm 3625 2925 7.7
CE-SC-6010-PT-2PTS Details PTFE PTFE 50 mm 80mm 16mm 5450 4150 6.93
CE-SC-6210-PT-2PTS Details PTFE PTFE 50 mm 90mm 20mm 8775 5825 5.25
CE-SC-6310-PT-2PTS Details PTFE PTFE 50 mm 110mm 27mm 15500 9575 5.25
CE-SC-6811-PT-2PTS Details PTFE PTFE 55mm 72mm 9mm 2200 2020 7
CE-SC-6911-PT-2PTS Details PTFE PTFE 55mm 80mm 13mm 4150 3525 6.72
CE-SC-6011-PT-2PTS Details PTFE PTFE 55 mm 90mm 18mm 7075 5300 6.3
CE-SC-6211-PT-2PTS Details PTFE PTFE 55 mm 100mm 21mm 10850 7350 5.25
CE-SC-6311-PT-2PTS Details PTFE PTFE 55 mm 120mm 29mm 17900 11250 4.69
CE-SC-6812-PT-2PTS Details PTFE PTFE 60mm 78mm 10mm 2875 2650 6.58
CE-SC-6912-PT-2PTS Details PTFE PTFE 60mm 85mm 13mm 5050 4325 6.23
CE-SC-6012-PT-2PTS Details PTFE PTFE 60 mm 95mm 18mm 7350 5800 5.95
CE-SC-6212-PT-2PTS Details PTFE PTFE 60 mm 110mm 22mm 13100 9050 4.97
CE-SC-6312-PT-2PTS Details PTFE PTFE 60 mm 130mm 31mm 20475 13050 4.41
CE-SC-6813-PT-2PTS Details PTFE PTFE 65mm 85mm 10mm 2975 2875 6.02
CE-SC-6913-PT-2PTS Details PTFE PTFE 65mm 90mm 13mm 4325 4000 5.81
CE-SC-6013-PT-2PTS Details PTFE PTFE 65 mm 100mm 18mm 7625 6300 5.6
CE-SC-6213-PT-2PTS Details PTFE PTFE 65 mm 120mm 23mm 14300 10025 4.41
CE-SC-6313-PT-2PTS Details PTFE PTFE 65 mm 140mm 33mm 23175 14975 4.2
CE-SC-6814-PT-2PTS Details PTFE PTFE 70mm 90mm 10mm 2900 2950 5.67
CE-SC-6914-PT-2PTS Details PTFE PTFE 70mm 100mm 16mm 5925 5275 5.32
CE-SC-6014-PT-2PTS Details PTFE PTFE 70 mm 110mm 20mm 9525 7725 4.97
CE-SC-6214-PT-2PTS Details PTFE PTFE 70 mm 125mm 24mm 15550 11025 4.41
CE-SC-6314-PT-2PTS Details PTFE PTFE 70 mm 150mm 35mm 26000 17050 3.71
CE-SC-6815-PT-2PTS Details PTFE PTFE 75mm 95mm 10mm 3075 3200 5.32
CE-SC-6915-PT-2PTS Details PTFE PTFE 75mm 105mm 16mm 6000 5650 4.97
CE-SC-6015-PT-2PTS Details PTFE PTFE 75 mm 115mm 20mm 9900 8375 4.69
CE-SC-6215-PT-2PTS Details PTFE PTFE 75 mm 130mm 25mm 16850 12075 3.92
CE-SC-6315-PT-2PTS Details PTFE PTFE 75 mm 160mm 37mm 28250 19300 3.5
CE-SC-6816-PT-2PTS Details PTFE PTFE 80mm 100mm 10mm 3150 3325 4.97
CE-SC-6916-PT-2PTS Details PTFE PTFE 80mm 110mm 16mm 6200 5975 4.69
CE-SC-6016-PT-2PTS Details PTFE PTFE 80 mm 125mm 22mm 11900 9950 4.41
CE-SC-6216-PT-2PTS Details PTFE PTFE 80 mm 140mm 26mm 18175 13250 3.71
CE-SC-6316-PT-2PTS Details PTFE PTFE 80 mm 170mm 39mm 30750 21675 3.36
CE-SC-6817-PT-2PTS Details PTFE PTFE 85mm 110mm 13mm 4675 4750 4.62
CE-SC-6917-PT-2PTS Details PTFE PTFE 85mm 120mm 18mm 7975 7400 4.34
CE-SC-6017-PT-2PTS Details PTFE PTFE 85 mm 130mm 22mm 12375 10775 4.2
CE-SC-6217-PT-2PTS Details PTFE PTFE 85 mm 150mm 28mm 21000 15475 3.5
CE-SC-6317-PT-2PTS Details PTFE PTFE 85 mm 180mm 41mm 33250 24200 3.15
CE-SC-6818-PT-2PTS Details PTFE PTFE 90mm 115mm 13mm 4575 4875 4.34
CE-SC-6918-PT-2PTS Details PTFE PTFE 90mm 125mm 18mm 8200 7900 4.2
CE-SC-6018-PT-2PTS Details PTFE PTFE 90 mm 140mm 24mm 14550 12425 3.92
CE-SC-6218-PT-2PTS Details PTFE PTFE 90 mm 160mm 30mm 24025 17875 3.36
CE-SC-6318-PT-2PTS Details PTFE PTFE 90 mm 190mm 43mm 35750 26750 3.01
CE-SC-6819-PT-2PTS Details PTFE PTFE 95mm 120mm 13mm 4700 5075 4.13
CE-SC-6019-PT-2PTS Details PTFE PTFE 95 mm 145mm 24mm 15100 13475 3.71
CE-SC-6219-PT-2PTS Details PTFE PTFE 95 mm 170mm 32mm 27250 20475 3.15
CE-SC-6319-PT-2PTS Details PTFE PTFE 95 mm 200mm 45mm 38250 29750 3.71
CE-SC-6020-PT-2PTS Details PTFE PTFE 100 mm 150mm 24mm 15050 13550 3.71
CE-SC-6220-PT-2PTS Details PTFE PTFE 100 mm 180mm 34mm 30500 23275 3.01
CE-SC-6320-PT-2PTS Details PTFE PTFE 100 mm 215mm 47mm 43250 35250 2.38
CE-SC-6021-PT-2PTS Details PTFE PTFE 105 mm 160mm 26mm 18075 16450 3.36
CE-SC-6221-PT-2PTS Details PTFE PTFE 105 mm 190mm 36mm 33250 26250 2.8
CE-SC-6321-PT-2PTS Details PTFE PTFE 105 mm 225mm 49mm 46000 38250 2.24

Ceramic Bearing Details Cage Cage Bearing Dimension Dynamic Static Max
SiC Bore Dia Outer Dia Width radial radial Speed
CLI Bearing No. Type Type (d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-SC-R133-PT-2PKS Details PTFE PEEK 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0937" | 2.38 mm 31.145 11.1225 66.5
CE-SC-R1-5-PT-2PKS Details PTFE PEEK 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 117.905 35.5925 49.7
CE-SC-R144-PT-2PKS Details PTFE PEEK 0.125" | 3.175 mm 0.25" | 6.35 mm 0.1094" | 2.779 mm 60.065 18.91 56
CE-SC-R2-5-PT-2PKS Details PTFE PEEK 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 119.015 35.5925 46.9
CE-SC-R2-6-PT-2PKS Details PTFE PEEK 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1406" | 3.571 mm 135.7 45.605 44.1
CE-SC-R2-PT-2PKS Details PTFE PEEK 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 134.5875 43.38 46.9
CE-SC-R2A-PT-2PKS Details PTFE PEEK 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 135.7 45.605 44.1
CE-SC-R155-PT-2PKS Details PTFE PEEK 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 76.7475 30.0325 44.1
CE-SC-R156-PT-2PKS Details PTFE PEEK 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 76.7475 30.0325 44.1
CE-SC-R166-PT-2PKS Details PTFE PEEK 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 151.2725 54.5025 42
CE-SC-R3-PT-2PKS Details PTFE PEEK 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.196" | 4.978 mm 276.9625 97.8825 37.1
CE-SC-R3A-PT-2PKS Details PTFE PEEK 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1601-PT-2PKS Details PTFE PEEK 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 150 55 4.2
CE-SC-R168-PT-2PKS Details PTFE PEEK 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 78.9725 34.4825 39.2
CE-SC-R188-PT-2PKS Details PTFE PEEK 0.25" | 6.35 mm 0.5" | 12.7 mm 0.1875" | 4.763 mm 230.245 88.985 35
CE-SC-R4-PT-2PKS Details PTFE PEEK 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 314.78 124.5775 31.5
CE-SC-1602-PT-2PKS Details PTFE PEEK 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 158.75 60 4.2
CE-SC-R4A-PT-2PKS Details PTFE PEEK 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2812" | 7.142 mm 496.085 179.08 30.1
CE-SC-R1810-PT-2PKS Details PTFE PEEK 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 115.68 55.615 33.6
CE-SC-1603-PT-2PKS Details PTFE PEEK 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 186.25 77.5 4.2
CE-SC-1605-PT-2PKS Details PTFE PEEK 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 186.25 78.75 4.2
CE-SC-1604-PT-2PKS Details PTFE PEEK 0.375" | 9.525 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 187.5 80 4.2
CE-SC-R6-PT-2PKS Details PTFE PEEK 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 708.535 284.75 26.6
CE-SC-1606-PT-2PKS Details PTFE PEEK 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 187.5 80 4.2
CE-SC-1614-PT-2PKS Details PTFE PEEK 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 285 130 4.2
CE-SC-1607-PT-2PKS Details PTFE PEEK 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 253.75 107.5 4.2
CE-SC-1615-PT-2PKS Details PTFE PEEK 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 286.25 132.5 4.2
CE-SC-1620-PT-2PKS Details PTFE PEEK 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 422.5 200 4.2
CE-SC-1616-PT-2PKS Details PTFE PEEK 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 287.5 112.5 4.2
CE-SC-R8-PT-2PKS Details PTFE PEEK 0.5" | 12.7 mm 1.125" | 28.575 mm 0.3125" | 7.938 mm 287.25 127.75 22.4
CE-SC-1621-PT-2PKS Details PTFE PEEK 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 425 203.75 4.2
CE-SC-1622-PT-2PKS Details PTFE PEEK 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 427.5 206.25 4.2
CE-SC-1623-PT-2PKS Details PTFE PEEK 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 430 208.75 4.2
CE-SC-R10-PT-2PKS Details PTFE PEEK 0.625" | 15.875 mm 1.375" | 34.925 mm 0.3438" | 8.733 mm 396.25 183.75 17.5
CE-SC-1628-PT-2PKS Details PTFE PEEK 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 525 273.75 4.2
CE-SC-1633-PT-2PKS Details PTFE PEEK 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 525 280 4.2
CE-SC-1630-PT-2PKS Details PTFE PEEK 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 527.5 278.75 4.2
CE-SC-R12-PT-2PKS Details PTFE PEEK 0.75" | 19.05 mm 1.625" | 41.275 mm 0.4375" | 11.113 mm 619.25 294.25 14.7
CE-SC-1635-PT-2PKS Details PTFE PEEK 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 528.75 285 4.2
CE-SC-1638-PT-2PKS Details PTFE PEEK 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 567.5 322.5 4.2
CE-SC-R14-PT-2PKS Details PTFE PEEK 0.875" | 22.225 mm 1.875" | 47.625 mm 0.5" | 12.7 mm 664.5 326.75 8.4
CE-SC-1640-PT-2PKS Details PTFE PEEK 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 566.25 328.75 4.2
CE-SC-1641-PT-2PKS Details PTFE PEEK 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 565 336.25 4.2
CE-SC-R16-PT-2PKS Details PTFE PEEK 1" | 25.4 mm 2" | 50.8 mm 0.5" | 12.7 mm 663 326.75 7.7
CE-SC-R18-PT-2PKS Details PTFE PEEK 1.125" | 28.575 mm 2.125" | 53.975 mm 0.5" | 12.7 mm 873 454.25 7
CE-SC-1652-PT-2PKS Details PTFE PEEK 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900.75 570 4.2
CE-SC-R20-PT-2PKS Details PTFE PEEK 1.25" | 31.75 mm 2.25" | 57.15 mm 0.5" | 12.7 mm 923.75 496.5 6.3
CE-SC-1654-PT-2PKS Details PTFE PEEK 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 900 575 4.2
CE-SC-1657-PT-2PKS Details PTFE PEEK 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1100 625 4.2
CE-SC-1658-PT-2PKS Details PTFE PEEK 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1092.5 650 4.2
CE-SC-R22-PT-2PKS Details PTFE PEEK 1.375" | 34.925 mm 2.5" | 63.5 mm 0.5625" | 14.288 mm 1016.75 561.75 5.6
CE-SC-R24-PT-2PKS Details PTFE PEEK 1.5" | 38.1 mm 2.625" | 66.675 mm 0.5625" | 14.288 mm 1106.5 611.5 4.2
CE-SC-682-PT-2PKS Details PTFE PEEK 2mm 5mm 2.3mm 36 10 70
CE-SC-MR52-PT-2PKS Details PTFE PEEK 2 mm 5mm 2.5mm 36 10 70
CE-SC-692-PT-2PKS Details PTFE PEEK 2mm 6mm 3mm 70.25 19.75 63
CE-SC-MR62-PT-2PKS Details PTFE PEEK 2mm 6mm 2.5mm 70.25 19.75 63
CE-SC-602-PT-2PKS Details PTFE PEEK 2 mm 7mm 3.5mm 82 25.75 49.7
CE-SC-MR72-PT-2PKS Details PTFE PEEK 2 mm 7mm 3mm 82 25.75 52.5
CE-SC-682x-PT-2PKS Details PTFE PEEK 2.5mm 6mm 2.6mm 44.5 14.75 56
CE-SC-692x-PT-2PKS Details PTFE PEEK 2.5mm 7mm 3.5mm 82 25.75 52.5
CE-SC-602x-PT-2PKS Details PTFE PEEK 2.5mm 8mm 4mm 117.25 35.5 49.7
CE-SC-MR82x-PT-2PKS Details PTFE PEEK 2.5mm 8mm 2.5mm 118.5 36 46.9
CE-SC-MR63-PT-2PKS Details PTFE PEEK 3mm 6mm 2.5mm 44.5 14.75 56
CE-SC-683-PT-2PKS Details PTFE PEEK 3mm 7mm 3mm 66 22.5 52.5
CE-SC-693-PT-2PKS Details PTFE PEEK 3mm 8mm 4mm 118.5 36 46.9
CE-SC-MR83-PT-2PKS Details PTFE PEEK 3 mm 8mm 3mm 84 28.25 46.9
CE-SC-603-PT-2PKS Details PTFE PEEK 3mm 9mm 5mm 57.5 37.75 46.9
CE-SC-MR93-PT-2PKS Details PTFE PEEK 3mm 9mm 4mm 121.25 37.75 46.9
CE-SC-623-PT-2PKS Details PTFE PEEK 3 mm 10mm 4mm 134 43.75 42
CE-SC-633-PT-2PKS Details PTFE PEEK 3 mm 13mm 5mm 276.5 97.5 33.6
CE-SC-MR74-PT-2PKS Details PTFE PEEK 4mm 7mm 2.5mm 54.25 21.5 46.9
CE-SC-MR84-PT-2PKS Details PTFE PEEK 4 mm 8mm 3mm 84 28.25 46.9
CE-SC-684-PT-2PKS Details PTFE PEEK 4mm 9mm 4mm 136.25 45.5 44.1
CE-SC-MR104-PT-2PKS Details PTFE PEEK 4 mm 10mm 4mm 151 54.5 39.2
CE-SC-694-PT-2PKS Details PTFE PEEK 4mm 11mm 4mm 203.5 70 39.2
CE-SC-604-PT-2PKS Details PTFE PEEK 4mm 12mm 4mm 203.5 70 39.2
CE-SC-624-PT-2PKS Details PTFE PEEK 4 mm 13mm 5mm 276.5 97.5 33.6
CE-SC-634-PT-2PKS Details PTFE PEEK 4 mm 16mm 5mm 284.75 104.5 30.1
CE-SC-MR85-PT-2PKS Details PTFE PEEK 5mm 8mm 2.5mm 46.25 18 44.1
CE-SC-MR95-PT-2PKS Details PTFE PEEK 5mm 9mm 3mm 91.5 33.75 42
CE-SC-MR105-PT-2PKS Details PTFE PEEK 5mm 10mm 4mm 91.5 33.75 42
CE-SC-685-PT-2PKS Details PTFE PEEK 5mm 11mm 5mm 152.25 56.5 37.1
CE-SC-MR115-PT-2PKS Details PTFE PEEK 5mm 11mm 4mm 152.25 56.5 44.1
CE-SC-695-PT-2PKS Details PTFE PEEK 5mm 13mm 4mm 229 86.5 35
CE-SC-605-PT-2PKS Details PTFE PEEK 5mm 14mm 5mm 282.5 101.5 35
CE-SC-625-PT-2PKS Details PTFE PEEK 5 mm 16mm 5mm 367.5 135 30.1
CE-SC-635-PT-2PKS Details PTFE PEEK 5 mm 19mm 6mm 496.5 179.25 28
CE-SC-MR106-PT-2PKS Details PTFE PEEK 6mm 10mm 3mm 105.5 43.5 37.1
CE-SC-MR126-PT-2PKS Details PTFE PEEK 6mm 12mm 4mm 152.25 59 35
CE-SC-686-PT-2PKS Details PTFE PEEK 6mm 13mm 5mm 230 88.5 35
CE-SC-696-PT-2PKS Details PTFE PEEK 6mm 15mm 5mm 284.75 104.5 31.5
CE-SC-606-PT-2PKS Details PTFE PEEK 6 mm 17mm 6mm 481 169.25 31.5
CE-SC-626-PT-2PKS Details PTFE PEEK 6mm 19mm 6mm 496.5 179.25 28
CE-SC-636-PT-2PKS Details PTFE PEEK 6mm 22mm 7mm 708.25 284.5 25.2
CE-SC-MR117-PT-2PKS Details PTFE PEEK 7 mm 11mm 3mm 96.75 40.5 35
CE-SC-MR137-PT-2PKS Details PTFE PEEK 7mm 13mm 4mm 115 55.25 33.6
CE-SC-687-PT-2PKS Details PTFE PEEK 7 mm 14mm 5mm 249.25 102.5 35
CE-SC-697-PT-2PKS Details PTFE PEEK 7mm 17mm 5mm 341 143.75 30.1
CE-SC-607-PT-2PKS Details PTFE PEEK 7 mm 19mm 6mm 496.5 179.25 30.1
CE-SC-627-PT-2PKS Details PTFE PEEK 7 mm 22mm 7mm 698.5 275.75 25.2
CE-SC-637-PT-2PKS Details PTFE PEEK 7 mm 26mm 9mm 969.75 396.5 23.8
CE-SC-MR128-PT-2PKS Details PTFE PEEK 8mm 12mm 3.5mm 115.5 54.75 33.6
CE-SC-MR148-PT-2PKS Details PTFE PEEK 8mm 14mm 4mm 173.75 77.25 31.5
CE-SC-688-PT-2PKS Details PTFE PEEK 8 mm 16mm 5mm 266 118.5 30.1
CE-SC-698-PT-2PKS Details PTFE PEEK 8mm 19mm 6mm 475.5 183.5 30.1
CE-SC-608-PT-2PKS Details PTFE PEEK 8 mm 22mm 7mm 699.75 275.75 28
CE-SC-628-PT-2PKS Details PTFE PEEK 8mm 24mm 8mm 708.25 284.5 23.8
CE-SC-638-PT-2PKS Details PTFE PEEK 8mm 28mm 9mm 969.75 396.5 23.8
CE-SC-679-PT-2PKS Details PTFE PEEK 9mm 14mm 4.5mm 195.25 93.5 29.4
CE-SC-689-PT-2PKS Details PTFE PEEK 9mm 17mm 5mm 282 133.5 30.1
CE-SC-699-PT-2PKS Details PTFE PEEK 9mm 20mm 6mm 524.25 216.25 28
CE-SC-609-PT-2PKS Details PTFE PEEK 9mm 24mm 7mm 713.25 288.75 26.6
CE-SC-629-PT-2PKS Details PTFE PEEK 9 mm 26mm 8mm 969.75 396.5 23.8
CE-SC-639-PT-2PKS Details PTFE PEEK 9mm 30mm 10mm 990 416 21
CE-SC-6700-PT-2PKS Details PTFE PEEK 10mm 15mm 4mm 214.25 108.75 11.9
CE-SC-63800-PT-2PKS Details PTFE PEEK 10mm 19mm 7mm 430 210 28
CE-SC-6800-PT-2PKS Details PTFE PEEK 10mm 19mm 5mm 430 210 28
CE-SC-6900-PT-2PKS Details PTFE PEEK 10mm 22mm 6mm 675 317.5 25.9
CE-SC-6000-PT-2PKS Details PTFE PEEK 10 mm 26mm 8mm 1137.5 487.5 25.2
CE-SC-6200-PT-2PKS Details PTFE PEEK 10 mm 30mm 9mm 1275 600 20.3
CE-SC-6300-PT-2PKS Details PTFE PEEK 10 mm 35mm 11mm 2025 862.5 18.9
CE-SC-6701-PT-2PKS Details PTFE PEEK 12mm 18mm 4mm 232 133 10.5
CE-SC-63801-PT-2PKS Details PTFE PEEK 12mm 21mm 7mm 480 260 25.2
CE-SC-6801-PT-2PKS Details PTFE PEEK 12mm 21mm 5mm 480 260 25.2
CE-SC-6901-PT-2PKS Details PTFE PEEK 12mm 24mm 6mm 722.5 365 23.1
CE-SC-6001-PT-2PKS Details PTFE PEEK 12 mm 28mm 8mm 1275 600 22.4
CE-SC-6201-PT-2PKS Details PTFE PEEK 12 mm 32mm 10mm 1700 762.5 18.9
CE-SC-6301-PT-2PKS Details PTFE PEEK 12 mm 37mm 12mm 2425 1050 17.5
CE-SC-6702-PT-2PKS Details PTFE PEEK 15mm 21mm 4mm 234.25 145.25 9.1
CE-SC-63802-PT-2PKS Details PTFE PEEK 15mm 24mm 7mm 517.5 315 21.7
CE-SC-6802-PT-2PKS Details PTFE PEEK 15mm 24mm 5mm 517.5 315 21.7
CE-SC-6902-PT-2PKS Details PTFE PEEK 15mm 28mm 7mm 1082.5 562.5 20.3
CE-SC-6002-PT-2PKS Details PTFE PEEK 15 mm 32mm 9mm 1400 712.5 18.9
CE-SC-6202-PT-2PKS Details PTFE PEEK 15 mm 35mm 11mm 1912.5 937.5 16.8
CE-SC-6302-PT-2PKS Details PTFE PEEK 15 mm 42mm 13mm 2850 1362.5 14
CE-SC-6703-PT-2PKS Details PTFE PEEK 17mm 23mm 4mm 249.75 164.25 7.7
CE-SC-63803-PT-2PKS Details PTFE PEEK 17mm 26mm 7mm 557.5 365 20.3
CE-SC-6803-PT-2PKS Details PTFE PEEK 17mm 26mm 5mm 557.5 365 20.3
CE-SC-6903-PT-2PKS Details PTFE PEEK 17mm 30mm 7mm 1147.5 640 18.2
CE-SC-6003-PT-2PKS Details PTFE PEEK 17 mm 35mm 10mm 1500 812.5 17.5
CE-SC-6203-PT-2PKS Details PTFE PEEK 17 mm 40mm 12mm 2387.5 1200 14.7
CE-SC-6303-PT-2PKS Details PTFE PEEK 17 mm 47mm 14mm 3400 1662.5 12.6
CE-SC-6704-PT-2PKS Details PTFE PEEK 20mm 27mm 4mm 252.5 180.5 7
CE-SC-63804-PT-2PKS Details PTFE PEEK 20mm 32mm 10mm 1005 615 17.5
CE-SC-6804-PT-2PKS Details PTFE PEEK 20mm 32mm 7mm 1005 615 17.5
CE-SC-6904-PT-2PKS Details PTFE PEEK 20mm 37mm 9mm 1595 920 15.4
CE-SC-6004-PT-2PKS Details PTFE PEEK 20 mm 42mm 12mm 2350 1262.5 14.7
CE-SC-6204-PT-2PKS Details PTFE PEEK 20 mm 47mm 14mm 3200 1662.5 11.9
CE-SC-6304-PT-2PKS Details PTFE PEEK 20 mm 52mm 15mm 3975 1962.5 11.9
CE-SC-6705-PT-2PKS Details PTFE PEEK 25mm 32mm 4mm 275 209.5 5.6
CE-SC-63805-PT-2PKS Details PTFE PEEK 25mm 37mm 10mm 1075 735 14.7
CE-SC-6805-PT-2PKS Details PTFE PEEK 25mm 37mm 7mm 1075 735 14.7
CE-SC-6905-PT-2PKS Details PTFE PEEK 25mm 42mm 9mm 1752.5 1137.5 13.3
CE-SC-6005-PT-2PKS Details PTFE PEEK 25 mm 47mm 12mm 2525 1462.5 12.6
CE-SC-6205-PT-2PKS Details PTFE PEEK 25 mm 52mm 15mm 3500 1962.5 10.5
CE-SC-6305-PT-2PKS Details PTFE PEEK 25 mm 62mm 17mm 5150 2825 9.1
CE-SC-6706-PT-2PKS Details PTFE PEEK 30mm 37mm 4mm 285 236.75 4.9
CE-SC-63806-PT-2PKS Details PTFE PEEK 30mm 42mm 10mm 1134.5 850.5 12.6
CE-SC-6806-PT-2PKS Details PTFE PEEK 30mm 42mm 7mm 1112.5 860 12.6
CE-SC-6906-PT-2PKS Details PTFE PEEK 30mm 47mm 9mm 1810 1252.5 11.9
CE-SC-6006-PT-2PKS Details PTFE PEEK 30 mm 55mm 13mm 3300 2062.5 10.5
CE-SC-6206-PT-2PKS Details PTFE PEEK 30 mm 62mm 16mm 4875 2825 9.1
CE-SC-6306-PT-2PKS Details PTFE PEEK 30 mm 72mm 19mm 6675 3750 8.4
CE-SC-6707-PT-2PKS Details PTFE PEEK 35mm 44mm 5mm 465 407.5 4.2
CE-SC-6807-PT-2PKS Details PTFE PEEK 35mm 47mm 7mm 1185 955 11.2
CE-SC-6907-PT-2PKS Details PTFE PEEK 35mm 55mm 10mm 2725 1937.5 9.8
CE-SC-6007-PT-2PKS Details PTFE PEEK 35 mm 62mm 14mm 3975 2575 9.1
CE-SC-6207-PT-2PKS Details PTFE PEEK 35 mm 72mm 17mm 6425 3850 7.7
CE-SC-6307-PT-2PKS Details PTFE PEEK 35 mm 80mm 21mm 8350 4825 7
CE-SC-6708-PT-2PKS Details PTFE PEEK 40mm 50mm 6mm 627.5 557.5 3.5
CE-SC-6808-PT-2PKS Details PTFE PEEK 40mm 52mm 7mm 1232.5 1045 9.8
CE-SC-6908-PT-2PKS Details PTFE PEEK 40mm 62mm 12mm 3425 2480 9.1
CE-SC-6008-PT-2PKS Details PTFE PEEK 40 mm 68mm 15mm 4175 2875 8.4
CE-SC-6208-PT-2PKS Details PTFE PEEK 40 mm 80mm 18mm 7275 4450 7
CE-SC-6308-PT-2PKS Details PTFE PEEK 40 mm 90mm 23mm 10175 6000 6.3
CE-SC-6709-PT-2PKS Details PTFE PEEK 45mm 55mm 6mm 642.5 600 3.22
CE-SC-6809-PT-2PKS Details PTFE PEEK 45mm 58mm 7mm 1552.5 1345 9.1
CE-SC-6909-PT-2PKS Details PTFE PEEK 45mm 68mm 12mm 3525 2725 7.7
CE-SC-6009-PT-2PKS Details PTFE PEEK 45 mm 75mm 16mm 5250 3775 5.6
CE-SC-6209-PT-2PKS Details PTFE PEEK 45 mm 85mm 19mm 8175 5075 6.44
CE-SC-6309-PT-2PKS Details PTFE PEEK 45 mm 100mm 25mm 13250 8000 5.6
CE-SC-6710-PT-2PKS Details PTFE PEEK 50mm 62mm 6mm 667.5 662.5 2.87
CE-SC-6810-PT-2PKS Details PTFE PEEK 50mm 65mm 7mm 1542.5 1440 7.7
CE-SC-6910-PT-2PKS Details PTFE PEEK 50mm 72mm 12mm 3625 2925 7.7
CE-SC-6010-PT-2PKS Details PTFE PEEK 50 mm 80mm 16mm 5450 4150 6.93
CE-SC-6210-PT-2PKS Details PTFE PEEK 50 mm 90mm 20mm 8775 5825 5.25
CE-SC-6310-PT-2PKS Details PTFE PEEK 50 mm 110mm 27mm 15500 9575 5.25
CE-SC-6811-PT-2PKS Details PTFE PEEK 55mm 72mm 9mm 2200 2020 7
CE-SC-6911-PT-2PKS Details PTFE PEEK 55mm 80mm 13mm 4150 3525 6.72
CE-SC-6011-PT-2PKS Details PTFE PEEK 55 mm 90mm 18mm 7075 5300 6.3
CE-SC-6211-PT-2PKS Details PTFE PEEK 55 mm 100mm 21mm 10850 7350 5.25
CE-SC-6311-PT-2PKS Details PTFE PEEK 55 mm 120mm 29mm 17900 11250 4.69
CE-SC-6812-PT-2PKS Details PTFE PEEK 60mm 78mm 10mm 2875 2650 6.58
CE-SC-6912-PT-2PKS Details PTFE PEEK 60mm 85mm 13mm 5050 4325 6.23
CE-SC-6012-PT-2PKS Details PTFE PEEK 60 mm 95mm 18mm 7350 5800 5.95
CE-SC-6212-PT-2PKS Details PTFE PEEK 60 mm 110mm 22mm 13100 9050 4.97
CE-SC-6312-PT-2PKS Details PTFE PEEK 60 mm 130mm 31mm 20475 13050 4.41
CE-SC-6813-PT-2PKS Details PTFE PEEK 65mm 85mm 10mm 2975 2875 6.02
CE-SC-6913-PT-2PKS Details PTFE PEEK 65mm 90mm 13mm 4325 4000 5.81
CE-SC-6013-PT-2PKS Details PTFE PEEK 65 mm 100mm 18mm 7625 6300 5.6
CE-SC-6213-PT-2PKS Details PTFE PEEK 65 mm 120mm 23mm 14300 10025 4.41
CE-SC-6313-PT-2PKS Details PTFE PEEK 65 mm 140mm 33mm 23175 14975 4.2
CE-SC-6814-PT-2PKS Details PTFE PEEK 70mm 90mm 10mm 2900 2950 5.67
CE-SC-6914-PT-2PKS Details PTFE PEEK 70mm 100mm 16mm 5925 5275 5.32
CE-SC-6014-PT-2PKS Details PTFE PEEK 70 mm 110mm 20mm 9525 7725 4.97
CE-SC-6214-PT-2PKS Details PTFE PEEK 70 mm 125mm 24mm 15550 11025 4.41
CE-SC-6314-PT-2PKS Details PTFE PEEK 70 mm 150mm 35mm 26000 17050 3.71
CE-SC-6815-PT-2PKS Details PTFE PEEK 75mm 95mm 10mm 3075 3200 5.32
CE-SC-6915-PT-2PKS Details PTFE PEEK 75mm 105mm 16mm 6000 5650 4.97
CE-SC-6015-PT-2PKS Details PTFE PEEK 75 mm 115mm 20mm 9900 8375 4.69
CE-SC-6215-PT-2PKS Details PTFE PEEK 75 mm 130mm 25mm 16850 12075 3.92
CE-SC-6315-PT-2PKS Details PTFE PEEK 75 mm 160mm 37mm 28250 19300 3.5
CE-SC-6816-PT-2PKS Details PTFE PEEK 80mm 100mm 10mm 3150 3325 4.97
CE-SC-6916-PT-2PKS Details PTFE PEEK 80mm 110mm 16mm 6200 5975 4.69
CE-SC-6016-PT-2PKS Details PTFE PEEK 80 mm 125mm 22mm 11900 9950 4.41
CE-SC-6216-PT-2PKS Details PTFE PEEK 80 mm 140mm 26mm 18175 13250 3.71
CE-SC-6316-PT-2PKS Details PTFE PEEK 80 mm 170mm 39mm 30750 21675 3.36
CE-SC-6817-PT-2PKS Details PTFE PEEK 85mm 110mm 13mm 4675 4750 4.62
CE-SC-6917-PT-2PKS Details PTFE PEEK 85mm 120mm 18mm 7975 7400 4.34
CE-SC-6017-PT-2PKS Details PTFE PEEK 85 mm 130mm 22mm 12375 10775 4.2
CE-SC-6217-PT-2PKS Details PTFE PEEK 85 mm 150mm 28mm 21000 15475 3.5
CE-SC-6317-PT-2PKS Details PTFE PEEK 85 mm 180mm 41mm 33250 24200 3.15
CE-SC-6818-PT-2PKS Details PTFE PEEK 90mm 115mm 13mm 4575 4875 4.34
CE-SC-6918-PT-2PKS Details PTFE PEEK 90mm 125mm 18mm 8200 7900 4.2
CE-SC-6018-PT-2PKS Details PTFE PEEK 90 mm 140mm 24mm 14550 12425 3.92
CE-SC-6218-PT-2PKS Details PTFE PEEK 90 mm 160mm 30mm 24025 17875 3.36
CE-SC-6318-PT-2PKS Details PTFE PEEK 90 mm 190mm 43mm 35750 26750 3.01
CE-SC-6819-PT-2PKS Details PTFE PEEK 95mm 120mm 13mm 4700 5075 4.13
CE-SC-6019-PT-2PKS Details PTFE PEEK 95 mm 145mm 24mm 15100 13475 3.71
CE-SC-6219-PT-2PKS Details PTFE PEEK 95 mm 170mm 32mm 27250 20475 3.15
CE-SC-6319-PT-2PKS Details PTFE PEEK 95 mm 200mm 45mm 38250 29750 3.71
CE-SC-6020-PT-2PKS Details PTFE PEEK 100 mm 150mm 24mm 15050 13550 3.71
CE-SC-6220-PT-2PKS Details PTFE PEEK 100 mm 180mm 34mm 30500 23275 3.01
CE-SC-6320-PT-2PKS Details PTFE PEEK 100 mm 215mm 47mm 43250 35250 2.38
CE-SC-6021-PT-2PKS Details PTFE PEEK 105 mm 160mm 26mm 18075 16450 3.36
CE-SC-6221-PT-2PKS Details PTFE PEEK 105 mm 190mm 36mm 33250 26250 2.8
CE-SC-6321-PT-2PKS Details PTFE PEEK 105 mm 225mm 49mm 46000 38250 2.24

Home
