Single Row Angular Contact Ball Bearings with Different Contact Angles 15°/25°/30°/40°, CHROME STEEL AISI52100, METRIC sizes

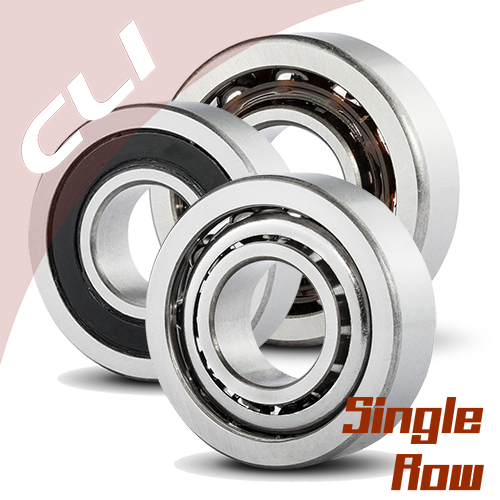

Original angular contact ball bearing single row 244

Product Picture

Single Row Angular Contact Ball Bearings
with Different Contact Angles, CHROME STEEL AISI52100, METRIC sizes

Angular ball bearings made of rolling bearing steel are economical, withstand extremely high load-ratings and are suitable by their rubber seals and metal cage for the use with temperatures from circa -10°C up to +100°C in the long run, in case of polyamide cages up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Single-row bearings handle thrust loads on one side. For applications with thrust loads on both sides, mount them in pairs. The raceways in these bearings are positioned off-center to handle angular (combined radial and thrust) loads. The main dimensions according to DIN 628-1. Usable in case of high loads in the radial or axial and single direction. Suitable for high speeds.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Single Row Angular Contact Ball Bearings
with Different Contact Angles, CHROME STEEL AISI52100, METRIC sizes
for shaft sizes from 10 mm to 200 mm

CLI BEAEING NO.	Contact Angel	Basic Dimensions				Static Load	Max Speed
	(Degree)	(mm)			Rating	Rating	(Grease)

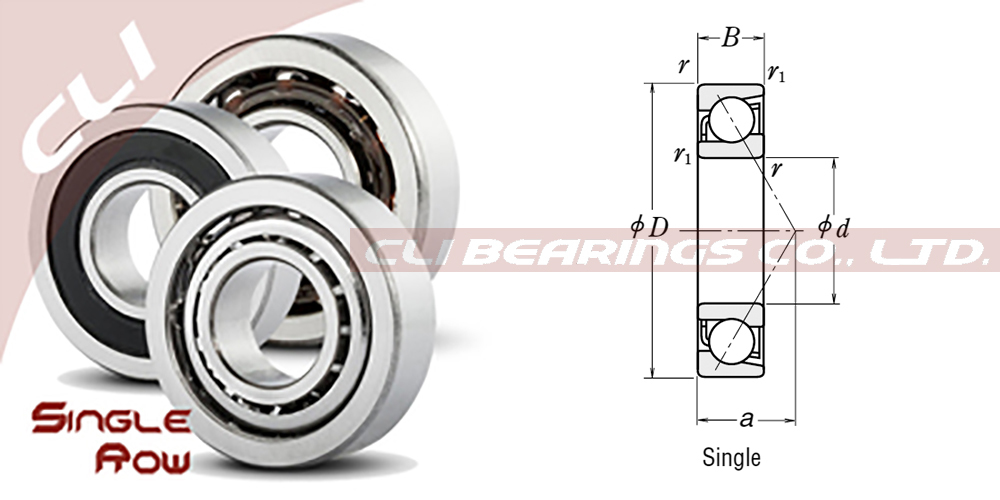

		Bore Dia (d)	Outer Dia (D)	Width (B)	(Cr) (KN)	(Cor) (KN)	(RPM)
7900A5TYN	25	10 mm	22 mm	6 mm	2.88	1.45	40000
7900CTYN	15	10 mm	22 mm	6 mm	3	1.52	48000
7000AW	30	10 mm	26 mm	8 mm	5.35	2.6	24000
7000CTYN	15	10 mm	26 mm	8 mm	5.3	2.49	45000
7200AW	30	10 mm	30 mm	9 mm	5.4	2.71	22000
7200BW	40	10 mm	30 mm	9 mm	5	2.5	16000
7200CTYN	15	10 mm	30 mm	9 mm	5.4	2.61	40000
7300AW	30	10 mm	35 mm	11 mm	9.3	4.3	16000
7300BW	40	10 mm	35 mm	11 mm	8.75	4.05	14000
7901A5TYN	25	12 mm	24 mm	6 mm	3.2	1.77	38000
7901CTYN	15	12 mm	24 mm	6 mm	3.35	1.86	45000
7001AW	30	12 mm	28 mm	8 mm	5.8	2.98	22000
7001CTYN	15	12 mm	28 mm	8 mm	5.8	2.9	40000
7201AW	30	12 mm	32 mm	10 mm	8	4.05	20000
7201BEAT85	40	12 mm	32 mm	10 mm	8.15	3.75	20000
7201BW	40	12 mm	32 mm	10 mm	7.45	3.75	15000
7201CTYN	15	12 mm	32 mm	10 mm	7.9	3.85	36000
7301AW	30	12 mm	37 mm	12 mm	9.45	4.5	15000
7301BEAT85	40	12 mm	37 mm	12 mm	11.1	4.95	18000
7301BW	40	12 mm	37 mm	12 mm	8.85	4.2	13000
7902A5TYN	25	15 mm	28 mm	7 mm	4.55	2.53	32000
7902CTYN	15	15 mm	28 mm	7 mm	4.75	2.64	38000
7002CTYN	15	15 mm	32 mm	9 mm	6.25	3.4	34000
7002AW	30	15 mm	32 mm	9 mm	6.1	3.45	19000
7202AW	30	15 mm	35 mm	11 mm	8.65	4.65	18000
7202BEAT85	40	15 mm	35 mm	11 mm	9.8	4.8	18000
7202BW	40	15 mm	35 mm	11 mm	7.95	4.3	13000
7202CTYN	15	15 mm	35 mm	11 mm	8.65	4.55	32000
7302AW	30	15 mm	42 mm	13 mm	13.4	7.1	13000
7302BEAT85	40	15 mm	42 mm	13 mm	14.3	6.9	16000
7302BW	40	15 mm	42 mm	13 mm	12.5	6.6	11000
7903A5TYN	25	17 mm	30 mm	7 mm	4.75	2.8	30000
7903CTYN	15	17 mm	30 mm	7 mm	5	2.94	34000
7003AW	30	17 mm	35 mm	10 mm	6.4	3.8	17000
7003CTYN	15	17 mm	35 mm	10 mm	6.6	3.8	32000
7203AW	30	17 mm	40 mm	12 mm	10.8	6	16000
7203BEAT85	40	17 mm	40 mm	12 mm	11.6	6.1	16000
7203BW	40	17 mm	40 mm	12 mm	9.95	5.5	11000
7203CTYN	15	17 mm	40 mm	12 mm	10.9	5.85	28000
7303AW	30	17 mm	47 mm	14 mm	15.9	8.65	11000
7303BEAT85	40	17 mm	47 mm	14 mm	16.8	8.3	14000
7303BW	40	17 mm	47 mm	14 mm	14.8	8	10000
7904A5TYN	25	20 mm	37 mm	9 mm	6.6	4.05	24000
7904CTYN	15	20 mm	37 mm	9 mm	6.95	4.25	28000
7004AW	30	20 mm	42 mm	12 mm	10.8	6.6	14000
7004CTYN	15	20 mm	42 mm	12 mm	11.1	6.55	26000
7204BEAT85	40	20 mm	47 mm	14 mm	15.6	8.15	13000
7204AW	30	20 mm	47 mm	14 mm	14.5	8.3	13000
7204BW	40	20 mm	47 mm	14 mm	13.3	7.65	9500
7204CTYN	15	20 mm	47 mm	14 mm	14.6	8.05	24000
7304AW	30	20 mm	52 mm	15 mm	18.7	10.4	10000
7304BEAT85	40	20 mm	52 mm	15 mm	19.8	10.5	13000
7304BW	40	20 mm	52 mm	15 mm	17.3	9.65	9000
7905A5TYN	25	25 mm	42 mm	9 mm	7.45	5.15	20000
7905CTYN	15	25 mm	42 mm	9 mm	7.85	5.4	24000
7005AW	30	25 mm	47 mm	12 mm	11.3	7.4	12000
7005CTYN	15	25 mm	47 mm	12 mm	11.7	7.4	22000
7205AW	30	25 mm	52 mm	15 mm	16.2	10.3	12000
7205BEAT85	40	25 mm	52 mm	15 mm	17.6	10.2	12000
7205BW	40	25 mm	52 mm	15 mm	14.8	9.4	8500
7205CTYN	15	25 mm	52 mm	15 mm	16.6	10.2	22000
7305AW	30	25 mm	62 mm	17 mm	26.4	15.8	8500
7305BEAT85	40	25 mm	62 mm	17 mm	27.2	14.9	10000
7305BW	40	25 mm	62 mm	17 mm	24.4	14.6	7500
7906A5TYN	25	30 mm	47 mm	9 mm	7.85	5.95	18000
7906CTYN	15	30 mm	47 mm	9 mm	8.3	6.25	22000
7006AW	30	30 mm	55 mm	13 mm	14.5	10.1	11000
7006CTYN	15	30 mm	55 mm	13 mm	15.1	10.3	19000
7206AW	30	30 mm	62 mm	16 mm	22.5	14.8	9500
7206BEAT85	40	30 mm	62 mm	16 mm	23.7	14.3	10000
7206BW	40	30 mm	62 mm	16 mm	20.5	13.5	7100
7206CTYN	15	30 mm	62 mm	16 mm	23	14.7	18000
7306AW	30	30 mm	72 mm	19 mm	33.5	20.9	7100
7306BW	40	30 mm	72 mm	19 mm	31	19.3	6300
7306BEAT85	40	30 mm	72 mm	19 mm	36.5	20.6	9000
7907A5TYN	25	35 mm	55 mm	10 mm	11.4	8.7	15000
7907CTYN	15	35 mm	55 mm	10 mm	12.1	9.15	18000
7007AW	30	35 mm	62 mm	14 mm	18.3	13.4	9000
7007CTYN	15	35 mm	62 mm	14 mm	19.1	13.7	17000
7207AW	30	35 mm	72 mm	17 mm	29.7	20.1	8500
7207BEAT85	40	35 mm	72 mm	17 mm	32.5	19.6	8500
7207BW	40	35 mm	72 mm	17 mm	27.1	18.4	6000
7307BW	40	35 mm	80 mm	21 mm	36.5	24.2	5600
7307BEAW	40	35 mm	80 mm	21 mm	40.5	24.4	5600
7307BEAT85	40	35 mm	80 mm	21 mm	40.5	24.4	8000
7307AW	30	35 mm	80 mm	21 mm	40	26.3	6300
7207C	15	35 mm	72 mm	17 mm	30.5	19.9	15000
7008AW	30	40 mm	68 mm	15 mm	19.5	15.4	8500
7908CTYN	15	40 mm	62 mm	12 mm	15.1	11.7	16000
7908A5TYN	25	40 mm	62 mm	12 mm	14.3	11.2	14000
7008C	15	40 mm	68 mm	15 mm	20.6	15.9	15000
7208AW	30	40 mm	80 mm	18 mm	35.5	25.1	7500
7208BEAT85	40	40 mm	80 mm	18 mm	38.5	24.5	7500
7208BW	40	40 mm	80 mm	18 mm	32	23	5300
7208C	15	40 mm	80 mm	18 mm	36.5	25.2	14000
7308AW	30	40 mm	90 mm	23 mm	49	33	5600
7308BEAT85	40	40 mm	90 mm	23 mm	53	33	7100
7308BEAW	40	40 mm	90 mm	23 mm	53	33	5000
7308BW	40	40 mm	90 mm	23 mm	45	30.5	5000
7909A5	25	45 mm	68 mm	12 mm	15.1	12.7	12000
7909C	15	45 mm	68 mm	12 mm	16	13.4	14000
7009AW	30	45 mm	75 mm	16 mm	23.1	18.7	7500
7009C	15	45 mm	75 mm	16 mm	24.4	19.3	14000
7209AW	30	45 mm	85 mm	85 mm	39.5	28.7	6700
7209BEAT85	40	45 mm	85 mm	19 mm	40.5	27.1	7100
7209BW	40	45 mm	85 mm	19 mm	36	26.2	5000
7209C	15	45 mm	85 mm	19 mm	41	28.8	12000
7309AW	30	45 mm	100 mm	25 mm	63.5	43.5	5000
7309BEAT85	40	45 mm	100 mm	25 mm	62.5	39.5	6300
7309BEAW	40	45 mm	100 mm	25 mm	62.5	39.5	4500
7309BW	40	45 mm	100 mm	25 mm	58.5	40	4500
7910A5	25	50 mm	72 mm	12 mm	15.9	14.2	11000
7910C	15	50 mm	72 mm	12 mm	16.9	15	13000
7010AW	30	50 mm	80 mm	16 mm	24.5	21.1	6700
7010C	15	50 mm	80 mm	16 mm	26	21.9	12000
7210AW	30	50 mm	90 mm	20 mm	41.5	31.5	6300
7210BEAT85	40	50 mm	90 mm	20 mm	42	29.7	6300
7210BW	40	50 mm	90 mm	20 mm	37.5	28.6	4500
7210C	15	50 mm	90 mm	20 mm	43	31.5	12000
7310AW	30	50 mm	110 mm	27 mm	74	52	4500
7310BEAT85	40	50 mm	110 mm	27 mm	78	50.5	5600
7310BEAW	40	50 mm	110 mm	27 mm	78	50.5	4000
7310BW	40	50 mm	110 mm	27 mm	68	48	4000
7911A5	25	55 mm	80 mm	13 mm	18.1	16.8	10000
7911C	15	55 mm	80 mm	13 mm	19.1	17.7	12000
7011AW	30	55 mm	90 mm	18 mm	32.5	27.7	6300
7011C	15	55 mm	90 mm	18 mm	34	28.6	11000
7211AW	30	55 mm	100 mm	21 mm	51	39.5	5600
7211BEAT85	40	55 mm	100 mm	21 mm	51.5	37	6000
7211BW	40	55 mm	100 mm	21 mm	46.5	36	4000
7211C	15	55 mm	100 mm	21 mm	53	40	10000
7311AW	30	55 mm	120 mm	29 mm	86	61.5	4000
7311BEAT85	40	55 mm	120 mm	29 mm	89	58.5	5000
7311BEAW	40	55 mm	120 mm	29 mm	89	58.5	3600
7311BW	40	55 mm	120 mm	29 mm	79	56.5	3600
7912A5	25	60 mm	85 mm	13 mm	18.3	17.7	9500
7912C	15	60 mm	85 mm	13 mm	19.4	18.7	11000
7012AW	30	60 mm	95 mm	18 mm	33	29.5	5600
7012C	15	60 mm	95 mm	18 mm	35	30.5	10000
7212AW	30	60 mm	110 mm	22 mm	62	48.5	5300
7212BEAT85	40	60 mm	110 mm	22 mm	61.5	45	5300
7212BW	40	60 mm	110 mm	22 mm	56	44.5	3800
7212C	15	60 mm	110 mm	22 mm	64	49	9500
7312AW	30	60 mm	130 mm	31 mm	98	71.5	3800
7312BEAT85	40	60 mm	130 mm	31 mm	102	68.5	4800
7312BEAW	40	60 mm	130 mm	31 mm	102	68.5	3400
7913C	15	65 mm	90 mm	13 mm	20.2	20.5	10000
7913A5	25	65 mm	90 mm	13 mm	19.1	19.4	9000
7013AW	30	65 mm	100 mm	18 mm	35	33	5300
7013C	15	65 mm	100 mm	18 mm	37	34.5	10000
7213AW	30	65 mm	120 mm	23 mm	70.5	58	4800
7213BEAT85	40	65 mm	120 mm	23 mm	70	53.5	4800
7213BW	40	65 mm	120 mm	23 mm	63.5	52.5	3400
7213C	15	65 mm	120 mm	23 mm	73	58.5	9000
7313AW	30	65 mm	140 mm	33 mm	111	82	3600
7313BEAT85	40	65 mm	140 mm	33 mm	114	77	4300
7313BEAW	40	65 mm	140 mm	33 mm	114	77	3200
7914A5	25	70 mm	100 mm	16 mm	26.5	26.3	8000
7914C	15	70 mm	100 mm	16 mm	28.1	27.8	9500
7014AW	30	70 mm	110 mm	20 mm	44	41.5	5000
7014C	15	70 mm	110 mm	20 mm	47	43	9000
7214AW	30	70 mm	125 mm	24 mm	76.5	63.5	4500
7214BEAT85	40	70 mm	125 mm	24 mm	75.5	58.5	4500
7214BW	40	70 mm	125 mm	24 mm	69	58	3200
7214C	15	70 mm	125 mm	24 mm	79.5	64.5	8500
7314AW	30	70 mm	150 mm	35 mm	125	93.5	3200
7314BEAT85	40	70 mm	150 mm	35 mm	124	87.5	4000
7314BEAW	40	70 mm	150 mm	35 mm	124	87.5	2800
7915A5	25	75 mm	105 mm	16 mm	26.9	27.7	7500
7915C	15	75 mm	105 mm	16 mm	28.6	29.3	9000
7015AW	30	75 mm	115 mm	20 mm	45	43.5	4800
7015C	15	75 mm	115 mm	20 mm	48	45.5	8500
7215AW	30	75 mm	130 mm	25 mm	76	64.5	4300
7215BEAT85	40	75 mm	130 mm	25 mm	78.5	63.5	4300
7215BW	40	75 mm	130 mm	25 mm	68.5	58.5	3200
7215C	15	75 mm	130 mm	25 mm	83	70	8000
7315AW	30	75 mm	160 mm	37 mm	136	106	3000
7315BEAT85	40	75 mm	160 mm	37 mm	134	98.5	3800
7315BEAW	40	75 mm	160 mm	37 mm	134	98.5	2800
7916A5	25	80 mm	110 mm	16 mm	27.3	29	7100
7916C	15	80 mm	110 mm	16 mm	29	30.5	8500
7016AW	30	80 mm	125 mm	22 mm	55	53	4300
7016C	15	80 mm	125 mm	22 mm	58.5	55.5	8000
7216AW	30	80 mm	140 mm	26 mm	89	76	4000
7216BEAT85	40	80 mm	140 mm	26 mm	87.5	70	4000
7216BW	40	80 mm	140 mm	26 mm	80.5	69.5	2800
7216C	15	80 mm	140 mm	26 mm	93	77.5	7500
7316AW	30	80 mm	170 mm	39 mm	147	119	2800
7316BEAT85	40	80 mm	170 mm	39 mm	144	110	3600
7316BEAW	40	80 mm	170 mm	39 mm	144	110	2600
7917A5	25	85 mm	120 mm	18 mm	36.5	38.5	6700
7917C	15	85 mm	120 mm	18 mm	39	40.5	8000
7017AW	30	85 mm	130 mm	22 mm	56.5	56	4300
7017C	15	85 mm	130 mm	22 mm	60	58.5	7500
7217AW	30	85 mm	150 mm	28 mm	103	89	3800
7217BEAT85	40	85 mm	150 mm	28 mm	101	81.5	3800
7217BW	40	85 mm	150 mm	28 mm	93	81	2800
7217C	15	85 mm	150 mm	28 mm	107	90.5	6700
7317AW	30	85 mm	180 mm	41 mm	159	133	2600
7317BEAT85	40	85 mm	180 mm	41 mm	164	133	3400
7317BW	40	85 mm	180 mm	41 mm	146	122	2400
7918A5	25	90 mm	125 mm	18 mm	39.5	43.5	6300
7918C	15	90 mm	125 mm	18 mm	41.5	46	7500
7018AW	30	90 mm	140 mm	24 mm	67.5	66.5	3800
7018C	15	90 mm	140 mm	24 mm	71.5	69	7100
7218AW	30	90 mm	160 mm	30 mm	118	103	3600
7218BEAT85	40	90 mm	160 mm	30 mm	115	93.5	3600
7218BW	40	90 mm	160 mm	30 mm	107	94	2600
7218C	15	90 mm	160 mm	30 mm	123	105	6300
7318AW	30	90 mm	190 mm	43 mm	171	147	2600
7318BEAT85	40	90 mm	190 mm	43 mm	177	146	3200
7318BW	40	90 mm	190 mm	43 mm	156	135	2200
7919A5	25	95 mm	130 mm	18 mm	40	45.5	6000
7219AW	30	95 mm	170 mm	32 mm	128	111	3400
7919C	15	95 mm	130 mm	18 mm	42.5	48	7100
7019A	30	95 mm	145 mm	24 mm	67	67	4500
7019C	15	95 mm	145 mm	24 mm	73.5	73	6700
7219BEAT85	40	95 mm	170 mm	32 mm	130	107	3400
7219BW	40	95 mm	170 mm	32 mm	116	101	2400
7219C	15	95 mm	170 mm	32 mm	133	112	6000
7319BEAT85	40	95 mm	200 mm	45 mm	189	160	3000
7319AW	30	95 mm	200 mm	45 mm	183	162	2400
7319BW	40	95 mm	200 mm	45 mm	167	149	2200
7920A5	25	100 mm	140 mm	20 mm	47.5	51.5	5600
7920C	15	100 mm	140 mm	20 mm	50	54	6700
7020A	30	100 mm	150 mm	24 mm	68.5	70.5	4500
7020C	15	100 mm	150 mm	24 mm	75.5	77	6300
7220AW	30	100 mm	180 mm	34 mm	144	126	3200
7220BEAT85	40	100 mm	180 mm	34 mm	143	122	3200
7220BW	40	100 mm	180 mm	34 mm	130	114	2200
7220C	15	100 mm	180 mm	34 mm	149	127	5600
7320AW	30	100 mm	215 mm	47 mm	207	193	2200
7320BEAT85	40	100 mm	215 mm	47 mm	212	187	2800
7320BW	40	100 mm	215 mm	47 mm	190	178	2000
7921A5	25	105 mm	145 mm	20 mm	48	54	5600
7921C	15	105 mm	145 mm	20 mm	51	57	6300
7021A	30	105 mm	160 mm	26 mm	80	81.5	4300
7021C	15	105 mm	160 mm	26 mm	88	89.5	6000
7221AW	30	105 mm	190 mm	36 mm	157	142	3000
7221BEAT85	40	105 mm	190 mm	36 mm	155	133	3000
7221BW	40	105 mm	190 mm	36 mm	142	129	2200
7221C	15	105 mm	190 mm	36 mm	162	143	5300
7321A	30	105 mm	225 mm	49 mm	208	193	2600
7321B	40	105 mm	225 mm	49 mm	191	177	2400
7321BEAT85	40	105 mm	225 mm	49 mm	224	203	2600
7922A5	25	110 mm	150 mm	20 mm	49	56	5300
7922C	15	110 mm	150 mm	20 mm	52	59.5	6300
7022A	30	110 mm	170 mm	28 mm	96.5	95.5	4000
7022C	15	110 mm	170 mm	28 mm	106	104	5600
7222AW	30	110 mm	200 mm	38 mm	170	158	2800
7222BEAT85	40	110 mm	200 mm	38 mm	162	144	2800
7222BW	40	110 mm	200 mm	38 mm	154	144	2000
7222C	15	110 mm	200 mm	38 mm	176	160	5000
7322A	30	110 mm	240 mm	50 mm	220	215	2600
7322B	40	110 mm	240 mm	50 mm	201	197	2200
7322BEAT85	40	110 mm	240 mm	50 mm	237	226	2600
7924A5	25	120 mm	165 mm	22 mm	67.5	77	4800
7924C	15	120 mm	165 mm	22 mm	72	81	5600
7024A	30	120 mm	180 mm	28 mm	102	107	3600
7224A	30	120 mm	215 mm	40 mm	183	177	3200
7224B	40	120 mm	215 mm	40 mm	165	162	2400
7224BEAT85	40	120 mm	215 mm	40 mm	188	177	2600
7324A	30	120 mm	260 mm	55 mm	246	252	2200
7324B	40	120 mm	260 mm	55 mm	225	231	2000
7324BEAT85	40	120 mm	260 mm	55 mm	249	250	2200
7926A5	25	130 mm	180 mm	24 mm	74	86	4300
7926C	15	130 mm	180 mm	24 mm	78.5	91	5000
7026A	30	130 mm	200 mm	33 mm	117	125	3400
7226A	30	130 mm	230 mm	40 mm	189	193	2400
7226B	40	130 mm	230 mm	40 mm	171	175	2200
7326A	30	130 mm	280 mm	58 mm	273	293	2200
7326B	40	130 mm	280 mm	58 mm	250	268	1900
7928A5	25	140 mm	190 mm	24 mm	75	90	4000
7928C	15	140 mm	190 mm	24 mm	79.5	95.5	4800
7028A	30	140 mm	210 mm	33 mm	120	133	3200
7228A	30	140 mm	250 mm	42 mm	218	234	2200
7228B	40	140 mm	250 mm	42 mm	197	213	2000
7328A	30	140 mm	300 mm	62 mm	300	335	2000
7328B	40	140 mm	300 mm	62 mm	275	310	1700
7930A5	25	150 mm	210 mm	28 mm	96.5	115	3800
7930C	15	150 mm	210 mm	28 mm	102	122	4300
7030A	30	150 mm	225 mm	35 mm	137	154	2400
7230A	30	150 mm	270 mm	45 mm	248	280	2000
7230B	40	150 mm	270 mm	45 mm	225	254	1800
7330A	30	150 mm	320 mm	65 mm	315	370	1800
7330B	40	150 mm	320 mm	65 mm	289	340	1600
7932C	15	160 mm	220 mm	28 mm	106	133	3800
7032A	30	160 mm	240 mm	38 mm	155	176	2200
7232A	30	160 mm	290 mm	48 mm	263	305	1900
7232B	40	160 mm	290 mm	48 mm	238	279	1700
7332A	30	160 mm	340 mm	68 mm	345	420	1700
7332B	40	160 mm	340 mm	68 mm	315	385	1500
7934C	15	170 mm	230 mm	28 mm	113	148	3600
7034A	30	170 mm	260 mm	42 mm	186	214	2000
7234A	30	170 mm	310 mm	52 mm	295	360	1800
7234B	40	170 mm	310 mm	52 mm	266	325	1600
7334A	30	170 mm	360 mm	72 mm	390	485	1600
7334B	40	170 mm	360 mm	72 mm	355	445	1400
7236B	40	180 mm	320 mm	52 mm	276	350	1500
7936C	15	180 mm	250 mm	33 mm	145	184	3200
7036A	30	180 mm	280 mm	46 mm	207	252	1900
7236A	30	180 mm	320 mm	52 mm	305	385	1700
7336B	40	180 mm	380 mm	75 mm	375	490	1300
7336A	30	180 mm	380 mm	75 mm	410	535	1500
7938C	15	190 mm	260 mm	33 mm	147	192	3000
7038A	30	190 mm	290 mm	46 mm	224	280	1800
7238A	30	190 mm	340 mm	55 mm	315	410	1600
7238B	40	190 mm	340 mm	55 mm	284	375	1400
7338A	30	190 mm	400 mm	78 mm	450	600	1400
7338B	40	190 mm	400 mm	78 mm	410	550	1300
7940C	15	200 mm	280 mm	38 mm	189	244	2800
7040A	30	200 mm	310 mm	51 mm	240	310	1700
7240A	30	200 mm	360 mm	58 mm	335	450	1500
7240B	40	200 mm	360 mm	58 mm	305	410	1300
7340A	30	200 mm	420 mm	80 mm	475	660	1300
7340B	40	200 mm	420 mm	80 mm	430	600	1200

* Suffix Descriptions:

Symbal		Meaning
A	→	Contact Angel 30°
B	→	Contact Angel 40°
C	→	Contact Angel 15°
A5	→	Contact Angel 25°
DB	→	Back to Back Type
DF	→	Face to Face Type
DT	→	Tandem Type
HPS	→	Polymide Cage

Ball Bearings-Angular Contact Ball Bearings-Single Row Angular Contact Ball Bearings with Different Contact Angles 15°/25°/30°/40°, CHROME STEEL AISI52100, METRIC sizes
