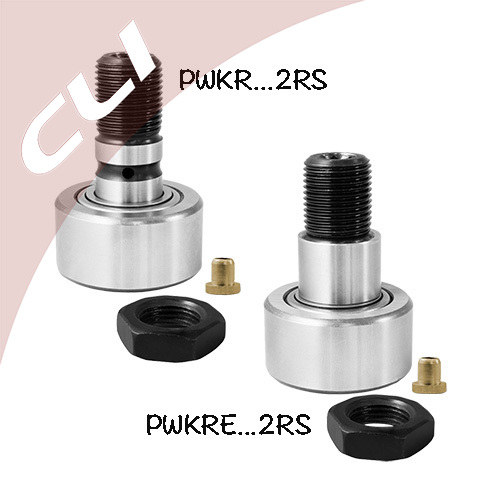

| Stud track rollers PWKR...2RS-XL / PWKRE...2RS-XL ( METRIC size ) |
 |

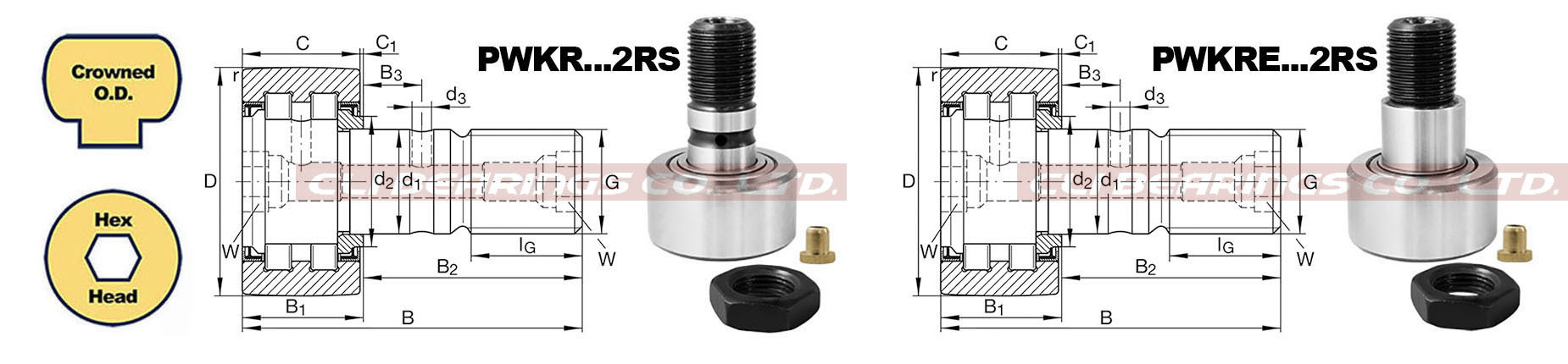

| CLI Part Number | Dimension (mm) | Load Rating (N) | Limiting Speed | ||||||||||||||||
| Witout Eccentric Collar | With Eccentric Collar | D | d1 | B | B1 Max |
B2 | B3 | C | C1 | d3 | G | lG | W | de | Be | e | Dynamic | Static | (RPM) |
| PWKR35-2RS-XL | -- | 35 | 16 | 52 | 20 | 33 | 7.8 | 18 | 0.8 | 3 | 16XM1.5 | 17 | 8 | -- | -- | -- | 12600 | 14600 | 6000 |
| -- | PWKRE35-2RS-XL | 35 | 16 | 52 | 23 | 30 | -- | 18 | 3.8 | -- | 16XM1.5 | 17 | 8 | 20 | 12 | 1 | 12600 | 14600 | 6000 |
| PWKR40-2RS-XL | -- | 40 | 18 | 58 | 22 | 37 | 8 | 20 | 0.8 | 3 | 18XM1.5 | 19 | 8 | -- | -- | -- | 14300 | 17900 | 5000 |
| -- | PWKRE40-2RS-XL | 40 | 18 | 58 | 25 | 34 | -- | 20 | 3.8 | -- | 18XM1.5 | 19 | 8 | 22 | 14 | 1 | 14300 | 17900 | 5000 |
| PWKR47-2RS-XL | PWKRE47-2RS-XL | 47 | 20 | 66 | 26 | 41 | 9 | 24 | 0.8 | 4 | 20XM1.5 | 21 | 10 | 24 | 18 | 1 | 24500 | 30500 | 3800 |
| PWKR52-2RS-XL | PWKRE52-2RS-XL | 52 | 20 | 66 | 26 | 41 | 9 | 24 | 0.8 | 4 | 20XM1.5 | 21 | 10 | 24 | 18 | 1 | 25000 | 33000 | 3800 |
| PWKR62-2RS-XL | PWKRE62-2RS-XL | 62 | 24 | 80 | 31 | 50 | 11 | 28 | 1.3 | 4 | 24XM1.5 | 25 | 14 | 28 | 22 | 1 | 35000 | 45500 | 2200 |
| PWKR72-2RS-XL | PWKRE72-2RS-XL | 72 | 24 | 80 | 31 | 50 | 11 | 28 | 1.3 | 4 | 24XM1.5 | 25 | 14 | 28 | 22 | 1 | 38500 | 54000 | 2200 |
| PWKR80-2RS-XL | PWKRE80-2RS-XL | 80 | 30 | 100 | 37 | 63 | 15 | 35 | 1 | 4 | 30XM1.5 | 32 | 14 | 35 | 29 | 1.5 | 56000 | 79000 | 1800 |
| PWKR90-2RS-XL | PWKRE90-2RS-XL | 90 | 30 | 100 | 37 | 63 | 15 | 35 | 1 | 4 | 30X1.5 | 32 | 14 | 35 | 29 | 1.5 | 62000 | 92000 | 1800 |
