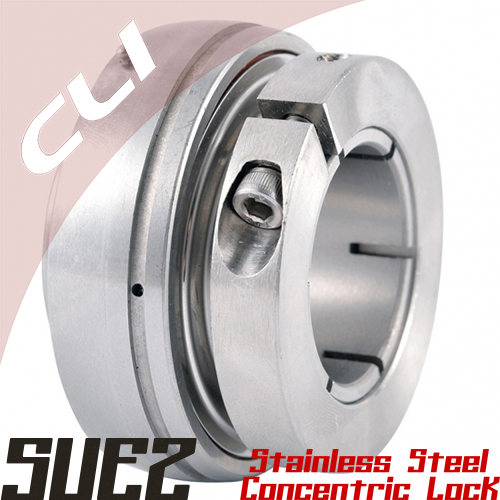

SUE2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Wider Inner Ring, Concentric Locking,
Metric Size & Inch Size
|
|
SUE type ball bearing is UE type bearing made in stainless steel SUS440C or SUS304.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SUE2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Wider Inner Ring, Concentric Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |

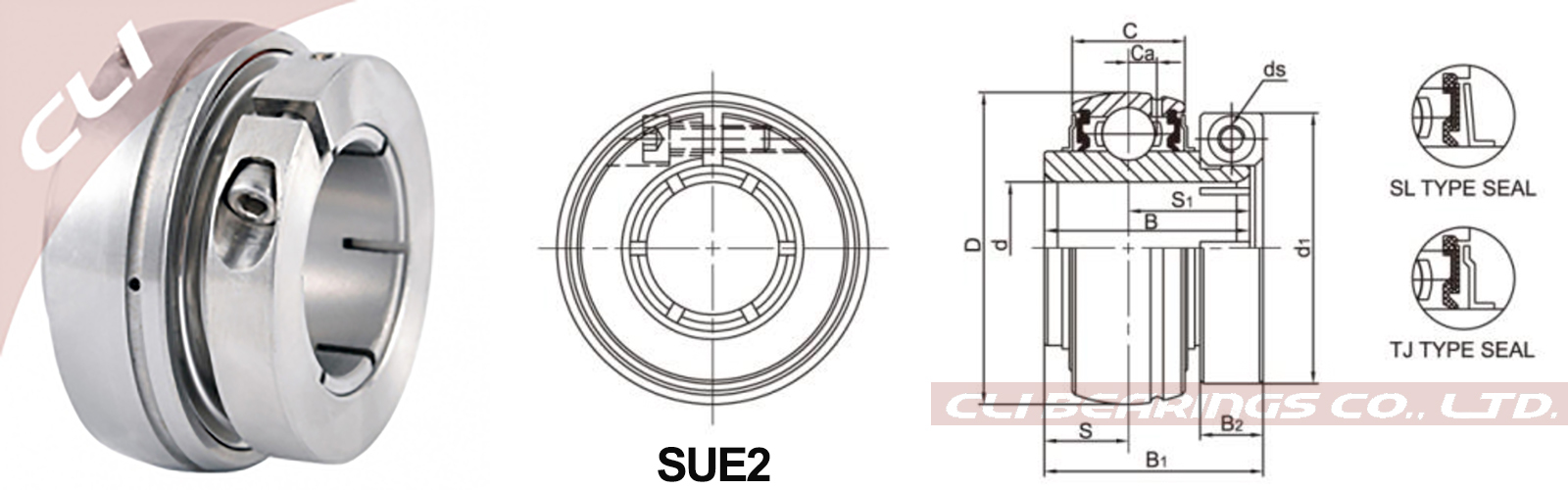

CLI
Bearing No. |
Shaft Dia |
Dimensions
(mm) |
Load rating
( KN )
|
Weight (kg) |
| d |
D |
B |
C |
S |
S1 |
B1 |
B2 |
d1 |
ds |
Ca |
Dynamic |
Static |
| (in) |
(mm) |
Cr |
Cor |
| SUE204 |
|
20 |
47 |
31 |
17 |
12.7 |
18.3 |
33.0 |
9.5 |
40.8 |
M4X0.7 |
4.3 |
12.82 |
6.65 |
0.18 |
| SUE204-12 |
3/4 |
|
47 |
31 |
17 |
12.7 |
18.3 |
33.0 |
9.5 |
40.8 |
M4X0.7 |
4.3 |
0.18 |
| SUE205 |
|
25 |
52 |
34.1 |
17 |
14.3 |
19.8 |
35.4 |
9.5 |
49.0 |
M4X0.7 |
4 |
14.03 |
8.05 |
0.21 |
| SUE205-13 |
13/16 |
|
52 |
34.1 |
17 |
14.3 |
19.8 |
35.4 |
9.5 |
49.0 |
M4X0.7 |
4 |
0.21 |
| SUE205-14 |
7/8 |
|
52 |
34.1 |
17 |
14.3 |
19.8 |
35.4 |
9.5 |
49.0 |
M4X0.7 |
4 |
0.21 |
| SUE205-15 |
15/16 |
|
52 |
34.1 |
17 |
14.3 |
19.8 |
35.4 |
9.5 |
49.0 |
M4X0.7 |
4 |
0.21 |
| SUE205-16 |
1 |
|
52 |
34.1 |
17 |
14.3 |
19.8 |
35.4 |
9.5 |
49.0 |
M4X0.7 |
4 |
0.21 |
| SUE206 |
|
30 |
62 |
38.1 |
19 |
15.9 |
22.2 |
39.8 |
9.5 |
55.5 |
M4X0.7 |
5.3 |
19.47 |
11.43 |
0.33 |
| SUE206-17 |
1-1/16 |
|
62 |
38.1 |
19 |
15.9 |
22.2 |
39.8 |
9.5 |
55.5 |
M4X0.7 |
5.3 |
0.33 |
| SUE206-18 |
1-1/8 |
|
62 |
38.1 |
19 |
15.9 |
22.2 |
39.8 |
9.5 |
55.5 |
M4X0.7 |
5.3 |
0.33 |
| SUE206-19 |
1-3/16 |
|
62 |
38.1 |
19 |
15.9 |
22.2 |
39.8 |
9.5 |
55.5 |
M4X0.7 |
5.3 |
0.33 |
| SUE206-20 |
1-1/4 |
|
62 |
38.1 |
19 |
15.9 |
22.2 |
39.8 |
9.5 |
55.5 |
M4X0.7 |
5.3 |
0.33 |
| SUE207 |
|
35 |
72 |
42.9 |
20 |
17.5 |
25.4 |
43.9 |
11.0 |
64.0 |
M5x0.8 |
5.8 |
25.69 |
15.55 |
0.51 |
| SUE207-20 |
1-1/4 |
|
72 |
42.9 |
20 |
17.5 |
25.4 |
43.9 |
11.0 |
64.0 |
M5x0.8 |
5.8 |
0.51 |
| SUE207-21 |
1-5/16 |
|
72 |
42.9 |
20 |
17.5 |
25.4 |
43.9 |
11.0 |
64.0 |
M5x0.8 |
5.8 |
0.51 |
| SUE207-22 |
1-3/8 |
|
72 |
42.9 |
20 |
17.5 |
25.4 |
43.9 |
11.0 |
64.0 |
M5x0.8 |
5.8 |
0.51 |
| SUE207-23 |
1-7/16 |
|
72 |
42.9 |
20 |
17.5 |
25.4 |
43.9 |
11.0 |
64.0 |
M5x0.8 |
5.8 |
0.51 |
| SUE208 |
|
40 |
80 |
49.2 |
21 |
19.0 |
30.2 |
50.2 |
11.0 |
68.0 |
M5X0.8 |
6.2 |
29.51 |
18.14 |
0.68 |
| SUE208-24 |
1-1/2 |
|
80 |
49.2 |
21 |
19.0 |
30.2 |
50.2 |
11.0 |
68.0 |
M5X0.8 |
6.2 |
0.68 |
| SUE208-25 |
1-9/16 |
|
80 |
49.2 |
21 |
19.0 |
30.2 |
50.2 |
11.0 |
68.0 |
M5X0.8 |
6.2 |
0.68 |
| SUE209 |
|
45 |
85 |
49.2 |
22 |
19.0 |
30.2 |
50.2 |
11.0 |
74.0 |
M5X0.8 |
6.5 |
31.85 |
20.8 |
0.78 |
| SUE209-26 |
1-5/8 |
|
85 |
49.2 |
22 |
19.0 |
30.2 |
50.2 |
11.0 |
74.0 |
M5X0.8 |
6.5 |
0.78 |
| SUE209-27 |
1-11/16 |
|
85 |
49.2 |
22 |
19.0 |
30.2 |
50.2 |
11.0 |
74.0 |
M5X0.8 |
6.5 |
0.78 |
| SUE209-28 |
1-3/4 |
|
85 |
49.2 |
22 |
19.0 |
30.2 |
50.2 |
11.0 |
74.0 |
M5X0.8 |
6.5 |
0.78 |
| SUE210 |
|
50 |
90 |
51.6 |
24 |
19.0 |
32.6 |
52.6 |
14.5 |
81.0 |
M6x1 |
7 |
34.99 |
23.7 |
0.85 |
| SUE210-30 |
1-7/8 |
|
90 |
51.6 |
24 |
19.0 |
32.6 |
52.6 |
14.5 |
81.0 |
M6x1 |
7 |
0.85 |
| SUE210-31 |
1-15/16 |
|
90 |
51.6 |
24 |
19.0 |
32.6 |
52.6 |
14.5 |
81.0 |
M6x1 |
7 |
0.85 |
| SUE210-32 |
2 |
|
90 |
51.6 |
24 |
19.0 |
32.6 |
52.6 |
14.5 |
81.0 |
M6x1 |
7 |
0.85 |
| SUE211 |
|
55 |
100 |
55.6 |
25 |
22.2 |
33.4 |
56.6 |
14.5 |
92.0 |
M6x1 |
7.4 |
43.34 |
29.39 |
1.16 |
| SUE211-32 |
2 |
|
100 |
55.6 |
25 |
22.2 |
33.4 |
56.6 |
14.5 |
92.0 |
M6x1 |
7.4 |
1.16 |
| SUE211-33 |
2-1/16 |
|
100 |
55.6 |
25 |
22.2 |
33.4 |
56.6 |
14.5 |
92.0 |
M6x1 |
7.4 |
1.16 |
| SUE211-34 |
2-1/8 |
|
100 |
55.6 |
25 |
22.2 |
33.4 |
56.6 |
14.5 |
92.0 |
M6x1 |
7.4 |
1.16 |
| SUE211-35 |
2-3/16 |
|
100 |
55.6 |
25 |
22.2 |
33.4 |
56.6 |
14.5 |
92.0 |
M6x1 |
7.4 |
1.16 |
| SUE212 |
|
60 |
110 |
65.1 |
27 |
25.4 |
39.7 |
66.6 |
17.5 |
103.0 |
M8x1.25 |
7.6 |
47.68 |
33.43 |
1.59 |
| SUE212-36 |
2-1/4 |
|
110 |
65.1 |
27 |
25.4 |
39.7 |
66.6 |
17.5 |
103.0 |
M8x1.25 |
7.6 |
1.59 |
| SUE212-37 |
2-5/16 |
|
110 |
65.1 |
27 |
25.4 |
39.7 |
66.6 |
17.5 |
103.0 |
M8x1.25 |
7.6 |
1.59 |
| SUE212-38 |
2-3/8 |
|
110 |
65.1 |
27 |
25.4 |
39.7 |
66.6 |
17.5 |
103.0 |
M8x1.25 |
7.6 |
1.59 |
| SUE212-39 |
2-7/16 |
|
110 |
65.1 |
27 |
25.4 |
39.7 |
66.6 |
17.5 |
103.0 |
M8x1.25 |
7.6 |
1.59 |
|
| |
| |
| |
