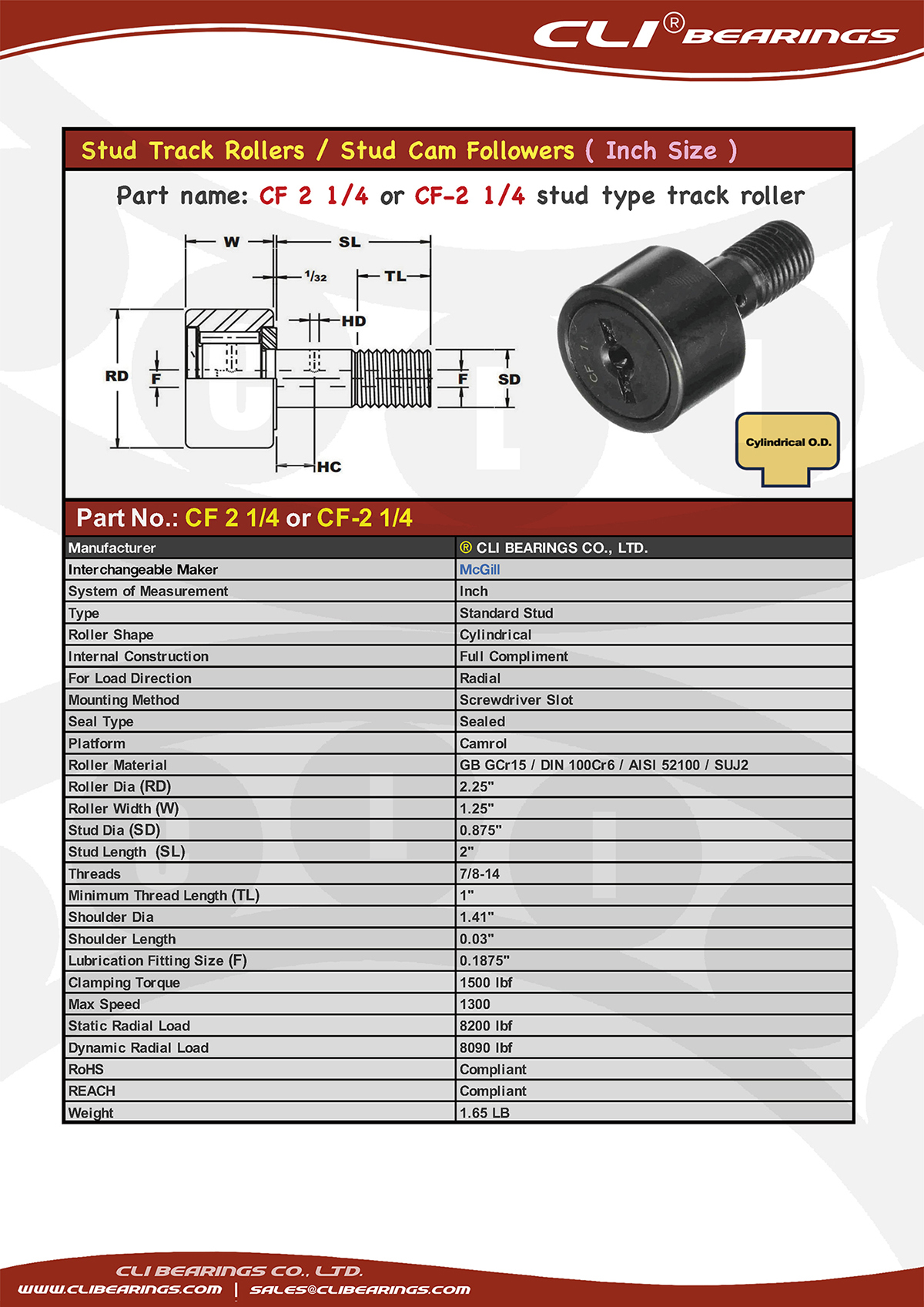

| Part No.: CF 2 1/4 or CF-2 1/4 | |
 |
|
| Manufacturer | ® CLI BEARINGS CO., LTD. |
| Interchangeable Maker | McGill |
| System of Measurement | Inch |
| Type | Standard Stud |
| Roller Shape | Cylindrical |
| Internal Construction | Full Compliment |
| For Load Direction | Radial |
| Mounting Method | Screwdriver Slot |
| Seal Type | Sealed |
| Platform | Camrol |
| Roller Material | GB GCr15 / DIN 100Cr6 / AISI 52100 / SUJ2 |
| Roller Dia (RD) | 2.25" |
| Roller Width (W) | 1.25" |
| Stud Dia (SD) | 0.875" |
| Stud Length (SL) | 2" |
| Threads | 7/8-14 |
| Minimum Thread Length (TL) | 1" |
| Shoulder Dia | 1.41" |
| Shoulder Length | 0.03" |
| Lubrication Fitting Size (F) | 0.1875" |
| Clamping Torque | 1500 lbf |
| Max Speed | 1300 |
| Static Radial Load | 8200 lbf |
| Dynamic Radial Load | 8090 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.65 LB |
