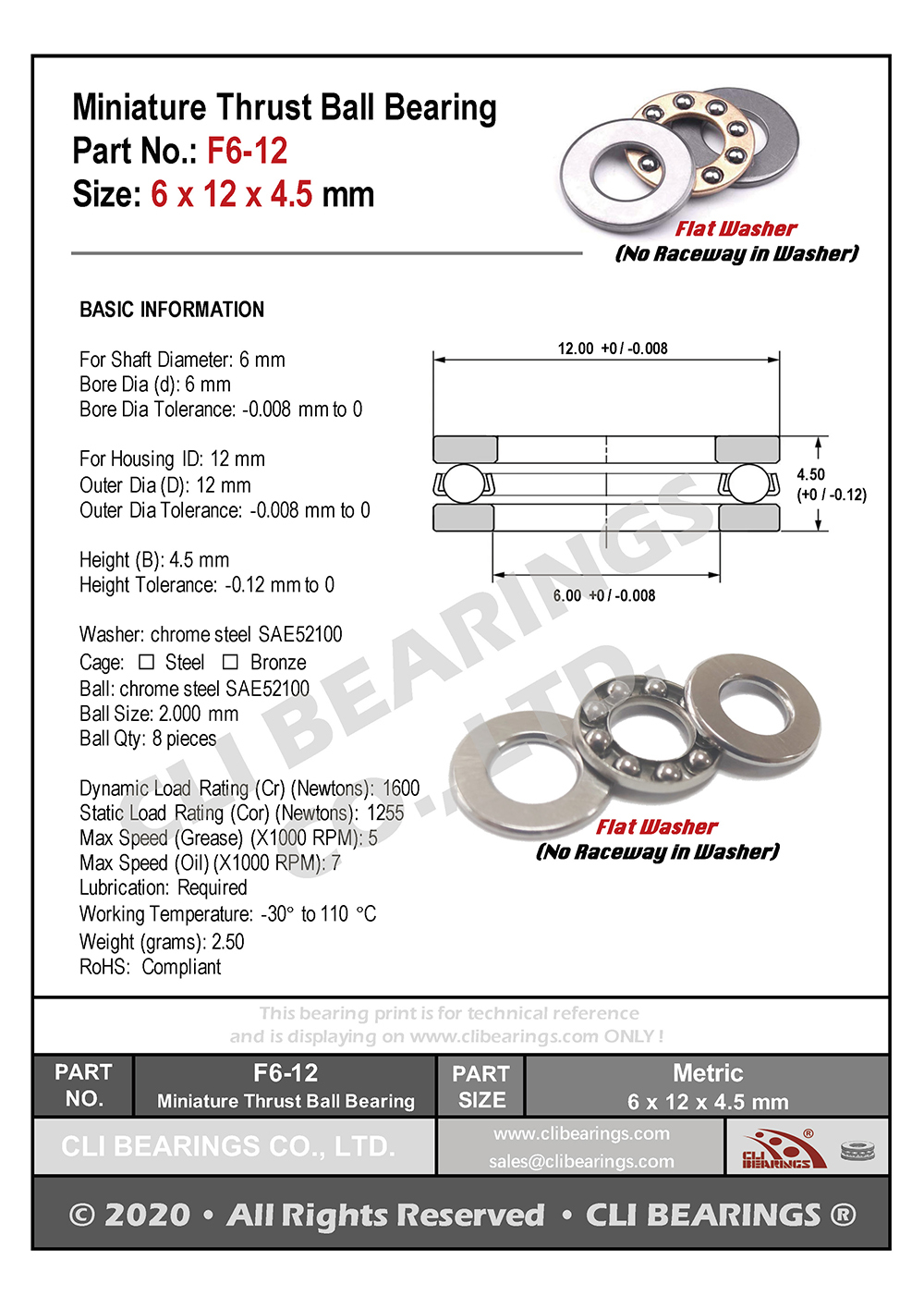

Ball Bearings-Miniature Ball Bearings-Miniature thrust ball bearings with FLAT WASHER, Chrome Steel AISI52100, METRIC sizes - F6-12 miniature thrust ball bearing 6x12x4.5mm

 Part No.: F6-12
 Standards  Metric Size
 Bearing Type  Miniature Thrust Ball Bearing
 For Load Direction  Thrust
 Seal Type  Open
 Flat Washer / Grooved Wahser  Flat washer (No raceway in washer)
 For Shaft Diameter  6 mm
 Bore Dia (d)  6 mm
 Bore Dia Tolerance  -0.008 mm to 0
 For Housing ID  12
 Outer Dia (D)  12
 Outer Dia Tolerance  -0.008 mm to 0
 Height  4.5
 Height Tolerance  -0.12 mm to 0
 Washer Material  52100 Chrome steel
 Ball Material  52100 Chrome steel
 Cage Material  Bronze / Steel
 Dynamic Load Rating (Cr) (Newtons)  1600
 Static Load Rating (Cor) (Newtons)  1255
 Max Speed (Grease) (X1000 RPM)  5
 Max Speed (Oil) (X1000 RPM)   7
 Lubrication  Required
 Temperature Range  -30°C to 110 °C
 RoHS  Compliant
 Ball Qty (pcs)  8
 Ball Dia  2.000 mm
 Weight (grams)  2.5
 Brand  Neutral / CLI
