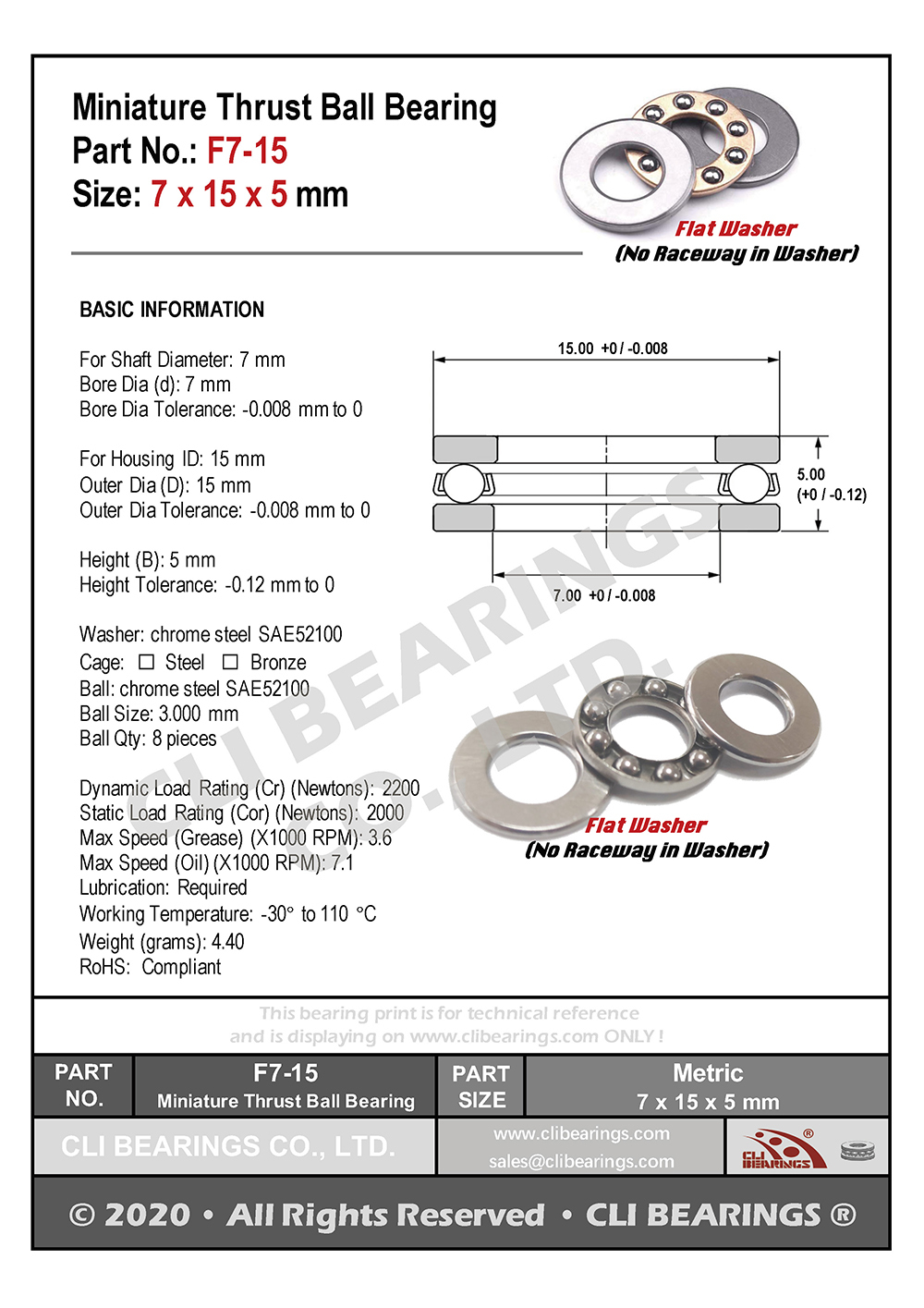

Ball Bearings-Miniature Ball Bearings-Miniature thrust ball bearings with FLAT WASHER, Chrome Steel AISI52100, METRIC sizes - F7-15 miniature thrust ball bearing 7x15x5mm

 Part No.: F7-15
 Standards  Metric Size
 Bearing Type  Miniature Thrust Ball Bearing
 For Load Direction  Thrust
 Seal Type  Open
 Flat Washer / Grooved Wahser  Flat washer (No raceway in washer)
 For Shaft Diameter  7 mm
 Bore Dia (d)  7 mm
 Bore Dia Tolerance  -0.008 mm to 0
 For Housing ID  15 mm
 Outer Dia (D)  15 mm
 Outer Dia Tolerance  -0.008 mm to 0
 Height  5 mm
 Height Tolerance  -0.12 mm to 0
 Washer Material  52100 Chrome steel
 Ball Material  52100 Chrome steel
 Cage Material  Bronze / Steel
 Dynamic Load Rating (Cr) (Newtons) 2200
 Static Load Rating (Cor) (Newtons)  2000
 Max Speed (Grease) (X1000 RPM)  3.6
 Max Speed (Oil) (X1000 RPM)   7.1
 Lubrication  Required
 Temperature Range  -30°C to 110 °C
 RoHS  Compliant
 Ball Qty (pcs)  8
 Ball Dia  3 mm
 Weight (grams)  4.4
 Brand  Neutral / CLI
