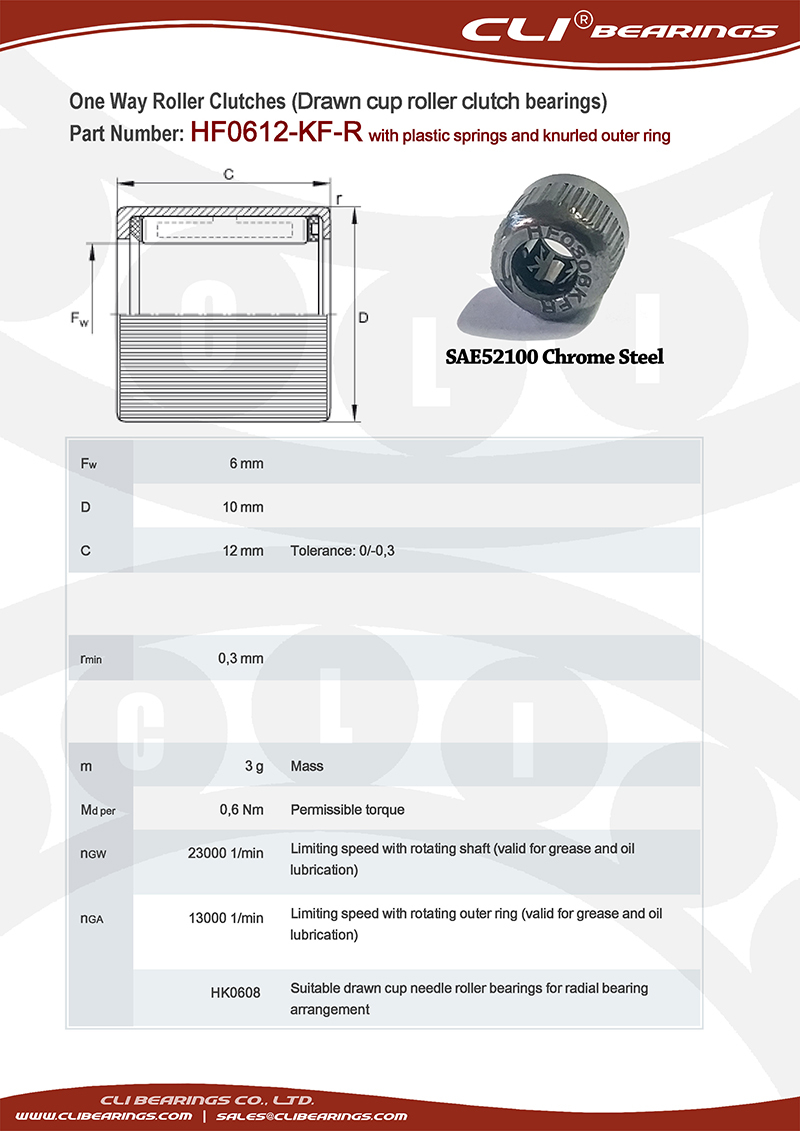

Roller Bearings-One-Way Roller Clutch (Bearings)-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF0612-KF-R

 Part No.: HF0612-KF-R
 Standards  Metric Size
 Bearing Type  One-Way Clutch
 Construction  Single Row
 Seal Type  Open
 System of Measurement  Metric
 For Shaft Diameter  6 mm
 Bore Dia (d)  6 mm
 For Housing ID  10 mm
 Outer Dia (D)  10 mm
 Width (B)  12 mm
 Ring Material  Steel
 Needle Material  Steel
 Cage Material  Steel
 Spring Material  Plastic
 Knurledy  Yes
 Md per  0,6 Nm
 nGW  23000 1/min
 nGA  13000 1/min
 Lubrication  Lubricated
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 RoHS  Compliant
 Brand  CLI
Original hf0612 kfr 6x10x12 mm one way roller clutch bearing with plastic springs and knurled outer ring   cli bearings co ltd nw
