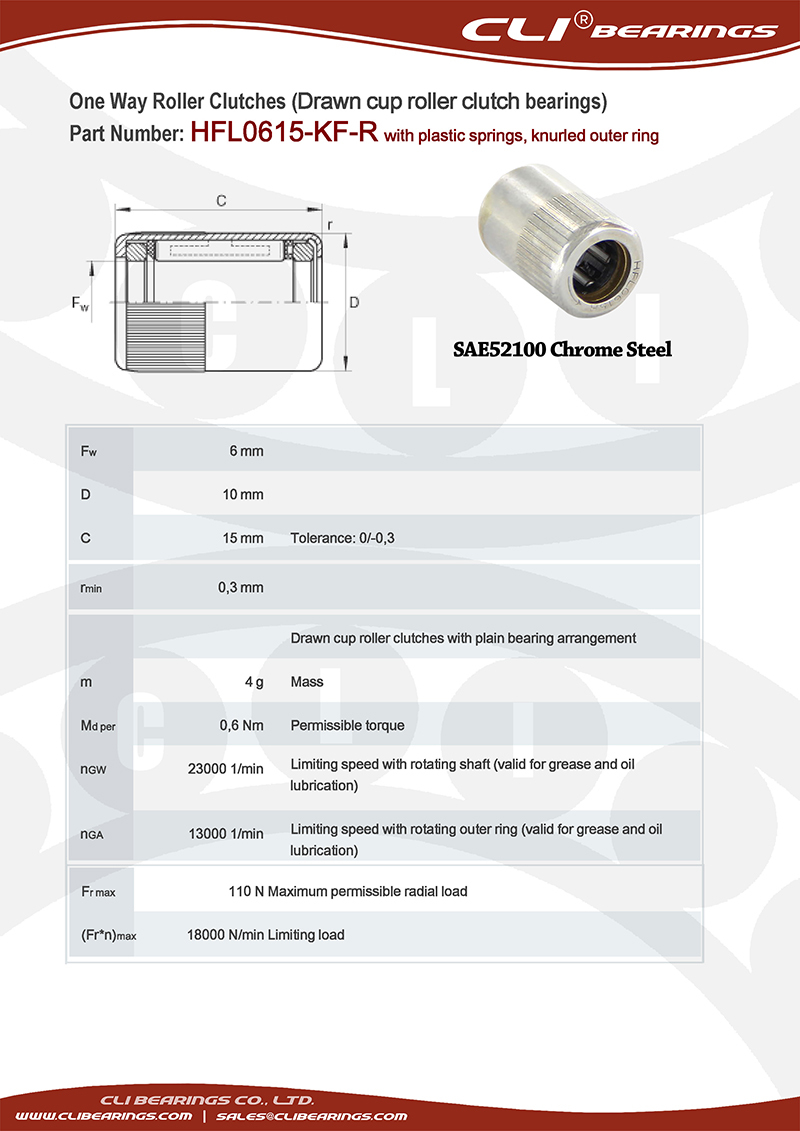

Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL0615-KF-R

 Part No.: HFL0615-KF-R
 Standards  Metric Size
 Bearing Type  One-way Clutch
 Seal Type  Open
 Construction  Triple Row
 For Housing ID  10 mm
 For Shaft Diameter  6 mm
 Bore Dia  6 mm
 Outer Dia  10 mm
 Width  15 mm
 Ring Material  Steel
 Cage Material  Steel
 Needle Material  Steel
 Spring Material  Plastic
 MAX SPEED(RPM)  23000
 nGA  13000 1/min
 Lubrication  Lubricated
 RoHS  Compliant
 Knurledy  Yes
 Shaft Mount Type  Press Fit
 Temperature Range  -30° to 110 °C
 Weight  4
 Torque Capacity  0.6 Nm
 Brand  Neutral / CLI
Original hfl0615 kfr 6x10x15 mm one way roller clutch bearing with plastic springs and knurled outer ring   cli bearings co ltd nw
