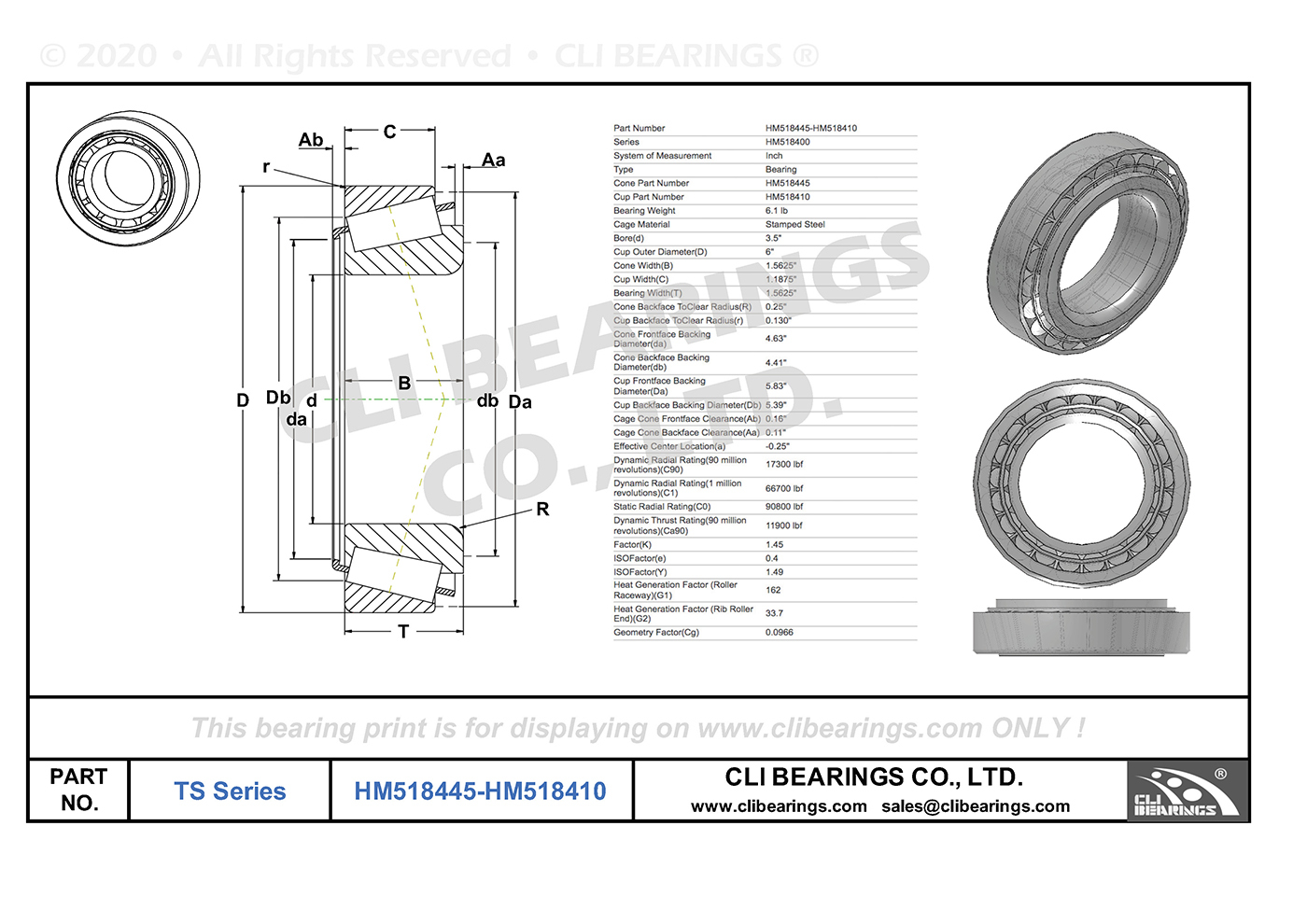

| Part No: HM518445-HM518410 | |
| Standard Measurement | Inch |
| Cone Part Number | HM518445 |
| Cup Part Number | HM518410 |
| Bearing Weight | 6.1 lb |
| Cage Material | Stamped Steel |
| Bore(d) | 3.5" |
| Cup Outer Diameter(D) | 6" |
| Cone Width(B) | 1.5625" |
| Cup Width(C) | 1.1875" |
| Bearing Width(T) | 1.5625" |
| Cone Backface ToClear Radius(R) | 0.25" |
| Cup Backface ToClear Radius(r) | 0.130" |
| Cone Frontface Backing Diameter(da) | 4.63" |
| Cone Backface Backing Diameter(db) | 4.41" |
| Cup Frontface Backing Diameter(Da) | 5.83" |
| Cup Backface Backing Diameter(Db) | 5.39" |
| Cage Cone Frontface Clearance(Ab) | 0.16" |
| Cage Cone Backface Clearance(Aa) | 0.11" |
| Effective Center Location(a) | -0.25" |
| Dynamic Radial Rating (90 million revolutions)(C90) |
17300 lbf |
| Dynamic Radial Rating (1 million revolutions)(C1) |
66700 lbf |
| Static Radial Rating(C0) | 90800 lbf |
| Dynamic Thrust Rating (90 million revolutions)(Ca90) |
11900 lbf |
| Factor(K) | 1.45 |
| ISOFactor(e) | 0.4 |
| ISOFactor(Y) | 1.49 |
| Heat Generation Factor (Roller Raceway)(G1) | 162 |
| Heat Generation Factor (Rib Roller End)(G2) | 33.7 |
| Geometry Factor(Cg) | 0.0966 |
| Brand | Neutral / CLI |
