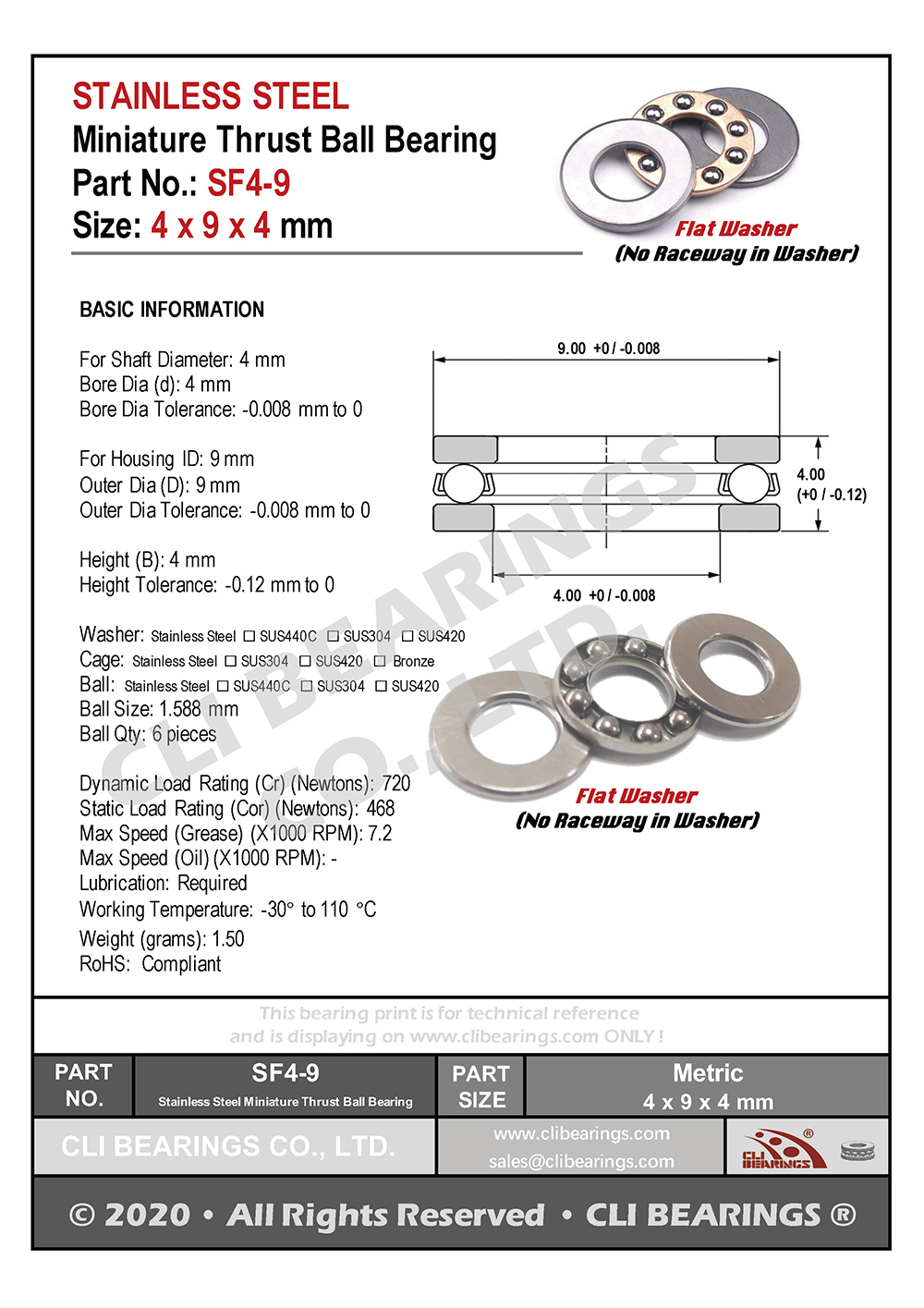

Ball Bearings-Miniature Ball Bearings-STAINLESS STEEL miniature thrust ball bearings, SUS440C/SUS304/SUS420, METRIC size- SF4-9 STAINLESS STEEL miniature thrust ball bearing 4x9x4mm

 Part No.: SF4-9
 Standards  Metric Size
 Bearing Type  Miniature Thrust Ball Bearing
 For Load Direction  Thrust
 Seal Type  Open
 Washer Type  Flat washer (No raceway in washer)
 Bore Dia  4 mm
 Bore Dia Tolerance  -0.008 mm to 0
 Outer Dia  9 mm
 Outer Dia Tolerance  -0.008 mm to 0
 Housing Washer ID  4.2 mm
 Shaft Washer OD  8.8 mm
 Height  4 mm
 Height Tolerance  -0.12 mm to 0
 Washer Material  440C Stainless Steel
 Ball Material  440C Stainless Steel
 Retainer Material  Bronze / Stainless Steel
 Dynamic Thrust Load  720 N
 Static Thrust Load  468 N
 Max Speed (X1000 rpm)  7.2
 Lubrication  Required
 Working Temperature  -30°C to 110 °C
 RoHS  Compliant
 REACH  Compliant
 Ball Dia  1.588 mm
 Ball Qty (pieces)  6
 Weight  1.5 g
 Brand  Neutral / CLI
