Ball Bearings-Miniature Ball Bearings-Miniature thrust ball bearings with FLAT WASHER, Chrome Steel AISI52100, METRIC sizes

Original miniature thrust ball bearings 402
Product Picture

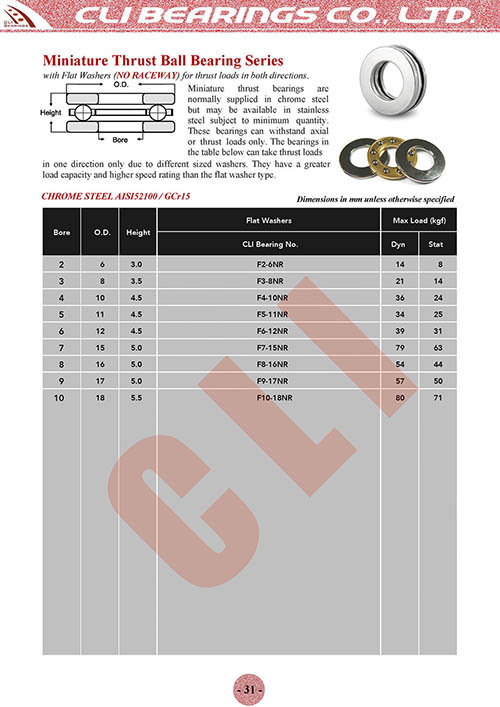

Original 7 miniature thrust ball bearings with flat washers nw
Download PDF Catalogue

Miniature thrust ball bearings with FLAT WASHER,
(
No RACEWAY)
CHROME STEEL AISI52100,
METRIC sizes





CLI thrust miniature ball bearings have flat washers of equal size unlike the alternative designation which have grooved washers. They are designed for low speed applications as the washers do not have a raceway. In addition, the load capacity is much lower than thrust bearings with grooved washers. These flat washer thrust bearings are usually supplied with a brass cage .

Chrome steel thrust bearings, with a brass retainer and a suitable lubricant, can be used at temperatures of 120°C constant or up to 150°C intermittent. Above these temperatures, the load capacity of chrome steel is reduced. These thrust bearings are not suitable for use in corrosive environments as the chrome steel washers and balls are not corrosion resistant.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

 BEARING LIST & BEARING DETAILS

AISI52100 chrome steel
Miniature thrust  ball bearings with FLAT WASHER for
shaft sizes from
2 mm to 10 mm


Part No. Bore Dia
(Bore)
Outside Dia
(O.D.)
Height Washer Type / Washer Material Cage Material Ball Material Weight (g)
F2-6 2 mm 6 mm 3 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 0.60
F2X-7 2.5 mm 7 mm 3.5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 0.90
F3-8 3 mm 8 mm 3.5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 0.60
F3-8GW 3 mm 8 mm 3.5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 0.90
F4-9 4 mm 9 mm 4 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 1.50
F4-9GW 4 mm 9 mm 4 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 1.20
F4-10 4 mm 10 mm 4 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.00
F4-10GW 4 mm 10 mm 4 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 1.50
F5-10GW 5 mm 10 mm 4 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.10
F5-11 5 mm 11 mm 4.5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.40
F5-11GW 5 mm 11 mm 4.5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.10
F5-12GW 5 mm 12 mm 4 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.10
F6-12 6 mm 12 mm 4.5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.50
F6-12GW 6 mm 12 mm 4.5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.20
F6-13GW 6 mm 13 mm 5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.20
F6-14GW 6 mm 14 mm 5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 3.50
F7-13GW 7 mm 13 mm 4.5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 2.60
F7-15 7 mm 15 mm 5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 4.40
F7-15GW 7 mm 15 mm 5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 6.50
F7-17GW 7 mm 17 mm 6 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 6.50
F8-16 8 mm 16 mm 5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 5.00
F8-16GW 8 mm 16 mm 5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 4.50
F8-19GW 8 mm 19 mm 7 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 9.10
F9-17 9 mm 17 mm 5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 5.10
F9-20GW 9 mm 20 mm 7 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 9.90
F10-18 10 mm 18 mm 5.5 mm Flat Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 6.00
F10-18GW 10 mm 18 mm 5.5 mm Grooved Washer Chrome steel 52100 Bronze / Steel Chrome steel 52100 5.40
