Drawn cup needle roller bearings
HK / HK-RS / HK-2RS / HK-TN with OPEN end,
chrome steel AISI52100, METRIC sizes

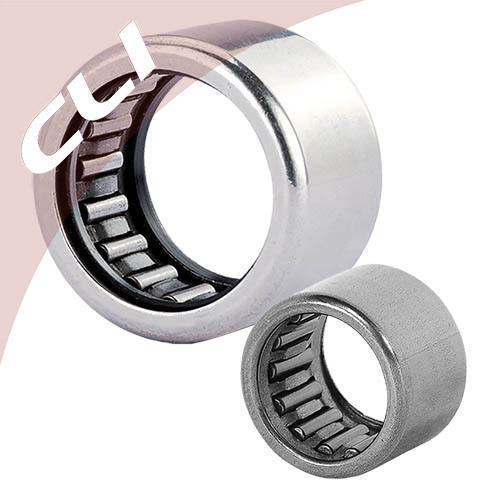

HK drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with OPEN ends. They are characterized by a very low sectional height and high load carrying capacity.

HK drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
3 mm to 60 mm

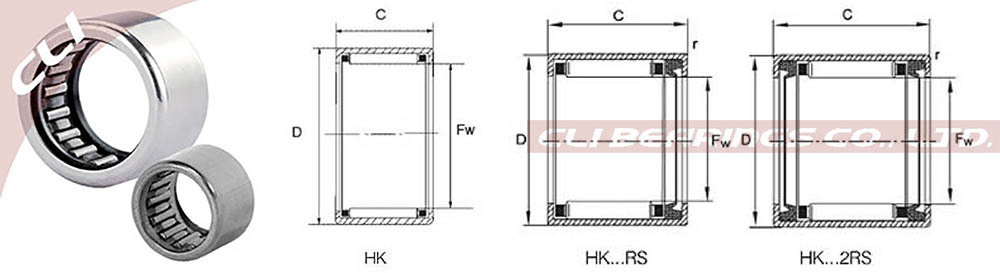

CLI Mesurement End Bore Dia Outside Dia Width Ring Roller Retainer Weight
Part Number Unit Type Fw D C Material Material Material (g)
HK0205TN HK0205-TV Open End 2 mm 4.6 mm 5 mm Steel Steel PA66 0.3
HK0306TN HK0306-TV Open End 3 mm 6.5 mm 6 mm Steel Steel PA66 1.0
HK0408 Metric Open End 4 mm 8 mm 8 mm Steel Steel Steel 1.5
HK0509 Metric Open End 5 mm 9 mm 9 mm Steel Steel Steel 2.0
HK0606 Metric Open End 6 mm 10 mm 6 mm Steel Steel Steel 1.5
HK0608 Metric Open End 6 mm 10 mm 8 mm Steel Steel Steel 2.1
HK0609 Metric Open End 6 mm 10 mm 9 mm Steel Steel Steel 2.5
HK0709 Metric Open End 7 mm 11 mm 9 mm Steel Steel Steel 2.6
HK0808 Metric Open End 8 mm 12 mm 8 mm Steel Steel Steel 2.7
HK0810 Metric Open End 8 mm 12 mm 10 mm Steel Steel Steel 3.0
HK0810-RS Metric Open End 8 mm 12 mm 10 mm Steel Steel Steel 3.0
HK0810-2RS Metric Open End 8 mm 12 mm 10 mm Steel Steel Steel 3.2
HK0812-RS Metric Open End 8 mm 12 mm 12 mm Steel Steel Steel 3.1
HK0812-2RS Metric Open End 8 mm 12 mm 12 mm Steel Steel Steel 3.3
HK0908 Metric Open End 9 mm 13 mm 8 mm Steel Steel Steel 3.0
HK0910 Metric Open End 9 mm 13 mm 10 mm Steel Steel Steel 4.0
HK0912 Metric Open End 9 mm 13 mm 12 mm Steel Steel Steel 4.6
HK1010 Metric Open End 10 mm 14 mm 10 mm Steel Steel Steel 4.1
HK1012 Metric Open End 10 mm 14 mm 12 mm Steel Steel Steel 4.8
HK1012-RS Metric Open End 10 mm 14 mm 12 mm Steel Steel Steel 4.2
HK1012-2RS Metric Open End 10 mm 14 mm 12 mm Steel Steel Steel 4.3
HK1014-2RS Metric Open End 10 mm 14 mm 14 mm Steel Steel Steel 4.6
HK1015 Metric Open End 10 mm 14 mm 15 mm Steel Steel Steel 6.0
HK1210 Metric Open End 12 mm 16 mm 10 mm Steel Steel Steel 4.6
HK1212 Metric Open End 12 mm 18 mm 12 mm Steel Steel Steel 9.0
HK1214-RS Metric Open End 12 mm 18 mm 14 mm Steel Steel Steel 10.0
HK1214-2RS Metric Open End 12 mm 16 mm 14 mm Steel Steel Steel 11.0
HK1216 Metric Open End 12 mm 18 mm 16 mm Steel Steel Steel 13.0
HK1216-2RS Metric Open End 12 mm 18 mm 16 mm Steel Steel Steel 11.0
HK1312 Metric Open End 13 mm 19 mm 12 mm Steel Steel Steel 10.0
HK1412 Metric Open End 14 mm 20 mm 12 mm Steel Steel Steel 10.5
HK1414-RS Metric Open End 14 mm 20 mm 14 mm Steel Steel Steel 12.0
HK1416-2RS Metric Open End 14 mm 20 mm 16 mm Steel Steel Steel 13.0
HK1512 Metric Open End 15 mm 21 mm 12 mm Steel Steel Steel 11.0
HK1514-RS Metric Open End 15 mm 21 mm 14 mm Steel Steel Steel 12.0
HK1516 Metric Open End 15 mm 21 mm 16 mm Steel Steel Steel 15.0
HK1516-2RS Metric Open End 15 mm 21 mm 16 mm Steel Steel Steel 15.0
HK1518-RS Metric Open End 15 mm 21 mm 18 mm Steel Steel Steel 16.0
HK1520-2RS Metric Open End 15 mm 21 mm 20 mm Steel Steel Steel 18.0
HK1522 HK1522-ZW Open End 15 mm 21 mm 22 mm Steel Steel Steel 20.0
HK1612 Metric Open End 16 mm 22 mm 12 mm Steel Steel Steel 12.0
HK1614-RS Metric Open End 16 mm 22 mm 14 mm Steel Steel Steel 13.0
HK1616 Metric Open End 16 mm 22 mm 16 mm Steel Steel Steel 16.0
HK1616-2RS Metric Open End 16 mm 22 mm 16 mm Steel Steel Steel 14.0
HK1620-2RS Metric Open End 16 mm 22 mm 20 mm Steel Steel Steel 18.0
HK1622 HK1622-ZW Open End 16 mm 22 mm 22 mm Steel Steel Steel 22.0
HK1712 Metric Open End 17 mm 23 mm 12 mm Steel Steel Steel 12.0
HK1812 Metric Open End 18 mm 24 mm 12 mm Steel Steel Steel 13.0
HK1814-RS Metric Open End 18 mm 24 mm 14 mm Steel Steel Steel 14.0
HK1816 Metric Open End 18 mm 24 mm 16 mm Steel Steel Steel 18.0
HK1816-2RS Metric Open End 18 mm 24 mm 16 mm Steel Steel Steel 15.0
HK2010 Metric Open End 20 mm 26 mm 10 mm Steel Steel Steel 12.0
HK2012 Metric Open End 20 mm 26 mm 12 mm Steel Steel Steel 14.0
HK2016 Metric Open End 20 mm 26 mm 16 mm Steel Steel Steel 19.0
HK2016-2RS Metric Open End 26 mm 26 mm 16 mm Steel Steel Steel 18.0
HK2018-RS Metric Open End 20 mm 26 mm 18 mm Steel Steel Steel 21.0
HK2020 Metric Open End 20 mm 26 mm 20 mm Steel Steel Steel 24.0
HK2020-2RS Metric Open End 20 mm 26 mm 20 mm Steel Steel Steel 23.0
HK2030 HK2030-ZW Open End 20 mm 26 mm 30 mm Steel Steel Steel 35.0
HK2210 Metric Open End 22 mm 28 mm 10 mm Steel Steel Steel 13.0
HK2212 Metric Open End 22 mm 28 mm 12 mm Steel Steel Steel 15.0
HK2214-RS Metric Open End 22 mm 28 mm 14 mm Steel Steel Steel 16.0
HK2216 Metric Open End 22 mm 28 mm 16 mm Steel Steel Steel 21.0
HK2216-2RS Metric Open End 22 mm 28 mm 16 mm Steel Steel Steel 18.0
HK2218-RS Metric Open End 22 mm 28 mm 18 mm Steel Steel Steel 24.0
HK2220 Metric Open End 22 mm 28 mm 20 mm Steel Steel Steel 26.0
HK2220-2RS Metric Open End 22 mm 28 mm 20 mm Steel Steel Steel 26.0
HK2512 Metric Open End 25 mm 32 mm 12 mm Steel Steel Steel 20.0
HK2516 Metric Open End 25 mm 32 mm 16 mm Steel Steel Steel 27.0
HK2516-2RS Metric Open End 25 mm 32 mm 16 mm Steel Steel Steel 27.0
HK2518-RS Metric Open End 25 mm 32 mm 18 mm Steel Steel Steel 29.0
HK2520 Metric Open End 25 mm 32 mm 20 mm Steel Steel Steel 33.0
HK2520-2RS Metric Open End 25 mm 32 mm 20 mm Steel Steel Steel 31.0
HK2524-2RS Metric Open End 25 mm 32 mm 24 mm Steel Steel Steel 40.0
HK2526 Metric Open End 25 mm 32 mm 26 mm Steel Steel Steel 44.0
HK2530-2RS Metric Open End 25 mm 32 mm 30 mm Steel Steel Steel 47.0
HK2538 HK2538-ZW Open End 25 mm 32 mm 38 mm Steel Steel Steel 64.0
HK2816 Metric Open End 28 mm 35 mm 16 mm Steel Steel Steel 29.0
HK2818-RS Metric Open End 28 mm 35 mm 18 mm Steel Steel Steel 31.0
HK2820 Metric Open End 28 mm 35 mm 20 mm Steel Steel Steel 36.0
HK2820-2RS Metric Open End 28 mm 35 mm 20 mm Steel Steel Steel 34.0
HK3012 Metric Open End 30 mm 37 mm 12 mm Steel Steel Steel 23.0
HK3016 Metric Open End 30 mm 37 mm 16 mm Steel Steel Steel 31.0
HK3016-2RS Metric Open End 30 mm 37 mm 16 mm Steel Steel Steel 31.0
HK3018-RS Metric Open End 30 mm 37 mm 18 mm Steel Steel Steel 37.0
HK3020 Metric Open End 30 mm 37 mm 20 mm Steel Steel Steel 39.0
HK3020-2RS Metric Open End 30 mm 37 mm 20 mm Steel Steel Steel 36.0
HK3022 Metric Open End 30 mm 37 mm 22 mm Steel Steel Steel 42.0
HK3024-2RS Metric Open End 30 mm 37 mm 24 mm Steel Steel Steel 44.0
HK3026 Metric Open End 30 mm 37 mm 26 mm Steel Steel Steel 51.0
HK3038 HK3038-ZW Open End 30 mm 37 mm 38 mm Steel Steel Steel 76.0
HK3220 Metric Open End 32 mm 39 mm 20 mm Steel Steel Steel 40.6
HK3224 Metric Open End 32 mm 39 mm 24 mm Steel Steel Steel 49.0
HK3512 Metric Open End 35 mm 42 mm 12 mm Steel Steel Steel 27.0
HK3516 Metric Open End 35 mm 42 mm 16 mm Steel Steel Steel 36.0
HK3516-2RS Metric Open End 35 mm 42 mm 16 mm Steel Steel Steel 32.0
HK3518-RS Metric Open End 35 mm 42 mm 18 mm Steel Steel Steel 39.0
HK3520 Metric Open End 35 mm 42 mm 20 mm Steel Steel Steel 44.0
HK3520-2RS Metric Open End 35 mm 42 mm 20 mm Steel Steel Steel 41.0
HK4012 Metric Open End 40 mm 47 mm 12 mm Steel Steel Steel 30.0
HK4016 Metric Open End 40 mm 47 mm 16 mm Steel Steel Steel 39.0
HK4016-2RS Metric Open End 40 mm 47 mm 16 mm Steel Steel Steel 37.0
HK4018-RS Metric Open End 40 mm 47 mm 18 mm Steel Steel Steel 45.0
HK4020 Metric Open End 40 mm 47 mm 20 mm Steel Steel Steel 54.0
HK4020-2RS Metric Open End 40 mm 47 mm 20 mm Steel Steel Steel 48.0
HK4512 Metric Open End 45 mm 52 mm 12 mm Steel Steel Steel 33.0
HK4516 Metric Open End 45 mm 52 mm 16 mm Steel Steel Steel 46.0
HK4518-RS Metric Open End 45 mm 52 mm 18 mm Steel Steel Steel 50.0
HK4520 Metric Open End 45 mm 52 mm 20 mm Steel Steel Steel 56.0
HK4520-2RS Metric Open End 45 mm 52 mm 20 mm Steel Steel Steel 54.0
HK5020 Metric Open End 50 mm 58 mm 20 mm Steel Steel Steel 70.0
HK5022-RS Metric Open End 50 mm 58 mm 22 mm Steel Steel Steel 76.0
HK5024-2RS Metric Open End 50 mm 58 mm 24 mm Steel Steel Steel 81.0
HK5025 Metric Open End 50 mm 58 mm 25 mm Steel Steel Steel 90.0
HK5520 Metric Open End 55 mm 63 mm 20 mm Steel Steel Steel 74.0
HK5528 Metric Open End 55 mm 63 mm 28 mm Steel Steel Steel 105.0
HK6012 Metric Open End 60 mm 68 mm 12 mm Steel Steel Steel 49.0
HK6020 Metric Open End 60 mm 68 mm 20 mm Steel Steel Steel 81.0
HK6032 Metric Open End 60 mm 68 mm 32 mm Steel Steel Steel 136.0


* Note: ZW=Double row design, with lubrication hole,
* Note: TN=Cage made from glass fibre reinforced polyamide PA66,
* Note: -2RS=Contact seal on both sides,
* Note: -RS=Contact seal on one side
